Default if your megasquirt only ran on 2 cylinders, what would you check?

for real.


cause mine only fires on one and four. there's fuel on two and three, but no spark (verified via timing light). all four fire on the stock ecu.
DrewLGT is offline   Reply With Quote
Old 05-10-2011, 07:52 PM   #2
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

Is this a new ECU or a new problem on an old ECU? The first thing I would check is the coils. It'd be pretty easy to swap them and see if the problem swapped cylinders or not.
pdexta is offline   Reply With Quote
Old 05-10-2011, 07:54 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by pdexta View Post
Is this a new ECU or a new problem on an old ECU? The first thing I would check is the coils. It'd be pretty easy to swap them and see if the problem swapped cylinders or not.
its a new ECU. since the car runs fine on the stock ECU, i dont think its the coils.
DrewLGT is offline   Reply With Quote
Old 05-10-2011, 08:25 PM   #4
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

details on the ecu, did you build it? did you buy it used?

could be alot of things even software, post up your MSQ and the details on where it came from what options it has ect.
MD323 is offline   Reply With Quote
Old 05-10-2011, 08:38 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by MD323 View Post
details on the ecu, did you build it? did you buy it used?

could be alot of things even software, post up your MSQ and the details on where it came from what options it has ect.


brain built MSII w/launch control, bought it new from Scott. MSQ attached
Attached Files
File Type: msq 2011-04-07_18.36.37.msq (79.1 KB, 110 views)
DrewLGT is offline   Reply With Quote
Old 05-11-2011, 12:09 AM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Switch the coil outputs, so the 1&4 signal fires the 2&3 coils. If it does actually do this, than it is indeed the MS, and not anything between the MS and the coil. Don't always blame the MS.
curly is offline   Reply With Quote
Old 05-11-2011, 02:15 AM   #7
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

One of the transistors that controlled 2 injectors had the legs bridged on my MS. Yeah, it took quite some time to find this.
DSC_0054.jpg?t=1305090889

Also, what Curly said. I swear every time I have my engine out for a significant period of time I route the plug wires incorrectly and spend hours trying to figure out why its only running on 2 cylinders with soaking wet plugs.

Last edited by Bryce; 05-11-2011 at 02:35 AM.
Bryce is offline   Reply With Quote
Old 05-11-2011, 07:49 AM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
Switch the coil outputs, so the 1&4 signal fires the 2&3 coils. If it does actually do this, than it is indeed the MS, and not anything between the MS and the coil. Don't always blame the MS.
I dont understand how this is going to help. I know that the coil will send a spark and fire cylinders 2 and 3 on the stock ECU, and not the MS. How could it NOT be a problem with the megasquirt?
DrewLGT is offline   Reply With Quote
Old 05-11-2011, 07:53 AM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Ah, I must of skipped over that part. Sorry, next time I won't contribute. So all you're doing is unplugging the stock ecu, and plugging in your adapter harness and MS?
curly is offline   Reply With Quote
Old 05-11-2011, 09:26 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

pop the cover and look at the 4 holes next to the word BOOT



follow the wires on IGN1 and IGN2 and tell me where each goes.
Braineack is offline   Reply With Quote
Old 05-11-2011, 10:29 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
pop the cover and look at the 4 holes next to the word BOOT



follow the wires on IGN1 and IGN2 and tell me where each goes.
i have an MS2, and board looks nothing like that. i dont see anything labeled ign
DrewLGT is offline   Reply With Quote
Old 05-11-2011, 11:09 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Take pictures of the top and bottom of your board, especially the prototype area, and post them up.

Have you tried just reflashing firmware and .msq? I've had that clear up strange issues multiple times.
wayne_curr is offline   Reply With Quote
Old 05-11-2011, 11:17 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by wayne_curr View Post
Take pictures of the top and bottom of your board, especially the prototype area, and post them up.

Have you tried just reflashing firmware and .msq? I've had that clear up strange issues multiple times.
yea i upgraded to the newest firmware, and reflashed the msq


how do i get the bottom cover off?
DrewLGT is offline   Reply With Quote
Old 05-11-2011, 11:18 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by curly View Post
Sorry, next time I won't contribute.

i wasnt trying to be a dick. sorry if i came off that way
DrewLGT is offline   Reply With Quote
Old 05-12-2011, 12:53 AM   #15
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

I'm glad you posted this as I'm having the same problem.

I'm running COPS though, with a harness that worked on the old MS1. Even ran temporary dedicated wires to my triggers and no dice...
gospeed81 is offline   Reply With Quote
Old 05-12-2011, 09:47 PM   #16
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by DrewLGT View Post
yea i upgraded to the newest firmware, and reflashed the msq


how do i get the bottom cover off?
Take the little nuts off that are on the serial connectors, remove the bottom screws and slide the board out.
wayne_curr is offline   Reply With Quote
Old 05-12-2011, 10:18 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by wayne_curr View Post
Take the little nuts off that are on the serial connectors, remove the bottom screws and slide the board out.
thanks
DrewLGT is offline   Reply With Quote
Old 05-12-2011, 10:29 PM   #18
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I would check that my double dong wasnt in the runners.


Sorry I am drunkish.
Faeflora is offline   Reply With Quote
Old 05-12-2011, 10:29 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

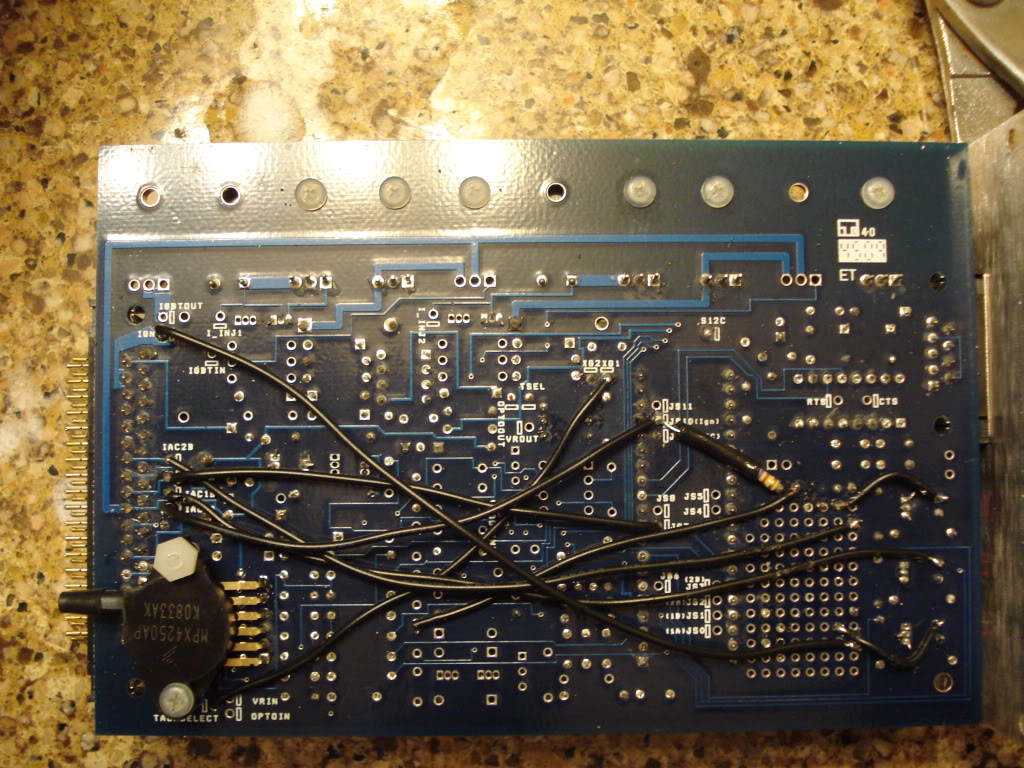

Name:  DSC00718.jpg
Views: 37
Size:  193.5 KB

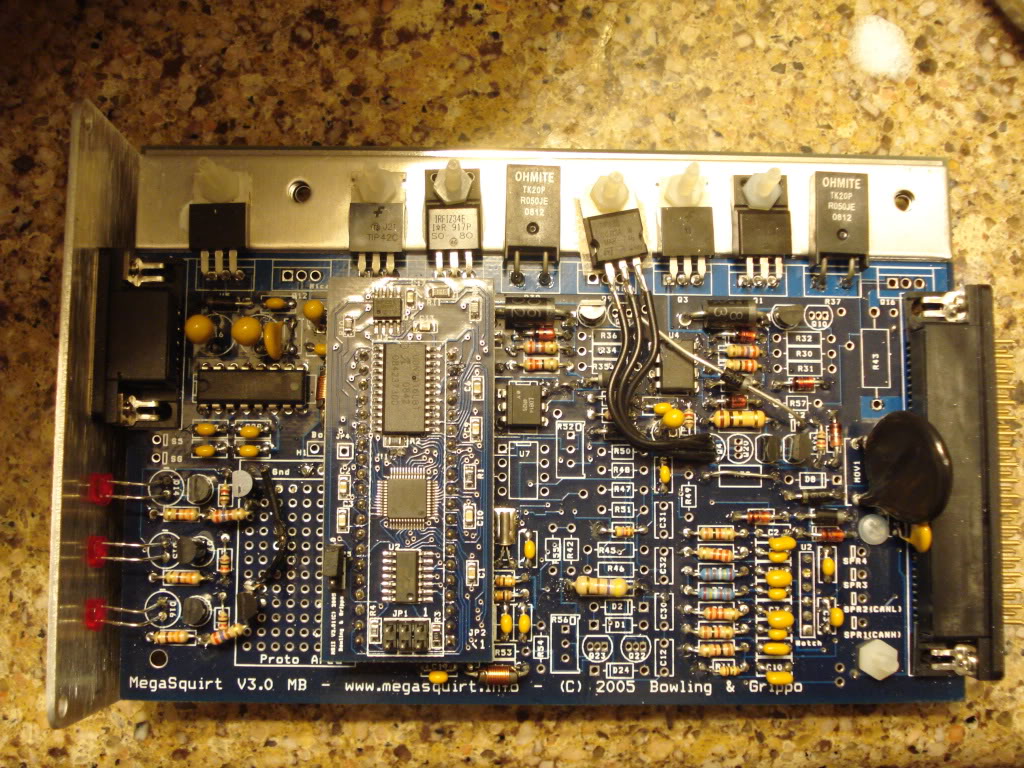

Name:  DSC00716.jpg
Views: 36
Size:  236.5 KB
DrewLGT is offline   Reply With Quote
Old 05-12-2011, 10:31 PM   #20
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Quote:
Originally Posted by Faeflora View Post
I would check that my double dong wasnt in the runners.


Sorry I am drunkish.
my double dong is in my ******* where it belongs.
