if your megasquirt only ran on 2 cylinders, what would you check?

MEGAsquirt A place to collectively sort out this megasquirt gizmo

if your megasquirt only ran on 2 cylinders, what would you check?

Old 05-13-2011, 09:40 AM
  #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 75,089
Total Cats: 2,114
Default

the mods look done correctly.

one the harness, make sure the brown and white/green wire labeled ignitor goes back to these spots:





If they do, make sure the white/green wire that's labled pin 31, acutally goes back to pin 31 on the db37 side of the harness. If it doesn't, check to see if pin 31 is acutally going to position 1V on the harness connector labled Clutch.
Braineack is offline
Old 05-13-2011, 06:13 PM
  #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

okay. i've never really dealt with wiring diagrams and pinouts but....

as far as i can tell, the white/green wire in 1G on the car side of the harness goes to pin 26 on the MS side. the brown wire in 1H goes to pin 21. the green/white wire labeled clutch in 1V goes to pin 28.


this is from my dumb *** looking at the picture you posted here, and this pic in your MS tutorial

DrewLGT is offline
Old 05-16-2011, 06:22 PM
  #23
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

anyone else have any ideas?
DrewLGT is offline
Old 05-16-2011, 06:56 PM
  #24
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 375
Total Cats: 3
Default

ok, so to make this simple ill list the wires from pin 20 to 37

your post above has a few of them mixed up, see bold items


20- 2P
21- 2Q
22- 2L
23- WB/2N
24- 2E
25- 2G
26- 1N
27- 1R
28- 1B
29- 1V
30- 2w
31- 1G
32/33- 2v
34/35- 2U
36- 1w
37- fuel pump
MD323 is offline
Old 05-16-2011, 07:53 PM
  #25
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Name:  IMG_20110516_173951.jpg
Views: 50
Size:  142.8 KB

left to right:

brown, green to 2 pins, blue 2 pins, white/green, green, green/white, red, black, grey, white/blue, white, pink, blue, yellow, orange

the other row of pins are all black, grounds i assume
DrewLGT is offline
Old 05-16-2011, 11:46 PM
  #26
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 375
Total Cats: 3
Default

unless you brought the 2nd ign trigger out on a different wire you have it wrong, should be black, brown, big green, big blue, green/white, green, white/green, red, white/blue, gray, blue/white, white, pink, blue, yellow, orange


this is assuming your using the default colors as well
MD323 is offline
Old 05-17-2011, 09:31 AM
  #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 75,089
Total Cats: 2,114
Default

you cant go by the color. you have to follow them back to the pin on the yellow connector.
Braineack is offline
Old 05-18-2011, 11:18 PM
  #28
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Originally Posted by Braineack View Post
you cant go by the color. you have to follow them back to the pin on the yellow connector.

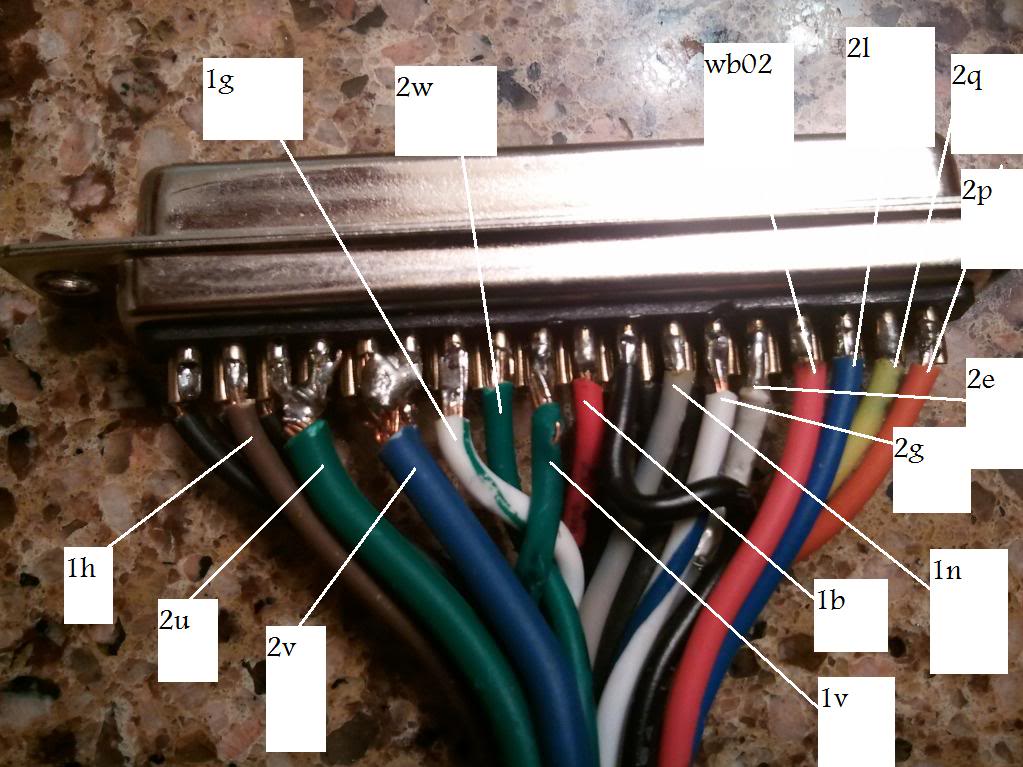

Name:  IMG_20110516_173951l.jpg
Views: 50
Size:  116.0 KB
DrewLGT is offline
Old 05-20-2011, 06:35 PM
  #29
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

looking at this pic, my harness seems backwards.



is my harness good or no?
DrewLGT is offline
Old 05-20-2011, 06:37 PM
  #30
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,537
Total Cats: 222
Default

Fine if you are looking at the connector from the wire (harness) side, not from the plug side.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 05-20-2011, 06:42 PM
  #31
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Originally Posted by Reverant View Post
Fine if you are looking at the connector from the wire (harness) side, not from the plug side.


so my harness is correct?
DrewLGT is offline
Old 05-20-2011, 06:43 PM
  #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 75,089
Total Cats: 2,114
Default

im assuming the black unlabeled wire goes to 1P?

everything related to spark looks correct from here.
Braineack is offline
Old 05-20-2011, 06:50 PM
  #33
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Originally Posted by Braineack View Post
im assuming the black unlabeled wire goes to 1P?

everything related to spark looks correct from here.
1p is not used. all the black wires go to 2a-d
DrewLGT is offline
Old 05-20-2011, 07:41 PM
  #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 75,089
Total Cats: 2,114
Default

(zack morris's phone)

the blacks between 1b red and 1n gray does as well? Not that it should matter for spark. Which set of plugs did you say wouldn't fire?
Braineack is offline
Old 05-20-2011, 08:46 PM
  #35
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Originally Posted by Braineack View Post
(zack morris's phone)

the blacks between 1b red and 1n gray does as well? Not that it should matter for spark. Which set of plugs did you say wouldn't fire?
I haven't traced the wire, but the only black on the car side are six i believe in 2a–d, and one that connects two pins on the yellow harness.


No spark on two and three
DrewLGT is offline
Old 05-23-2011, 11:13 PM
  #36
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2008
Location: Evansville, Indiana
Posts: 314
Total Cats: 0
Default

Originally Posted by DrewLGT View Post
I haven't traced the wire, but the only black on the car side are six i believe in 2a–d, and one that connects two pins on the yellow harness.


No spark on two and three
.
DrewLGT is offline
