Default Igniter keeps failing mspnp2

I have a 90 Miata with 96 bp. 1.6 coil pack and 1.6 cas. Running Megasquirt pnp2 i fried one igniter when i first started it. Replaced it, drove 28 miles, shut it off for an hour went to restart and fried a second igniter. Also when it was running on all four when i would open the door the idle would kick up and partly surge. I have no tach, and interior lights do not turn on until the ignition is turned forward. All grounds seem good. Can any one help.

Last edited by mckabe; 03-11-2014 at 02:32 AM.
mckabe is offline   Reply With Quote
Old 03-11-2014, 02:54 AM   #2
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

What are your dwell settings? I'm not entirely familiar with MS but does it have variable trigger voltage to potentially drive some of the Toyota coils that require a 12v trigger?

I believe the Miata ignition module is designed to operate off of a 5v signal.
FAB is online now   Reply With Quote
Old 03-11-2014, 03:05 AM   #3
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

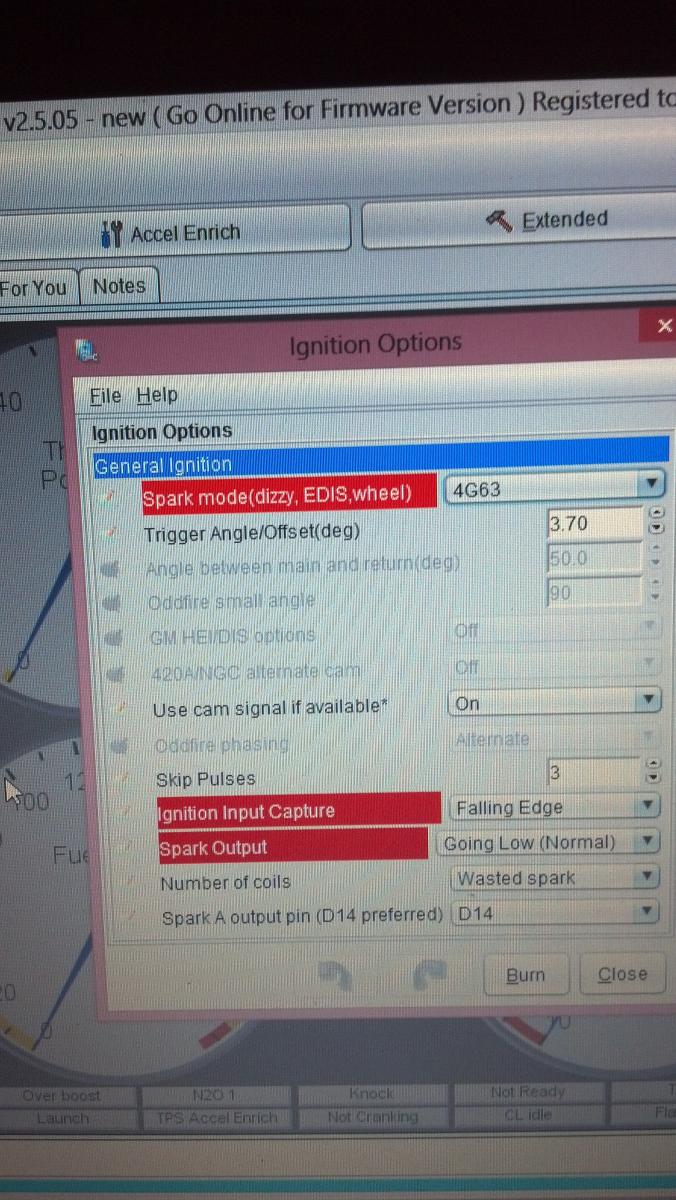

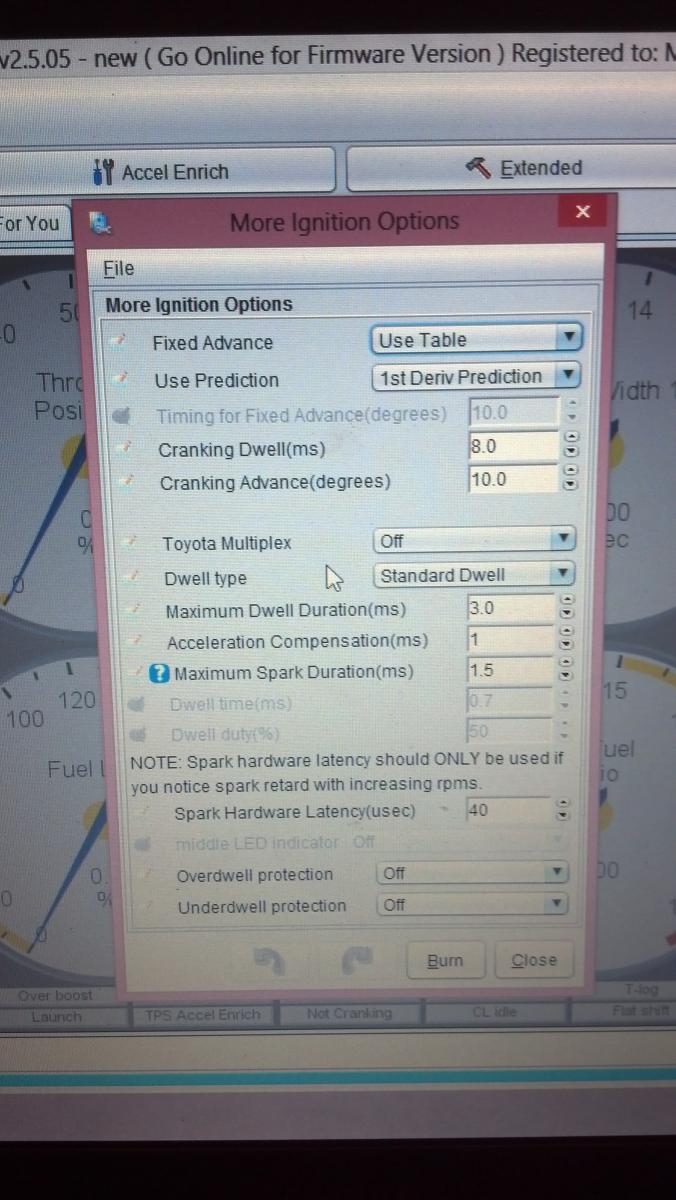

Attached are some pictures of my settings.
Attached Thumbnails
Igniter keeps failing mspnp2-img_20140310_215033_416.jpg   Igniter keeps failing mspnp2-img_20140310_214946_222.jpg
mckabe is offline   Reply With Quote
Old 03-11-2014, 04:35 AM   #4
Senior Member
iTrader: (3)

Join Date: Dec 2011
Location: Tucson, Az
Posts: 514
Total Cats: 33
Default

Not a MS guy, but maybe has something to do with this, combined with a wiring problem?
https://www.miataturbo.net/megasquir...circuit-33964/



mod edit.

Last edited by Braineack; 03-11-2014 at 08:51 AM.
TheScaryOne is offline   Reply With Quote
Old 03-11-2014, 08:52 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by mckabe View Post
I have a 90 Miata with 96 bp. 1.6 coil pack and 1.6 cas. Running Megasquirt pnp2 i fried one igniter when i first started it. Replaced it, drove 28 miles, shut it off for an hour went to restart and fried a second igniter. Also when it was running on all four when i would open the door the idle would kick up and partly surge. I have no tach, and interior lights do not turn on until the ignition is turned forward. All grounds seem good. Can any one help.
sounds like you have a wiring issues that's causing havok. fix your wiring issue.
Braineack is offline   Reply With Quote
Old 03-11-2014, 11:24 AM   #6
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Spark output with an MSPNP Gen 2 needs to be set to Going High; you have it set to Going Low.
Matt Cramer is offline   Reply With Quote
Old 03-11-2014, 11:28 AM   #7
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

So you think that is the problem? is the transistor mod for going inverted needed on the pnp 2
mckabe is offline   Reply With Quote
Old 03-11-2014, 11:49 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by mckabe View Post
So you think that is the problem? is the transistor mod for going inverted needed on the pnp 2
yes that's a problem. ( I didn't notice it before).

did you change it for any reason? Or were you randomly loading maps onto your MSPNP2?


stop reading about the transitor mod. you dont need to mod your MS, you need to correctly tune it so you dont break ****.
Braineack is offline   Reply With Quote
Old 03-11-2014, 01:21 PM   #9
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

I loaded a base map, no idea how that changed. I'll fix it tomorrow when I get my new igniter. Thanks for the help
mckabe is offline   Reply With Quote
Old 03-11-2014, 02:13 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by mckabe View Post
I loaded a base map, no idea how that changed. I'll fix it tomorrow when I get my new igniter. Thanks for the help
You loaded *what* base map?

Tune settings and project config appear to be from a different ECU.
Ben is offline   Reply With Quote
Old 03-11-2014, 04:11 PM   #11
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

The 90-93 tune on the Megasquirt disk
mckabe is offline   Reply With Quote
Old 03-11-2014, 11:17 PM   #12
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

Do all the other settings look okay?
mckabe is offline   Reply With Quote
Old 03-12-2014, 10:13 AM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by mckabe View Post
The 90-93 tune on the Megasquirt disk
Negative. We've never released a basemap with those settings. I just verified the current and all previous builds of our software.

You can download the most current basemaps here:
MegaSquirtPNP by DIYAutoTune.com

It also appears that you are using a project for a MS2, not a MSPNP. So it's quite obvious you're not using the setup from the included cd.
Ben is offline   Reply With Quote
Old 03-13-2014, 12:15 AM   #14
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

well , reloaded the base map, adjusted timing, started and drove for a bit. I stopped for gas and when i went to restart it wouldn't start. No spark.
mckabe is offline   Reply With Quote
Old 03-13-2014, 09:43 AM   #15
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Please post a copy of the map pulled off the ECU.
Matt Cramer is offline   Reply With Quote
Old 03-13-2014, 09:57 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Quote:
Originally Posted by mckabe View Post
well , reloaded the base map, adjusted timing, started and drove for a bit. I stopped for gas and when i went to restart it wouldn't start. No spark.
did you really reload the "basemap" for someone else's ECU with the improper settings for YOUR ECU and expect it to work after it failed twice before?
Braineack is offline   Reply With Quote
Old 03-13-2014, 05:08 PM   #17
Newb
Thread Starter

mckabe's Avatar

Join Date: Aug 2013
Location: West Bend, WI
Posts: 41
Total Cats: 2
Default

No, I reloaded the base map from the link posted above. Started from scratch.
