Default installing a miata CAS onto an FE3N

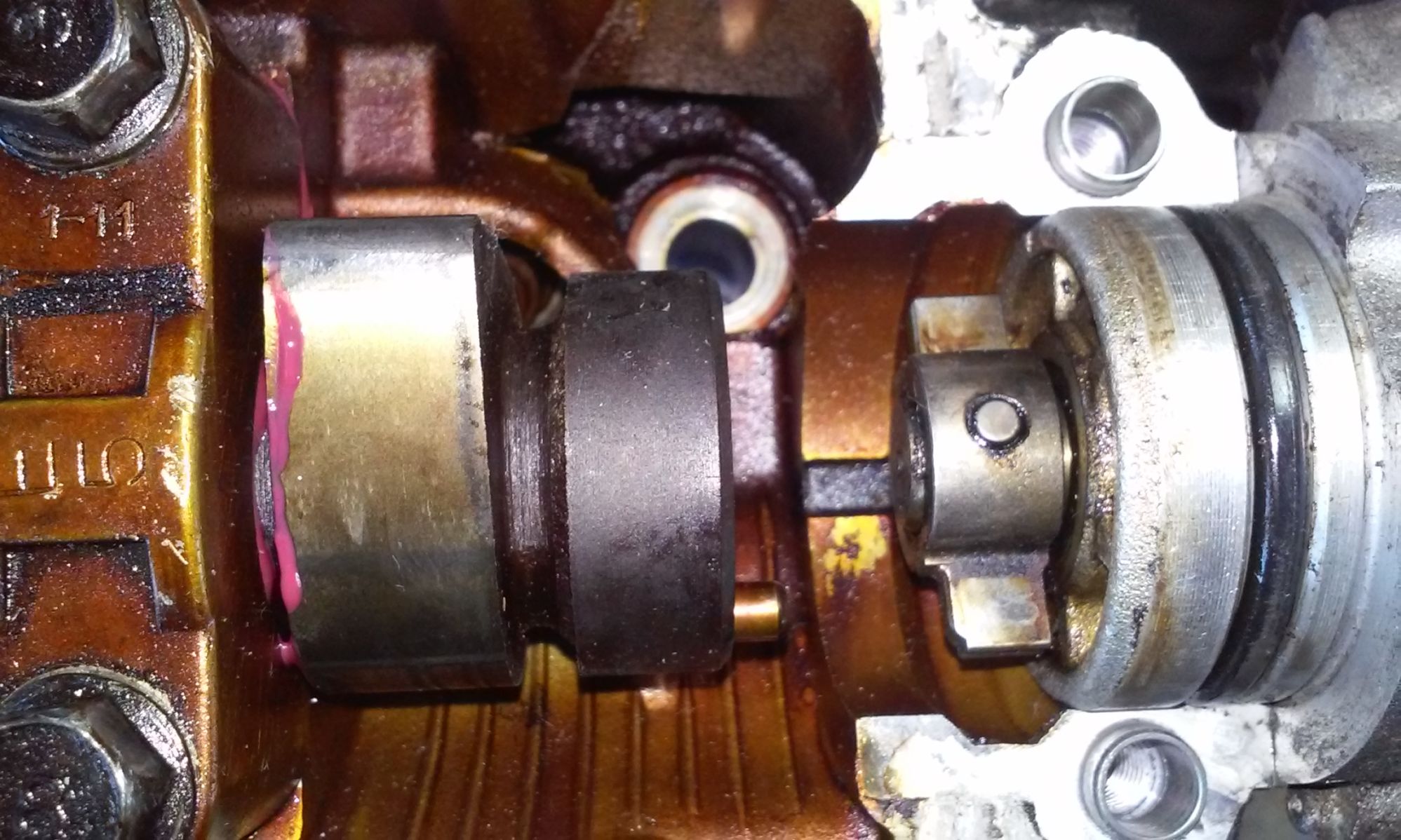

My quest to make a shaft extender to use an unmodified miata cas onto an FE3N. I searched and didn't come up with anything so i immediately assume it's a bad idea but can't see why yet. I'm going to be putting 3 fe3s mated to b2600 trans into my truck and into two of my friends cars within the next year. All will be running megasquirt and since i run into weird problems and come here for help id like to keep the MS as close to MX5 as possible.

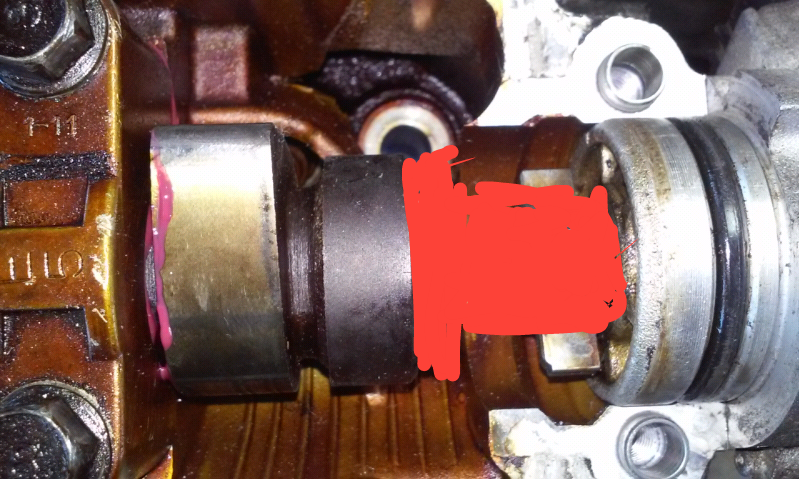

The actual adapter it's quite simple as i have access to a lathe at work.it will be a one peice aluminum shaft with disc that would replace the "T" on the CAS. It would be pinned into place Just like the "T" and directly index onto the peg on the fe's cam.










Idea
Attached Thumbnails
installing a miata CAS onto an FE3N-80-20150812_125045_23c7a3d227b646ca09ca7e373aa8d43c5afe5e5c.jpg   installing a miata CAS onto an FE3N-80-2015_08_12_13_08_16_fbe56c832939e49d23670bc8b1056bb3c61a7af2.png
fastivab6tg25mr is offline   Reply With Quote
Old 08-12-2015, 05:14 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

<p>Sounds cool. If it was balanced and everything I bet it would work.</p><p>yank, m2cupcar are the local FE3 guys. concealer404 too.</p>
aidandj is offline   Reply With Quote
Old 08-12-2015, 05:19 PM   #3
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Isn't there already a workaround for this?

I like the idea, though.
concealer404 is offline   Reply With Quote
Old 08-12-2015, 05:53 PM   #4
Senior Member
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Why not just run the OE fe3 CAS? The megasquirt picks it up just fine. Its also low profile so you'll have a bunch of room between the sensor and firewall.
yank is offline   Reply With Quote
Old 08-13-2015, 02:09 AM   #5
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

i want to use the miata one for both the crank/cam signals. i already have a MS1 that im going to upgrade to an MS2 and would like to not have to change the board for different crank/cam inputs.

im using the sportage fe3n but im using the B2600 clutch/flywheel/trans which doesnt have the crank pick ups on the flywheel. i think it will be simpler for me to use it instead of making a pickup on the crank pulley.

i talked to 18PSI earlier about possible variation in the signal if the tolerances are too loose but im pretty sure i can make it zero clearance.

Last edited by fastivab6tg25mr; 08-13-2015 at 02:20 AM.
fastivab6tg25mr is offline   Reply With Quote
Old 08-13-2015, 09:23 AM   #6
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

You need an FE3 distributor. Move the Miata CAS guts to the dis body. Then either rekey the disk for correct offset OR if the engine management is capable, determine your offset and adjust accordingly. I've done both successfully.
m2cupcar is offline   Reply With Quote
Old 08-13-2015, 11:42 AM   #7
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

i was just looking for an FE3N dizzy but they look like they use a BP style slot in the cam. the sportage cam is not slotted, it just has that pin sticking out and thats it. Will i need an exhaust cam out of a genuine mazda FE with the aluminum oil pan?
fastivab6tg25mr is offline   Reply With Quote
Old 08-13-2015, 12:19 PM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

- missed that part. Yeah- you need the Mazda FE3 exhaust cam. I would disregard the oil pan ID method since mine had a steel pan and gold cam cover with the FE3N cams and the lower (catalyst) compression. Offhand I can't remember what the other cams are - but the FE3N is second most desirable. And the bottom to avoid is strictly aimed at fuel economy.

This probably the largest collection of FE3 owners: https://www.facebook.com/fedohc?fref=ts

You can also find FE3 parts for sale at mx6.com

I think your adapter idea would work IF you sleeved it over the cam end so you could pin it the same as the Miata CAS drive. If just using the pin, then you'd need to attached it like a cam gear IMO - which is probably more of challenge.
m2cupcar is offline   Reply With Quote
Old 08-13-2015, 12:35 PM   #9
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

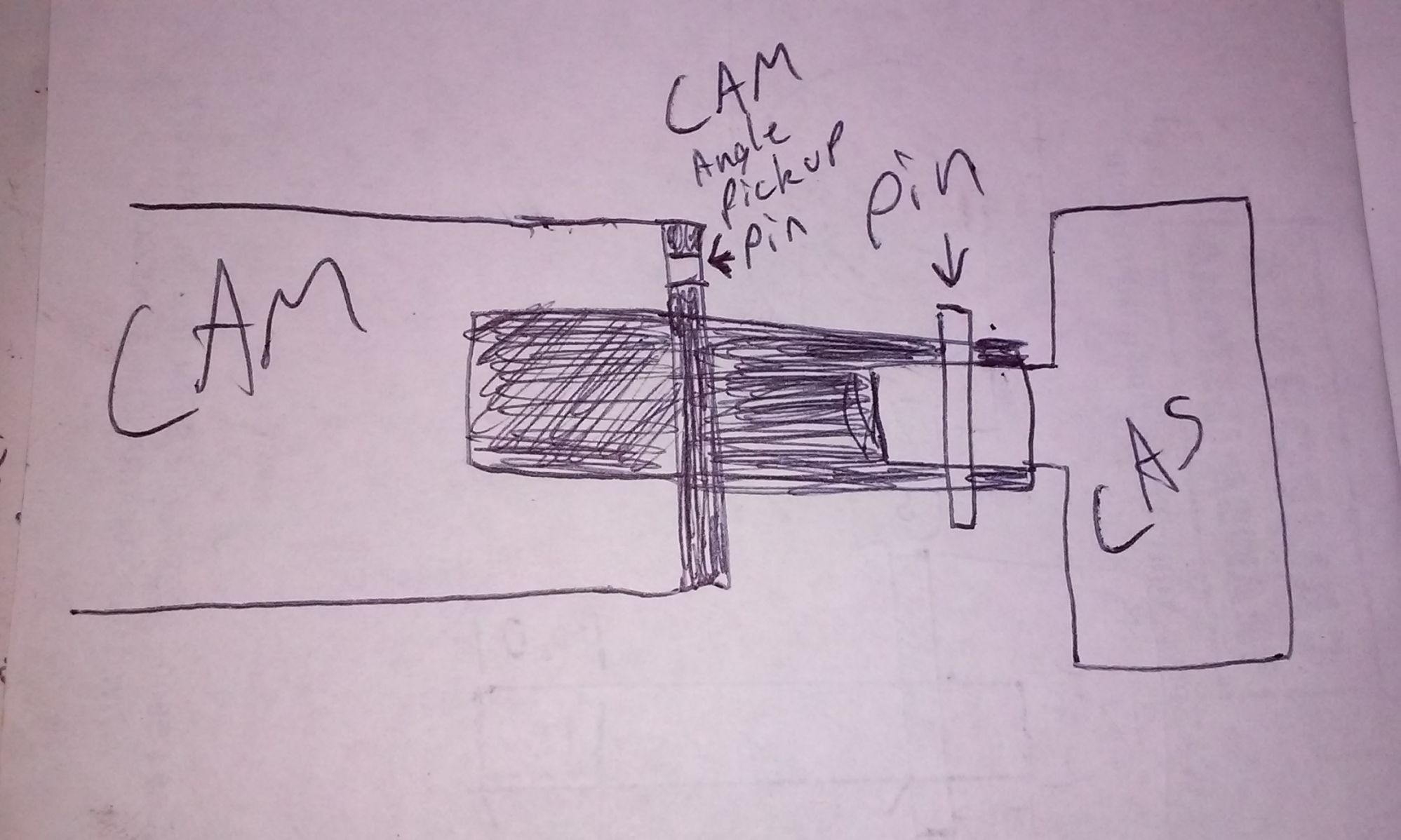

My intake cam is a FE3N but the exhaust is a K013. It's going to slide inside the cam instead of over it. I suck at drawing but heres a better idea of what I'm planning.

Attached Thumbnails
installing a miata CAS onto an FE3N-80-1439480046755607850250_ba5dc26b411a689db5f12aa423a66a44399aaaa2.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 08-13-2015, 01:43 PM   #10
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

Is the adapter fastened to the cam end, or are you relying on the CAS to keep the adapter engaged in the cam end? My (non-engineer) gut says to keep it OE so you have the adapter fastened to the cam as if it was THE cam end.
m2cupcar is offline   Reply With Quote
Old 08-13-2015, 01:54 PM   #11
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

Im going to make it a tight fit and rely on the cas. If i had a way to secure the cam into my lathe i would make it a pressed fit and machine it as one piece.
fastivab6tg25mr is offline   Reply With Quote
Old 08-13-2015, 01:56 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

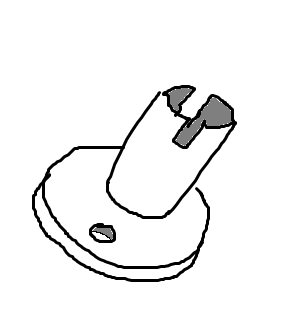

get better at paint:

Attached Thumbnails
installing a miata CAS onto an FE3N-adpater.png
Braineack is offline   Reply With Quote
Old 08-13-2015, 02:02 PM   #13
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

Hahaha awesome 3d rendering. That's what I'm going for.

Edit: maybe if i put a spring inside the adapter that will push against the cas and keep it seated into the cam it will be a little added security.
fastivab6tg25mr is offline   Reply With Quote
Old 08-13-2015, 02:15 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Yeah that's my only problem with this extension idea - if for whatever reason the cas was to move or shift or something, during 7,000 rpm, during a power shift (because let's face it, this thing is gonna get raped like a redheaded bastard stepchild, racing every single car in Sacramento ), then you'd be in for a bad time.
18psi is offline   Reply With Quote
Old 08-13-2015, 02:35 PM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

My issue is the CAS is not design to press against anything. The key floats on the pin in the CAS and floats in the CAS slot. It looks like the adapter penetrates the cam end? Can you not drill the cam and adapter for a pin through both- similar to the CAS pin for the key?
m2cupcar is offline   Reply With Quote
Old 08-13-2015, 02:40 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

yeah see, this is why I'm nervous about his idea. if the part was not designed to have pressure on it, there's some potential for falilure.

A threaded hole into the cam with a bolt holding the adapter might work though. (better be seriously balanced though)
18psi is offline   Reply With Quote
Old 08-13-2015, 02:40 PM   #17
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

The cam will only to 3500rpm
fastivab6tg25mr is offline   Reply With Quote
Old 08-13-2015, 03:06 PM   #18
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Lol that's still enough speed to break stuff should that piece come off
Also leave you stranded on side of road as the mercedes you just smoked drives away
18psi is offline   Reply With Quote
Old 08-13-2015, 03:42 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I'd do it and not think twice...

















...smoke you in my mercedes that is.


the cam is held onto the head, is it not? no way it could move.

Last edited by Braineack; 08-14-2015 at 01:22 PM.
Braineack is offline   Reply With Quote
Old 08-13-2015, 06:31 PM   #20
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

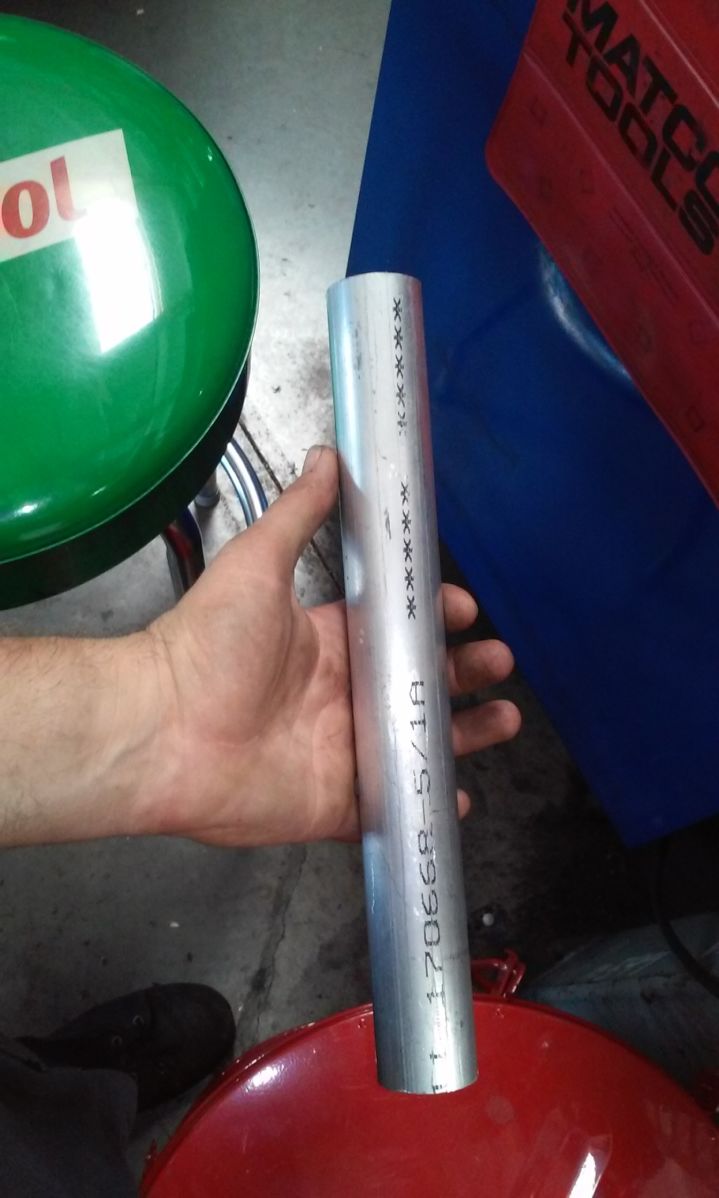

Ill try to finish it after work and post the finished product

Attached Thumbnails
installing a miata CAS onto an FE3N-80-20150813_135033_ce1eca7fad310f6dbd653a112fd534068c2a1f81.jpg
