Old 08-14-2015, 02:24 AM   #21
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

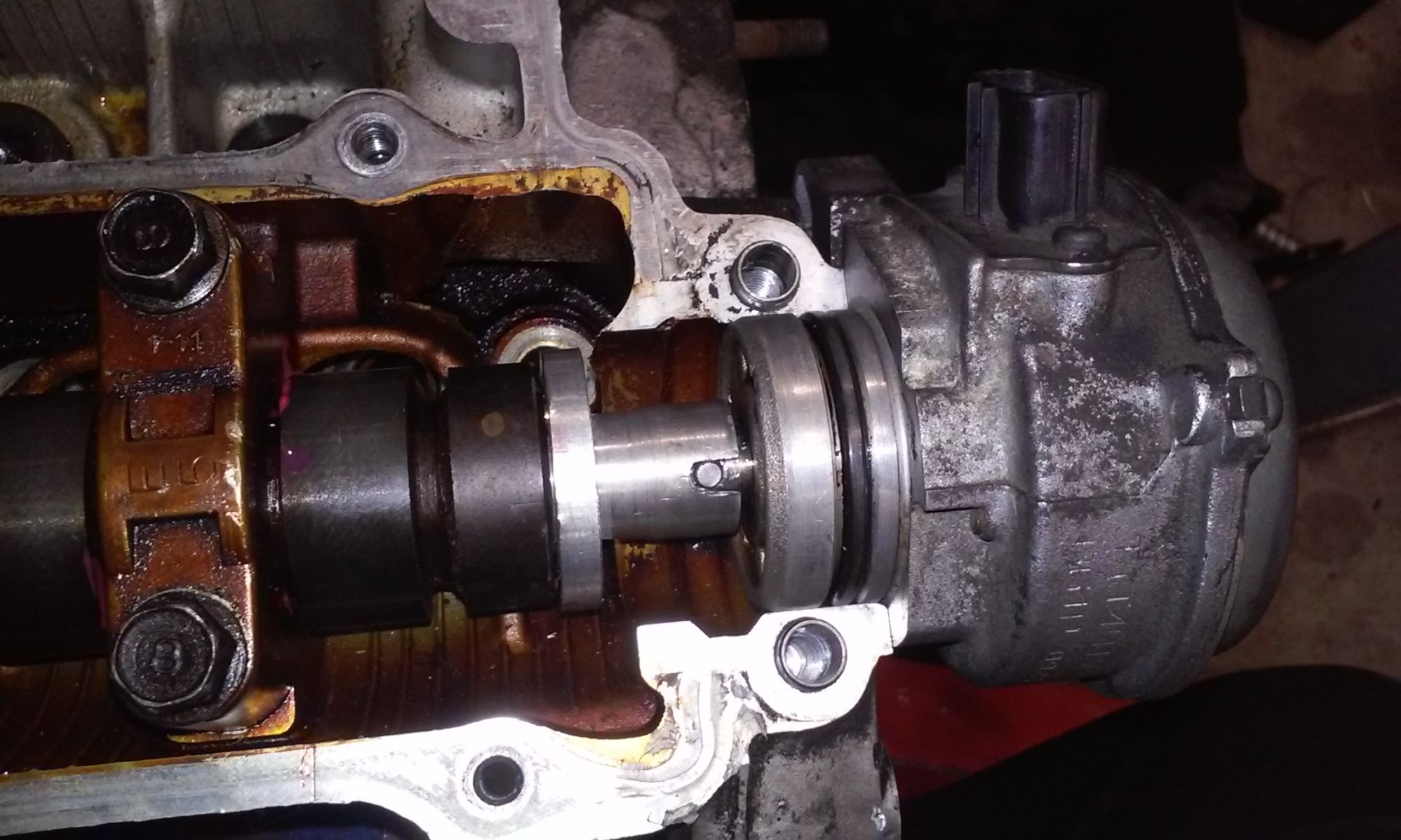

I'll post all pics when i get home.
Attached Thumbnails
installing a miata CAS onto an FE3N-80-20150813_222058_78ad2b8ee1321c707bbdd9f312ad3b93456bdf4a.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 08-14-2015, 03:26 AM   #22
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

here come the pics:

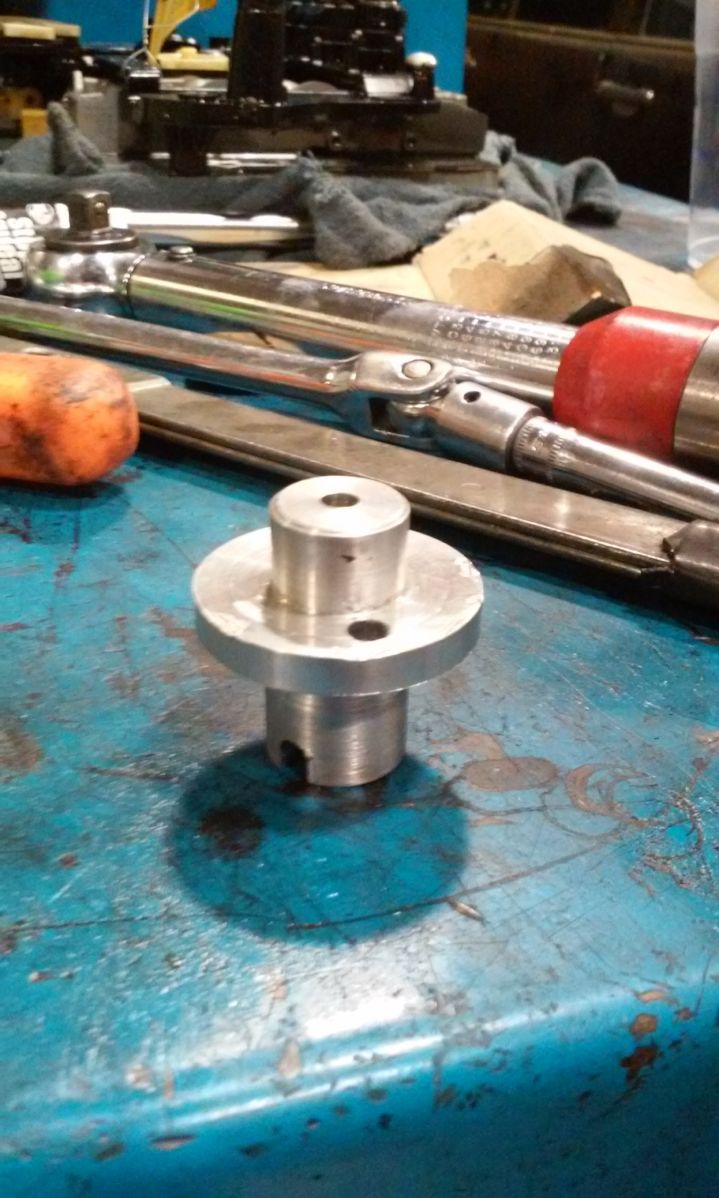

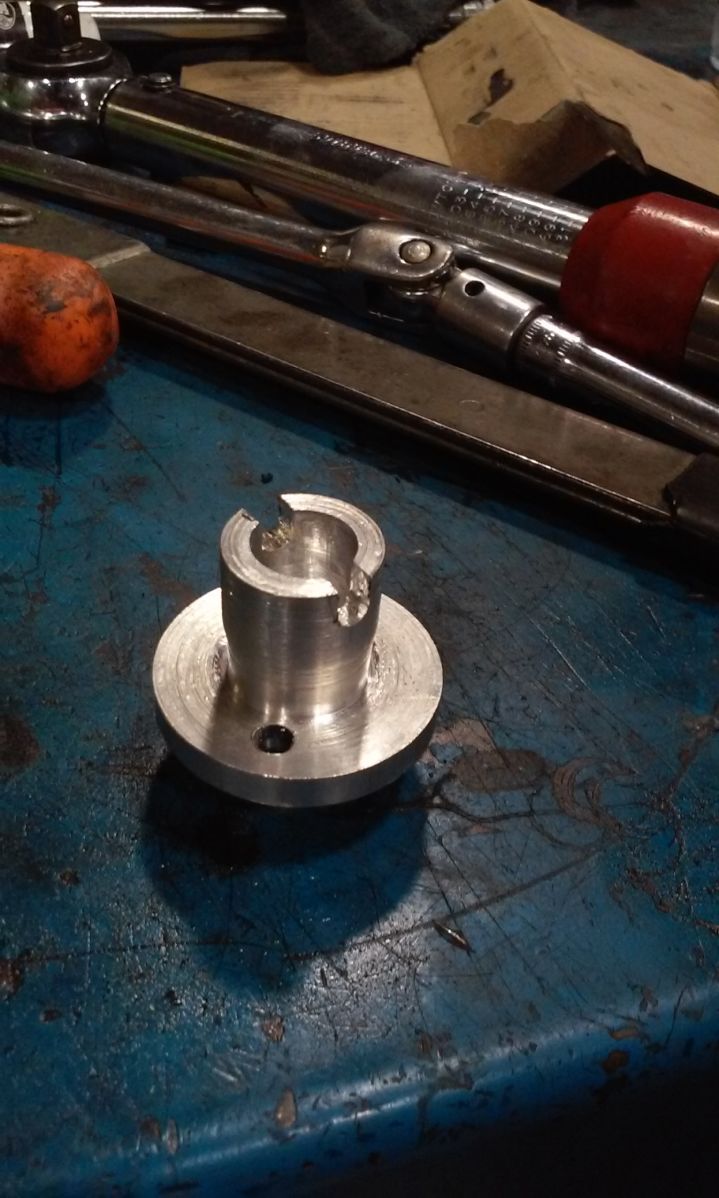

final prototype:

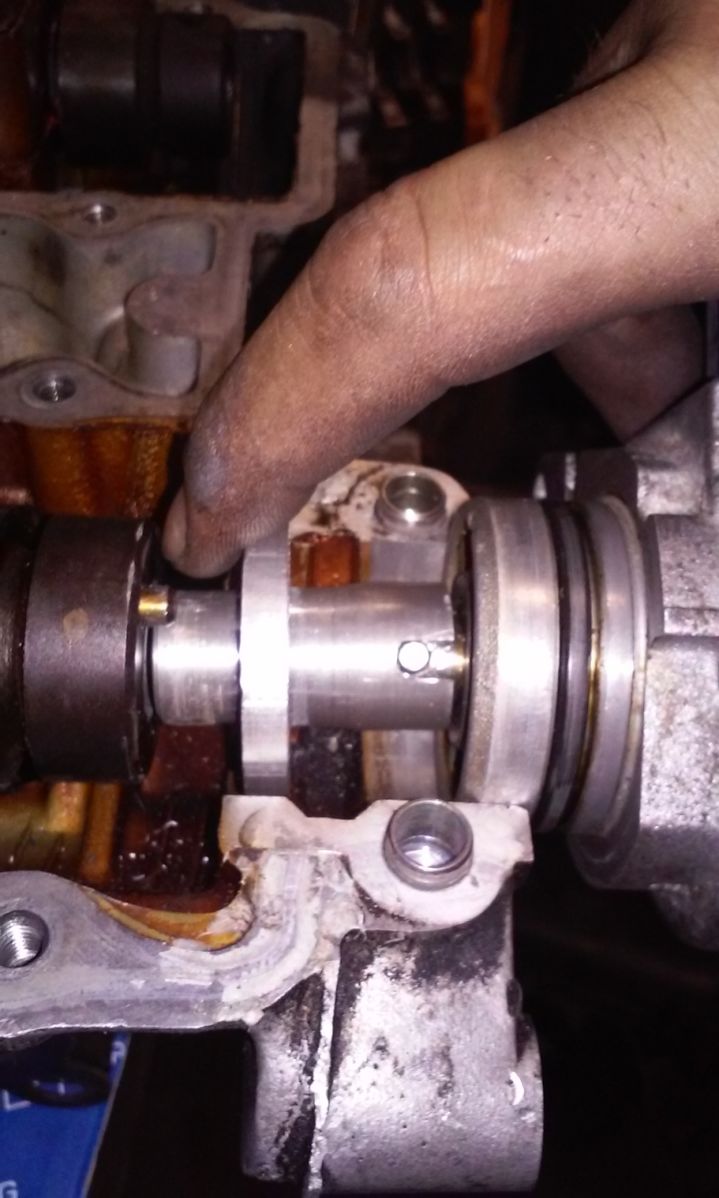

how far the cas has to come out of the head for the adapter to fall out:

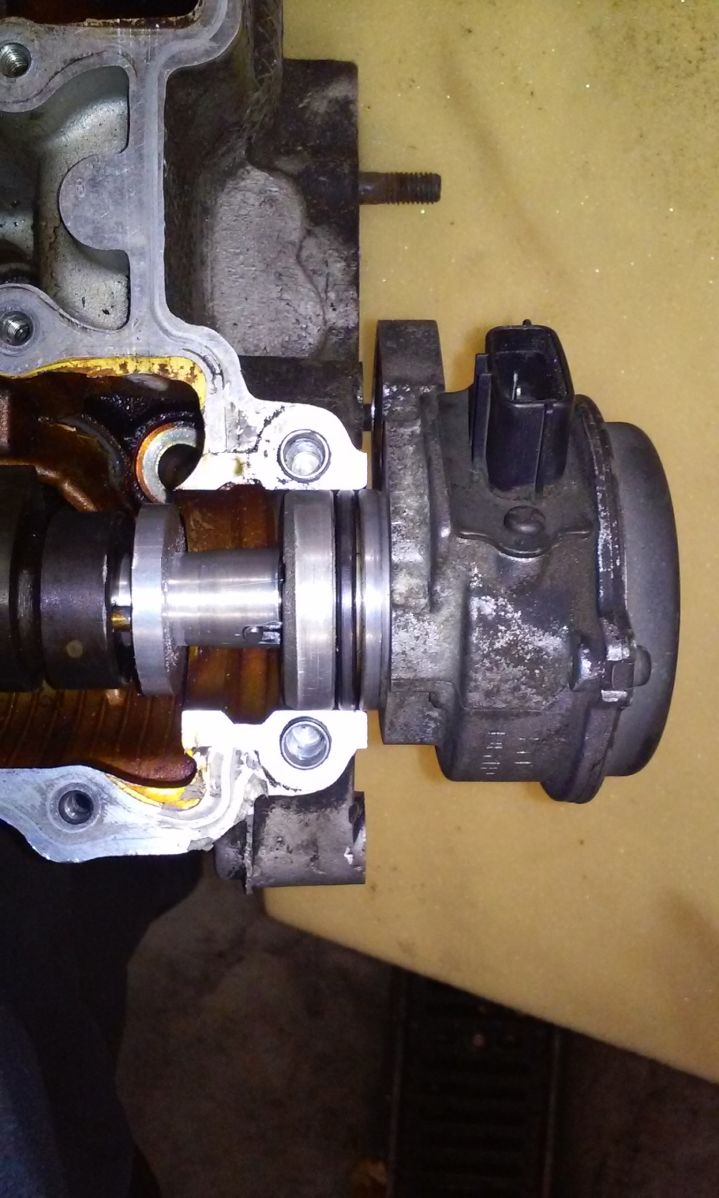

how far the cas has to come out before it will disengage the locating pin on tha cam





video of me spinning it with a drill with the cas not bolted down to see if it was off center. looked straight to me. i used a ton of assembly lube oin the bearings to make sure they wouldnt be damaged by spinning.

https://www.youtube.com/watch?v=2esZ...ature=youtu.be
Attached Thumbnails
installing a miata CAS onto an FE3N-80-adapter_2_c33d0561693a5bb9eeee9018c237a00364d2c2b4.jpg   installing a miata CAS onto an FE3N-80-max_clearance_cas_to_head_805f1581f21ae8815c5b517345da73703ffeb2d3.jpg   installing a miata CAS onto an FE3N-80-max_clearance_cas_to_cam_58c199afab82d30b93645fa96760594ed609d536.jpg   installing a miata CAS onto an FE3N-80-adapter_3_be522aab0dd8a18a1eaae29d4a9af447437e1d28.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 08-14-2015, 09:51 AM   #23
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Nice presentation. I'd run it. What is the fore/aft tolerance like?
m2cupcar is offline   Reply With Quote
Old 08-14-2015, 11:22 AM   #24
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

i think im going to build the final one out of steel so i dont have to worry about durability or having thermal expansion bind anything up. im new to using a lathe(this is my first precision piece) so i had to slightly oversize the center hole to make up for it not being perfectly centered.

i didnt measure the clearances but if i had to guess id say i had around .010" rotational play and .090"-.110" before it bottoms out in the key way.
fastivab6tg25mr is offline   Reply With Quote
Old 08-14-2015, 11:26 AM   #25
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

That actually came out better than expected. A bit sloppy around the slots/hole but you already mentioned that.
Don't you think alum might be better due to weighing so much less?
18psi is offline   Reply With Quote
Old 08-14-2015, 12:03 PM   #26
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

I just talked to my boss He said the steel probably won't make a difference and that i just need to set the lathe up better and try another one out puff aluminum
fastivab6tg25mr is offline   Reply With Quote
Old 08-14-2015, 04:00 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

good work!
Braineack is online now   Reply With Quote
Old 08-15-2015, 12:05 AM   #28
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

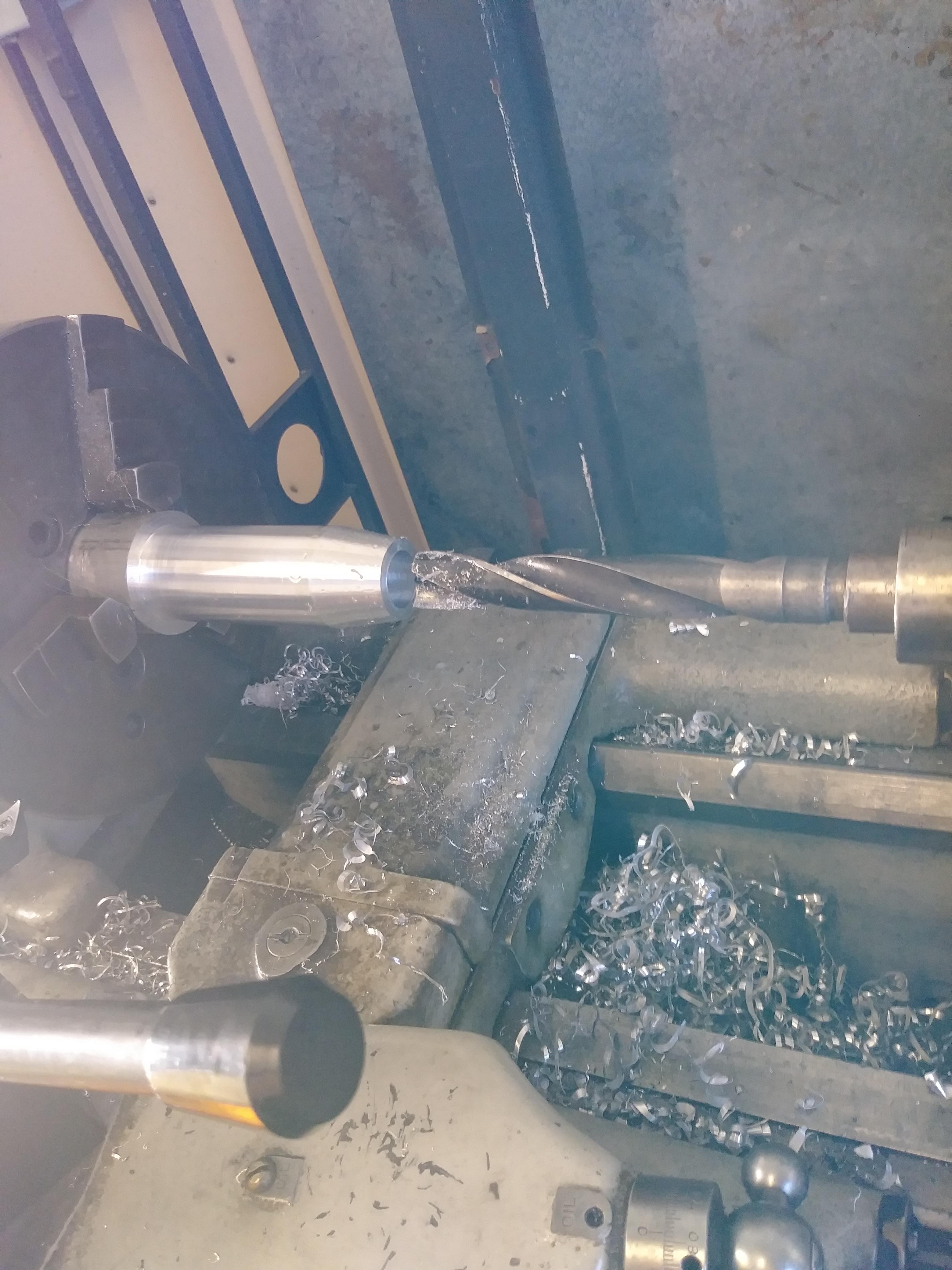

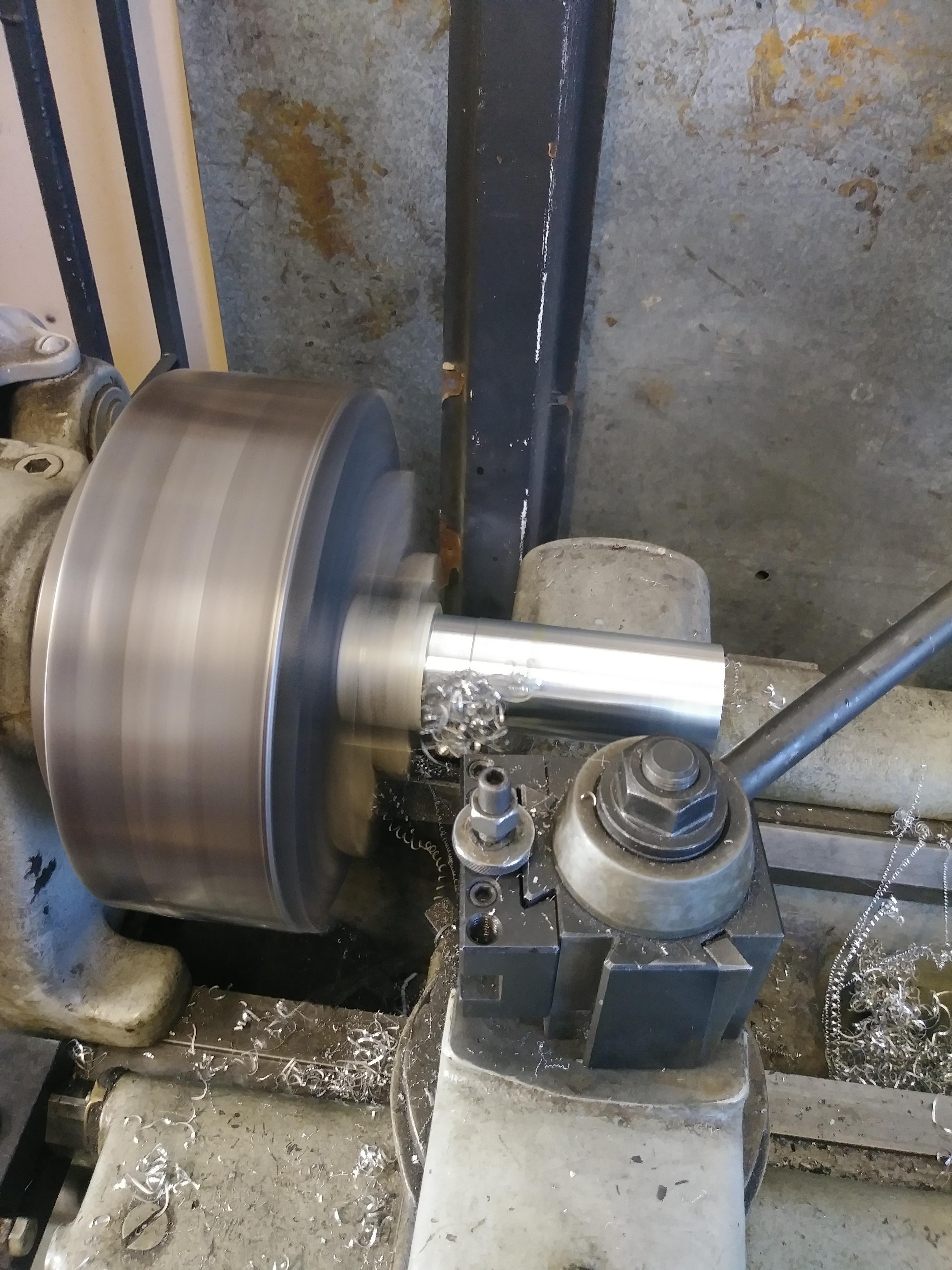

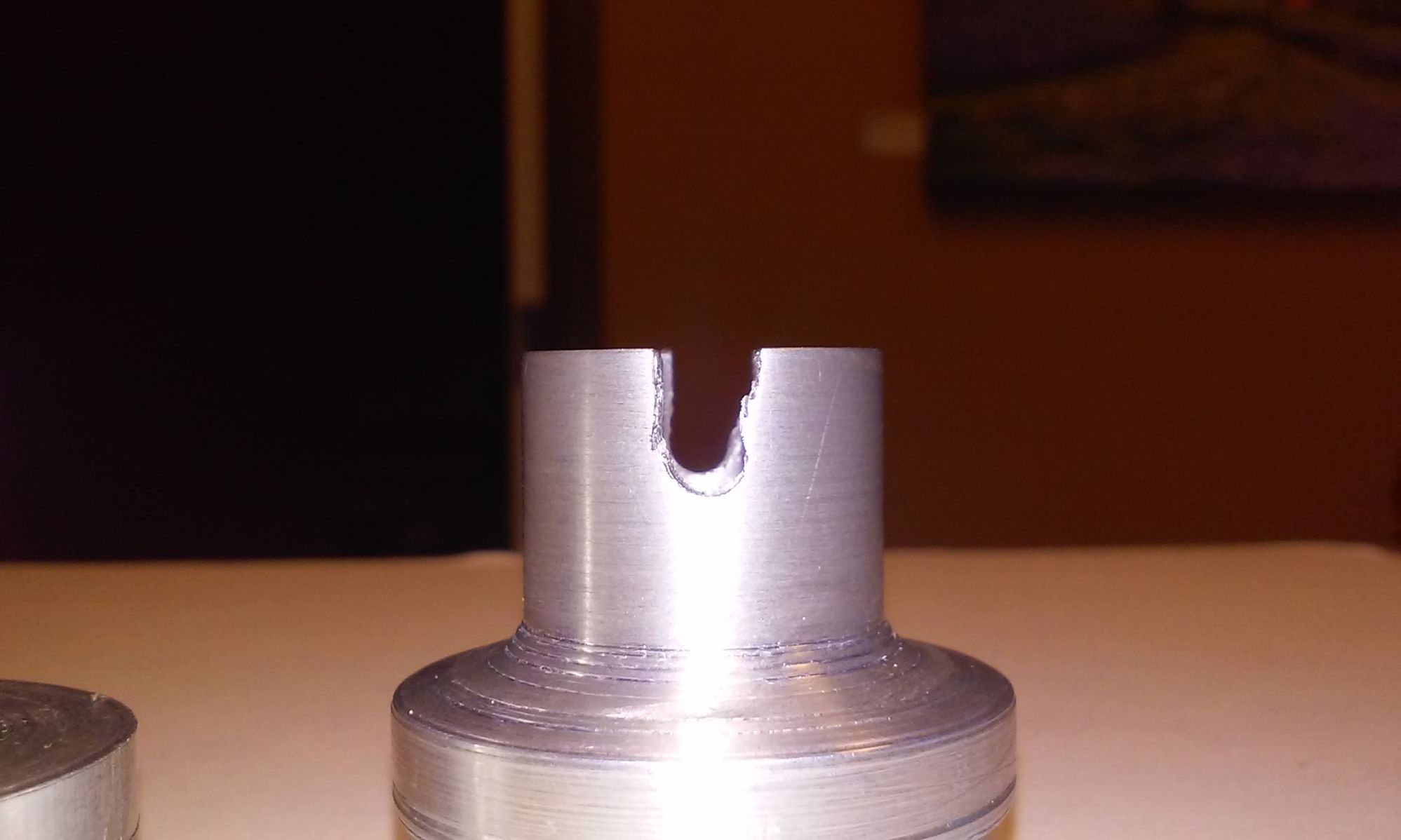

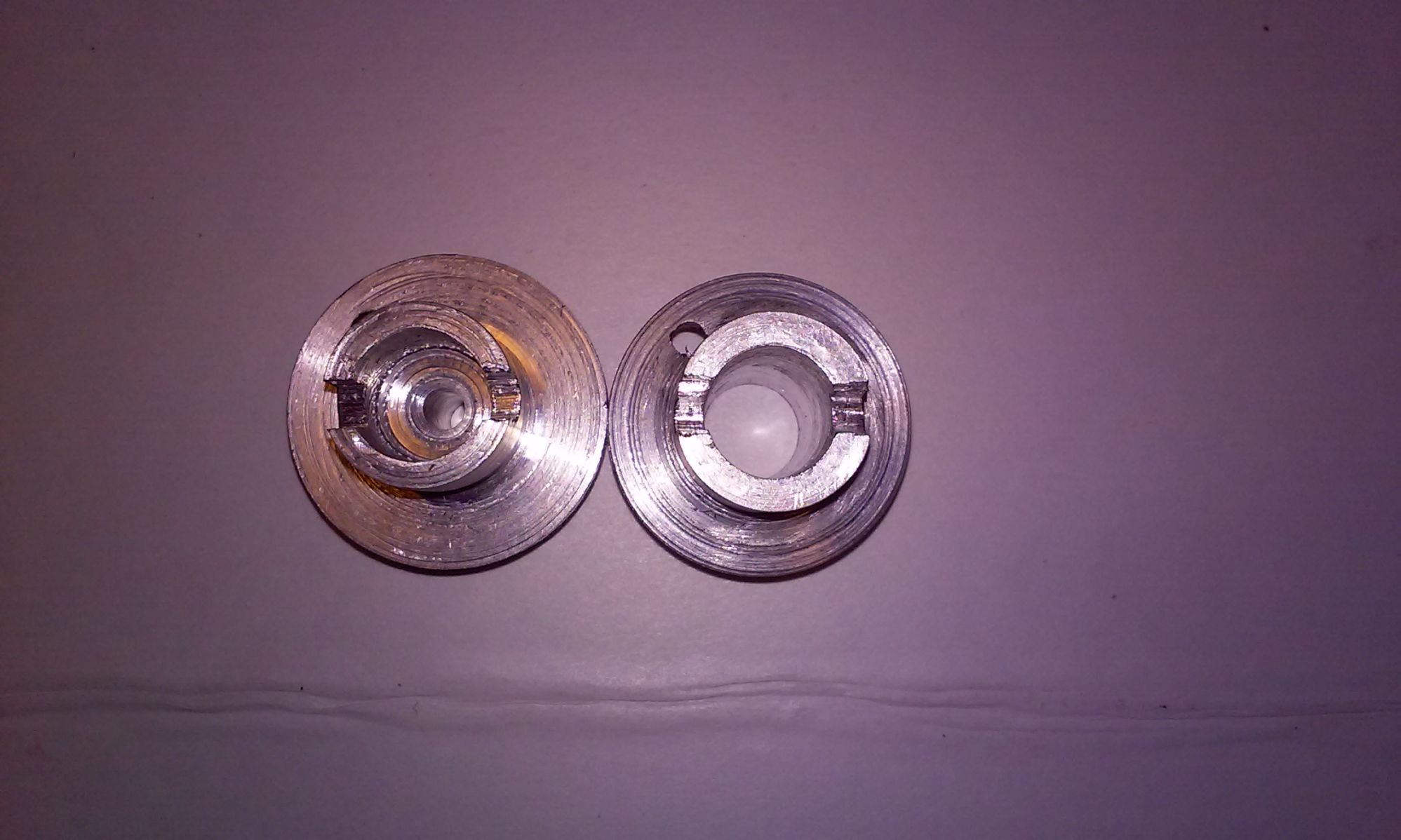

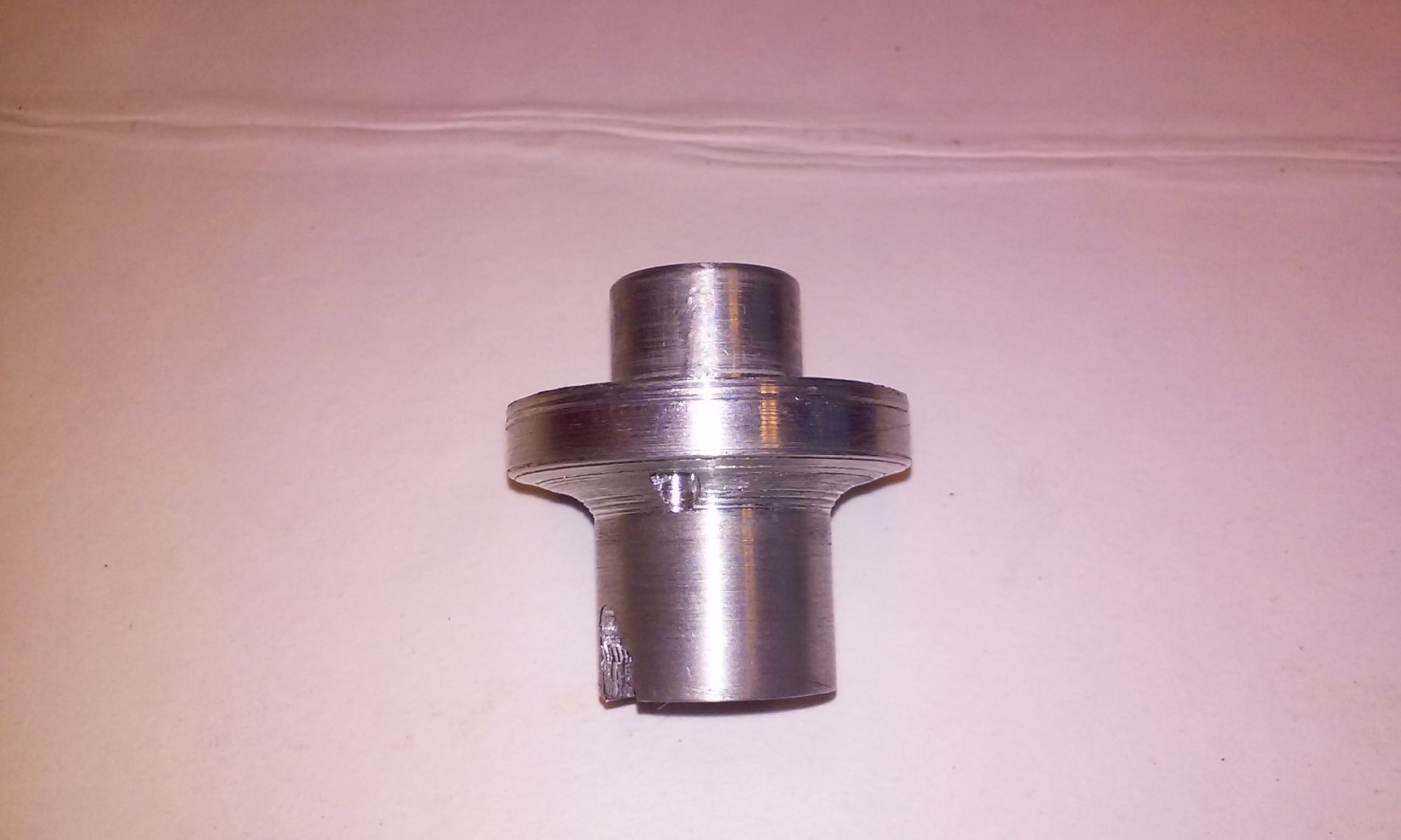

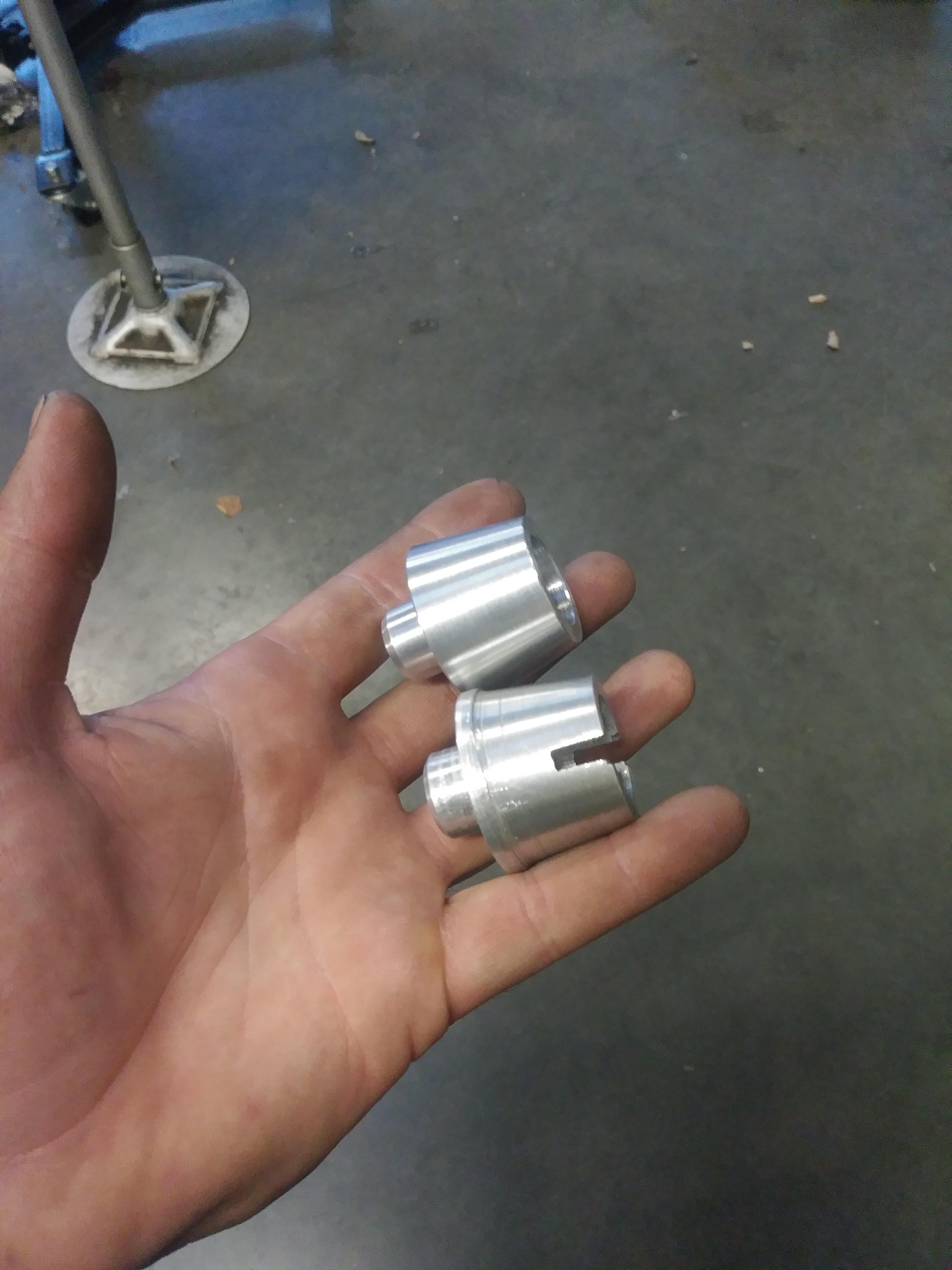

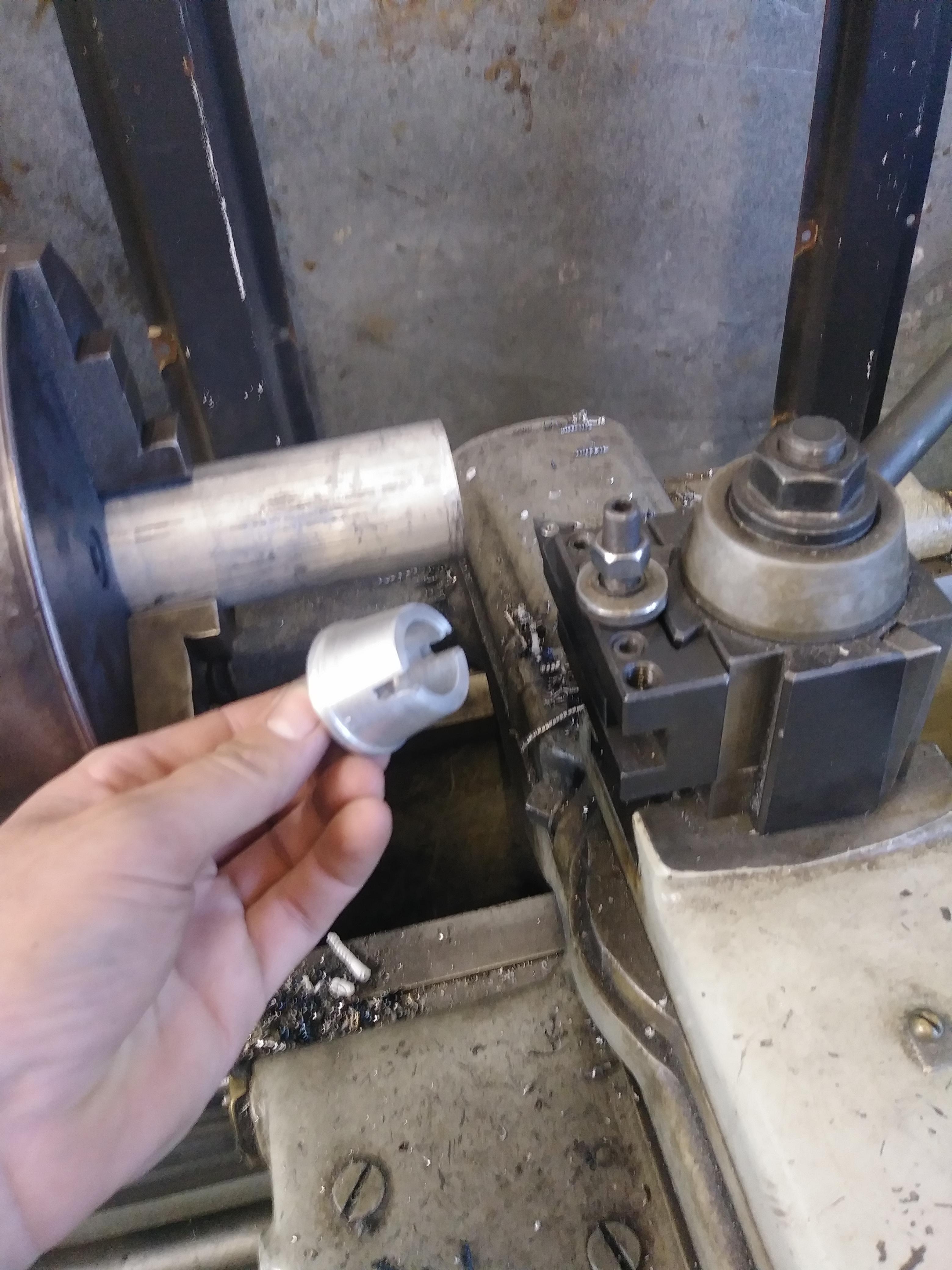

Number 2 doesn't look much different but the alignment is way more precise. It has less rotational slop than the stock cas to cam engagement. I still can't figure out the damn slot cutting though.







Attached Thumbnails
installing a miata CAS onto an FE3N-80-20150814_200010_ba1ba86605bb0c20c76fc7392cc3a4887eab96aa.jpg   installing a miata CAS onto an FE3N-80-20150814_200050_f4156fdbd7130d39803292a25e76492d5fcf2cac.jpg   installing a miata CAS onto an FE3N-80-20150814_200019_3c2888b87bae5a362e7726936f9a6cde4aa29abc.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 08-15-2015, 12:07 AM   #29
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

<p>hi_im_sean might have some tips on the slot cutting.</p>
aidandj is offline   Reply With Quote
Old 08-15-2015, 10:58 AM   #30
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 608
Default

How are you doing it now? You have a lathe, do you have a mill also?
hi_im_sean is offline   Reply With Quote
Old 08-15-2015, 09:39 PM   #31
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

I do but i don't have any bits that small. I tried cutting a drill bit and sharpening It into a mill bit but it walks around alot
fastivab6tg25mr is offline   Reply With Quote
Old 08-15-2015, 10:40 PM   #32
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 608
Default

Yea that wont work, the geometry of a drill bit is for chip evacuation, not edge cutting. I would use a drill to drill the end of the slot, then cut in from the edge with a hack saw or dremel cut-off, then square it all up with a file. Or just buy a cheap chinese end mill from ebay in the size you need, less than $10 for that size. What size is it, 4mm?
hi_im_sean is offline   Reply With Quote
Old 08-15-2015, 10:43 PM   #33
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 608
Default

if it is 4mm-
4mm x 6mm Straight Shank 4 Flutes End Mill Milling Cutter Gray | eBay

Or just search the size you need.
Do it in 20 or 30 thou steps, dont do full DOC at once.

And regarding the earlier concerns in this thread; I wouldnt be concerned at all about the CAS holing that piece in. Although the above remarks about the CAS not being designed to take an axial load are true, that piece wont put any appreciable load onto the CAS, more than maybe its weight as the car accelerates, all 200 grams or so. Also I think aluminum is just fine, steel would be unnecessary IMO.
hi_im_sean is offline   Reply With Quote
Old 08-15-2015, 11:40 PM   #34
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

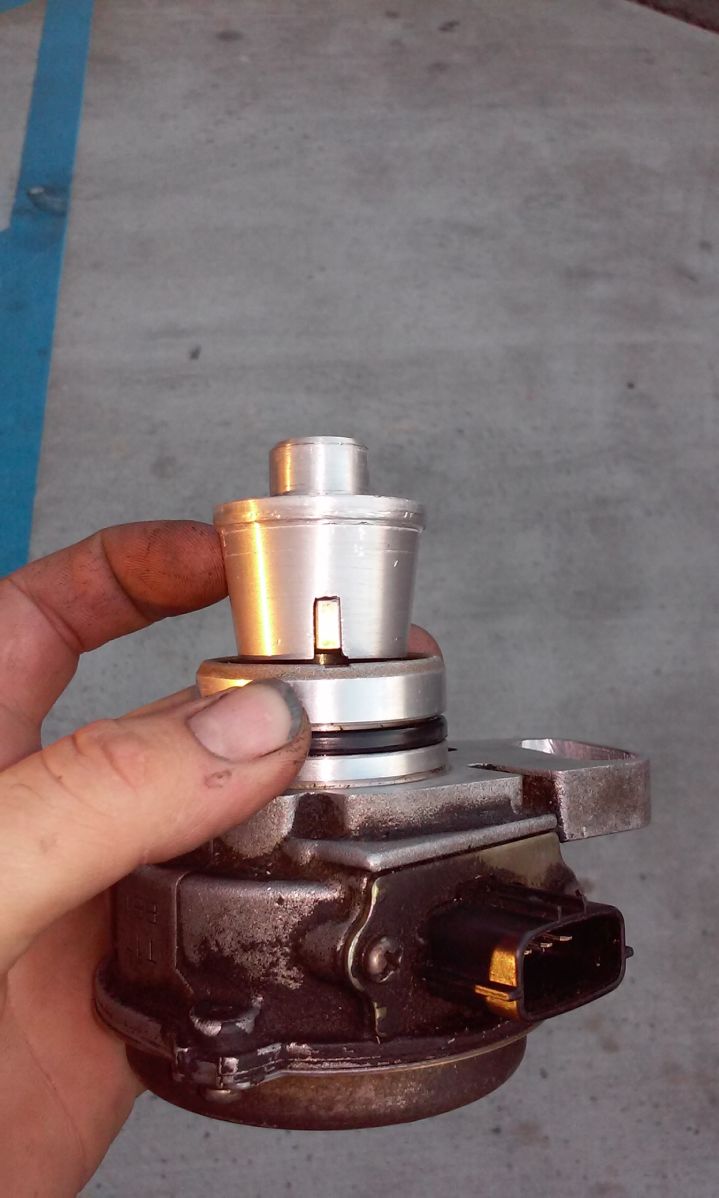

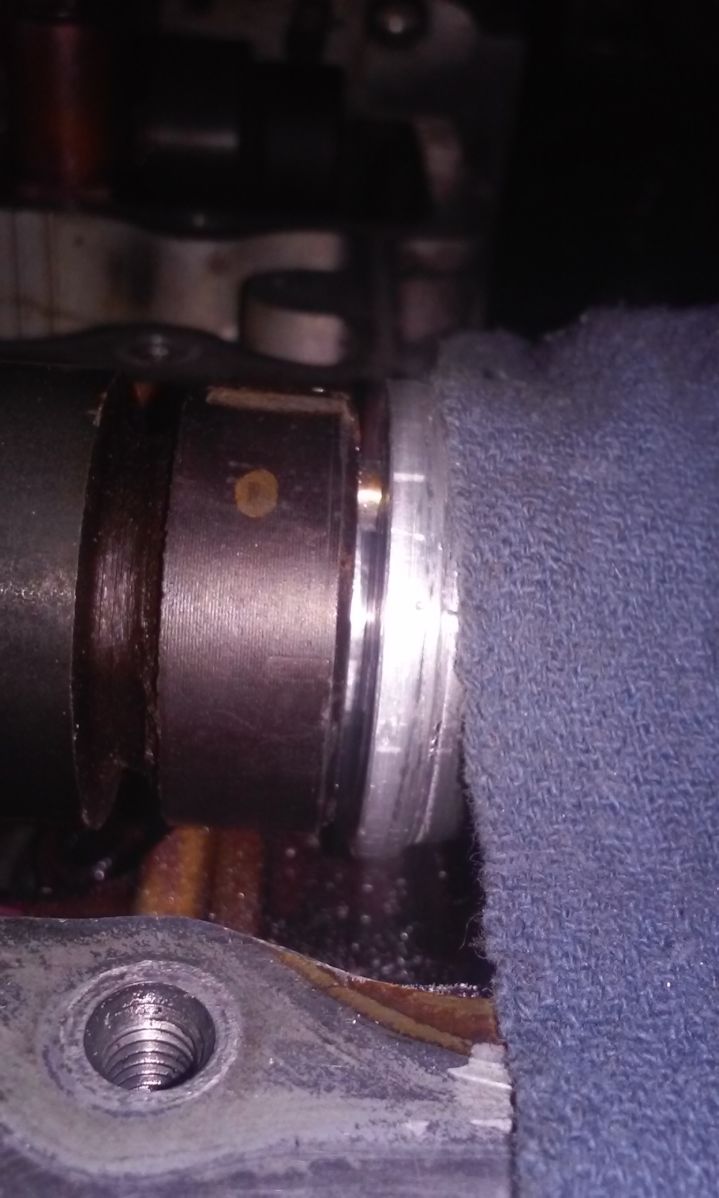

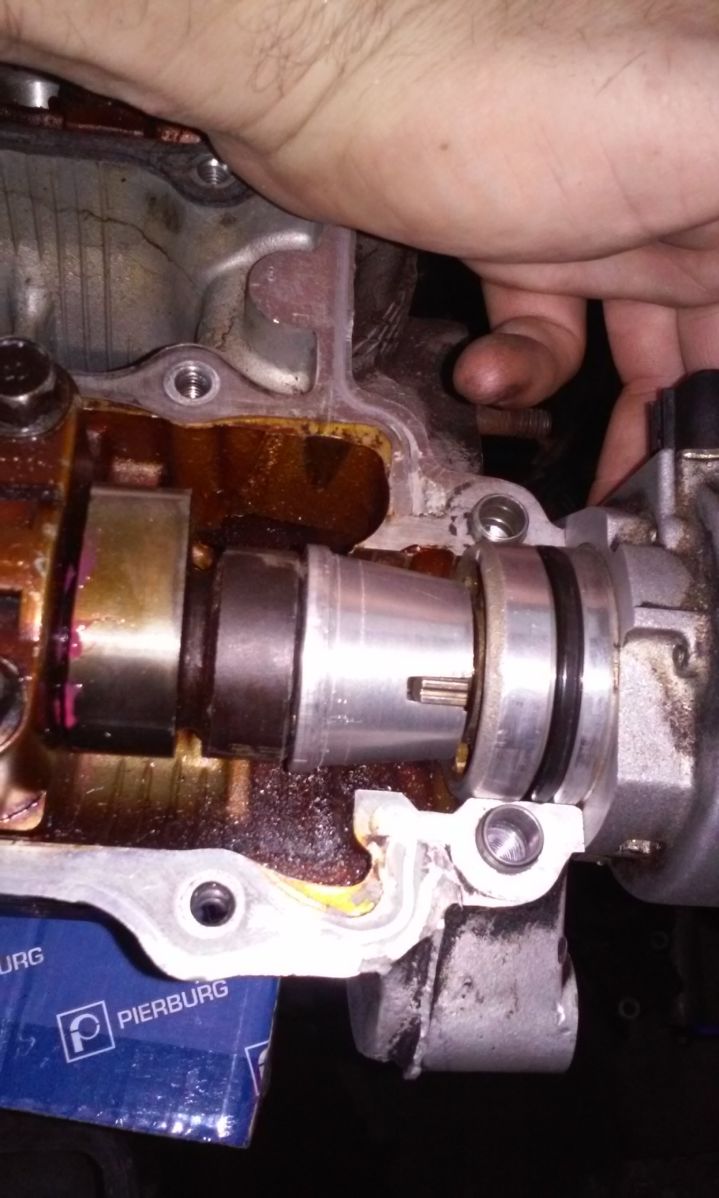

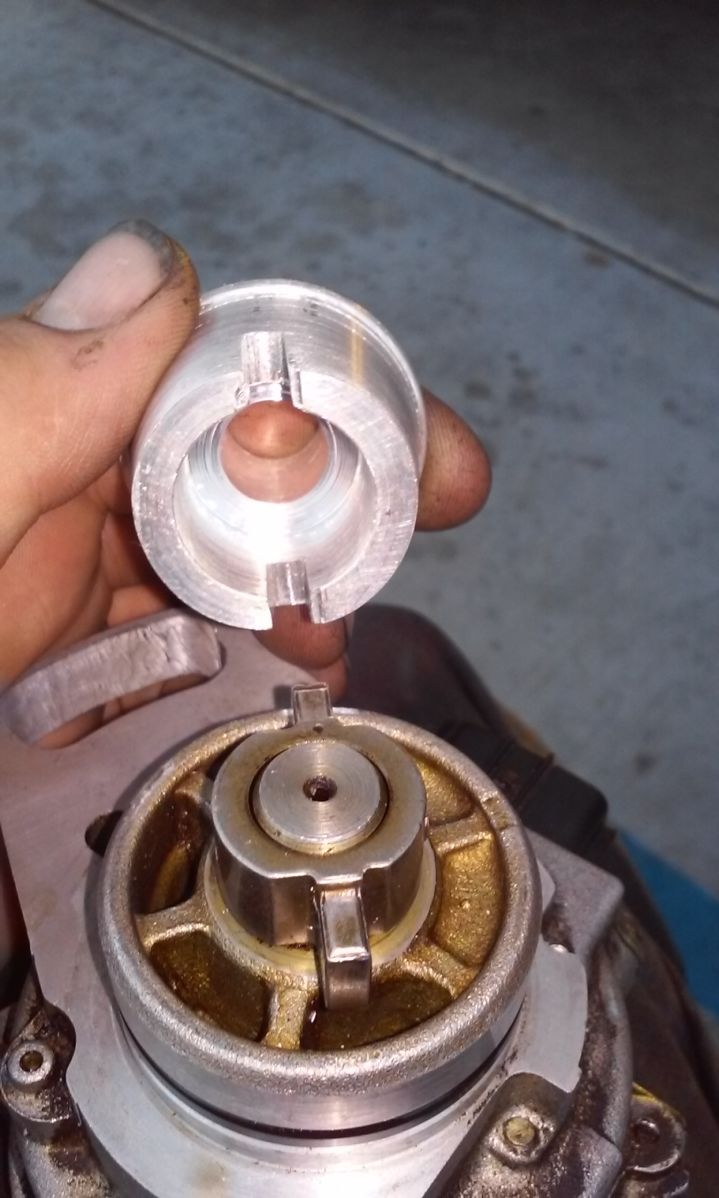

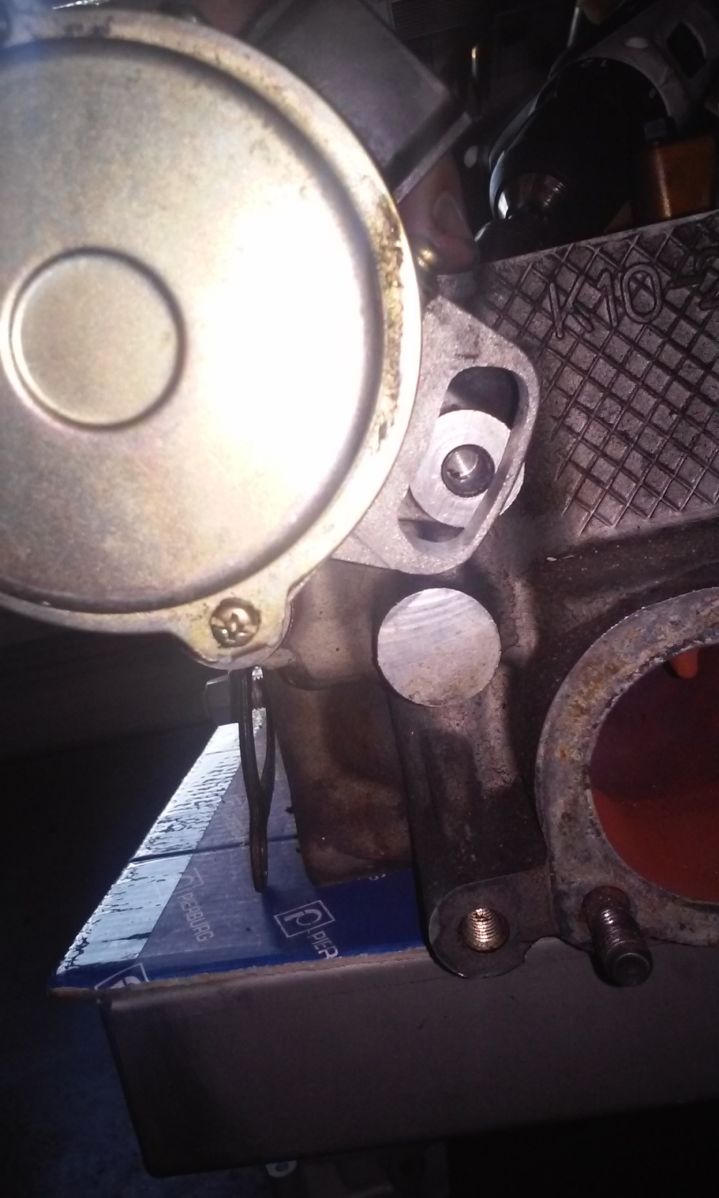

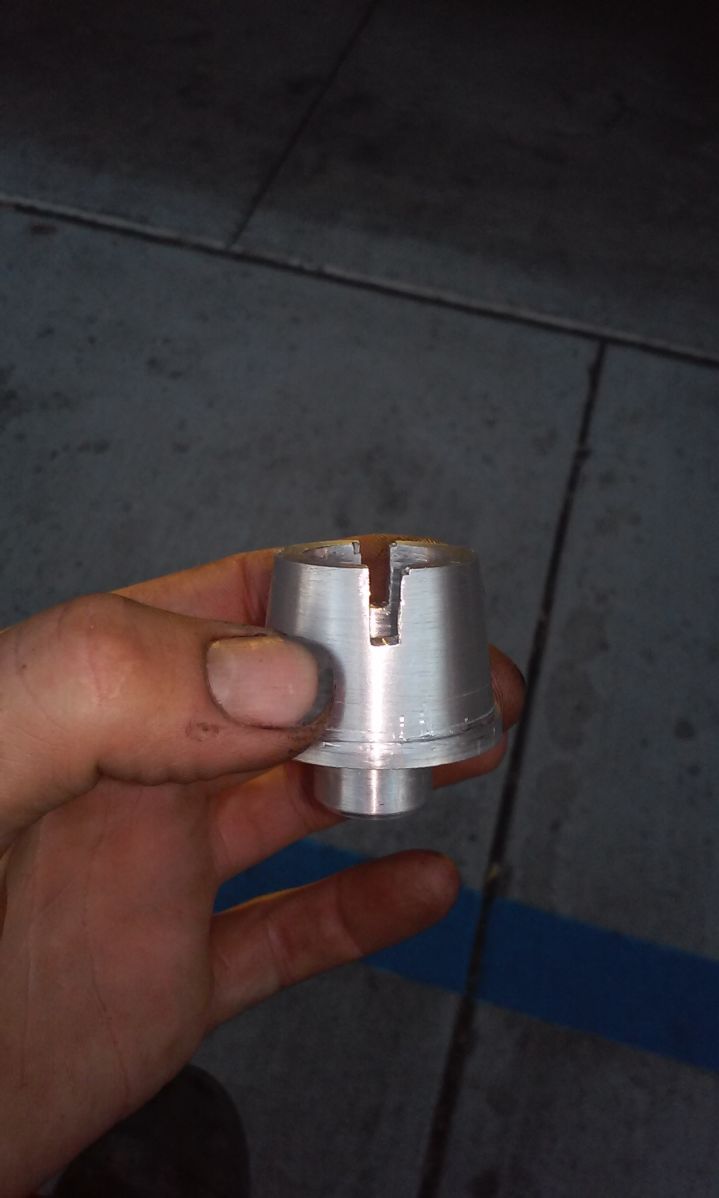

The flapper and pin are both 5mm.I ended up finding a box with a few small bits in the bottom of our mill cabnet. I also picked up a new cas today and changed my design making the cas fit without removing the flapper. The slot for adjusting timing had to be widened 6mm or so to fit the head. The adapter bottoms out pin the flapper before it contacts the cas body and only pulls out 1mm or so from the cam before doing so
















Attached Thumbnails
installing a miata CAS onto an FE3N-80-1439692339524_544288816_84c1287d4b467b0d57201c36a2e8b52c1aaa8d1c.jpg   installing a miata CAS onto an FE3N-80-1439692384660_1582704992_a1f3aeb214a258029cc95b77d2068b3408a6f946.jpg   installing a miata CAS onto an FE3N-80-1439692436983_214629443_167aef4606411dad0e869924c59b40c6ac862196.jpg   installing a miata CAS onto an FE3N-80-14396924924401838246255_4e8340c82a449e26cee820fc58b371bd473a1a9b.jpg   installing a miata CAS onto an FE3N-80-14396927116031829592078_9f54e82b28f6e2f79be8c499fff44ba4a82b03c4.jpg

installing a miata CAS onto an FE3N-80-14396925321291391518595_ac5cd2820f9abbdf8e3f1258b1dc05be7251dacb.jpg
fastivab6tg25mr is offline   Reply With Quote
Old 08-15-2015, 11:57 PM   #35
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,901
Total Cats: 608
Default

more better
hi_im_sean is offline   Reply With Quote
Old 08-16-2015, 01:11 AM   #36
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

now that im happy with my new design i need to make 3 more lol
fastivab6tg25mr is offline   Reply With Quote
Old 08-16-2015, 12:28 PM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

yay, much better. seems like a real nice simple solution.
Braineack is online now   Reply With Quote
Old 10-02-2015, 12:03 PM   #38
JLC
Newb

Join Date: Jul 2011
Location: Boise, Idaho
Posts: 20
Total Cats: 0
Default

Very nice work. I love the design you chose for the adaptor. Pmd you
JLC is offline   Reply With Quote
