Old 03-01-2012, 04:10 PM   #61
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

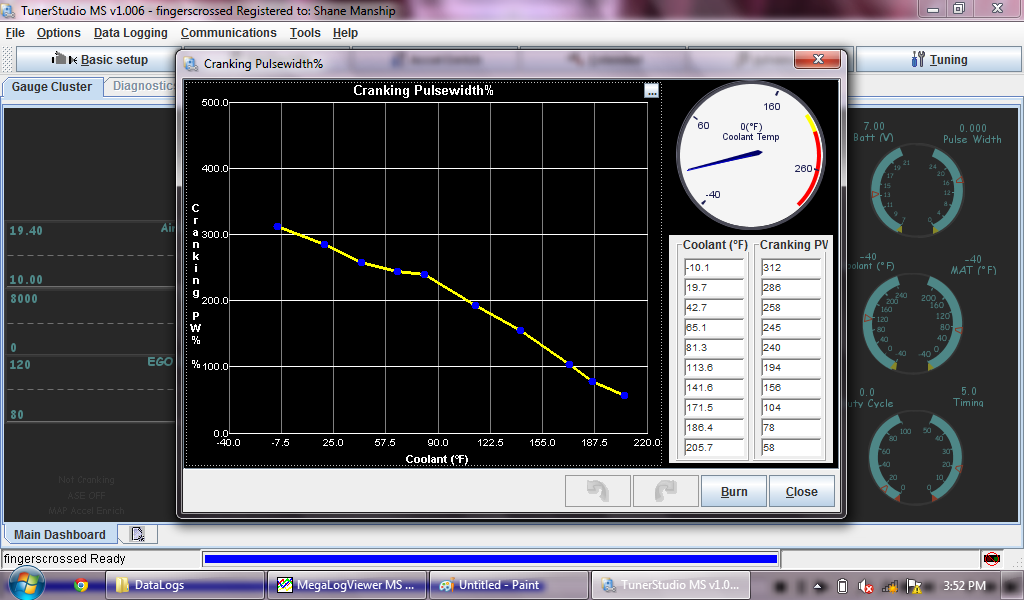

I have been charging the battery with the truck for about an hour, and it shows 13+V with the jumpers attached, but cranking speed still at 160. Changed speed back up to 300 in 'cranking settings.' Also increased cranking pulse to the pic below.

Will try using the battery from the '94.

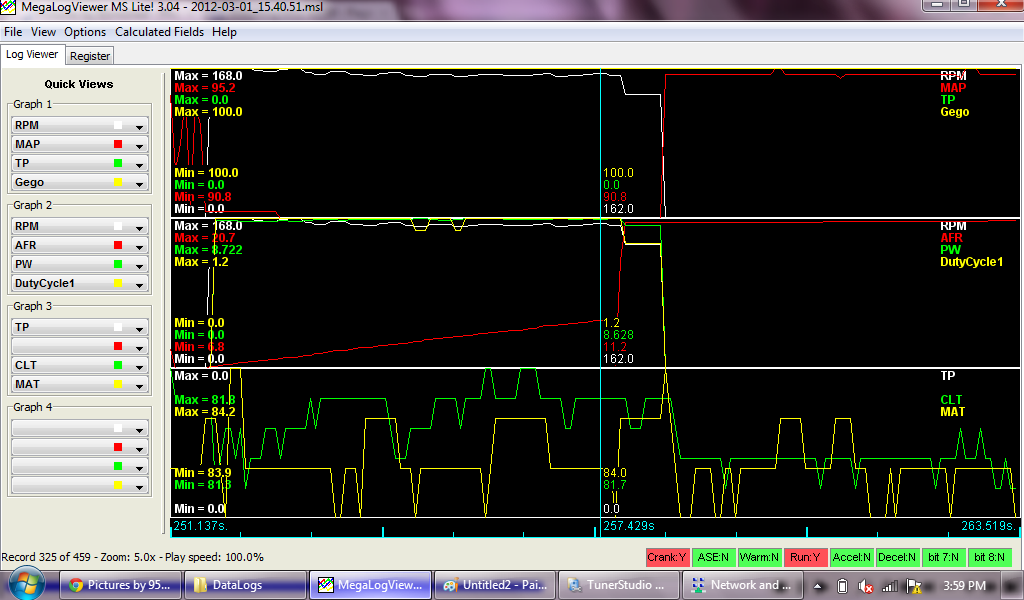

Attached the log, relevant portion below. Appears to lean out the longer I crank.


Name:  Untitled2.png
Views: 3
Size:  194.2 KB
Name:  Untitled2-1.png
Views: 3
Size:  115.7 KB
Attached Files
File Type: msl 2012-03-01_15.40.51.msl (121.2 KB, 41 views)
94mx5red is offline   Reply With Quote
Old 03-01-2012, 04:52 PM   #62
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

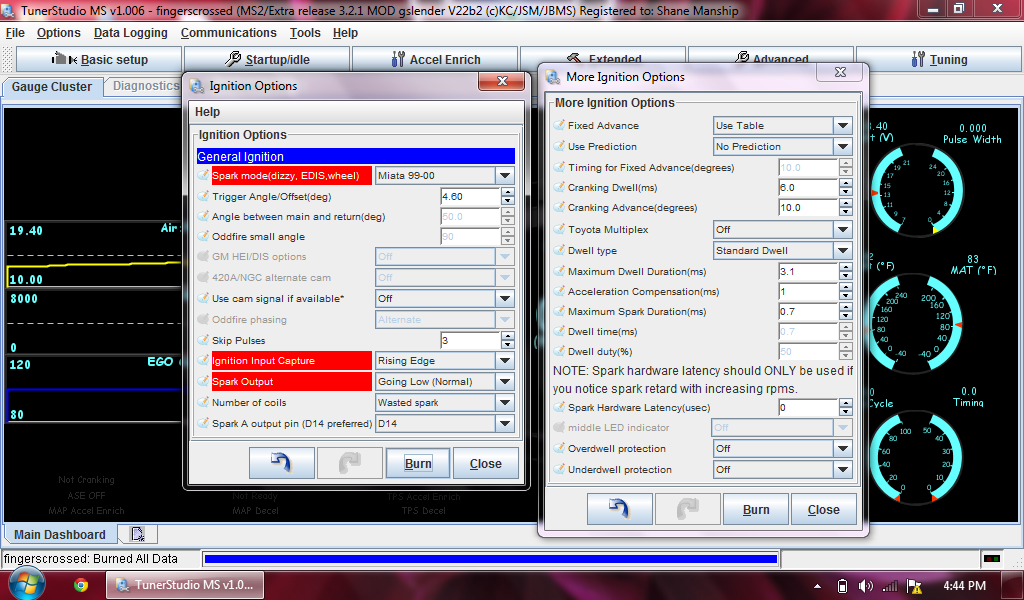

The spark settings were wrong. Scott had me change to Normal rather than Inverted. Everything else looking good?

Waiting to crank.


Name:  3.png
Views: 3
Size:  236.4 KB
94mx5red is offline   Reply With Quote
Old 03-01-2012, 05:23 PM   #63
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

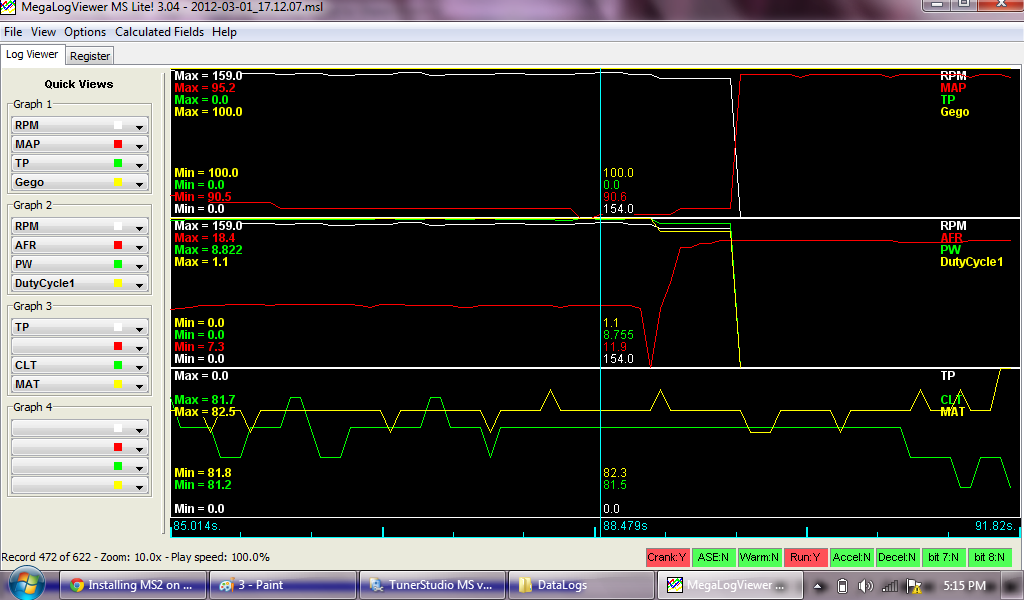

What the crap?

Tried cranking, same result. Used the battery from the 94 while hooked up to the running truck. Cranking RPMs still around 160.


Name:  3-1.png
Views: 3
Size:  109.0 KB
94mx5red is offline   Reply With Quote
Old 03-01-2012, 05:51 PM   #64
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

Picture of a kitty and his kill to make thread legitimate.




Attached Thumbnails
Installing MS2 on 99-photo3.jpg   Installing MS2 on 99-photo-1.jpg
94mx5red is offline   Reply With Quote
Old 03-01-2012, 08:09 PM   #65
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

I got it figured out, and boy is brainey sneaky! He is hoping I get frustrated and part-out, so he can get his paws on the illustrious VF Engineering Supercharger.

Dude, I already told you: You have first dibs.

Once I get running, it will come off, turboz will replace, and you can have it.

Faster you get me running, the faster you get teh real boostz.
94mx5red is offline   Reply With Quote
Old 03-06-2012, 06:41 PM   #66
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

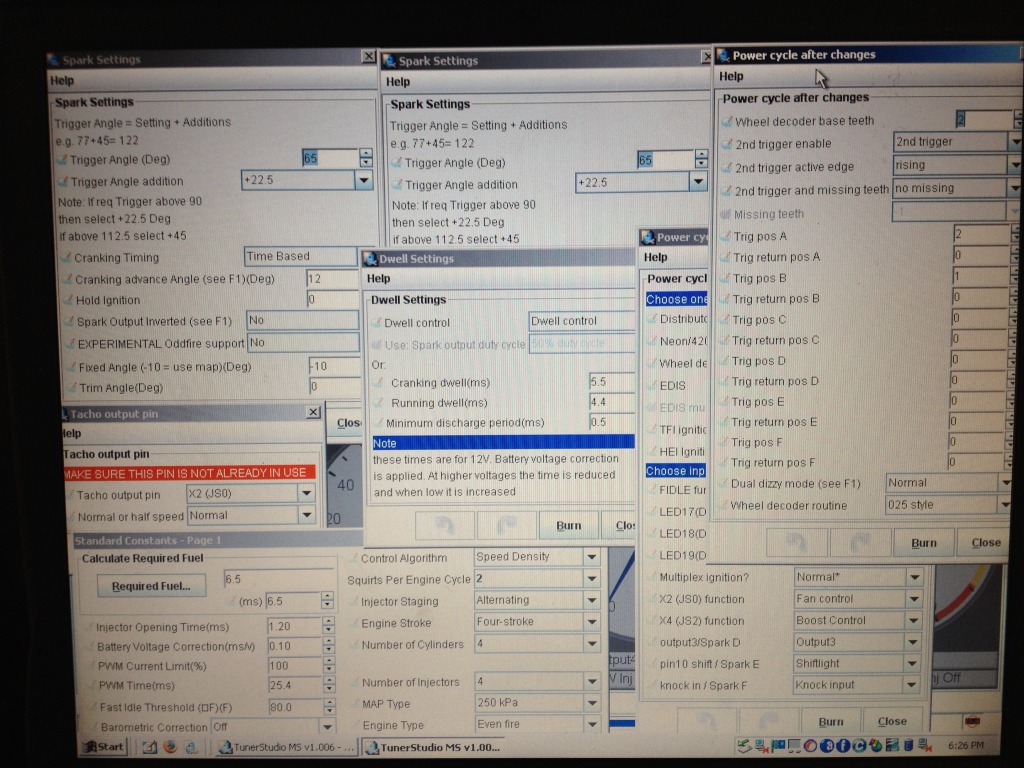

Scott has a couple ideas. That he did not change spark output to Joe's improved, and that I need to match the settings of the MS1. Below is a screenshot of good ole MS1 in all its fully functional and working glory.

Switched to Normal. How about 'ignition input capture'? Leave alone? Screen shot on post #62.

Other idea is to load up a official release firmware to test the composite logger and make sure the inputs are in fact okay.

Any further thoughts from brain or others?

Attached Thumbnails
Installing MS2 on 99-photo4.jpg
94mx5red is offline   Reply With Quote
Old 03-06-2012, 07:34 PM   #67
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

I do not know if any of this makes a difference or not, but I figure it is worth mentioning:

- there is a wire dedicated to VICS coming out of the harness that I do not have hooked up to anything

- while attempting to start I let the AIT sensor sit out of the intake, capturing the temperature of the open air
94mx5red is offline   Reply With Quote
Old 05-12-2012, 06:23 PM   #68
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

Bumpity bump!


Sent ms back to brain and he discovered the ignition inputs crossed.

Still cranks low at 150rpm while jumped to a good running truck battery.

Brainy suggests going back to stock ECU, and testing for fuel and spark, so that's what I will do over the next couple weekends.

BUT, I did cut the wires to the post cat O2 sensor and removed it. Must I wire it back in when testing?


Need some help with procedures to test for fuel and spark. When testing spark, how do I disable the fuel system?
  • Do I put lay a plug on the valve cover?
  • Use an inline light (have one)?
  • Use a timing light? (have also)


Testing fuel: what can I do other than hearing the fuel pump turn on?
(WB was showing fuel while cranking. If I put post-cat O2 back in I lose WB)


Assuming I do not have spark at the plugs, do I just start working backwards and check the coilpack? What do I check after that if coilpack is ok?

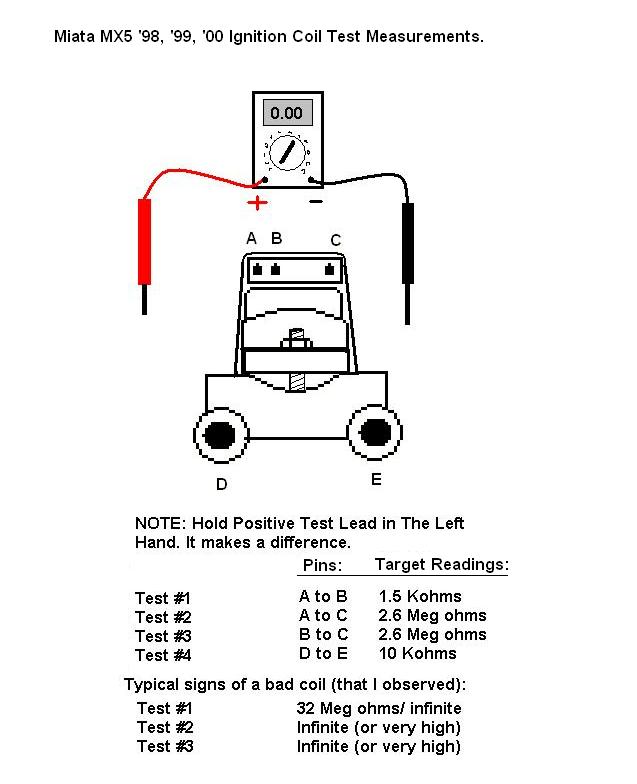

Found this diagram in a thread:


Will also edit to add last cranking log and msq.
Attached Thumbnails
Installing MS2 on 99-coilpack_test.jpg
Attached Files
File Type: msl 2012-04-29_13.46.49.msl (124.1 KB, 43 views)
File Type: msq CurrentTune.msq (81.5 KB, 49 views)
94mx5red is offline   Reply With Quote
Old 05-20-2012, 02:12 PM   #69
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

Stock computer back in. No spark.

Pulled the coilpack. Huge pain in the ***. Testing it soon.
94mx5red is offline   Reply With Quote
Old 05-20-2012, 06:56 PM   #70
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

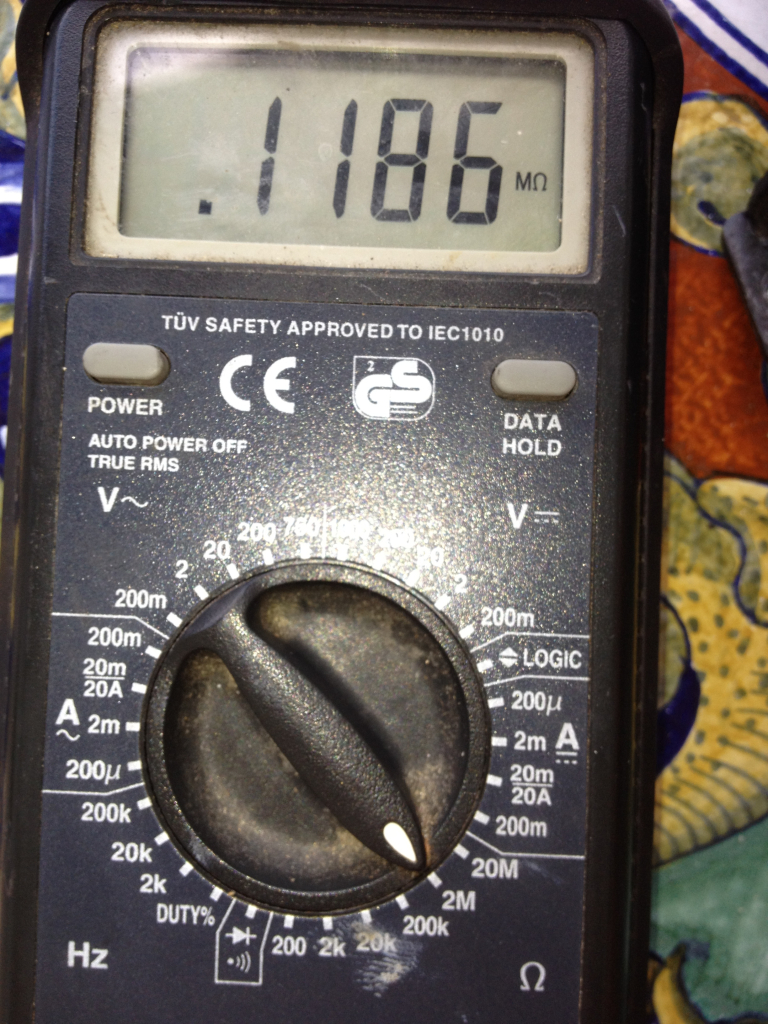

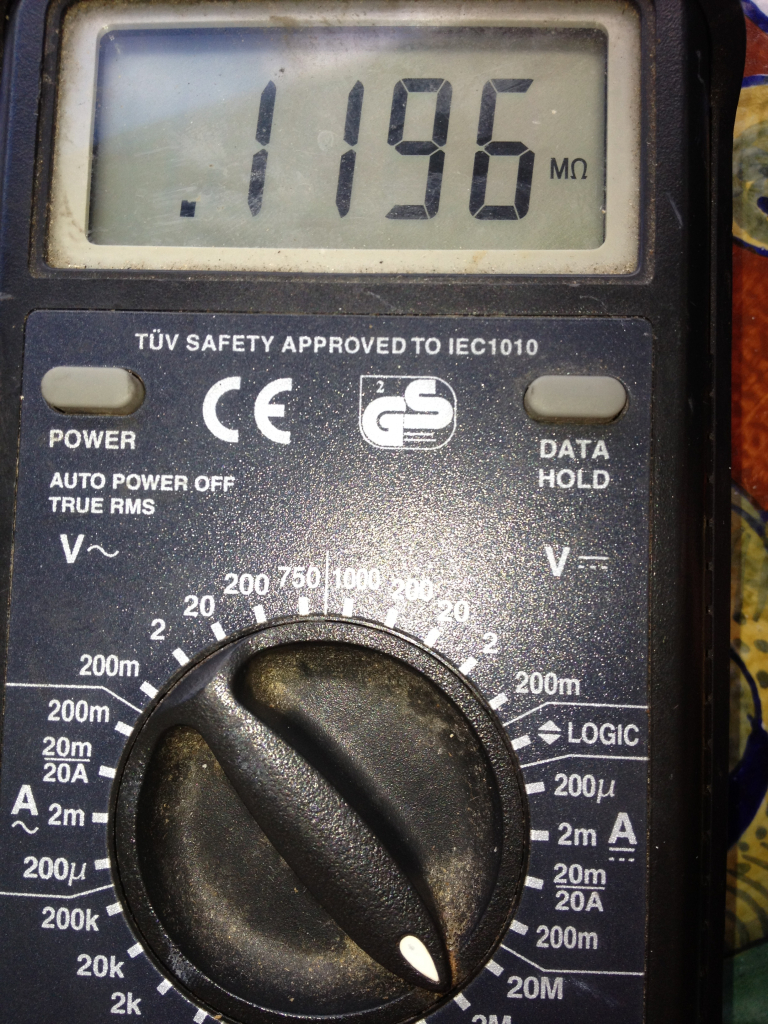

Please look at the photos and tell me if I have this contraption set correctly (doubtful).


Here is the test I am doing:


Here are my results:
Left coil:
  1. Nothing
  2. Nothing
  3. .1197

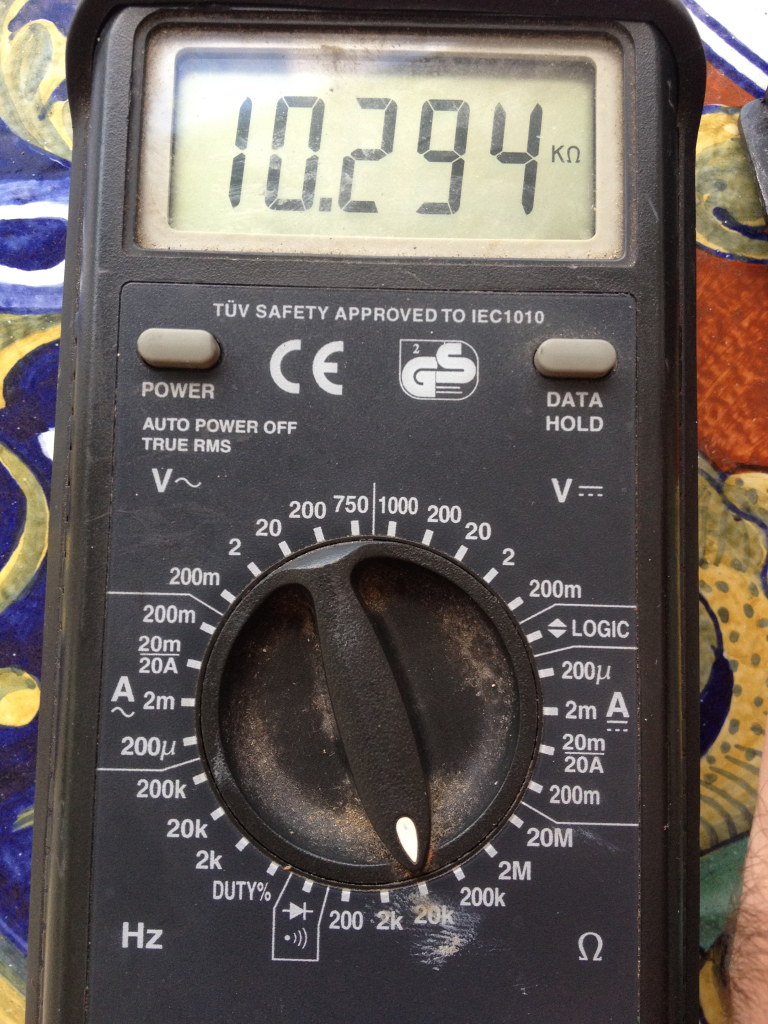

  4. 10.294
Right coil:

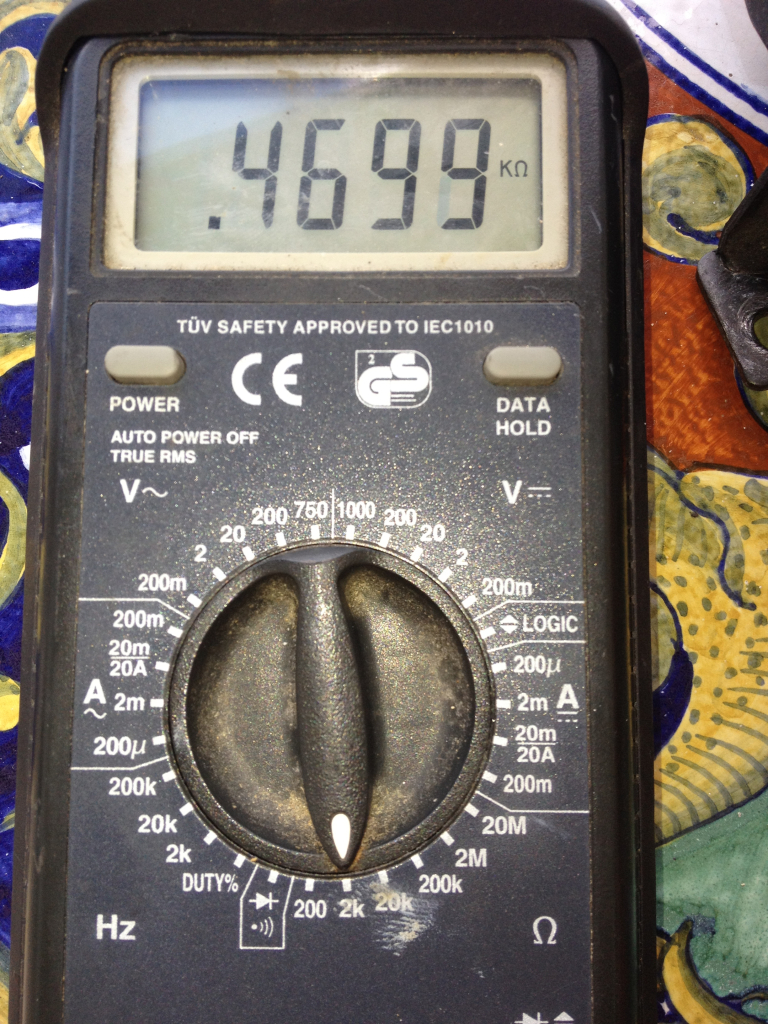

  1. .4699

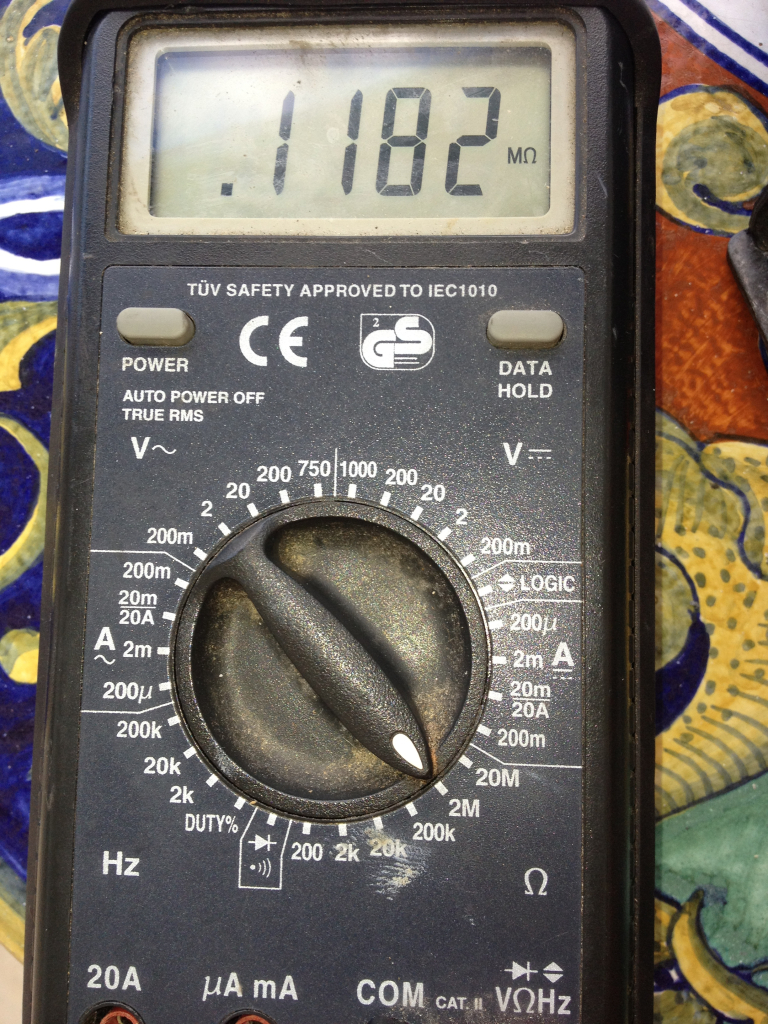

  2. .1182
  3. .1187
  4. 9.93

Tests 3 and 4 on the left:










Tests 1, 2, 3, 4 on right coil:



Attached Thumbnails
Installing MS2 on 99-b3d843e6.jpg   Installing MS2 on 99-c97059c6.jpg   Installing MS2 on 99-b9f7ea2c.jpg   Installing MS2 on 99-d1ef171c.jpg   Installing MS2 on 99-31c9e05b.jpg

94mx5red is offline   Reply With Quote
Old 05-24-2012, 10:51 PM   #71
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 579
Total Cats: 4
Default

Does the car start now ? I do have the same or similar problem...
joyrider is offline   Reply With Quote
Old 05-25-2012, 05:53 AM   #72
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

I was not using the multimeter correctly, see this thread: https://www.miataturbo.net/general-miata-chat-9/multimeter-testing-coilpack-66035/


Appears my coils are done. I am hoping to pick up a working set today and test again this weekend.
94mx5red is offline   Reply With Quote
Old 05-25-2012, 11:40 AM   #73
Senior Member
iTrader: (8)

Join Date: Oct 2010
Posts: 579
Total Cats: 4
Default

My car started this morning, coils are okay, thanks for your procedure.

My AFR is near 20 tho... don't know if I should check timing or look for better AFR first.
joyrider is offline   Reply With Quote
Old 05-26-2012, 01:27 PM   #74
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

94mx5red is offline   Reply With Quote
Old 05-26-2012, 06:30 PM   #75
Senior Member
Thread Starter
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 4
Default

Starting to pull myself out of fail.

My coils were blown. Got a new set in, and it started on the second crank!

Back to square one. Running car with wideband installed. A Brain re-re-rebuilt MS2 and rx7 460's ready to install on Monday. I am happy.
94mx5red is offline   Reply With Quote
Old 08-20-2016, 11:04 PM   #76
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

Quote:
Originally Posted by Braineack View Post
My only guess right now is that the ground in the engine bay is missing. Correct me if I'm wrong, but I'm pretty sure that would cause the CLT sensor to sit at 180F (which is failsafe IIRC) and the TPS to sit at full 5v. Unless there's a ground in the engine harness I missed that's required,
Thanks for this nugget. My CLT is stuck at 180F. I've verified all the other sensors appear to be working and pass logical checks. My CLT is the only sensor that isn't working. I'll go hunting for engine grounds. It's also possible I made a mistake when I extended the two wires to reach the new sensor location thanks to my M-Tuned coolant reroute. But that's such a simple thing I doubt it.
freedomgli is offline   Reply With Quote
Old 08-22-2016, 11:28 AM   #77
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,259
Total Cats: 51
Default

Quote:
Originally Posted by freedomgli View Post
Thanks for this nugget. My CLT is stuck at 180F. I've verified all the other sensors appear to be working and pass logical checks. My CLT is the only sensor that isn't working. I'll go hunting for engine grounds. It's also possible I made a mistake when I extended the two wires to reach the new sensor location thanks to my M-Tuned coolant reroute. But that's such a simple thing I doubt it.
I'd recommend starting a new thread and specifying what MS variant you are using.
Matt Cramer is offline   Reply With Quote
Old 08-23-2016, 12:28 PM   #78
Junior Member

Join Date: Jan 2007
Posts: 218
Total Cats: 15
Default

No need. Problem resolved.
