Default just installed celica c.o.p's and now no tach

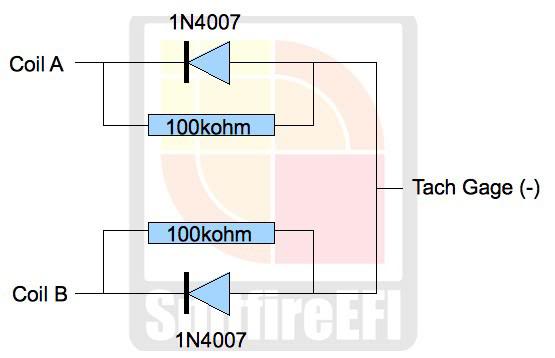

i just finished installing celica cops in my BP+T MS1 v3.0 festiva and now my tach doesnt work. i wired it as per Lazzer408's diagram. its not a waste spark tach so i made a module as per a ms1 in a 323 gtx :

Name:  tachmod.jpg
Views: 4
Size:  15.6 KB

ive tried wiring it to the ms output to the coils the tach output terminals and the (1+4) wire and the (2+3) wire and neither way worked.


any thoughts?
fastivab6tg25mr is offline   Reply With Quote
Old 05-19-2011, 05:12 AM   #2
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

Name:  0519200229.jpg
Views: 2
Size:  85.1 KB

Last edited by fastivab6tg25mr; 05-21-2011 at 05:57 AM. Reason: better pic
fastivab6tg25mr is offline   Reply With Quote
Old 05-19-2011, 06:12 AM   #3
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

you need a zener diode in that diagram to make it work, like this:



1N5355B or a 1N5555B will work and are available at radioshack.
MD323 is offline   Reply With Quote
Old 05-19-2011, 08:28 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i bet you just need to give the tach output wire a 1K pullup from 12v.
Braineack is offline   Reply With Quote
Old 05-19-2011, 03:21 PM   #5
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
i bet you just need to give the tach output wire a 1K pullup from 12v.
that works too
MD323 is offline   Reply With Quote
Old 05-19-2011, 04:55 PM   #6
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

How about making me a snazzy COP hold down clamp.
miatauser884 is offline   Reply With Quote
Old 05-19-2011, 05:10 PM   #7
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

Quote:
Originally Posted by djp0623 View Post
How about making me a snazzy COP hold down clamp.

sure... ill charge way more money than its worth though... took me like 4 hours to make that damn thing...

ill try the the 1k ohm resister and see if it works. does it matter how many watts it is?

thanks for the replies
fastivab6tg25mr is offline   Reply With Quote
Old 05-19-2011, 05:44 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

1/4watt works
Braineack is offline   Reply With Quote
Old 05-20-2011, 01:38 AM   #9
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

the 1k ohm pull up didnt work... ill pick up a diode tomorrow and see if that fixes it
fastivab6tg25mr is offline   Reply With Quote
Old 05-20-2011, 01:44 AM   #10
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

make sure its a ziener and make sure you put it with the stripe facing the over diodes like in the picture:



http://www.msextra.com/doc/ms1extra/...ev_Hivolts.GIF
MD323 is offline   Reply With Quote
Old 05-20-2011, 02:21 AM   #11
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

could it have burned up my tach circuits running it without that extra diode?
fastivab6tg25mr is offline   Reply With Quote
Old 05-20-2011, 02:39 AM   #12
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

no, unless they look damaged id try the ziener before 2nd guessing anything else
MD323 is offline   Reply With Quote
Old 05-20-2011, 07:21 AM   #13
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

k...i didnt disconnect the tach circuits at first and i dont think they hurt the coils but it did cause a spark break up issue above 10psi... removed the wires and it revved smoothly to 14psi.

should i remove the 100k ohm resistors from around my diodes?

edit: what spark plugs should i use?

Last edited by fastivab6tg25mr; 05-20-2011 at 01:02 PM.
fastivab6tg25mr is offline   Reply With Quote
Old 05-20-2011, 07:54 PM   #14
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

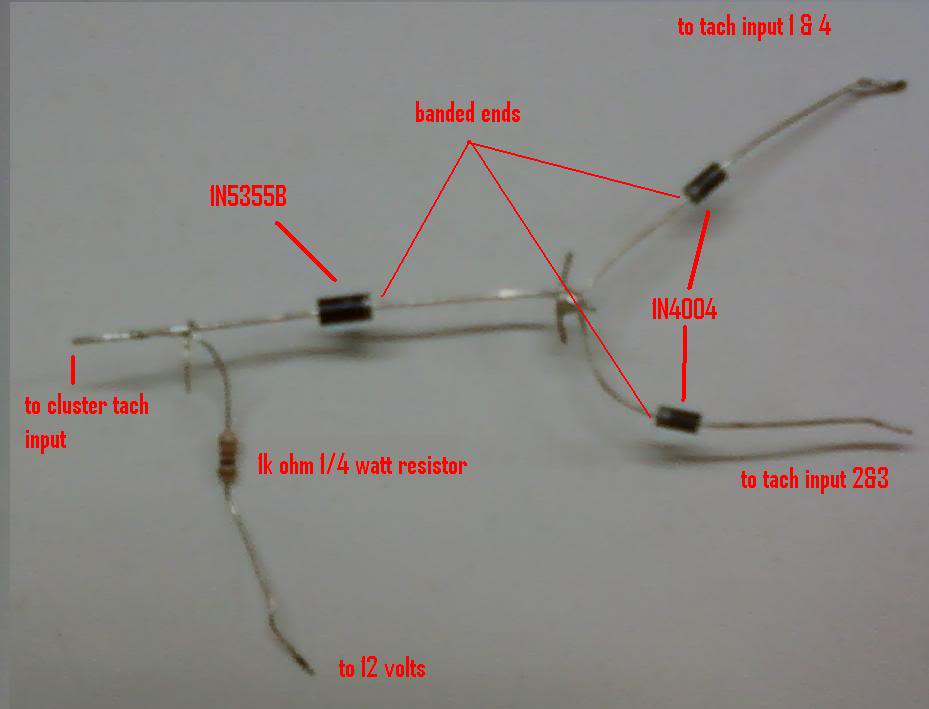

the diode thing didnt work at all... i tried both with and without the pull up and neither one makes the tach move at all. here is my crude little tester i made. i soldiered all the connections together and to the corresponding wires on the car.

Name:  tachcomponents.jpg
Views: 3
Size:  31.8 KB
fastivab6tg25mr is offline   Reply With Quote
Old 05-20-2011, 08:29 PM   #15
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

that looks nothing like the zeiner diode i used..

and with the zeiner you do not need the pull up resistor
MD323 is offline   Reply With Quote
Old 05-20-2011, 10:58 PM   #16
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

do you hve cops on your 323? caue it worked fine on my miata coil packs hooked up to the coil driver wires coming out of the igniter
fastivab6tg25mr is offline   Reply With Quote
Old 05-20-2011, 11:27 PM   #17
Junior Member

Join Date: Sep 2010
Location: SFL
Posts: 376
Total Cats: 3
Default

I had KLg4 coils on my 323 on the KL and used the same diagram as post earlier by me.

the ziener diode i used from RS was this:

http://www.radioshack.com/product/in...uctId=2049725#
MD323 is offline   Reply With Quote
Old 05-21-2011, 05:54 AM   #18
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

does the one in that link replace the 1n4004 or the 1n5355B?
fastivab6tg25mr is offline   Reply With Quote
Old 05-21-2011, 11:02 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the 1n5355B is a ziener..

on your diagram it appears you attached the 1n4004s to the tach input? should be the spark outputs from the MS.
Braineack is offline   Reply With Quote
Old 05-21-2011, 04:00 PM   #20
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

oh... i put them on the tach output terminals of the coils
fastivab6tg25mr is offline   Reply With Quote
