Old 05-21-2011, 05:30 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

well that's a problem.


all your tach outs from teh coils should be combined together, then going back to the dash gauge. try a signal 1K 1/4watt pull-up from 12v on that output to power the signal.

if that doesnt work, try the circuit you had before, remove the pull-up and use the spark triggers as the source, not the tach outs.
Braineack is online now   Reply With Quote
Old 05-28-2011, 03:58 PM   #22
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

problem solved... thanks Braineack... i just soldierd all the tach outputs together and ran them to the rear of the cluster, soldiered a 1k pullup resistor to the back of a miata tach, soldiered wires to the (+), (sig), and (grd) tremainals of the back of the cluster, and modified both tach and cluster to install it in my festiva cluster. installed miata tach faceplate on top of the festiva gauge face. used tuner studio to confirm accurate operation.

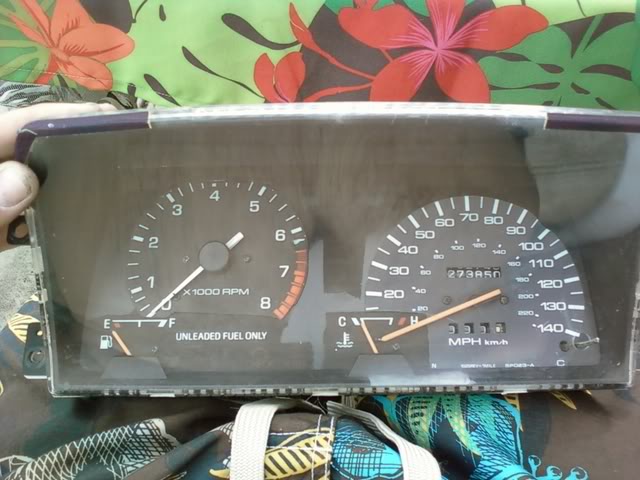

Name:  0528112028.jpg
Views: 1
Size:  55.5 KB

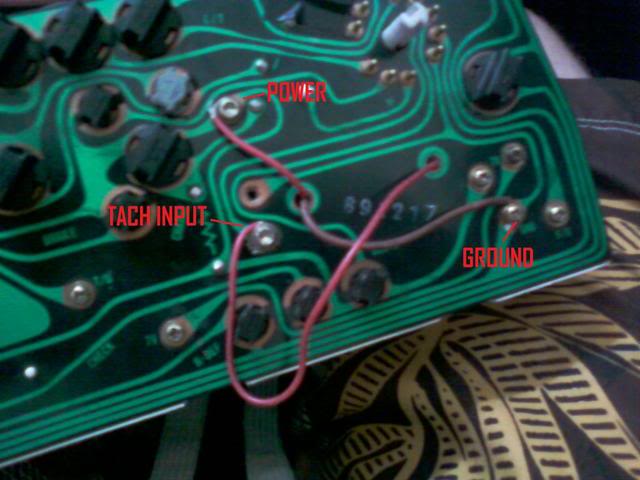

Name:  backofcluster.jpg
Views: 1
Size:  42.3 KB
fastivab6tg25mr is offline   Reply With Quote
Old 05-28-2011, 05:12 PM   #23
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

And then proceded to RAPE FACE last night
This car seriously hauls *** and scares the **** out of me.
I thought we were going to die a couple times lolol
18psi is offline   Reply With Quote
Old 05-29-2011, 03:55 AM   #24
Junior Member
Thread Starter

Join Date: Jan 2011
Location: sacramento ,ca
Posts: 402
Total Cats: 46
Default

we only hit 130...man up...lol j/k
fastivab6tg25mr is offline   Reply With Quote
