As Joe started with the Ignition and VE-tables - I might as well add the AFR tables:

In this thread we ca see that there seem to be quite different opinions on the look of a good AFR table:

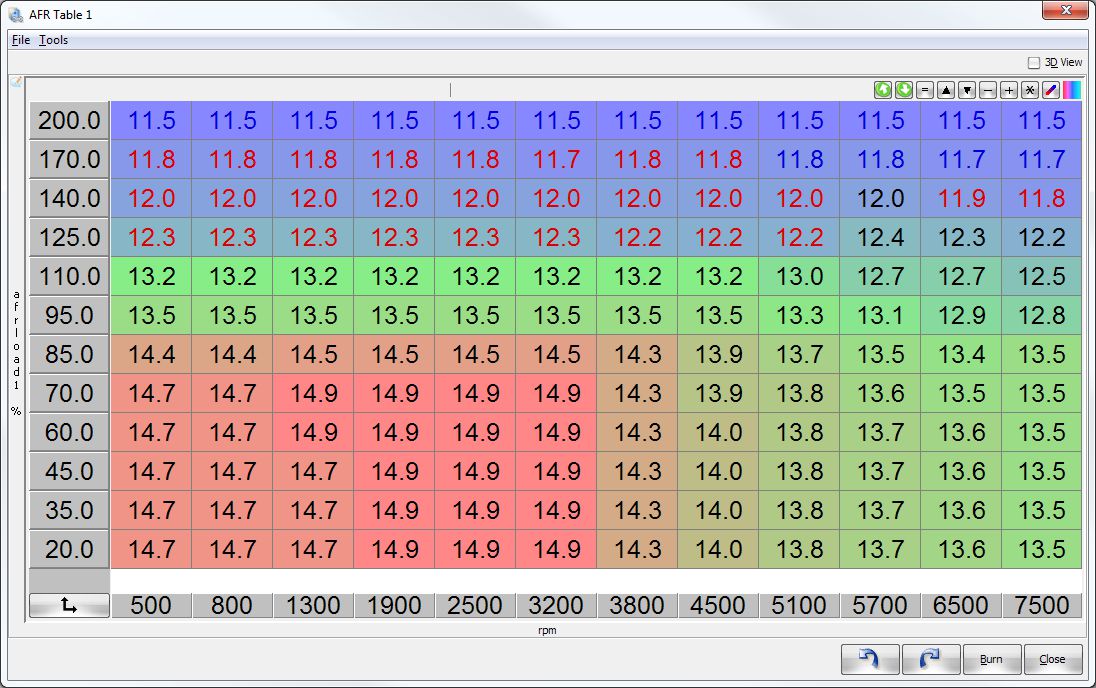

This is how mine looks atm:



According to Rev in the other thread the table is quite lean in the boosted area,

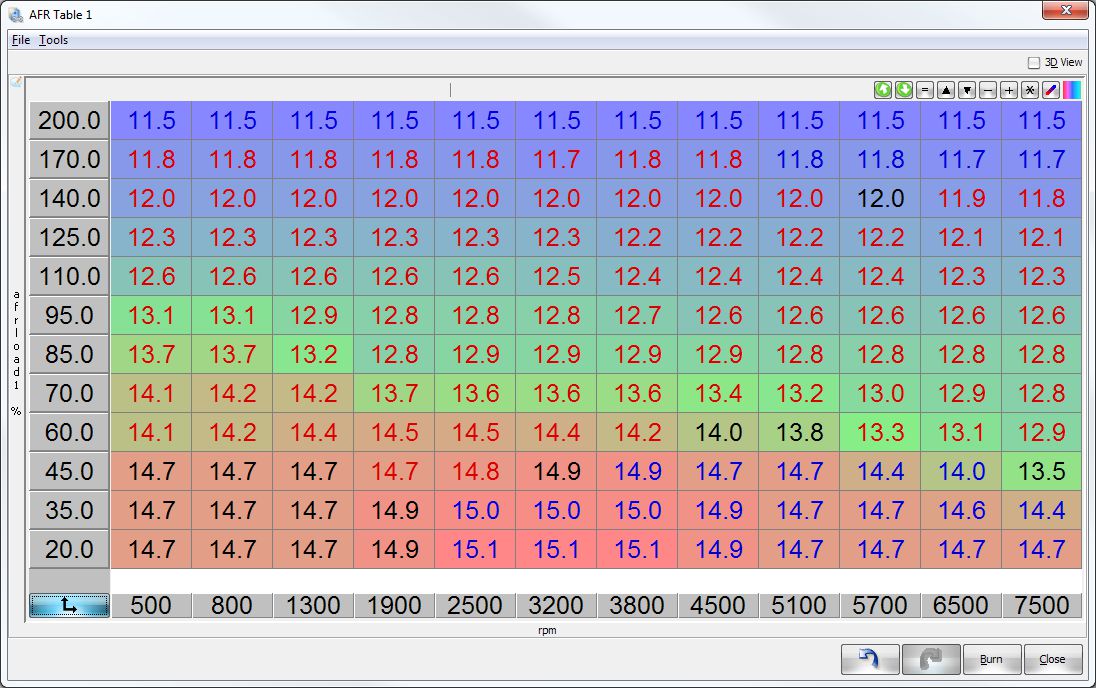

so I tried what the AFR table generator in TS might give me - this is what it gave me (hopefully my settings were correct - as I don't know my actual HP and TQ numbers)



Quite a difference...(but not in the boosted area...)
Discuss!
Attached Thumbnails
Let's discuss AFR tables-afr_table_sr.jpg   Let's discuss AFR tables-afr_table_generator.jpg
Zaphod is offline   Reply With Quote
Old 03-01-2013, 03:55 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

TS generates afr tables!!!?!?
curly is offline   Reply With Quote
Old 03-01-2013, 04:14 AM   #3
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 940
Total Cats: 59
Default

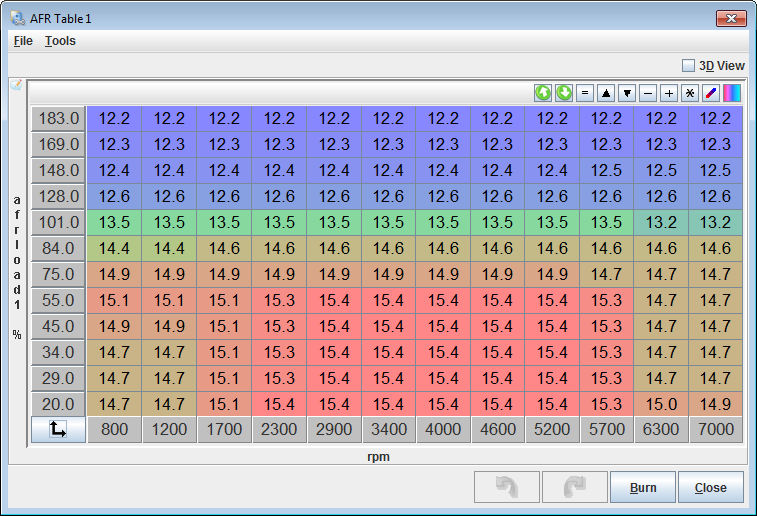

My bottom row in VE table is locked, so the 20 row doesn't really matter.
My car weighs 600kg.
Attached Thumbnails
Let's discuss AFR tables-1-03-2013%25209-12-03.png
WestfieldMX5 is offline   Reply With Quote
Old 03-01-2013, 05:46 AM   #4
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by curly View Post
TS generates afr tables!!!?!?
Yepp, if you open up the AFR table - then go under tools - AFR table generator.
(You can also get a VEtable generated.)
Zaphod is offline   Reply With Quote
Old 03-01-2013, 06:59 PM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,011
Total Cats: 583
Default

I think the reason we didn't have this thread is that the subject-matter is pretty simple. Just about all you need to know has already been discussed in the spark advance thread (posts 46-48 -- post 48 has pretty pictures from Brain that sum it all up nicely).

https://www.miataturbo.net/megasquir...e3/#post953541

Bottom line, there are two values you care about:

14.7 (Stoichiometric) -- Economy and Emissions -- this is the switch point of a NBO2 sensor.
12.5 -- Fastest burn and maximum power.

Going rich from 12.5 slows flame speed and adds protection against det. There really isn't much reason to target values between 12.5 and 14.7. If you are in a zone where you want power, just go to 12.5. That's what you see the TS tool doing (making a quick transition from 14.7 and leaner to 12.5 and richer).

I also didn't know TS had this tool. Pretty cool.
hornetball is online now   Reply With Quote
