Default DIYPNP DB15 Connections

I purchased one of the enhanced MS2/DIYPNP from Brain and Rev during this group buy:

https://www.miataturbo.net/ms-labs-miata-accessories-89/99-00-01-05-msm-megasquirt-ms2-diypnp-enhanced-group-buy-50791/

And I have the DB15 connector with these wires:



Red, Blue, Yellow, White, Purple, Grey, Brown and Green

I know that the LC-1 wires into the first 4 wires, but I'm wondering what I need to connect to the Purple, Grey, Brown and Green wires?

For reference, here's the DB15 excel spreadsheet for my unit:

1 12V YES
2 GND YES
3 SIGNAL GND YES
4 WIDEBAND YES
5 VREF (5V)
6 5V FOR DIY
7 SWITCH TABLES YES
8 FLEX FUEL
9 LAUNCH CONTROL
10 IGN C YES
11 IGN D YES
12 ANALOG KNOCK OUT
13 DIGITAL KNOCK IN
14 ALT MAP IN
15 RPM OUT/EBC OUT

I searched around through some of the relevant threads, but didn't find anything concrete; any help is greatly appreciated!
Attached Thumbnails

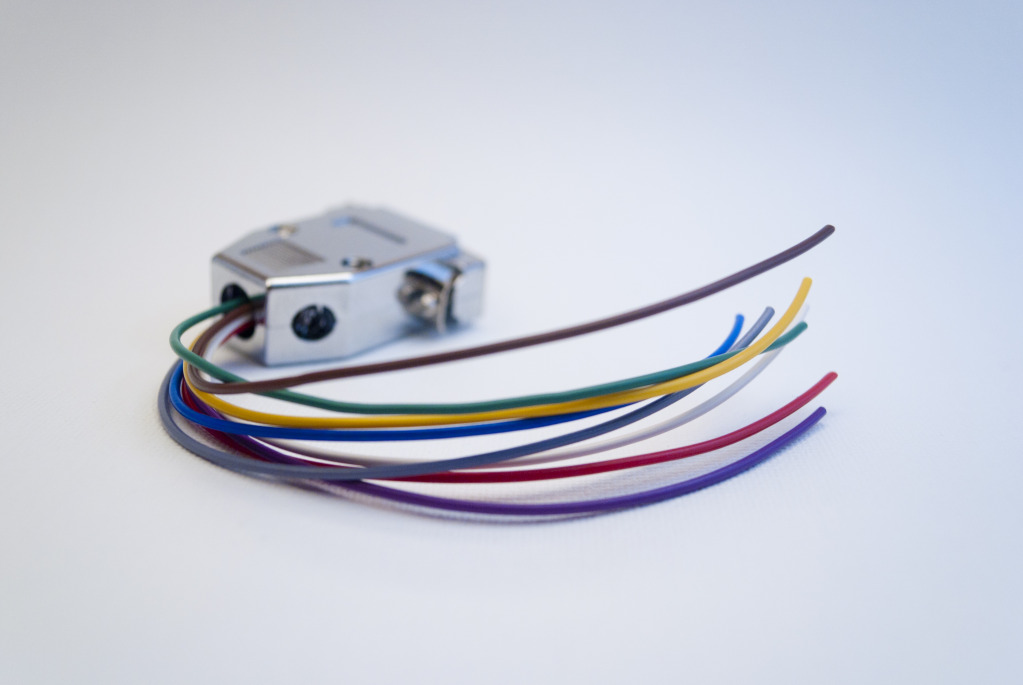

DIYPNP DB15 Connections-dsc_027681.jpg
ShadowZ is offline   Reply With Quote
Old 05-09-2012, 03:09 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

You don't need to connect them, they are optional. Just tape them away.
Reverant is offline   Reply With Quote
Old 05-09-2012, 11:00 AM   #3
Junior Member
Thread Starter

Join Date: Jun 2009
Location: SATX
Posts: 48
Total Cats: 0
Default

Awesome, thanks very much Rev!
ShadowZ is offline   Reply With Quote
Old 03-01-2013, 04:57 PM   #4
Junior Member

Join Date: Dec 2012
Posts: 48
Total Cats: 0
Default

Is there a pinout for this plug? Particularly for lc-1 connections as my wires are all black
Dagger is offline   Reply With Quote
Old 03-01-2013, 05:05 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

If your DIYPNP was built by Braineack, you need to consult with him.
Reverant is offline   Reply With Quote
Old 03-01-2013, 05:12 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I would have wired it the same way, just without the color codes.
Braineack is offline   Reply With Quote
Old 03-01-2013, 05:14 PM   #7
Junior Member

Join Date: Dec 2012
Posts: 48
Total Cats: 0
Default

Braineack, could you tell me which pins on the connector connect to which of the wires on the 6-wire lc-1?
Dagger is offline   Reply With Quote
Old 03-01-2013, 05:27 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

did I build you diypnp?
Braineack is offline   Reply With Quote
Old 03-01-2013, 05:30 PM   #9
Junior Member

Join Date: Dec 2012
Posts: 48
Total Cats: 0
Default

No but I was hoping the pin connections were universal, if they are I assume I follow the connection numbers above and match with the wideband instructions? Also, will I need to connect a jumper or anything on my pnp2 unit or just change the settings in megatune?
Dagger is offline   Reply With Quote
Old 03-01-2013, 05:40 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

they arent, its however you populate the mainboard.
Braineack is offline   Reply With Quote
Old 03-02-2013, 04:45 AM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

Wait, is this a DIYPNP or an MSPNP2?
Reverant is offline   Reply With Quote
Old 03-02-2013, 05:47 AM   #12
Junior Member

Join Date: Dec 2012
Posts: 48
Total Cats: 0
Default

It's a pnp2 straight from diy auto tune website. I just posted on here after getting tired of searching for info and getting nothing.
Dagger is offline   Reply With Quote
Old 03-02-2013, 06:51 AM   #13
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Have you thought of asking DIYAutotune?

Edit: you can't have looked very hard.... http://www.megasquirtpnp.com/maindocs.htm
richyvrlimited is offline   Reply With Quote
Old 03-02-2013, 05:38 PM   #14
Junior Member

Join Date: Dec 2012
Posts: 48
Total Cats: 0
Default

I have asked them and I did look hard which is why I risked asking on this notoriously snippy forum
Dagger is offline   Reply With Quote
Old 03-02-2013, 05:58 PM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Dagger View Post
I have asked them and I did look hard which is why I risked asking on this notoriously snippy forum
You say snipey, but you couldn't find what you were looking for in the manual for the ECU you bought, you deserve the sarcasm quite frankly.

I did 1 30 second google search and found what you wanted. Hardly difficult.
richyvrlimited is offline   Reply With Quote
Old 03-02-2013, 06:30 PM   #16
Junior Member

Join Date: Dec 2012
Posts: 48
Total Cats: 0
Default

It wasn't in the manual. Hence why I asked on here AFTER emailing DIYautotune but I knew I had seen that picture online before and I was trying to find it for ages, all I came up with was the basic versions of the manual or that pinout with only 1 label on it from some random supra info. I knew it was there but I couldn't find it and I know it shouldn't have been so difficult which was frustrating so I don't deserve the sarcasm when I'm just asking for help. No need for the attitude when you could have just said this:

Quote:
Originally Posted by richyvrlimited View Post
Here you go, hope this helpsMegaSquirtPNP by DIYAutoTune.com

Last edited by Dagger; 03-02-2013 at 06:35 PM. Reason: spelled loads wrong :(
Dagger is offline   Reply With Quote
