Old 11-27-2012, 09:03 AM   #41
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,520
Total Cats: 1,565
Default

Quote:
Originally Posted by Joe Perez View Post
I have judged the ignition maps in these files to be similar to the ignition maps in the MSQ files which I have seen shared by Braineack and other users here.
In the same load/rpm my ignition map is around 29. I was averaging around 27mpg city with rx7 460cc injectors driving 10 miles a day, 5 days a week; never getting above 50mph.

I wasalways hapy with that, and I've never tried to tune for more since I harly drive it on the highway or extended periods.

But yeah, generally speaking, as you advance spark you can reduce fuel. This is because the flame speed is reduced as you lean out, and you add advance to put the flame front back to the same spot realitevly speaking.

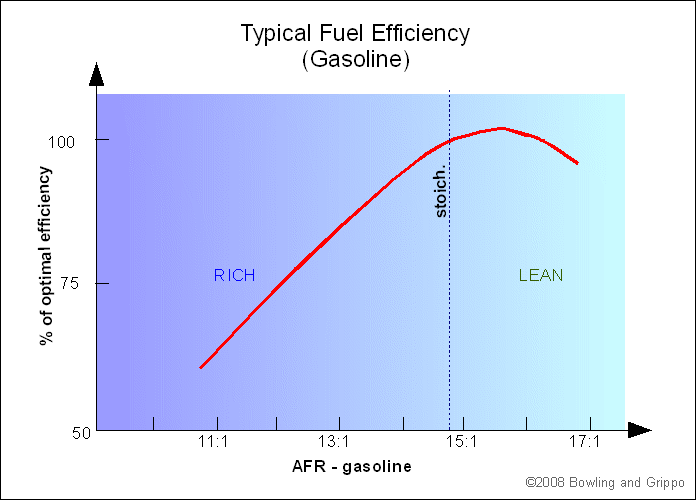

I think you'll be most fuel efficient if you can maintain 16.0:1 AFR with the lowest PW as determined by the spark angle.

Last edited by Braineack; 11-27-2012 at 09:15 AM.
Braineack is offline   Reply With Quote
Old 11-27-2012, 09:18 AM   #42
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Joe, you mentioned not having a dyno in the garage. Have you tried Virtual Dyno? It yields repeatable results which is what you need for tuning. I've been meaning to use it for spark tuning, but have been waiting for a mod that outputs the calculated torque so I can divide by MAP and smooth things out for boost variability. Given that you are NA, this would not be an issue.

I knew I had seen that stock map somewhere. Peak advance above 40 certainly suggests that our spark MAPs are overly conservative. I'm leary of directly equating the non-dimensional load numbers to pressure values though. It may not be a simple ratio conversion.


WARNING, what follows is a super-simplified spark theory 101 intended for noobs reading the thread. Worth having a few rules of thumb handy to follow the discussion.

/Begin Spark Theory 101

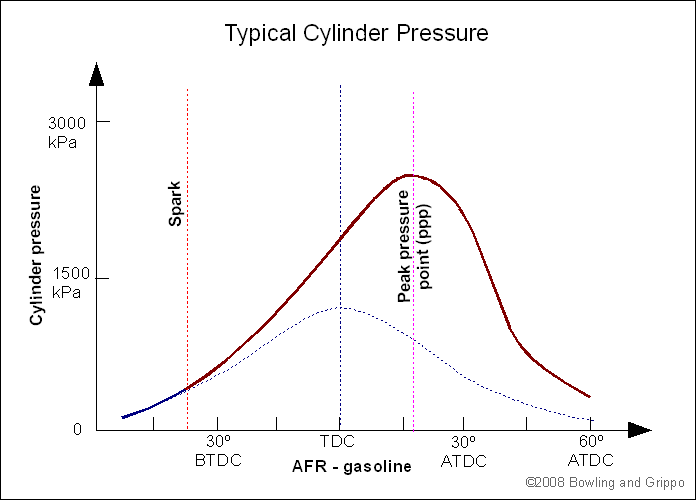

The objective of spark advance is to achieve peak cylinder pressure at a rotational crank position that yields best torque. The two variables are RPM and how fast the fuel burns. RPM is easy to deal with. How fast the fuel burns is affected by several factors. The main ones are:

1. What is the fuel? Some fuels are engineered to burn slowly (like AVGAS), some quickly (like race fuel).

2. What is the AFR? For gasoline, your fastest burn happens in the range of 12.5:1 to 13:1. Go richer or leaner and the burn speed slows down.

3. Charge Pressure. The higher the pressure, the faster the burn speed. That's why you retard for boost. That's why Hustler's spark maps use less advance on higher compression engines.

So what do all these variables mean? You have to tune for it and it's a PITA. Most (like me) are lazy, burn in a safe spark tune and dream about having the time and equipment to actually do it right someday. And to really do it right takes a lot more than a few full-throttle blasts on the neighborhood dyno with a "tuner."

/End Spark Theory 101.

Last edited by hornetball; 11-27-2012 at 10:24 AM.
hornetball is offline   Reply With Quote
Old 11-27-2012, 09:30 AM   #43
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,434
Total Cats: 135
Default

Quote:
Originally Posted by hornetball View Post
And to really do it right takes a lot more than a few full-throttle blasts on the neighborhood dyno with a "tuner."
It takes a lot more money and time then most people are willing to throw at it considering most people are averaging high 20's low 30's combined driving and that is satisfactory, especially for the turbo cars.

I feel as though to really do this right would take many many hours on a load dyno and would cost a lot of money.
Ryan_G is offline   Reply With Quote
Old 11-27-2012, 09:47 AM   #44
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 337
Default

Quote:
Originally Posted by Ryan_G View Post
It takes a lot more money and time then most people are willing to throw at it considering most people are averaging high 20's low 30's combined driving and that is satisfactory, especially for the turbo cars.

I feel as though to really do this right would take many many hours on a load dyno and would cost a lot of money.
Not really. You can run lots of authority on EGO with two different AFR tables (if PID EGO is set-up right) and then adjust spark and fuel to measure output with MAP constant (brick on throttle).

You can also lock wheel speed and go for the smallest duty or PW to maintain that speed, but that takes some throttle finesse and I try to eliminate as many human variables as possible. Realistically, you can fine-tune fuel in cruise in ~30minutes. You have to go in with a plan though
hustler is offline   Reply With Quote
Old 11-27-2012, 09:48 AM   #45
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Braineack View Post
In the same load/rpm my ignition map is around 29. I was averaging around 27mpg city with rx7 460cc injectors driving 10 miles a day, 5 days a week; never getting above 50mph.

I wasalways hapy with that, and I've never tried to tune for more since I harly drive it on the highway or extended periods.

But yeah, generally speaking, as you advance spark you can reduce fuel. This is because the flame speed is reduced as you lean out, and you add advance to put the flame front back to the same spot realitevly speaking.

I think you'll be most fuel efficient if you can maintain 16.0:1 AFR with the lowest PW as determined by the spark angle.

I was always under the impression that adding fuel reduced the flame front speed, that's why it helps starve off knock by being too rich.

More advance means you're igniting the fuel earlier, which also means you can reduce the amount of fuel, said fuel then burns faster - which doesn't matter as it's been ignited earlier.
richyvrlimited is offline   Reply With Quote
Old 11-27-2012, 10:09 AM   #46
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 337
Default

Quote:
Originally Posted by richyvrlimited View Post
I was always under the impression that adding fuel reduced the flame front speed, that's why it helps starve off knock by being too rich.

More advance means you're igniting the fuel earlier, which also means you can reduce the amount of fuel, said fuel then burns faster - which doesn't matter as it's been ignited earlier.
MAx flame speed is ~12.5-13.5 AFR, flame speed is reduced everywhere else. The reason you advance spark angle with a lean AFR is to adjust cylinder pressures at the target piston speeds.

Ideally, you run a longer duration burn at low pistons speeds, shorter duration at peak piston speeds. There are other variables that affect this though, so I run static AFR targets from 0-4000rpm, 5000-7000rpm.
hustler is offline   Reply With Quote
Old 11-27-2012, 10:11 AM   #47
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by richyvrlimited View Post
I was always under the impression that adding fuel reduced the flame front speed, that's why it helps starve off knock by being too rich.

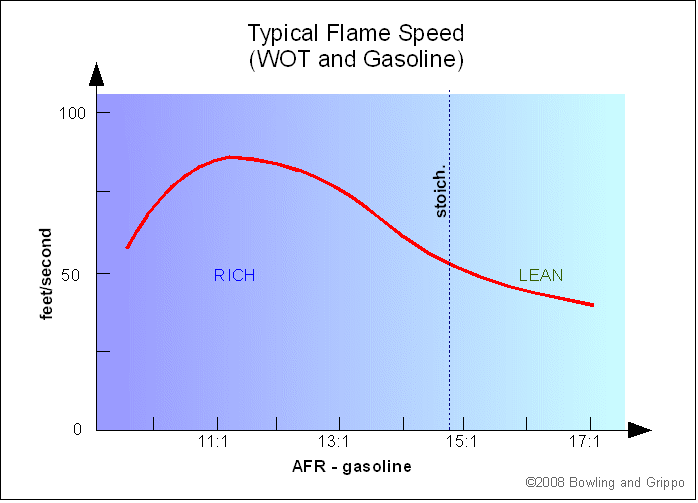

AFR vs. flame speed looks like this: ^

The tip is around 12.5 to 13:1. Go richer or leaner and flame speed slows. Starting from 14.7:1 and going leaner slows flame speed. Starting from 12:1 and going richer also slows flame speed.

Apparently, Hustler types faster, hence the name.

Last edited by hornetball; 11-27-2012 at 10:13 AM. Reason: Hustler beat me to it.
hornetball is offline   Reply With Quote
Old 11-27-2012, 10:29 AM   #48
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,520
Total Cats: 1,565
Default

here:

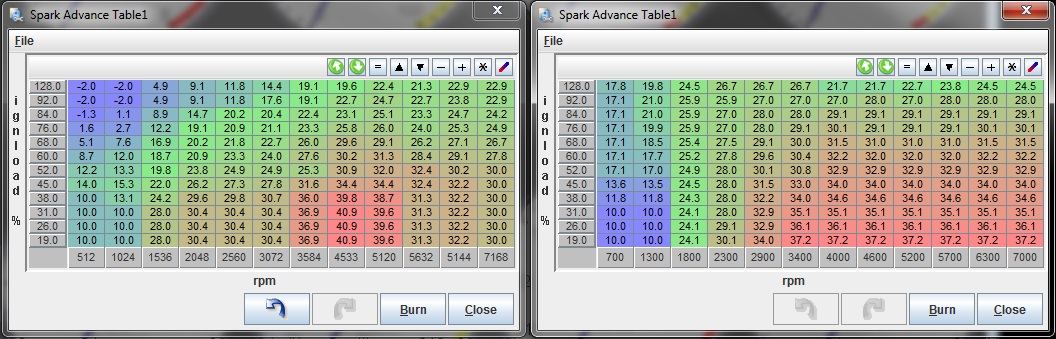

that posted OEM map vs. a typical basemap you might end up with:



I'm guessing on the load values, but it makes sense to me. or shoudl I assume the row I marked at 60% should be 100% load? I need to find the old thread where someone was taking obdII data and populating a spark map...


but there's also a huge thing to remember.... hold on while I set it up...
Attached Thumbnails
Let's discuss spark advance-compare_oem_vs_basemap.jpg   Let's discuss spark advance-powerout.gif   Let's discuss spark advance-fueleffic.gif   Let's discuss spark advance-cyl_press.gif   Let's discuss spark advance-flamespeed.gif


Last edited by Braineack; 11-27-2012 at 10:52 AM.
Braineack is offline   Reply With Quote
Old 11-27-2012, 10:49 AM   #49
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,922
Total Cats: 93
Default

Quote:
Originally Posted by hornetball View Post
Joe, you mentioned not having a dyno in the garage. Have you tried Virtual Dyno? It yields repeatable results which is what you need for tuning. I've been meaning to use it for spark tuning, but have been waiting for a mod that outputs the calculated torque so I can divide by MAP and smooth things out for boost variability. Given that you are NA, this would not be an issue.
Trouble with using VD to tune cruise spark is that its just as useful as looking at injector pulse width in a log afterwards. It takes a long time. If you're on a proper load varying dyno you can literally lock into a wheel speed hold the throttle so you stay in one cell, and keep hitting the +1* button in your tuning software until the torque on the dyno display plateaus (or it knocks), then back down one. Then move to the next cell. Or if you are trying to max it out, once thats done, you can lower commanded afr and add more spark while keeping the torque number the same or higher. Basically what hustler is saying.
Leafy is offline   Reply With Quote
Old 11-27-2012, 10:50 AM   #50
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by hornetball View Post
AFR vs. flame speed looks like this: ^

The tip is around 12.5 to 13:1. Go richer or leaner and flame speed slows. Starting from 14.7:1 and going leaner slows flame speed. Starting from 12:1 and going richer also slows flame speed.

Apparently, Hustler types faster, hence the name.
Quote:
Originally Posted by hustler View Post
MAx flame speed is ~12.5-13.5 AFR, flame speed is reduced everywhere else. The reason you advance spark angle with a lean AFR is to adjust cylinder pressures at the target piston speeds.

Ideally, you run a longer duration burn at low pistons speeds, shorter duration at peak piston speeds. There are other variables that affect this though, so I run static AFR targets from 0-4000rpm, 5000-7000rpm.
Thanks for the clarification, makes sense
richyvrlimited is offline   Reply With Quote
Old 11-27-2012, 11:07 AM   #51
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 337
Default

I should note that the goal is almsot always the longest duration burn, hence the awesomeness of the soft-head piston design. However without mechanical octane in that type of combustion chamber, we run a shorter duration burn at higher piston speeds because it creates more peak-dynamic cylinder pressure.
hustler is offline   Reply With Quote
Old 11-27-2012, 11:07 AM   #52
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,520
Total Cats: 1,565
Default

so while the stock timing map is intersting to look at, this is the AFR map it also follows:



so I mean, really, not the best point of reference... because that timing drop at 5K correlates to all that extra fuel being dumped in during open loop.
Attached Thumbnails
Let's discuss spark advance-compare_oem_timing_vs_afr.jpg
Braineack is offline   Reply With Quote
Old 11-27-2012, 11:58 AM   #53
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by Leafy View Post
Trouble with using VD to tune cruise spark is that its just as useful as looking at injector pulse width in a log afterwards. It takes a long time. If you're on a proper load varying dyno you can literally lock into a wheel speed hold the throttle so you stay in one cell, and keep hitting the +1* button in your tuning software until the torque on the dyno display plateaus (or it knocks), then back down one. Then move to the next cell. Or if you are trying to max it out, once thats done, you can lower commanded afr and add more spark while keeping the torque number the same or higher. Basically what hustler is saying.
I don't have a steady-state dyno sitting in the garage. Wish I did.

For us cheapos, it would seem that a good strategy for street-tuning spark is:

1. Tune part-throttle on a long flat road at either constant MAP or constant RPM. If using constant RPM, you can tune spark for lowest PW or lowest MAP. If using constant MAP, tune for lowest PW or highest RPM.

2. Tune WOT with timed runs or something like VD. Use your part-throttle runs to make sure there is no law-enforcement present ahead of time.

I suspect this is a lot easier to do in W. TX than in Southern Cali or the East Coast.
hornetball is offline   Reply With Quote
Old 11-27-2012, 12:03 PM   #54
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,922
Total Cats: 93
Default

Quote:
Originally Posted by hornetball View Post
I don't have a steady-state dyno sitting in the garage. Wish I did.

For us cheapos, it would seem that a good strategy for street-tuning spark is:

1. Tune part-throttle on a long flat road at either constant MAP or constant RPM. If using constant RPM, you can tune spark for lowest PW or lowest MAP. If using constant MAP, tune for lowest PW or highest RPM.

2. Tune WOT with timed runs or something like VD. Use your part-throttle runs to make sure there is no law-enforcement present ahead of time.

I suspect this is a lot easier to do in W. TX than in Southern Cali or the East Coast.
I used to want to do it the cheapo way. BUT 1 speeding ticket pays for most of the dyno time you would need. AND the cheapo way takes forever, FOR-EV-ER, the dyno takes 4 hours tops and gets you better results. Oh yeah, I can road tune a car in decently in 4 hours, but I can make it perfect on the dyno in 4 hours. It'll take months to get it perfect road tuning.
Leafy is offline   Reply With Quote
Old 11-27-2012, 12:08 PM   #55
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 337
Default

Quote:
Originally Posted by hornetball View Post
I don't have a steady-state dyno sitting in the garage. Wish I did.

For us cheapos, it would seem that a good strategy for street-tuning spark is:

1. Tune part-throttle on a long flat road at either constant MAP or constant RPM. If using constant RPM, you can tune spark for lowest PW or lowest MAP. If using constant MAP, tune for lowest PW or highest RPM.

2. Tune WOT with timed runs or something like VD. Use your part-throttle runs to make sure there is no law-enforcement present ahead of time.

I suspect this is a lot easier to do in W. TX than in Southern Cali or the East Coast.
I'm tuning in Rowlette on 12/15 if you want to come play, very cheap dyno time on an MD-250.
hustler is offline   Reply With Quote
Old 11-27-2012, 12:37 PM   #56
Boost Pope
Thread Starter
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 25,534
Total Cats: 1,751
Default

All this talk about lean AFR, rich AFR...

Rule for the thread: I am running 14.7:1 AFR in all cells except at the very top of the MAP range, and perhaps the very far end of the RPM range. Assume this to be an unchangeable constant. For the purposes of comparing to STOCK OEM IGNITION TABLES, this is the only valid scenario.


Quote:
Originally Posted by richyvrlimited View Post
Pretty sure that this is the table 18psi mentioned. The load scale is next to useless however.
That's the big problem I'm having. I found something similar (from a 1.6) in the last page of the "Socketing" thread, and it had the disadvantage of being ambiguous on both the load and advance scales.

I don't even know if a direct, linear correlation exists between load (as computed from airflow) to MAP, much less what the conversion factor would be.



Quote:
Originally Posted by 18psi View Post
Just looked at all my maps from the 2000:

I ran 40* like a boss. So maybe I wasn't that retarded
Mind sharing the ignition map?



Quote:
Originally Posted by Loren View Post
I was reading a thread here on MT last night where a guy mapped the "achievable" parts of the stock timing map by monitoring it through the OBDII.
(...)
Here it is. It's not much, but it's something.
https://www.miataturbo.net/megasquir...93/#post713985
That's quite interesting.

If I take that table at face value, it means that the OEM ECU on a '97 car is running spark advance in the high teens / low 20s at the very top, which is roughly 20 less than I have on my engine at the moment.

That's what makes me question the data.

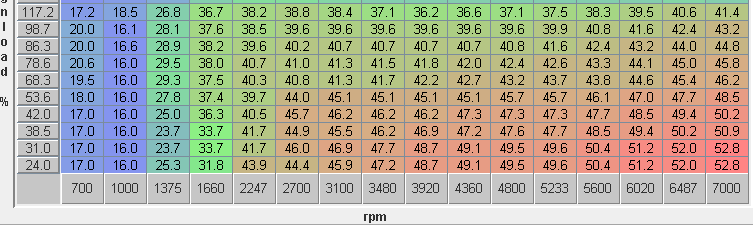

I bumped the non-idle rows another 10% this morning, and it's still making great power with no knock.




Just added another 5% (after taking that screenshot) and we'll run that table tonight.

I think I'm going to install a table-switching switch so that I can do instant A/B comparisons between tables.






Quote:
Originally Posted by Oni View Post
Joe how are u monitoring knock/detonation?
Two methods:

1: Turn down the radio and listen.

2: If I crack a piston in half, then I'll know I was getting knock that I couldn't hear.
Attached Thumbnails
Let's discuss spark advance-ign_nov_27_am.gif
Joe Perez is offline   Reply With Quote
Old 11-27-2012, 12:39 PM   #57
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by hustler View Post
I'm tuning in Rowlette on 12/15 if you want to come play, very cheap dyno time on an MD-250.
Thanks for the offer. I'll definitely try to do that (assuming I've got the car back together by then). I'll PM as we get closer.

I rented some dyno time once before, specifically to tune spark, and it really didn't work out too well. First, the operator gave me a blank stare when I described what I wanted to do with spark advance. His idea was to just download maps from the internet, as if I hadn't already been doing that. Then, after a couple of runs the dyno broke down (was not communicating with the operator's laptop). Ended up wasting a day for no real gain. Whole thing kind of turned me off. Suspect things would be night and day different with a knowledgeable operator.
hornetball is offline   Reply With Quote
Old 11-27-2012, 12:42 PM   #58
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,520
Total Cats: 1,565
Default

Quote:
Originally Posted by Joe Perez View Post
That's quite interesting.

If I take that table at face value, it means that the OEM ECU on a '97 car is running spark advance in the high teens / low 20s at the very top, which is roughly 20 less than I have on my engine at the moment.

That's what makes me question the data.
it pretty much mirrors the table I made out of the stock map posted in this thread that was supossedly pulled from eprom data.

both my 2.2L i4 and 2.4L i4 only put out mid-low 20 advance in cruise when I monitor on an odbII scanner.



And that thread is privvy to my awesome quote:

Quote:
Originally Posted by braineack
Learning MS stuff is like masterbating your brain and ejaculating awesomeness.
Braineack is offline   Reply With Quote
Old 11-27-2012, 12:53 PM   #59
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,050
Total Cats: 337
Default

Quote:
Originally Posted by hornetball View Post
Thanks for the offer. I'll definitely try to do that (assuming I've got the car back together by then). I'll PM as we get closer.

I rented some dyno time once before, specifically to tune spark, and it really didn't work out too well. First, the operator gave me a blank stare when I described what I wanted to do with spark advance. His idea was to just download maps from the internet, as if I hadn't already been doing that. Then, after a couple of runs the dyno broke down (was not communicating with the operator's laptop). Ended up wasting a day for no real gain. Whole thing kind of turned me off. Suspect things would be night and day different with a knowledgeable operator.
Yeah, you're in good hands on this deal.
hustler is offline   Reply With Quote
Old 11-27-2012, 04:09 PM   #60
Elite Member

Join Date: Jul 2005
Posts: 6,392
Total Cats: 77
Default

Quote:
Originally Posted by Joe Perez View Post

16% less fuel to go the same speed up the same hill, just by bumping the spark advance from 26 to 37.6.
37.6 is therefore closer to MBT than 26.

Just in case nobody has stated the obvious yet, timing at MBT will yield best fuel economy. This is true whether you are running at 14.7:1, or leaner. (note that leaner will move MBT point more advanced due to slower burn).

So one can simply find MBT on the dyno for the cruise range, and be done with it.

If a given motor and octane can run at MBT at WOT, it sure as hell can run at MBT (or even past it), at part-throttle, without knocking.

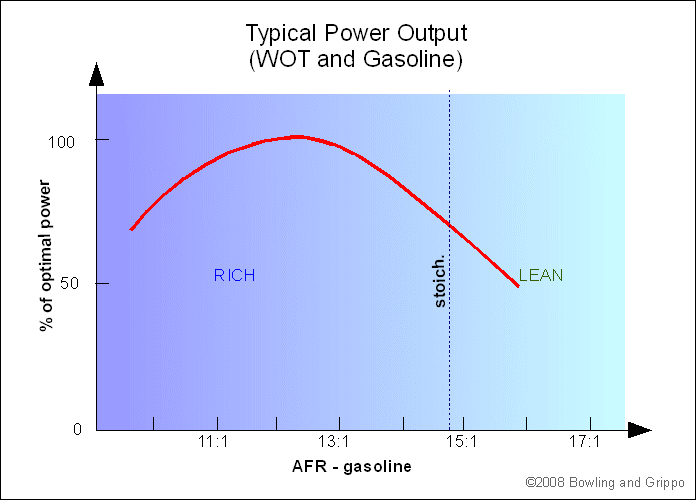

As for AFR, I do believe 15.5:1 (at its MBT) cruising will yield better BSFC than 14.7:1 (at its MBT). 16:1 may start showing inefficient burning, without special swirl/tumble features in the combustion chamber.

How to find MBT at part throttle? This was my proposal. Set dyno to constant RPM mod, sweep slowly through MAP/throttle position, and plot torque vs. MAP, at various RPMs:

https://www.miataturbo.net/ecus-tuni...-can-do-46160/
JasonC SBB is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Hey everyone another n00b here Big_gumby Meet and Greet 80 10-05-2015 04:06 PM
Back to Stock Part Out!! Turbo Parts, MS2 Enhanced 01-05, Suspension, and MOAR! StratoBlue1109 Miata parts for sale/trade 16 10-02-2015 09:39 AM
Time to start learning and play with tuning The Gleas MEGAsquirt 3 10-01-2015 09:30 AM
In need of base map for stock 1997 brandonbkd MEGAsquirt 0 09-28-2015 11:52 PM
Koni 1150 Coilover Kit drumman83 Suspension, Brakes, Drivetrain 2 09-25-2015 07:03 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 07:56 AM.
