i have a 95 with the ms pnp and i was planning on running 440cc injectors from a turbo supra, from what i gather they are low impedance. So would it be better to use the resistors or the pwm feature? i searched but i didn`t really get my question answered, thanks!
chicksdigmiatas is offline   Reply With Quote
Old 01-29-2010, 11:00 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

I would recommend using resistors.
Matt Cramer is offline   Reply With Quote
Old 01-29-2010, 03:00 PM   #3
Junior Member

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

Hey this is something I may need to do soon as well. I have wondered for some time what sort of resisters will I need? Figuring out the correct resister value to reach an ohm load I can handle, but often I see people selling injectors with resisters and they have four little aluminium finned blocks. I realise those little blocks are the resisters but are they really necessary? Couldn't one just wire in normal resisters as available from radio shack and the like? How hot do they really get? What wattage will we need?

I have been around long enough to know that anything that is anodized blue aluminium Just HAS to make it go faster, and will therefore find its own buyers. But are they just snake oil or is there a real need for that level of cooling?
Blaize is offline   Reply With Quote
Old 01-29-2010, 03:02 PM   #4
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

I use 10 ohm 10 watt resistors from radioshack on my dsm 450s. I've never felt them get hot.
Jeff_Ciesielski is offline   Reply With Quote
Old 01-29-2010, 03:05 PM   #5
Junior Member

Join Date: Jun 2008
Location: New Forest, U.K.
Posts: 336
Total Cats: 4
Default

I had a feeling that would be the case, thanks man.
Blaize is offline   Reply With Quote
Old 01-29-2010, 04:10 PM   #6
Elite Member
Thread Starter
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

well if thats the case im going to the shack, unless anyone else has anything different to say
chicksdigmiatas is offline   Reply With Quote
Old 01-29-2010, 04:45 PM   #7
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by chicksdigmiatas View Post
well if thats the case im going to the shack, unless anyone else has anything different to say
Note the top of my intake manifold:


Do the damn thing.
Jeff_Ciesielski is offline   Reply With Quote
Old 01-29-2010, 06:29 PM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Most injectors flow about 1A of current through them during use. Lets assume 2A to be safe. P=V*I=14*2=24W. Remember, you are not constantly running them at 100% duty cycle, so they will be cool at idle with no load. Not so for 4k rpm boosted. Ever touched an injector that is shorted to ground accidentaly? Its hot like ****. You can easily burn yourself. So yes, you do need the resistors with the heatsinks on them.

Jim
Reverant is online now   Reply With Quote
Old 01-30-2010, 11:56 AM   #9
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

I'm at this point too... I've got the 430cc from my 7mgte (2.9ohms?) and am trying to decide on adding resistors or using the PWM feature. Some searching said that if you use the PWM feature, you might also want to add a direct ground line (to the MS ground location) from the grounded side of R37/R38 to prevent noise... is this right? Also, can't defintetly find what our peak hold amps are for our application, so saying 2 amps is a 'safe' figure, we'd need about a 4.1ohm ~25watt resistor per each injector, or 11.1ohm for a 1amp current (according to DIYauto calculator a little more than 1/2way down the page) calculator

So far you guys are saying go the resistor route... so why NOT use the PWM feature on the MSPNP? What is being overlooked/wrong?

Last edited by GeneSplicer; 01-30-2010 at 12:33 PM.
GeneSplicer is offline   Reply With Quote
Old 01-30-2010, 12:46 PM   #10
Junior Member

Join Date: Jan 2009
Location: Tampa, FL
Posts: 69
Total Cats: 0
Default

Quote:
Originally Posted by GeneSplicer View Post
So far you guys are saying go the resistor route... so why NOT use the PWM feature on the MSPNP? What is being overlooked/wrong?
If you run the Hi-Res code, the PWM feature is doa. Hi-Res uses the PWM register for the fueling calculations yielding better fueling control at the cost of no Peak and Hold injector control.

-Rouphis
Rouphis is offline   Reply With Quote
Old 01-31-2010, 02:19 AM   #11
Elite Member
Thread Starter
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

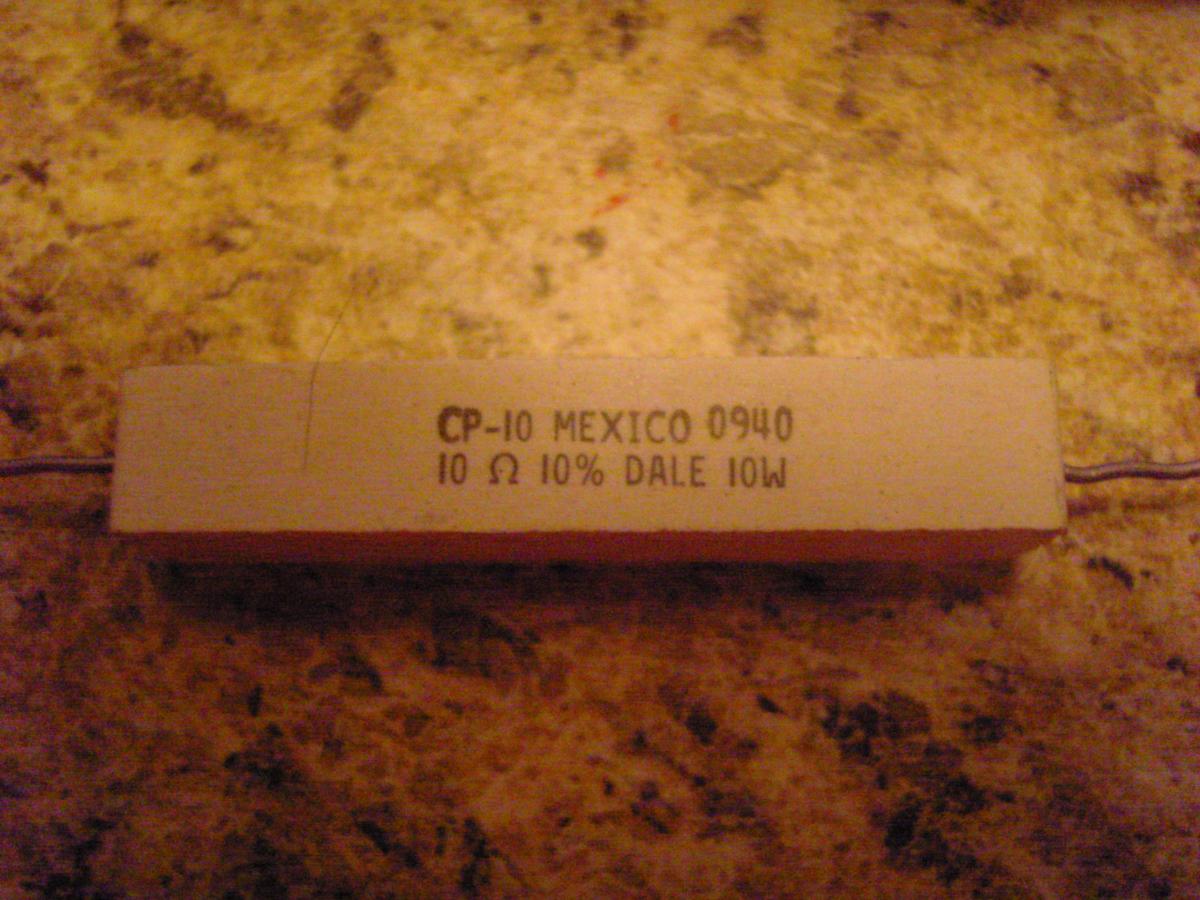

Those ones?
Attached Thumbnails
low impedance injectors, use resistors?-snc12345.jpg
chicksdigmiatas is offline   Reply With Quote
Old 01-31-2010, 02:27 PM   #12
DXO
Junior Member
iTrader: (2)

Join Date: Jul 2008
Location: Kannapolis, NC
Posts: 229
Total Cats: 1
Default

I personally never liked using individual resistors and wanted a cleaner look. I have some friends with lots of Honda parts and I grabbed one of their resistor packs that come on some Hondas. Looks like this:



Wiring is simple too. Here
DXO is offline   Reply With Quote
Old 01-31-2010, 09:03 PM   #13
Newb

Join Date: Dec 2008
Location: Orlando, FL
Posts: 19
Total Cats: 0
Default

^ thats exactly what I use , running Supra injectors. Works great.
RCraig is offline   Reply With Quote
Old 01-31-2010, 09:46 PM   #14
Elite Member
Thread Starter
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

The shack resistors or the resistor box?
chicksdigmiatas is offline   Reply With Quote
Old 02-01-2010, 09:25 PM   #15
Newb

Join Date: Dec 2008
Location: Orlando, FL
Posts: 19
Total Cats: 0
Default

Sorry, the Honda resistor box.
RCraig is offline   Reply With Quote
Old 02-02-2010, 09:47 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by chicksdigmiatas View Post
The shack resistors or the resistor box?



or



Needed when using low impedance injectors (such as DSM injectors). Gold anodized finish with solder lugs. 10ohm / 50 watt, no heat sink needed (built-in). Install 1 resistor inline with each injector on the positive side.
TA048 Set of 4 resistors- $19.99

JGS Precision Turbo

or

Honda resistor box.
Braineack is offline   Reply With Quote
Old 02-02-2010, 01:08 PM   #17
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

10 watt resistors is living kind of dangerously. 20 or 25 watt would be better.
Ben is offline   Reply With Quote
Old 02-02-2010, 01:38 PM   #18
Elite Member
iTrader: (2)

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Ive been emailing Matt back and forth about this topic today. If you would like to run just a single resistor per channel you can use a 3 ohm 75+ watt in line
240_to_miata is offline   Reply With Quote
Old 02-02-2010, 01:55 PM   #19
Elite Member
iTrader: (2)

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

It shouldnt matter if it is on the positive side or the megasquirt side of the circuit right? the current flowing thru the injector will still be limited .
240_to_miata is offline   Reply With Quote
Old 02-02-2010, 05:03 PM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

3 ohms is the minimum required to where you shouldn't damage the injector drivers in the MS. It all depends on how much current you feel comfortable running through the injectors, but prudence dictates running a bit more resistance.

It doesn't matter where the resistor falls in circuit.
Ben is offline   Reply With Quote
