Default Making sure I got everything to MS

I finally decided to get a MS, and just want to make sure I'm getting all the extra parts I need for my setup. It's a '90 1.6L with Greddy turbo. I plan on completely replacing the PCM. I have A/C (or at least will if I can ever find the wiring harness for the new compressor) and plan to do EBC. Stock injectors and no variable TPS for now. I also have a PLX WBo2.

Here is what I THINK I need:

5x 1.0KQBK-ND (1k ohm .25W resistor) CAS
5x 620QBK-ND (620 ohm .25W resistor) Replace R19
1x ZTX688B-ND (NPN transistor) Replace Q4
1x 237F-ND (DB-37 female connector)

EBC:
1x IRLZ44ZPBF-ND (mosfet)
5x 100QBK-ND (100 ohm resistor)
5x 10KQBK-ND (10k ohm resistor)

I have wire/solder/heat shrink, is there anything I'm missing for my setup? Does the PLX need a resistor inline like some of the LC-1s?
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 12:57 PM   #2
Newb

Join Date: Jul 2007
Location: Stockholm Sweden
Posts: 18
Total Cats: 0
Default

Hi

You say you dont want a TPS but if you change your mind I recommend the TPS from older BMW 7-series autos, I have one labelled Bosch 0 280 120 406 and it fits perfectly on 1.6 throttle house.

Good luck

Håkan
Hakan is offline   Reply With Quote
Old 09-15-2007, 01:22 PM   #3
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by Hakan View Post
Hi

You say you dont want a TPS but if you change your mind I recommend the TPS from older BMW 7-series autos, I have one labelled Bosch 0 280 120 406 and it fits perfectly on 1.6 throttle house.

Good luck

Håkan
I do plan on getting one, just not yet. Thanks for the info, I'll check it out when I'm ready to get one. Right now I just want to get better gas milage and better power curve.
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 01:30 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Buy your parts from DIYautotune. Tell them what you want to do. They sell mod-kits with the appropriate components to do the mods you want. EBC, Spark and whatever else you might want including a 4bar MAP sensor. The rest of the things you might need you can get locally at a radioshack.

FWIW, i buy my heatshrink tubing from Lowes, they sell 5 packs of 1/8" tubing for less than $2. I also buy my bullet connectors there because they sell a 20 pack for less than $2 too. Radioshit rips you off for things like that. You can buy sockets and diodes there though, the usually have what i need.
cjernigan is offline   Reply With Quote
Old 09-15-2007, 03:34 PM   #5
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Buy your parts from DIYautotune. Tell them what you want to do. They sell mod-kits with the appropriate components to do the mods you want. EBC, Spark and whatever else you might want including a 4bar MAP sensor. The rest of the things you might need you can get locally at a radioshack.

FWIW, i buy my heatshrink tubing from Lowes, they sell 5 packs of 1/8" tubing for less than $2. I also buy my bullet connectors there because they sell a 20 pack for less than $2 too. Radioshit rips you off for things like that. You can buy sockets and diodes there though, the usually have what i need.
Their DB-37 connector is too expensive and they use the TIPS120 transistor. The one I'm getting is supposed to be a cleaner install. I'd rather just get the stuff I need from digikey. I already can get heatshrink from work, so that's not a big deal. Not a bad price for it at Lowes though. I'll have to keep that in mind if I run out. Is it good quality stuff that doesn't tear easily if it tightens too much?
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 03:41 PM   #6
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I haven't seen any of the tubing tear, works for me. Acutally i've never seen any tear.

Their MS kits come with a DB-37 connector so I don't see how it can be too expensive. The tip120 transistor requires you to solder 3 wires to an existing location on the board and you bolt the TIP to a spot on the heatsink that you leave open from the VR circuit or MSII.

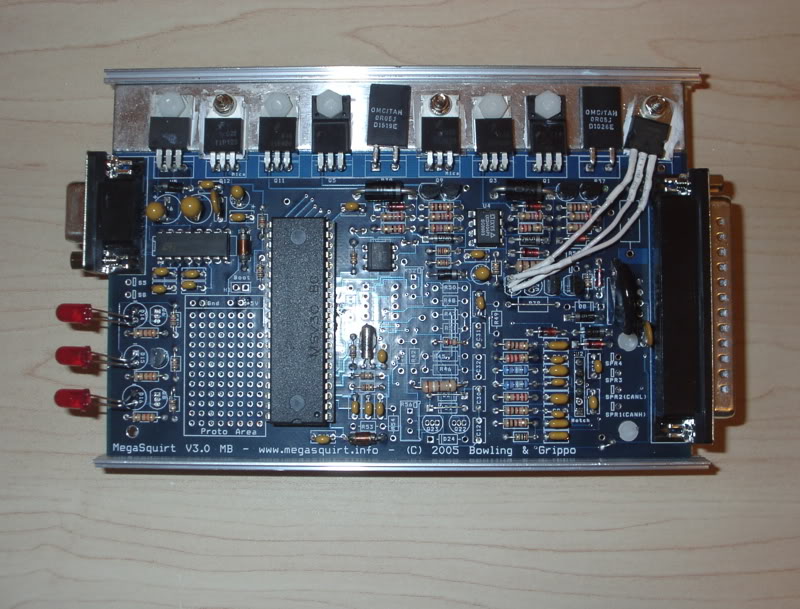

You can see the TIP install here.
Name:  06080001.jpg
Views: 1
Size:  111.7 KB
cjernigan is offline   Reply With Quote
Old 09-15-2007, 03:44 PM   #7
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Where can I get the boomslang connector for the harness? I can't seem to find just the connector anywhere. I want to make it plug n play. I went to boomslang and could only find a $100 cable, which is ridiculously overpriced.
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 03:45 PM   #8
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Do a search or contact Braineack, he builds PNP MS harnesses for the 1.6.
The connector itself is $20 plus shipping from Boomslang. Otherwise there is a website like webconnectors.com or something you can get them from cheaper. Try a search on the forum for pnp harness it should show up after a few tries.
cjernigan is offline   Reply With Quote
Old 09-15-2007, 03:46 PM   #9
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

I bought the kit from diyautotune, so there's a female DB-37 in the box? If that's the case, then I can scratch that off the list. I just thought they gave you a DB-37 male that attaches to the board.
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 03:46 PM   #10
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Do a search or contact Braineack, he builds PNP MS harnesses for the 1.6.
The connector itself is $20 plus shipping from Boomslang. Otherwise there is a website like webconnectors.com or something you can get them from cheaper. Try a search on the forum for pnp harness it should show up after a few tries.
Thanx
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 04:13 PM   #11
Supporting Vendor
iTrader: (5)

Join Date: Jun 2006
Location: Duluth, GA 30097
Posts: 798
Total Cats: 0
Default

Quote:
Originally Posted by TrickerZ View Post
Their DB-37 connector is too expensive and they use the TIPS120 transistor. The one I'm getting is supposed to be a cleaner install. I'd rather just get the stuff I need from digikey. I already can get heatshrink from work, so that's not a big deal. Not a bad price for it at Lowes though. I'll have to keep that in mind if I run out. Is it good quality stuff that doesn't tear easily if it tightens too much?

The ZTX688B is a very clean install-- it drops right in where Q4 used to be. And it won't even burn out as long as you don't use it!

Really though, it's a decent solution, but it's not heat-sinked, and it gets VERY hot and it will burn out if you drive the idle valve hard. The TIP120 is a much better solution even though it's a bit more hassle to install.
FoundSoul is offline   Reply With Quote
Old 09-15-2007, 06:18 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yes they give you a DB-37 connector to make your harness with it's part of the MS kit. I also recommend getting a GM IAT open element sensor, IAC mod kit, pullup resistor kit, EBC kit, and the 18" wire bundle because they are labeled nicely and it comes with a shielded ignition wire.
cjernigan is offline   Reply With Quote
Old 09-15-2007, 08:04 PM   #13
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Yes they give you a DB-37 connector to make your harness with it's part of the MS kit. I also recommend getting a GM IAT open element sensor, IAC mod kit, pullup resistor kit, EBC kit, and the 18" wire bundle because they are labeled nicely and it comes with a shielded ignition wire.
For $48, I think I'll pass on the cable, but I added everything else to my cart. I didn't see anything bad about that other transistor before, so I guess I'll stick to the TIP120.
TrickerZ is offline   Reply With Quote
Old 09-15-2007, 09:41 PM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The bundle i spoke of what $12, for 2' of color/label coded wire. It allows you to assemble the DB-37 without flags taped on. It's a convenience thing, not needed though of course.
When assembling your DB-37 don't skip on ground wires, use atleast 4, each to it's own seperate pins. 6 would be better.
cjernigan is offline   Reply With Quote
Old 09-15-2007, 09:48 PM   #15
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
The bundle i spoke of what $12, for 2' of color/label coded wire. It allows you to assemble the DB-37 without flags taped on. It's a convenience thing, not needed though of course.
When assembling your DB-37 don't skip on ground wires, use atleast 4, each to it's own seperate pins. 6 would be better.
Oh, I missed that one. That's not a bad deal to have everything color coded. and labeled. I can do $12. Thanks for the inputs.
TrickerZ is offline   Reply With Quote
Old 10-21-2007, 08:43 PM   #16
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

OK, I have everything wired up for the most part and I have a few questions/concerns before I hook it up for the first time.

What ignition should I be using the shielded wire for? CKP or CMP? Or something entirely different?

Since I'm replacing my Miata PCM, what do I do with the fuel pump wire to make it as close to stock as possible and what's the best solution for the fan (and what extra crap do I need for it)? Is there anything else I'm going to need to do to completely remove the PCM? I have no A/C atm, so when I get that working is when I plan on getting the TPS.

I have the EBC mod installed, but don't have the solenoid yet. I want to get it working without boost first and then fix it for boost if nothing blows up. I also got the IAT sensor, but where's the best place to put it? Do I have to drill a hole in my intake for it?

Also, I need to unplug the coil pack before starting it for the first time, correct? Only after I set the ignition settings it's safe.

Any other worries I'm missing? I think I've covered everything, but I want to be completely sure.
TrickerZ is offline   Reply With Quote
Old 10-21-2007, 08:48 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

yeah, drill/tap the pipes for the Ait or weld in a bung...best is on the coldside in an area that doesnt heat soak.

only to to unplug ignitor and coils if you're flashing firmware.
Braineack is offline   Reply With Quote
Old 10-21-2007, 08:53 PM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You use both CKP and CMP.
cjernigan is offline   Reply With Quote
Old 10-21-2007, 09:15 PM   #19
Senior Member
Thread Starter
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
You use both CKP and CMP.
Yes, I know, but the kit only provides 1 shielded ignition cable. Which one is more important to shield?
TrickerZ is offline   Reply With Quote
Old 10-21-2007, 09:25 PM   #20
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

They're both equally important. Cut it in half.
cjernigan is offline   Reply With Quote
