Old 01-27-2009, 11:34 PM   #21
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Quote:
Originally Posted by ThePass View Post
On the topic of the inline fuel filters, I went to HD and they did not have any fuel filters for lawn mowers at all. Went to OSH and found only one - intended for a 1/4" or 5/16" ID line... kinda big but I bought it as I couldn't find any others. Anyone have a better source for these that works with smaller vac line?
Small vacuum line is a much better way to solve the problem. MUCH better. Simpler, cheaper, less failure points, less BS, etc. Get the smallest vacuum hose Autozone sells. That's what I'm running. Also they sell some tiny *** hard plastic tubing in a roll that works great too, just have to use small hose to hook it to things. But a smaller ID hose is a much better solution than adding filters/ restrictors, etc.
patsmx5 is offline   Reply With Quote
Old 01-27-2009, 11:55 PM   #22
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Wel ding tip!
y8s is offline   Reply With Quote
Old 01-27-2009, 11:58 PM   #23
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

y8s- what are you using to control boost? Your boost is stupid flat. Mine kinda goes up and down 3-4kPa during any given pull. Probably doesn't matter.

Also- any reason to use a restrictor w/ a big line vs. a small line? I ran a big line and had poor map values at idle. Smaller line fixed it.
patsmx5 is offline   Reply With Quote
Old 01-28-2009, 12:52 AM   #24
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by y8s View Post
Wel ding tip!
can you give me a pic of what you're talking about please?
hustler is offline   Reply With Quote
Old 01-28-2009, 01:54 AM   #25
Junior Member
iTrader: (9)

Join Date: Apr 2007
Location: Hanover, MA
Posts: 237
Total Cats: 0
Default

something like this

Pseudosport is offline   Reply With Quote
Old 01-28-2009, 10:33 AM   #26
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have my wastegate vac-line on my compressor housing...should I move it somewhere better like the brake booster line, or intake plenum?

On my other cars I ran it off the intake plenum with a profec-b and never had this problem.
hustler is offline   Reply With Quote
Old 01-28-2009, 11:36 AM   #27
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by patsmx5 View Post
y8s- what are you using to control boost? Your boost is stupid flat. Mine kinda goes up and down 3-4kPa during any given pull. Probably doesn't matter.

Also- any reason to use a restrictor w/ a big line vs. a small line? I ran a big line and had poor map values at idle. Smaller line fixed it.
boostcontrol



...

the external wastegate doesn't hurt either. incidentally, I have a 3.8psi wastegate spring and run just shy of 10 lbs of boooooost.
y8s is offline   Reply With Quote
Old 01-28-2009, 11:37 AM   #28
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

PS I tee the vac lines all over the place. my boost gauge, MAP signal, and BOV I think are all on the same line. nice huh?
y8s is offline   Reply With Quote
Old 01-28-2009, 11:42 AM   #29
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

I'm running an external gate too. Is yours a dual port and is it plumbed that way? Or is is it just manifold>MBC>side port?

Also, if you have a 3.8 PSI spring, you'd about have to be using both ports else you'd overcome the waste gate before 10 PSI.
patsmx5 is offline   Reply With Quote
Old 01-28-2009, 12:06 PM   #30
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

it's a dual port and I am using only the top port (TiAL). turbo>mbc>top port.

and since the diaphragm that holds the WG closed is more area than the port the exh gas passes through, it doesn't overwhelm the spring. at least at this boost level.
y8s is offline   Reply With Quote
Old 01-28-2009, 12:17 PM   #31
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Quote:
Originally Posted by y8s View Post
it's a dual port and I am using only the top port (TiAL). turbo>mbc>top port.

and since the diaphragm that holds the WG closed is more area than the port the exh gas passes through, it doesn't overwhelm the spring. at least at this boost level.
That is one weird way to plumb a EWG. Any time I've read that the boost controller goes to the top, they had the side port referenced to manifold pressure. Still not sure I see any advantage to doing it your way.
patsmx5 is offline   Reply With Quote
Old 01-28-2009, 12:23 PM   #32
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by patsmx5 View Post
That is one weird way to plumb a EWG. Any time I've read that the boost controller goes to the top, they had the side port referenced to manifold pressure. Still not sure I see any advantage to doing it your way.
you dont see any advantage except that ruler flat boost line

it may not be the right way, but it works damn well.
y8s is offline   Reply With Quote
Old 01-28-2009, 12:31 PM   #33
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Your way the wastegate will start to creep open before you reach target boost. That's what I don't like about it. But yeah that explains why it's so damn flat.
patsmx5 is offline   Reply With Quote
Old 01-28-2009, 01:23 PM   #34
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

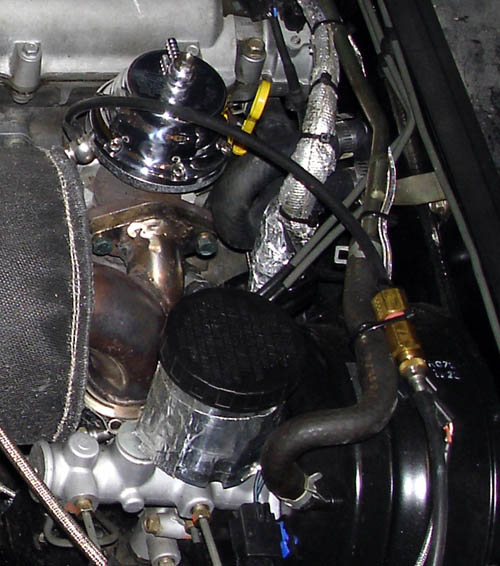

just realized I meant the SIDE port, not the top. the top is open. ewps.

photographic evidence!
Attached Thumbnails
MAP signal problems-boostcontrol.jpg
y8s is offline   Reply With Quote
Old 01-28-2009, 02:22 PM   #35
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

Ah, yes. That's how it's usually done. That's how mine is setup. From my research on it though, the most ideal setup for maximum spool and boost control is to reference the top port to manifold, then use your MBC as it's installed to adjust the boost. And to use a spring that's close to your target boost. Tight spring + top port referenced to manifold = that bitch is shut till the MBC says open.

Last edited by patsmx5; 01-28-2009 at 02:51 PM.
patsmx5 is offline   Reply With Quote
