MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 07-09-2007, 12:57 AM   #1
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default megasquirt is killing me slowly

need help with software. for some reason i cant get the o29v to load up i extract it and all and nothing. is this the reason why im not getting a spark table in mega tune??. in setting also i did set it to ms extra and save it and set all the sensors. im just trying to get my lab top set up and talking to my box before i do the install.

help please..

ohh thanks
what miata? is offline   Reply With Quote
Old 07-09-2007, 01:22 AM   #2
I'm Miserable!
iTrader: (-1)

Join Date: May 2007
Location: West Sacramento Ca
Posts: 948
Total Cats: 0
Default

Quote:
Originally Posted by what miata? View Post
ohh thanks
Lmfao.
Slidin'Miata916 is offline   Reply With Quote
Old 07-09-2007, 04:13 AM   #3
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

I have no idea what you are talking about? You extracted 029v to where and how? You get everything but a spark table in Megatune? Sorry to say it but it seems like you are hopelessly lost man ... I cant even follow your post.
akaryrye is offline   Reply With Quote
Old 07-09-2007, 04:22 AM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

seriusly chill out a sec and post coherently, even i dont follow this post.
magnamx-5 is offline   Reply With Quote
Old 07-09-2007, 09:50 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

file > configurator > car1 > settings.ini > code variant > MSNS_EXTRA "James Murray and Phil Ringwood's MSnS extensions"


are you looking for edit-settings.bat and don't see it? You can get that file in the hi-res zip. But it's like doing the same as above.
Braineack is online now   Reply With Quote
Old 07-09-2007, 11:21 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

alright how do you enable spark table. is that what ms "extra" was for to also tune timing. ive gone threw all the steps in the software tread. i see that people are tunning timing. the main question is how do i enable the spark table
what miata? is offline   Reply With Quote
Old 07-10-2007, 02:51 AM   #7
Junior Member

Join Date: Jun 2006
Location: LV, NV
Posts: 225
Total Cats: 0
Default

I believe you haven't set up the "codebase and output functions" settings. If you haven't selected an ignition code, there is no spark to control. Take a timeout and do some reading.
mschlang is offline   Reply With Quote
Old 07-10-2007, 11:34 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

Quote:
Originally Posted by mschlang View Post
I believe you haven't set up the "codebase and output functions" settings. If you haven't selected an ignition code, there is no spark to control. Take a timeout and do some reading.
ive went threw the settings am i not seeing some thing?

i think i have got everything figured out but spark table. when i go to tune it shows it but i cant select it
what miata? is offline   Reply With Quote
Old 07-11-2007, 09:27 AM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

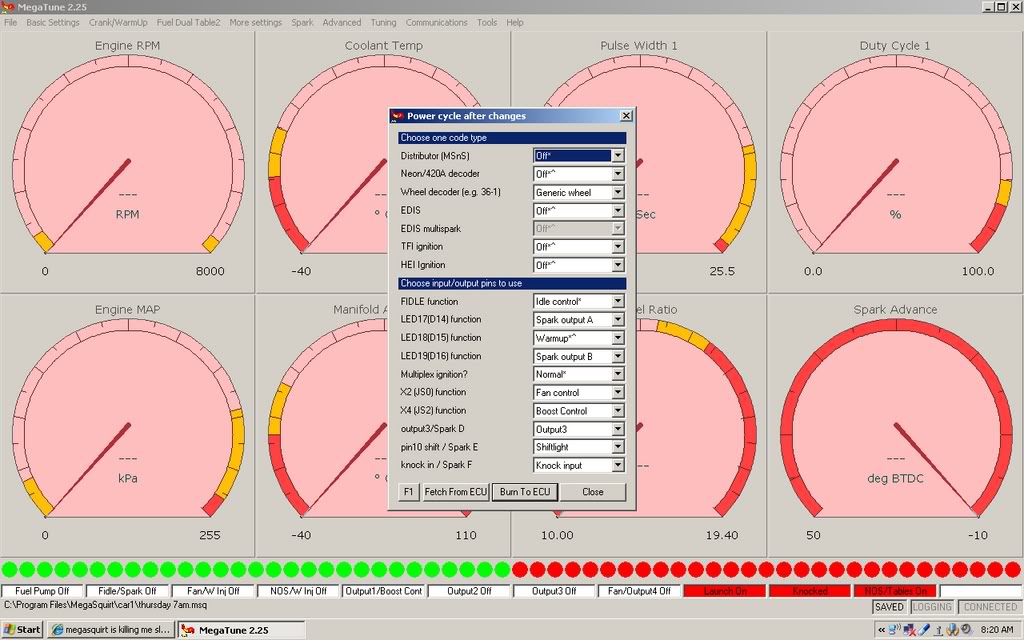

ohh i had htis problem before try this open MS go to the basic settings tab and click on codebased outputs and functions. then make it look like this. pic

Name:  MSsettings.jpg
Views: 0
Size:  120.6 KB
magnamx-5 is offline   Reply With Quote
Old 07-11-2007, 10:46 PM   #10
Junior Member
Thread Starter

Join Date: Nov 2006
Posts: 158
Total Cats: 0
Default

thanks life saver
what miata? is offline   Reply With Quote
