Default megasquirt on low imp 440s

here it is... no resistors, no tricks, well, maybe some fairy dust. first of all the pics...

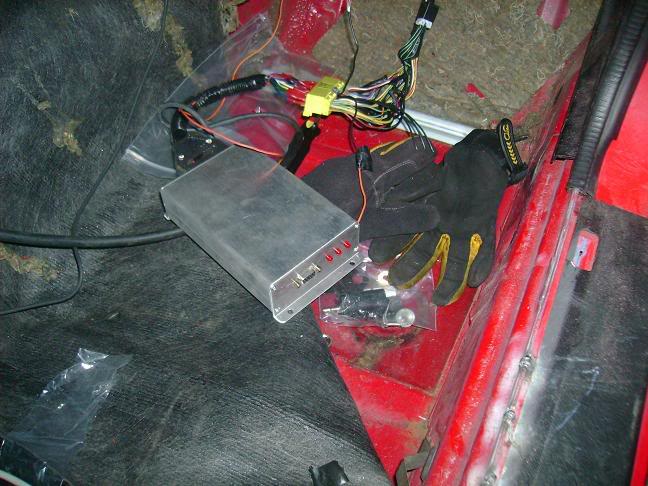

Name:  ms.jpg
Views: 1
Size:  80.1 KB

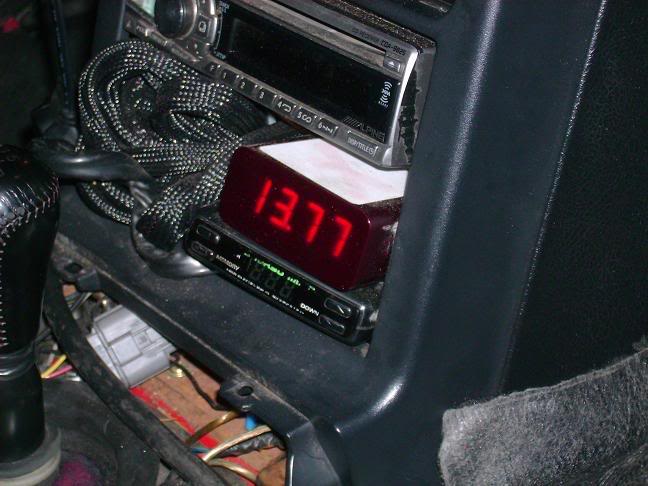

that's a horrible afr
Name:  afr.jpg
Views: 1
Size:  67.0 KB
idle shot

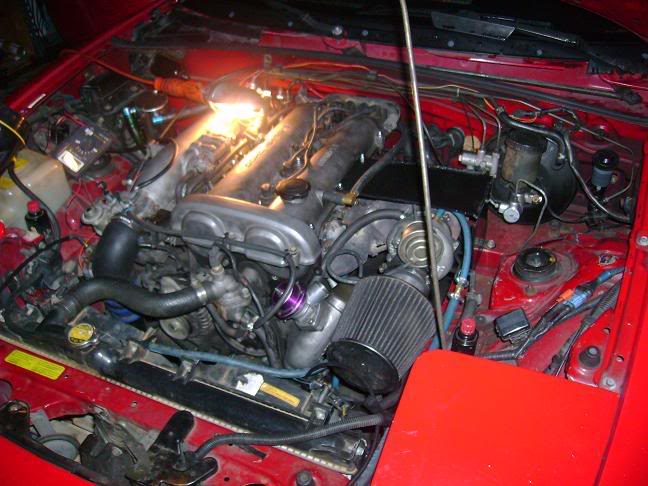

under hood
Name:  noafm.jpg
Views: 1
Size:  77.1 KB

here is the video of the "impossible"
http://www.youtube.com/watch?v=8yt63J549Zo
juhanis is offline   Reply With Quote
Old 02-24-2008, 06:10 AM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

dude you kill me good job
magnamx-5 is offline   Reply With Quote
Old 02-24-2008, 06:13 AM   #3
Junior Member
Thread Starter

Join Date: Jan 2007
Location: Campbell, California
Posts: 106
Total Cats: 0
Default

hehe, i just couldnt think of how else to prove it. i was annoyed the last time someone said that my original video wasnt true.
juhanis is offline   Reply With Quote
Old 02-24-2008, 10:06 AM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

OK, so who wants to buy my 6 Supra Black Top Low Z 440 injectors? cheap.
paul is offline   Reply With Quote
Old 02-24-2008, 10:33 AM   #5
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by paul View Post
OK, so who wants to buy my 6 Supra Black Top Low Z 440 injectors? cheap.
Maybe include with Eric's MS?
olderguy is offline   Reply With Quote
Old 02-24-2008, 10:36 AM   #6
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

I'll PM you about this Bruce.
paul is offline   Reply With Quote
Old 02-24-2008, 12:27 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

so the statement about not being compatible was more of a cautionary one rather than a "just wont do it" one?
y8s is online now   Reply With Quote
Old 02-25-2008, 12:41 AM   #8
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

did you have any issues with voltage spikes from the injectors? or did you isolate the injector circuit from the rest of the board? ... or are you just lucky?
therieldeal is offline   Reply With Quote
Old 02-25-2008, 07:02 AM   #9
Junior Member
Thread Starter

Join Date: Jan 2007
Location: Campbell, California
Posts: 106
Total Cats: 0
Default

i'm just going to say, i dont know. they just work. i dont really have any issues, and i never have with either setup. the car runs great, i'm now at 10-11psi and climbing. my car must be magical i dont know. plus i didnt build the ms, neogenisis/braineack did.
juhanis is offline   Reply With Quote
Old 02-25-2008, 07:17 AM   #10
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

I'm using DSM 450's...
So is this guy..
http://www.msruns.com/viewtopic.php?t=10708

I must have missed the part where it says we can't use low imp?

Nice vid (not as good as your EMB one though )
Jefe is offline   Reply With Quote
Old 02-25-2008, 08:39 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

you silly guy, one of the benefits of the MS is it can run low ohm injectors without resistor packs. you might want to read up on how to correctly setup the PWM settings to run them a little better.
Braineack is online now   Reply With Quote
Old 02-25-2008, 09:49 AM   #12
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by y8s View Post
so the statement about not being compatible was more of a cautionary one rather than a "just wont do it" one?
Yes, it's more cautionary than a warning that it's impossible. The problem isn't that Megasquirt is unable to drive the injectors, so much as a noise issue.
Matt Cramer is offline   Reply With Quote
Old 02-25-2008, 11:20 AM   #13
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Matt Cramer View Post
Yes, it's more cautionary than a warning that it's impossible. The problem isn't that Megasquirt is unable to drive the injectors, so much as a noise issue.
That's really easy to fix with a five conductor (4x inj + ground) shielded cable, shield-grounded at the MS box (not at the injectors!). Should reject all the noise you can throw at it. You can get overkill wire by the foot at mcmaster for about $3/foot. Probably elsewhere much cheaper.
y8s is online now   Reply With Quote
Old 02-26-2008, 06:19 AM   #14
Junior Member
Thread Starter

Join Date: Jan 2007
Location: Campbell, California
Posts: 106
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you silly guy, one of the benefits of the MS is it can run low ohm injectors without resistor packs. you might want to read up on how to correctly setup the PWM settings to run them a little better.
i'll have to look into that, sorry for kinda calling you out on that other thread. i have no idea how the plug wires were on the wrong coils i thought it was something more serious, it worked on my stock stuff. it works GREAT now, so far at 13psi and rising. and thanks for hauling *** on the shipping.
juhanis is offline   Reply With Quote
