Old 12-21-2011, 06:34 PM   #21
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Quote:
Originally Posted by Braineack View Post
Honestly, I'd buy a blank v3.0 board, heatsink, a map sensor, and then order all the required parts to populate the board (like $20 in parts) from digi-key.
Does diy sell the board seperately? I used to get them from Glenn's Garage (before he went under), but I didn't think diy sell them.
WestfieldMX5 is offline   Reply With Quote
Old 12-21-2011, 06:59 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

Quote:
Originally Posted by Gearhead_318 View Post
I'm not going for a DIYPNP b/c I'm cheap and I want to build it myself.
the diypnp is cheap, and you have to build it yourself...

Quote:
Originally Posted by f_devocht View Post
Does diy sell the board seperately? I used to get them from Glenn's Garage (before he went under), but I didn't think diy sell them.

sometimes if you ask nicely.

Quote:
Originally Posted by f_devocht View Post
No need to buy a case (included in the unassembled kit) or DB9 cable (there's a usb port on the expander card).
^this.
Braineack is offline   Reply With Quote
Old 12-21-2011, 07:16 PM   #23
Elite Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Quote:
Originally Posted by f_devocht View Post
No need to buy a case (included in the unassembled kit) or DB9 cable (there's a usb port on the expander card). If you want to get fancy, put the oem connector inside the case. That way you don't need the DB37 either.
Thanks.

Quote:
Originally Posted by Braineack View Post
the diypnp is cheap, and you have to build it yourself...
Wait what? I thought I had it all figured out.. So what's the difference between this DIYPNP and the MS3X? Looks like they support many of the same features and are a similar price. $425 for the DIYPNP and $455 for the MS3 + MS3X expansion card.
gearhead_318 is offline   Reply With Quote
Old 12-21-2011, 07:22 PM   #24
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

DIYPNP cannot be upgraded to MS3, so forget about it and get the MS3/MS3X combo. Anything else and you'll regret it at some point.
WestfieldMX5 is offline   Reply With Quote
Old 12-21-2011, 07:49 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

(Sent from phone via capitalism)

Im with frank. I suggest the diypnp when ms3 is not on the table. Just do it ill walk u through it and you'll be awesome like me frank shueind and y8s.

I need to load the lastest firnware to try the new idle code.


And now u can get a vvt head and control it...
Braineack is offline   Reply With Quote
Old 12-21-2011, 07:49 PM   #26
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Gearhead_318 View Post
Wait what? I thought I had it all figured out.. So what's the difference between this DIYPNP and the MS3X? Looks like they support many of the same features and are a similar price.
Well....

The DIYPnP is based on the MS2 CPU (technically the MicroSquirt module, but that unit is based on the MS2). So none of the cool new whiz-bang features of the MS3 will run on it.

Of course, the DIYPnP is plug-n-play, whereas an MS3 build is going to use the horrid old DB37 connectors, and whoever decided that those were suitable for use in an automotive ECU should be slathered in honey and slowly lowered feet-first into a pit filled with hungry Chihuahua puppies. So you'll have to build an external harness to plug it into the car (not hard to do, just more tedious soldering.)

The MS3 + MS3X will run with fully-sequential injection and ignition right out of the box. The DIYPnP can optionally be upgraded to support this.


All in all, the two systems are pretty similar in terms of capabilities. If you want the true plug-n-play experience, get the DIYPnP. If you have an '01 or later engine, get the MS3.
Joe Perez is offline   Reply With Quote
Old 12-21-2011, 07:50 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

(Sent from phone via capitalism)

As for harness see the diybob thread I made in the diyautotune section. Or see what frank did.
Braineack is offline   Reply With Quote
Old 12-21-2011, 08:11 PM   #28
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default



If you like to tinker, have latest and greatest, or care about future upgrades. Ms3.

If you just want your **** to run really well, and forget about it after dialed, diypnp.

I love upgrading firmware, and tweeking, plus im excited about ms3 potential
miatauser884 is offline   Reply With Quote
Old 12-21-2011, 08:20 PM   #29
Elite Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Thanks again everybody! DIYPNP sounds good, but I've got a hard-on for MS3X now. I'm getting Maximum Boost & cash for the MS3X for xmas, so I'll have 3-4 months to build, install, set up and run MS3X before bootcamp, after that comes the boost (once I have time).

Edit:
Quote:
Originally Posted by djp0623 View Post

If you like to tinker, have latest and greatest, or care about future upgrades. Ms3.

If you just want your **** to run really well, and forget about it after dialed, diypnp.

I love upgrading firmware, and tweeking, plus im excited about ms3 potential
The 1st and 3rd line pretty much describe why I'm getting MS3X
gearhead_318 is offline   Reply With Quote
Old 12-22-2011, 06:52 AM   #30
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

If you really want to be awesome do this

https://www.miataturbo.net/megasquirt-18/ms3-pnp-build-61060/
WestfieldMX5 is offline   Reply With Quote
Old 12-22-2011, 11:40 PM   #31
Elite Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Isn't that what I'm doing? MS3X right?
gearhead_318 is offline   Reply With Quote
Old 12-23-2011, 02:50 AM   #32
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by djp0623 View Post
I had the diypnp. While it is perfectly capable, the firmware had hit a wall due to maxing out the available flash memory.
Not true.

My mod released just recently for ms2 added a fair bit more memory from the flash. Ms2 hadn't been maxed out at all.

I'd agree that ms3 is better, but for most needs, a DIYPNP is more than suitable.

G
gslender is offline   Reply With Quote
Old 12-23-2011, 04:43 AM   #33
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Quote:
Originally Posted by Gearhead_318 View Post
Isn't that what I'm doing? MS3X right?
connector inside the case instead of the ridiculous DB37's and a bunch of wiring.
WestfieldMX5 is offline   Reply With Quote
Old 12-23-2011, 02:55 PM   #34
Elite Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

I guess the DB37's are fragile and should be avoided? I think this will only make sense when get done building the thing.
gearhead_318 is offline   Reply With Quote
Old 12-23-2011, 03:15 PM   #35
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

its a mess with the wiring harness adapter. If I were to do it again I would place the ms2 into the stock ecu casing instead and put the ecu connector directly to it instead of the db37.

Also I would keep the map sensor in the engine bay instead.

Last edited by Techsalvager; 12-23-2011 at 03:34 PM.
Techsalvager is offline   Reply With Quote
Old 12-23-2011, 04:03 PM   #36
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

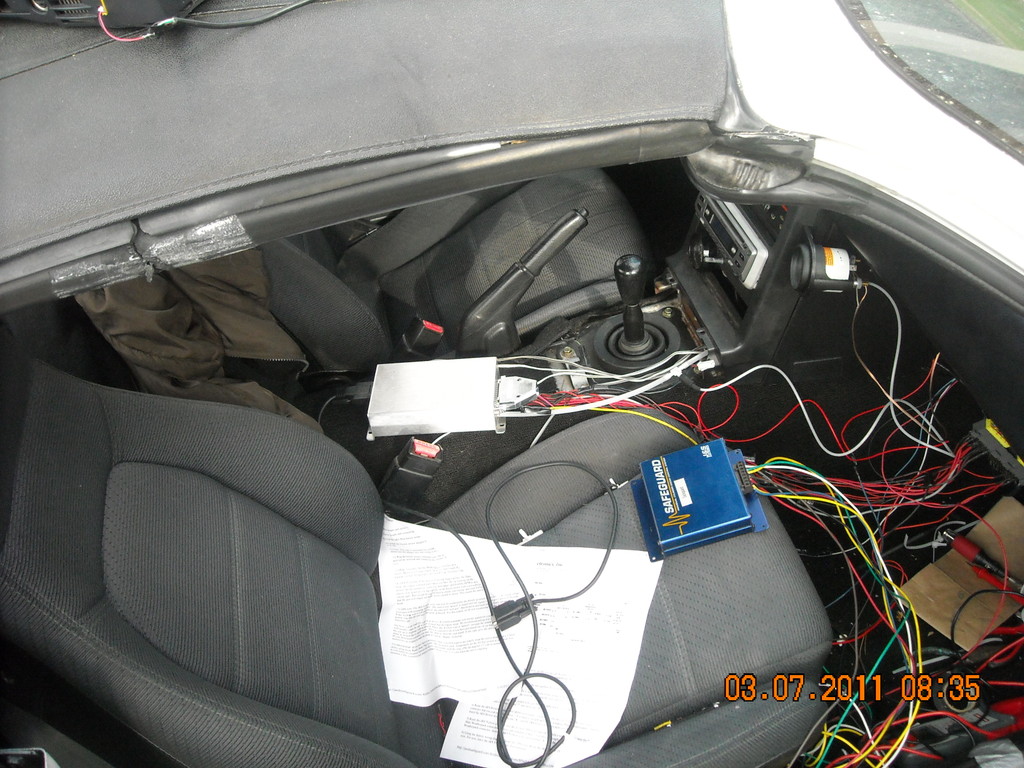

heres part of the mess I have with the db37 to stock ecu connector adapter I made

By techsalvager at 2011-03-16
Attached Thumbnails
Which MegeSquirt is right for my build?-dscn2270n.jpg
Techsalvager is offline   Reply With Quote
Old 12-23-2011, 04:05 PM   #37
Elite Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Damn. That looks like something I'd like to avoid, how do I do this?
gearhead_318 is offline   Reply With Quote
Old 12-23-2011, 04:27 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

https://www.miataturbo.net/diyautotune-miata-accessories-30/diybob-59935/

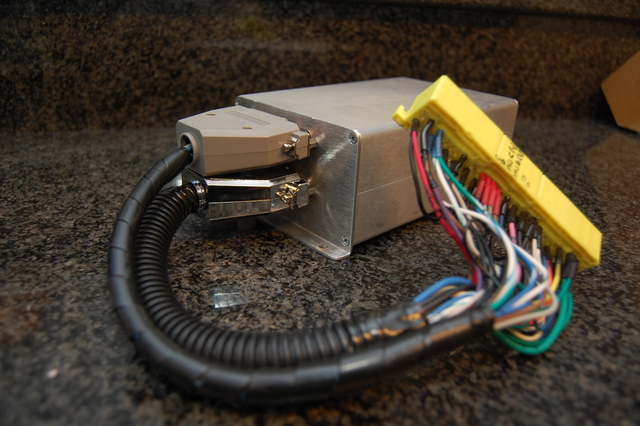

the way frank did it eliminates all the wiring outside the box.
Attached Thumbnails
Which MegeSquirt is right for my build?-ms3x-068.jpg
Braineack is offline   Reply With Quote
