Old 08-27-2008, 12:37 AM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Well mine is moved. Will have results tomorrow, hopefully I can drop the temps below 80* once the fan kicks on...i haven't seemed to be able to do this yet, even after I start cruising again.
Braineack is online now   Reply With Quote
Old 08-27-2008, 10:29 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

wonderfullness!!!!

my typical drive to work hardly will even activate the fans, this morning was no exception. During my drive my intake temps hovered at 70-72. Ambient was somewhere at 68-69. Never increased at any light, even the 5 minute one I always start to heatsoak at. My highest temperature at idle was 73. Once I boost I can actually see the temperatures increase to 80 by redline, as soon as I left off, the temperatures instantly dropped as well back down to 73.

So I'm happy, no more +90 temps at idle and watch my AITs drop when I hit boost. Now I can actually see what's going on. Should have done this a long time ago, but I'm so lazy.

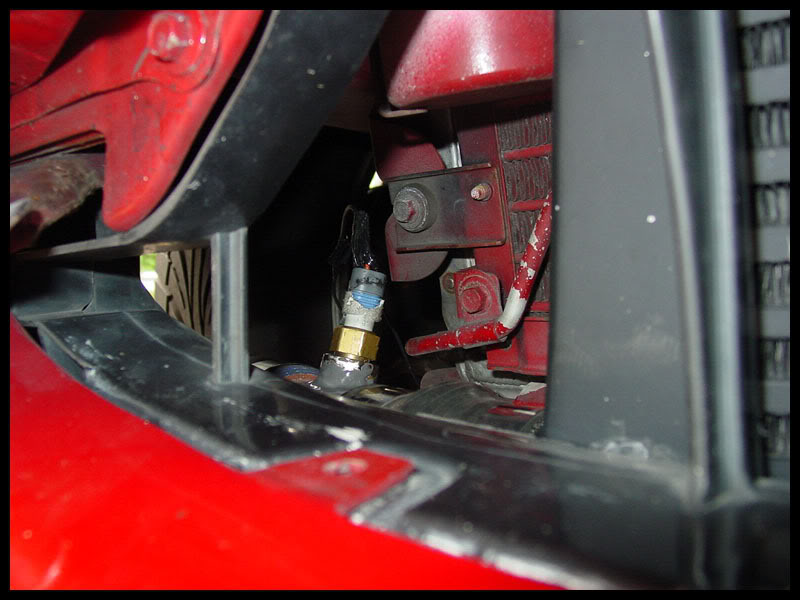

Name:  DSC01122.jpg
Views: 11
Size:  65.9 KB

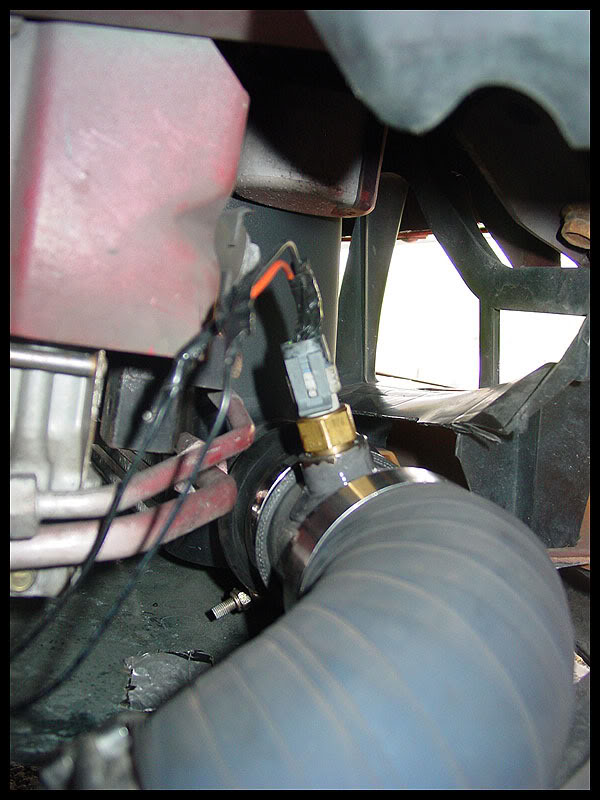

Name:  DSC01125.jpg
Views: 11
Size:  79.0 KB
Braineack is online now   Reply With Quote
Old 08-27-2008, 12:57 PM   #23
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

Scott did you just simply JB weld the bung to the charge pipe? If it was that easy then I will move mine as well. Especially since there huge reduction in the temps you are seeing.
96rdstr is offline   Reply With Quote
Old 08-27-2008, 01:07 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Quote:
Originally Posted by 96rdstr View Post
Scott did you just simply JB weld the bung to the charge pipe? If it was that easy then I will move mine as well. Especially since there huge reduction in the temps you are seeing.
yep, my last has been JB welded as well for some time now.

Anyone know the thread pitch for that sensor?

Quote:
Originally Posted by johndoe View Post
Anyone know the thread pitch for that sensor?

3/8" iirc.

Last edited by Braineack; 08-27-2008 at 01:08 PM. Reason: whoops.
Braineack is online now   Reply With Quote
Old 08-27-2008, 01:12 PM   #25
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

Awesome, and thanks for the thread pitch info. I will need to get a new bung since my original one is welded on.

I am assuming that I will need to redo the IAT corrections as well? That isnt a real biggie if I have to change them.
96rdstr is offline   Reply With Quote
Old 08-27-2008, 03:26 PM   #26
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Braineack View Post

Anyone know the thread pitch for that sensor?

3/8" iirc.
3/8" NPT (tapered) to be precise.
ZX-Tex is offline   Reply With Quote
Old 08-27-2008, 04:44 PM   #27
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

I just went and got a 3/8 bung from a hydraulic shop that is right around the corner from my house. I was referred there since the local speed shop was out of the bungs. I can't tell you how many times I have driven right by there and never realized it was there.
96rdstr is offline   Reply With Quote
Old 08-28-2008, 11:02 AM   #28
Junior Member
iTrader: (1)

Join Date: Jun 2007
Location: Plano
Posts: 83
Total Cats: 0
Default

Good info. I installed mine just before the throttle body and it was seeing over 150 degrees at a practice autox. I had to whip out the laptop and adjust the correction for it to hot start. Looks like I'll be moving it out of the engine bay as well.
tilt is offline   Reply With Quote
Old 08-28-2008, 08:57 PM   #29
Elite Member
Thread Starter
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

damn its easy for you turbo guys.
Stealth97 is offline   Reply With Quote
Old 08-28-2008, 10:58 PM   #30
Senior Member
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Mine's in the TBI. I plan to built a heat shield because: 1. I like building stuff and 2. I don't know how to patch the hole it would leave behind.
evank is offline   Reply With Quote
Old 08-29-2008, 10:44 AM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

friction tape. coupler and clamp. weld. gum.

mine old bung has a spare AIT sensor in it currently until i do something with it.
Braineack is online now   Reply With Quote
Old 08-29-2008, 05:13 PM   #32
Senior Member
iTrader: (4)

Join Date: Oct 2006
Location: Tampa
Posts: 780
Total Cats: 0
Default

My 1st time with JB Weld was, um, interesting....Remember the crap you got about the JB Weld on on the oil pan? Yeah, it looks something like that. BUT! It holds, no leaks, it will be under the car and out of sight, so who cares.
96rdstr is offline   Reply With Quote
Old 08-29-2008, 05:16 PM   #33
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

FYI Mine is right before the TB and I too see 150-170*F temps. 130 is the lowest after it's warmed up and I'm cruising. I'm gonna put my sensor in the outlet of my IC like big pimpin' did. Well, I will whenever I get all the couplers I need to make my charge pipes.
patsmx5 is offline   Reply With Quote
Old 08-30-2008, 01:19 PM   #34
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I tried building a heat shield for mine. Didn't work. The metal just heats up and warms up the sensor. It does run better though. I'll pick up a bung and relocate it after finals.

I'm thinking that extra bung is a good spot for WI?
miataspeed1point6 is offline   Reply With Quote
