Default MS Installs, pictures.... post them up

Did a brief search and didn't see a thread like this (forgive me if im just being an idiot)

Ill be ordering a Reverant eMs2 in acouple months and have been thinking about how I want to mount it. Ideas include

In the glove box
Behind the glove box
Removing the stock airbag and putting it behind the airbag cover
Mounted near the stock ecu location

would like to see what others have done before I make a choice
Gt2560rMiata is offline   Reply With Quote
Old 12-15-2012, 12:31 AM   #2
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

put it behind your seat where your stock ecu used to be
bmxfuel007 is offline   Reply With Quote
Old 12-15-2012, 10:35 AM   #3
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: Indianapolis, IN
Posts: 79
Total Cats: 1
Default

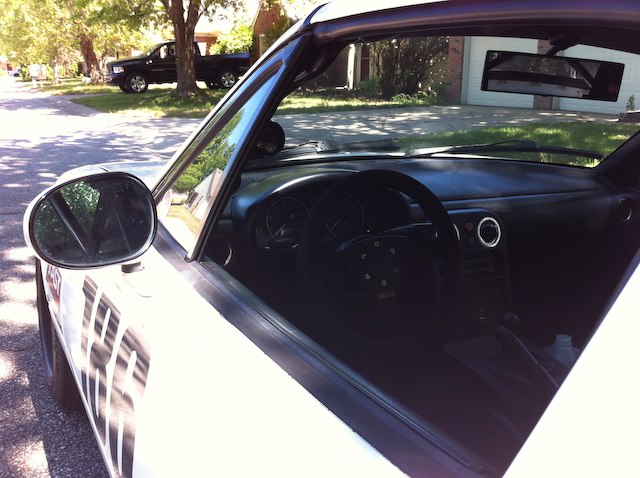

I'm pretty happy with my location. MS3/MS3x mounted in front of the shifter. I used a piece of ABS plastic as the block off plate. Used to have a thin piece of aluminum sheet, but I prefer the plastic. You can barely see it in this pic, but you get the idea. Makes it super convenient for plugging in and having access to the SD card slot.

Attached Thumbnails
MS Installs, pictures.... post them up-vrhbs.jpg
Shahab is offline   Reply With Quote
Old 12-15-2012, 12:56 PM   #4
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

I really want to put my Engine Control Unit in the engine bay with the thing it's controlling. Routing wires 3x as long as they need to be through holes and under carpets seems stupid.
DaveC is offline   Reply With Quote
Old 12-15-2012, 01:00 PM   #5
Junior Member
Thread Starter
iTrader: (-2)

Join Date: Nov 2012
Posts: 242
Total Cats: -42
Default

Quote:
Originally Posted by DaveC View Post
I really want to put my Engine Control Unit in the engine bay with the thing it's controlling. Routing wires 3x as long as they need to be through holes and under carpets seems stupid.
Not sure if serious

or just sarcasm
Gt2560rMiata is offline   Reply With Quote
Old 12-15-2012, 01:06 PM   #6
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

You can fit an MS under the dash where the stock ECU is on an NB.
Ryan_G is offline   Reply With Quote
Old 12-15-2012, 02:15 PM   #7
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Quote:
Originally Posted by Gt2560rMiata View Post
Not sure if serious

or just sarcasm
Totally serious.
DaveC is offline   Reply With Quote
Old 12-15-2012, 02:20 PM   #8
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by DaveC View Post
Totally serious.
Let us know how that turns out for you.
Ryan_G is offline   Reply With Quote
Old 12-15-2012, 02:24 PM   #9
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

Ok ok ok ok, put it behind the driver's seat instead. you'll just need to route the stock wires behind the passenger seat over the center console and voila! installed!
bmxfuel007 is offline   Reply With Quote
Old 12-15-2012, 05:53 PM   #10
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Quote:
Originally Posted by Ryan_G View Post
Let us know how that turns out for you.
Will do. The only problems are heat and water. The MS's (with the exception of the MS3pro) are probably not up to it, but it's not really a difficult engineering problem. Imagine separate connectors for everything. Wiring would be dreamy... and reliable! Kick that disgusting tape-covered factory harness right to the curb.

Don't know why so many people think it's a foolish idea.
DaveC is offline   Reply With Quote
Old 12-15-2012, 06:46 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

Cause it is
Braineack is offline   Reply With Quote
Old 12-15-2012, 07:11 PM   #12
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Quote:
Originally Posted by DaveC View Post
Will do. The only problems are heat and water. The MS's (with the exception of the MS3pro) are probably not up to it, but it's not really a difficult engineering problem. Imagine separate connectors for everything. Wiring would be dreamy... and reliable! Kick that disgusting tape-covered factory harness right to the curb.

Don't know why so many people think it's a foolish idea.
Because the harness is already there and putting a box in the engine compartment that isn't sealed well to the outside environment is yet another layer of dumb.

Where are the 1.6 folks mounting their DIYPNPs anyway? Mine is just sitting in the passenger footwell still.. just jiggling around. I don't want to drill into the floor.

Last edited by albumleaf; 12-16-2012 at 04:25 PM.
albumleaf is offline   Reply With Quote
Old 12-15-2012, 07:13 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

Thats how mines installed
Braineack is offline   Reply With Quote
Old 12-15-2012, 07:17 PM   #14
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

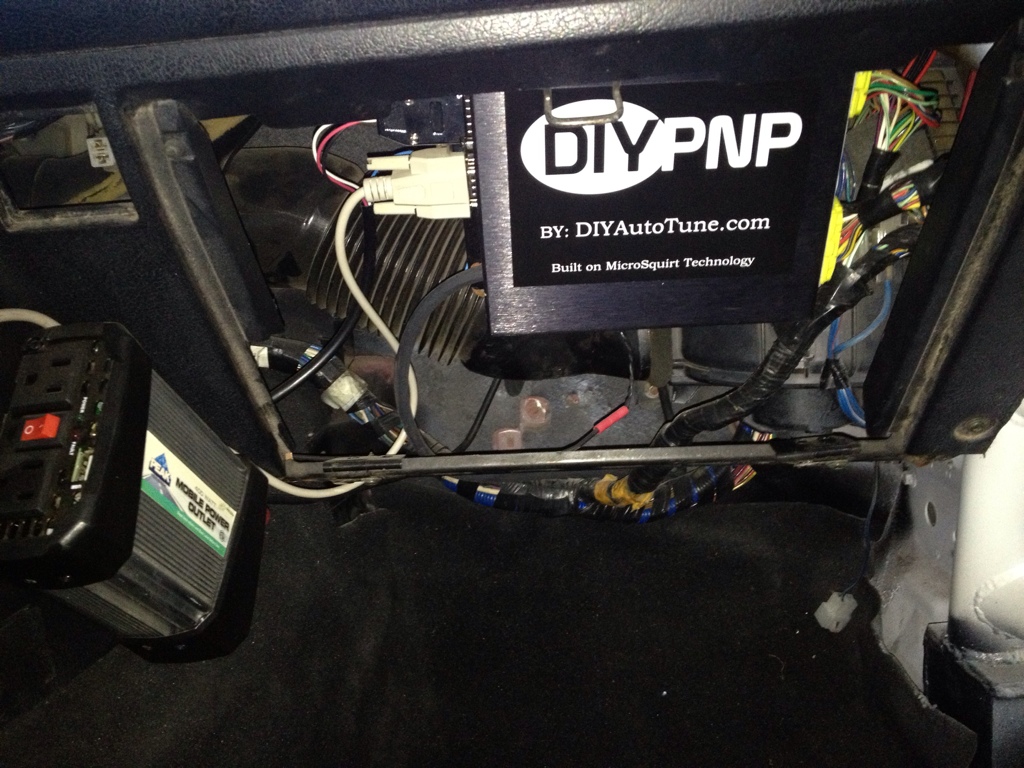

Here is mine. 1990 NA
Attached Thumbnails
MS Installs, pictures.... post them up-6bbeb842-afe7-4647-afdf-a8d86e1bab78-8892-000005853c15636d.jpg
RyanRaduechel is offline   Reply With Quote
Old 12-15-2012, 07:24 PM   #15
Junior Member
iTrader: (3)

Join Date: Jun 2011
Location: Charlotte, NC
Posts: 277
Total Cats: 24
Default

Quote:
Originally Posted by DaveC View Post
The only problems are heat and water.
Both of which are major problems. What is your solution to keeping heat and water from being problems?
RussellT94 is offline   Reply With Quote
Old 12-16-2012, 04:02 PM   #16
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

Maybe I wasn't clear (as usual.) I wrote " want to put my ECU in the engine bay..." but what I was thinking was more like "I want an ECU that I can put in the engine bay..." Designing such a magical device would not be difficult. You start with components that can withsatnd the heat then put them in an enclosure that is suitably watertight.

I should take a photo of my DIYPNP installation, but there's not much to see. It's behind the seat, right where the factory one was, fastened to the bulkhead with sheetmetal screws.
DaveC is offline   Reply With Quote
Old 12-16-2012, 04:04 PM   #17
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

that's what the ms3-pro is made for. order one when they come out
18psi is offline   Reply With Quote
Old 12-16-2012, 04:57 PM   #18
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 200
Default

Just because you may find an ECU that has a waterproof housing and connector, it doesn't mean that the electronics inside it will appreciate the engine bay heat.
Reverant is offline   Reply With Quote
Old 12-16-2012, 05:09 PM   #19
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by DaveC View Post
Totally serious.
All the wires are already leading to the inside the cab which makes the ecu already plug and play in a good location... unless you plan to extend or slash and cut all the wires you're being a very big idiot.

That aside if you actually do plan on slashing and cutting all the wires so you can have the ecu in the engine bay.. you're being even a bigger idiot.

Last edited by triple88a; 12-16-2012 at 05:25 PM.
triple88a is offline   Reply With Quote
Old 12-16-2012, 05:26 PM   #20
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

I had mine in the glovebox for a while before moving it back behind the seats. Glovebox is an easy spot to put it, other than it being the first place thieves look if they break in.
Enginerd is offline   Reply With Quote
