Old 12-20-2012, 03:13 PM   #41
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Matt Cramer View Post
As a BMW owner, I have to say that BMW's engineers are not the sort to let reason get in the way of logic.
Dont worry, well put in a clutch delay valve to make sure you cant shift a bmw well.
Braineack is offline   Reply With Quote
Old 12-20-2012, 04:17 PM   #42
Newb

Join Date: Oct 2011
Location: The 253
Posts: 32
Total Cats: -3
Default

Quote:
Originally Posted by Braineack View Post
Dont worry, well put in a clutch delay valve to make sure you cant shift a bmw well.
Hyundai does the same thing....


Don't ask me how I know. I was a misguided youth once...
trackslut is offline   Reply With Quote
Old 12-20-2012, 05:41 PM   #43
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

2 3 pages, 3 pictures... this thread does not deliver. F-
EO2K is offline   Reply With Quote
Old 12-20-2012, 08:27 PM   #44
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 291
Total Cats: 5
Default

I can fix that!

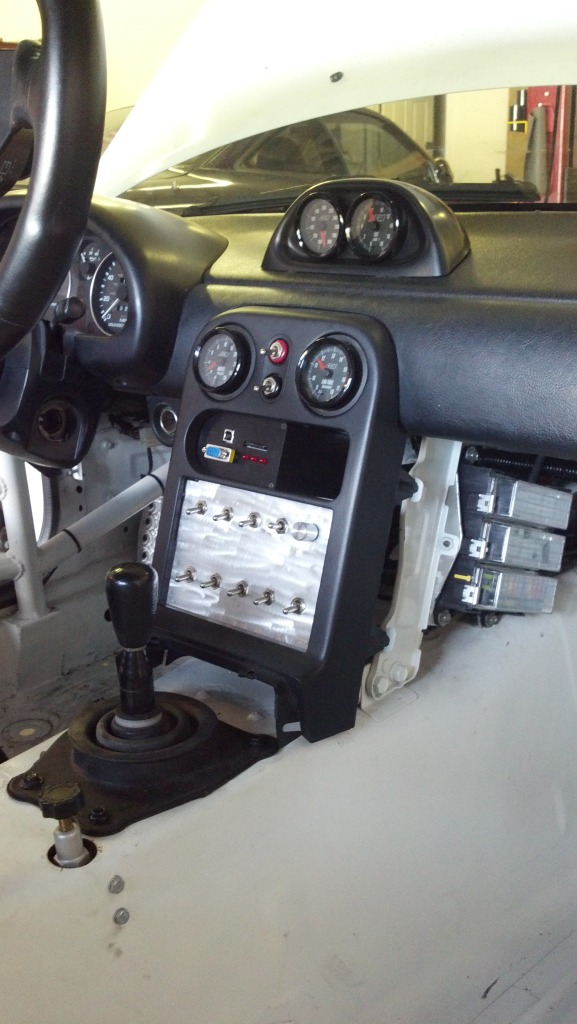

The car isn't finished but you get the idea. It is just mounted to a piece of angle that is attached to the dashbar support. Like I said before I have no idea if this can be done on OEM harness. I have rewired the whole car, which is evident by the fuse box on the tranny tunnel. Yes, I like switches... lol

Attached Thumbnails
MS Installs, pictures.... post them up-2012-12-20_15-00-29_210.jpg
Sokool is offline   Reply With Quote
Old 12-21-2012, 12:11 AM   #45
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: Indianapolis, IN
Posts: 79
Total Cats: 1
Default

Quote:
Originally Posted by EO2K View Post
I'd like to see more/better pics of both of these installs. Is it still possible to fit a 1 DIN stereo, HVAC controls and a MS2/MS3 in there?

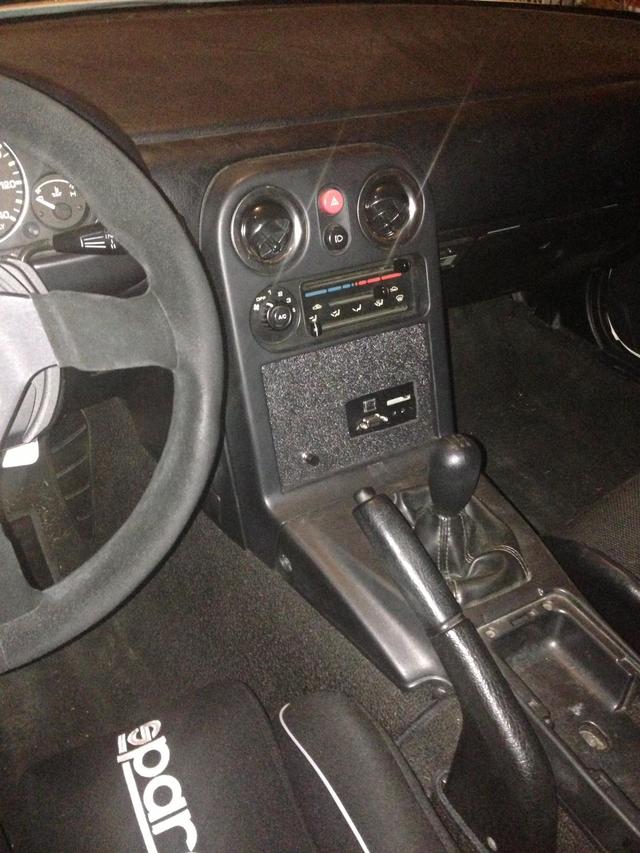

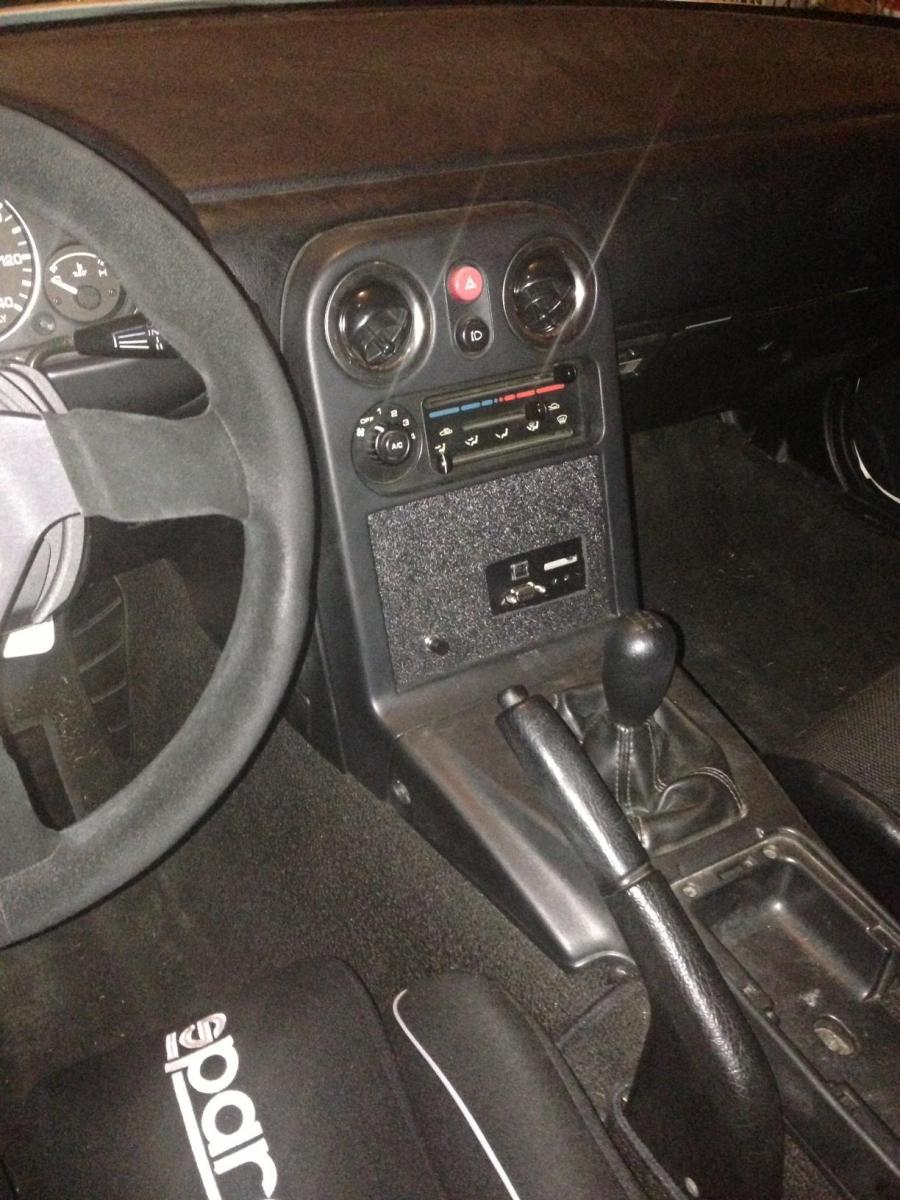

Here's a better picture. This is with the factory harness. It was pretty easy to make it work since Rev's PNP harness he made for the MS3/MS3x had some extra length (giggity). I also wired all of the free hanging wires from his harness for things like the WB02 and seq. fuel and spark inputs to a Deutsch connector so the whole thing can be easily removed. The button to the left is to start and stop data logging to the SD card.

Hope that helps. I remember a thread where people were posting up info about SD card slot extenders and USB extender cables. I had originally planned to go that route with something under the passenger side dash, but this just made the most sense for my application.
Attached Thumbnails
MS Installs, pictures.... post them up-9nrfq.jpg
Shahab is offline   Reply With Quote
Old 12-21-2012, 03:40 PM   #46
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Nice! I really need to find a source for black ABS. I have like 6 projects where it could be useful.

Quote:
Originally Posted by Shahab View Post
The button to the left is to start and stop data logging to the SD card.
Well damn, that's frickin' cool. Is the push button part of the default functionality of the MS3/MS3x? That sounds REALLY convenient.
EO2K is offline   Reply With Quote
Old 12-21-2012, 03:43 PM   #47
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by EO2K View Post
Nice! I really need to find a source for black ABS. I have like 6 projects where it could be useful.
parts express
Leafy is offline   Reply With Quote
Old 12-21-2012, 09:33 PM   #48
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by EO2K View Post
Nice! I really need to find a source for black ABS. I have like 6 projects where it could be useful.
Quote:
Originally Posted by Leafy View Post
Or better yet, just go dumpster diving at your local plastics shop and get all you want for free. That's what I did when I wanted to fab up a custom gauge panel and found some nice 1/4" black plastic to use.

Ray
RayinNorCal is offline   Reply With Quote
