Default MS question about load points

Is there an easier way of changing the load points on your VE map?

On my VE map, it has areas of 180-240 KPA, that I don't use.

Is there a way I can rescale the entire map so I can finer cells?

So I'd like to have 180 KPA as my max, rather than 240 KPA, so I can have more load cells.

Also, is there a way to do that with RPM's? If not, I'll do it the long way, but was wondering if there was an easier way of doing it in TS.
ihiryu is offline   Reply With Quote
Old 04-02-2015, 01:34 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

do it.

no real easy approach. just spend some time and make it happen.
Braineack is offline   Reply With Quote
Old 04-02-2015, 01:49 PM   #3
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Okie dokie. That's all I needed to hear. Thanks.
ihiryu is offline   Reply With Quote
Old 04-02-2015, 01:53 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

yes and yes

click on the value, input new value, press enter

update map accordingly

done
18psi is offline   Reply With Quote
Old 04-02-2015, 02:54 PM   #5
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,708
Total Cats: 269
Default

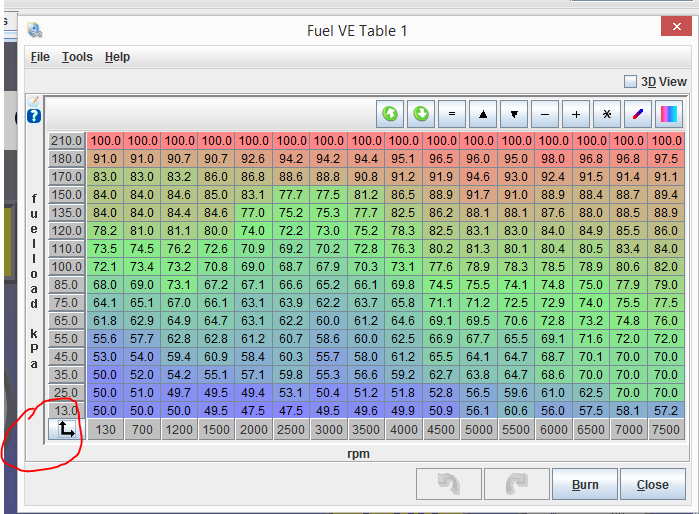

See red circle in the picture below. Click that and you will be able to put in your new Bin values and the table will interpolate your existing table values to the new parameters.

I suggest saving your tune first, but will say it works well at least for going smaller, as you are suggesting. Interpolation seems to work better than extrapolation.

Attached Thumbnails
MS question about load points-re-bin.png
DNMakinson is offline   Reply With Quote
Old 04-02-2015, 10:46 PM   #6
Junior Member
Thread Starter

Join Date: Jul 2013
Location: TX
Posts: 319
Total Cats: -12
Default

Thanks! I was able to rescale the load and rpm's rather easily.

I got VEAL to work perfectly now!
