dash tach or megasquirt digital tach?

those first two resistors you moved? they are orange orange red gold?
Braineack is offline   Reply With Quote
Old 06-05-2012, 09:31 PM   #42
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
dash tach or megasquirt digital tach?

those first two resistors you moved? they are orange orange red gold?
dash
the 2 you had me move are brown black red gold
skullzaflare is offline   Reply With Quote
Old 06-05-2012, 09:33 PM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

no, the first that were already on the green wires. i think they are 30K or something judging by the colors which may be why the dash tach isn't moving (no spark)
Braineack is offline   Reply With Quote
Old 06-05-2012, 09:42 PM   #44
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
no, the first that were already on the green wires. i think they are 30K or something judging by the colors which may be why the dash tach isn't moving (no spark)
oobg, 330ohm
skullzaflare is offline   Reply With Quote
Old 06-05-2012, 09:45 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

hmmm i dunno then. i guess revert it all back and ill scratch my head for a bit.
Braineack is offline   Reply With Quote
Old 06-06-2012, 02:29 PM   #46
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

well, i left it as it was last night, and rebuilt the harness for standalone, and it starts now! it does POP when you first turn the key on though, scared the ---- out of me lol
still working on it of course, IAC works, i dont know if the fan does yet
skullzaflare is offline   Reply With Quote
Old 06-06-2012, 02:33 PM   #47
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

search about the pop. that good, wonder what the deal was, but that dropout SHOULD go away.
Braineack is offline   Reply With Quote
Old 06-06-2012, 02:40 PM   #48
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
search about the pop. that good, wonder what the deal was, but that dropout SHOULD go away.
i spent hours last night building the harness from scratch lol
someone should really label the parts each wire goes to from this

and i say that because there is 2 Bl/w and 2 Gn/w, one of each has a yellow line, which i presumed to be the sensor one, however, since i was making it from scratch i was guessing lol

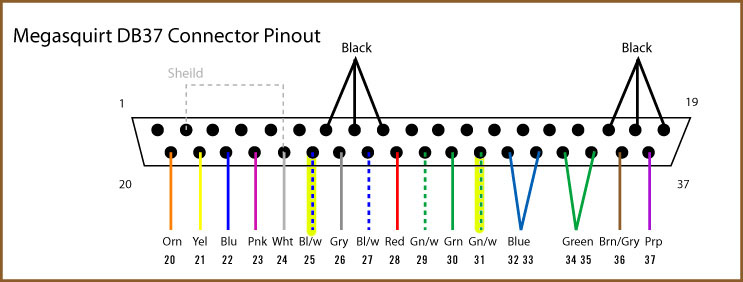

http://www.boostedmiata.com/gallery2...ne_harness.jpg
Attached Thumbnails
MS1 losing CAS signal-db37_ms_pinouts.jpg
skullzaflare is offline   Reply With Quote
Old 06-06-2012, 02:42 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

thats why those pin positions are called out on the oem side diagram. make sure your clutch input and fan output match...
Braineack is offline   Reply With Quote
Old 06-06-2012, 03:11 PM   #50
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
thats why those pin positions are called out on the oem side diagram. make sure your clutch input and fan output match...
my clutch switch is bypassed so i didnt hook that up
it doesnt specify which is which, unless im looking in the wrong places

the colors with yellow highlight i used for the ignitor and CAS, car runs so i assume i assumed right lol
so the 2 without yellow are for clutch and fans? i didnt solder those 2 to the harness connector yet, just the db37.
i dont have the fan mod installed, granted i dont have the IAC either, though IAC works.
presuming my fan doesnt work, what part numbers will i need? i have a couple old ecus from other cars i robbed a 1k 1/4 off of last night, along with a few other parts. only thing i dont have is the .01uf cap
skullzaflare is offline   Reply With Quote
Old 06-06-2012, 03:31 PM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

correct.

(but look again on the harness diagram--the blue/green CAS input is label with pin 25, and the spark output is labeled with pin 31)


you can use the middle led circuit to run the fan relay...see the diagram i posted a bunch of posted back.
Braineack is offline   Reply With Quote
Old 06-06-2012, 03:53 PM   #52
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
correct.

(but look again on the harness diagram--the blue/green CAS input is label with pin 25, and the spark output is labeled with pin 31)


you can use the middle led circuit to run the fan relay...see the diagram i posted a bunch of posted back.
wow, i see that now lol, i feel stupid now

not sure how i missed that lol. yea im looking at the diagram now, about jumping d15 led, so im reading through that. you say q4 is not used so put the q4 chip where the q7 chip is/was?

btw, heres my final

Attached Thumbnails

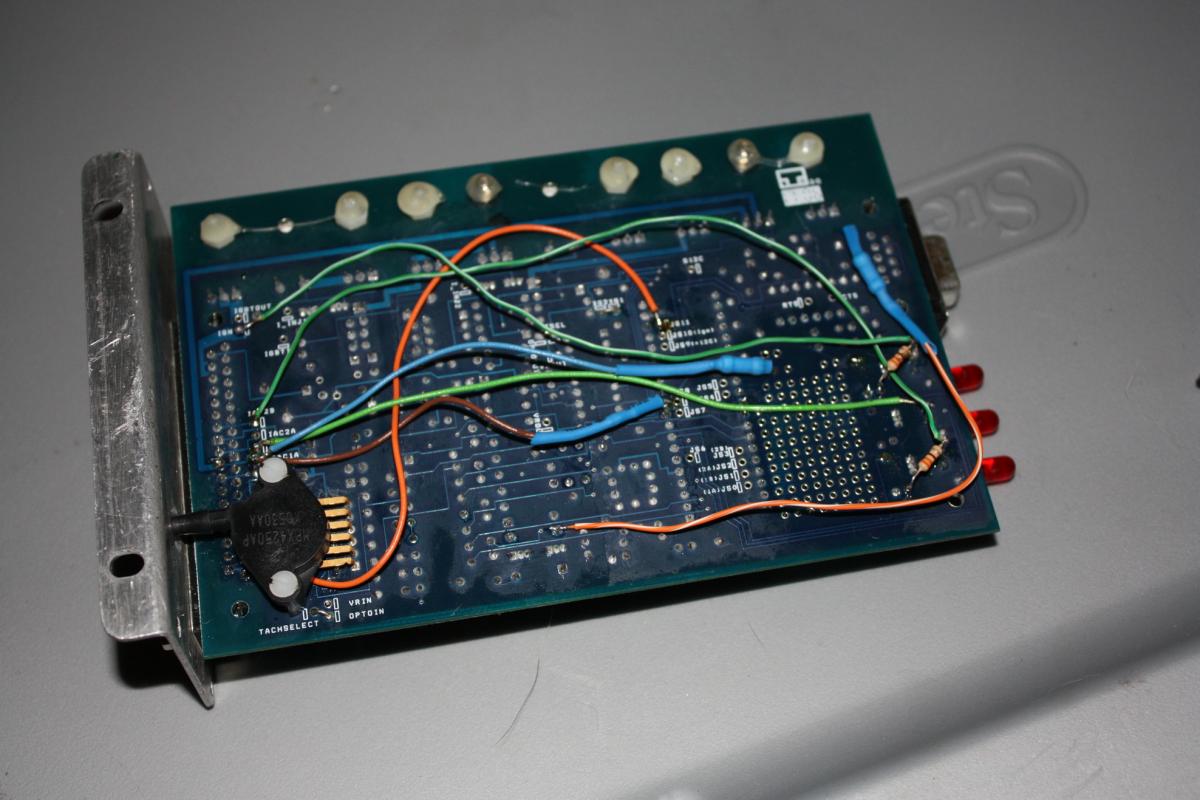

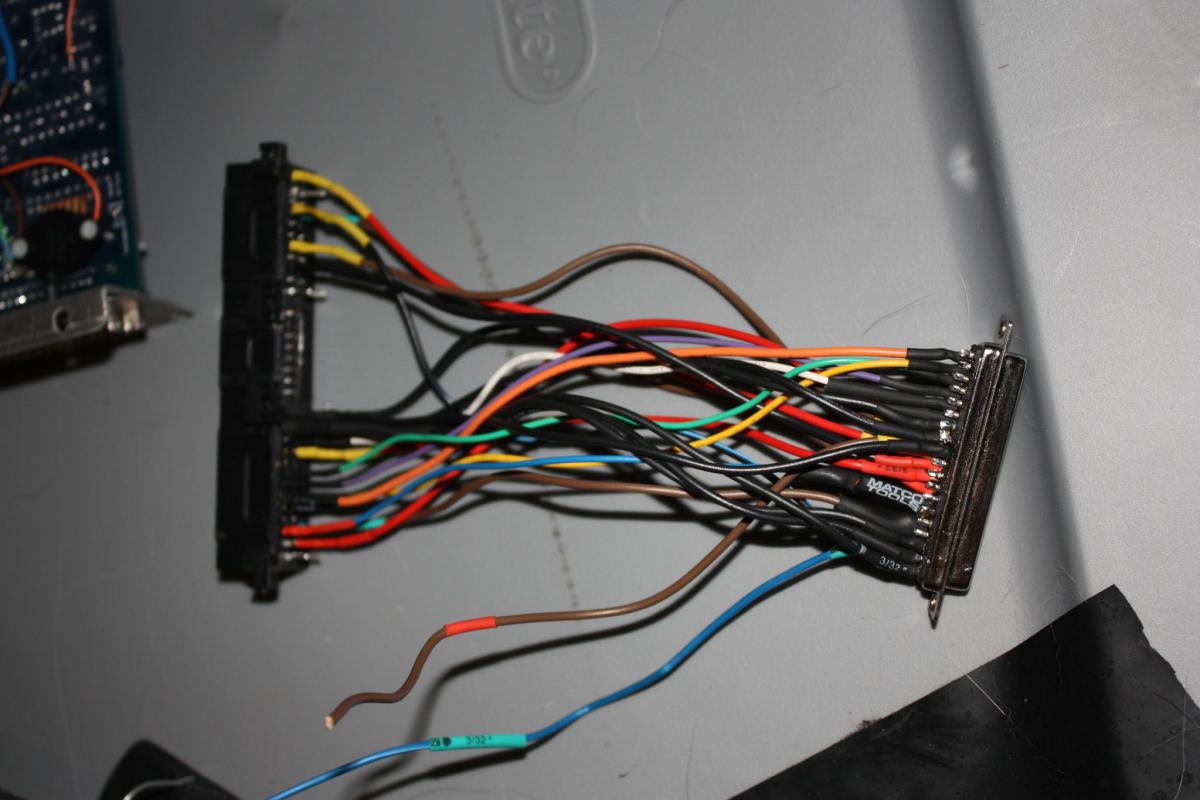

MS1 losing CAS signal-img_8631.jpg   MS1 losing CAS signal-img_8632.jpg
skullzaflare is offline   Reply With Quote
Old 06-08-2012, 07:50 PM   #53
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

back to the drawing boards, fixed the shock earlier, finally got to road test it, its 20x worse now
skullzaflare is offline   Reply With Quote
Old 06-10-2012, 10:35 AM   #54
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

video
Attached Thumbnails
MS1 losing CAS signal-th_vid_20120609_215757.jpg
skullzaflare is offline   Reply With Quote
Old 06-10-2012, 02:52 PM   #55
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

where are you at Braineack?

bypassed CKP and CMP to the ecu, still dropping off, so it has to be something with the ecu physical setup
skullzaflare is offline   Reply With Quote
Old 06-10-2012, 03:59 PM   #56
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by skullzaflare View Post
where are you at Braineack?

bypassed CKP and CMP to the ecu, still dropping off, so it has to be something with the ecu physical setup
added a .1uf cap, still same results
Attached Files
File Type: msl 2012-06-09_22.13.58.msl (558.3 KB, 38 views)

Last edited by skullzaflare; 06-10-2012 at 04:16 PM.
skullzaflare is offline   Reply With Quote
Old 06-11-2012, 05:45 PM   #57
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

and ideas? im completely lost, if it were not for the bike i would be stranded at home
skullzaflare is offline   Reply With Quote
Old 06-11-2012, 05:53 PM   #58
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

you know a lot of times when you see RPM spikes like that it's a bad ignitor...


that's what mine was doing after a while of running on those old kingofleet mods.
Braineack is offline   Reply With Quote
Old 06-11-2012, 05:58 PM   #59
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

under wheel decoder options, try:

base = 2
2nsd trigger
rising
no missing
trig pos A 2
Trig pos B 1

025 style
Braineack is offline   Reply With Quote
Old 06-11-2012, 05:59 PM   #60
Junior Member
Thread Starter
iTrader: (2)

Join Date: Aug 2009
Location: WV
Posts: 151
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
you know a lot of times when you see RPM spikes like that it's a bad ignitor...


that's what mine was doing after a while of running on those old kingofleet mods.
the ignitor is built into the coils correct? so if i change the coil pack in theory it should go away
skullzaflare is offline   Reply With Quote
