Default MS1 to MS3, no spark

Hi,

I am upgradeing ma MS1 with a nes MS3 board, without the MS3X
I also changed the wiring like it was described here, and I also added the 12V to the MS3 board
But I cannot get any spark, fuel looks OK
Any Ideas?
botte is offline   Reply With Quote
Old 04-10-2012, 09:52 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

you need to change more than just 12v to js9.

what specifically did you do?
Braineack is offline   Reply With Quote
Old 04-10-2012, 09:58 AM   #3
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

Ok,

I just forget, I have a 90 with a 1,8 engine,

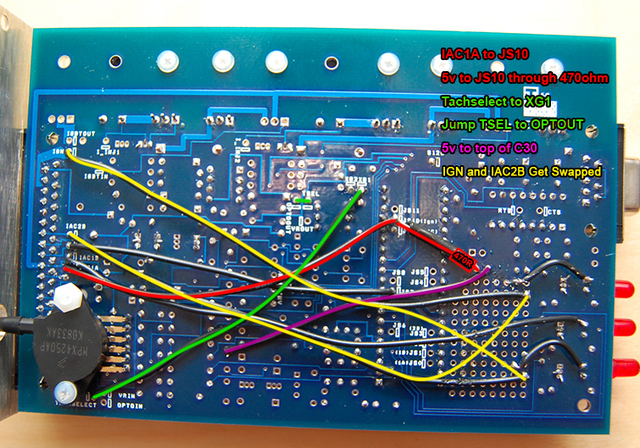

I changend:

opened xg1 to xg2
connected Tachselect to XG1
opened D1 jumper
opened D2 jumper
connected 5V to c30, and with 470 Ohm top JS10
connected js10 to IAC1A
I crossed both ignition wires.

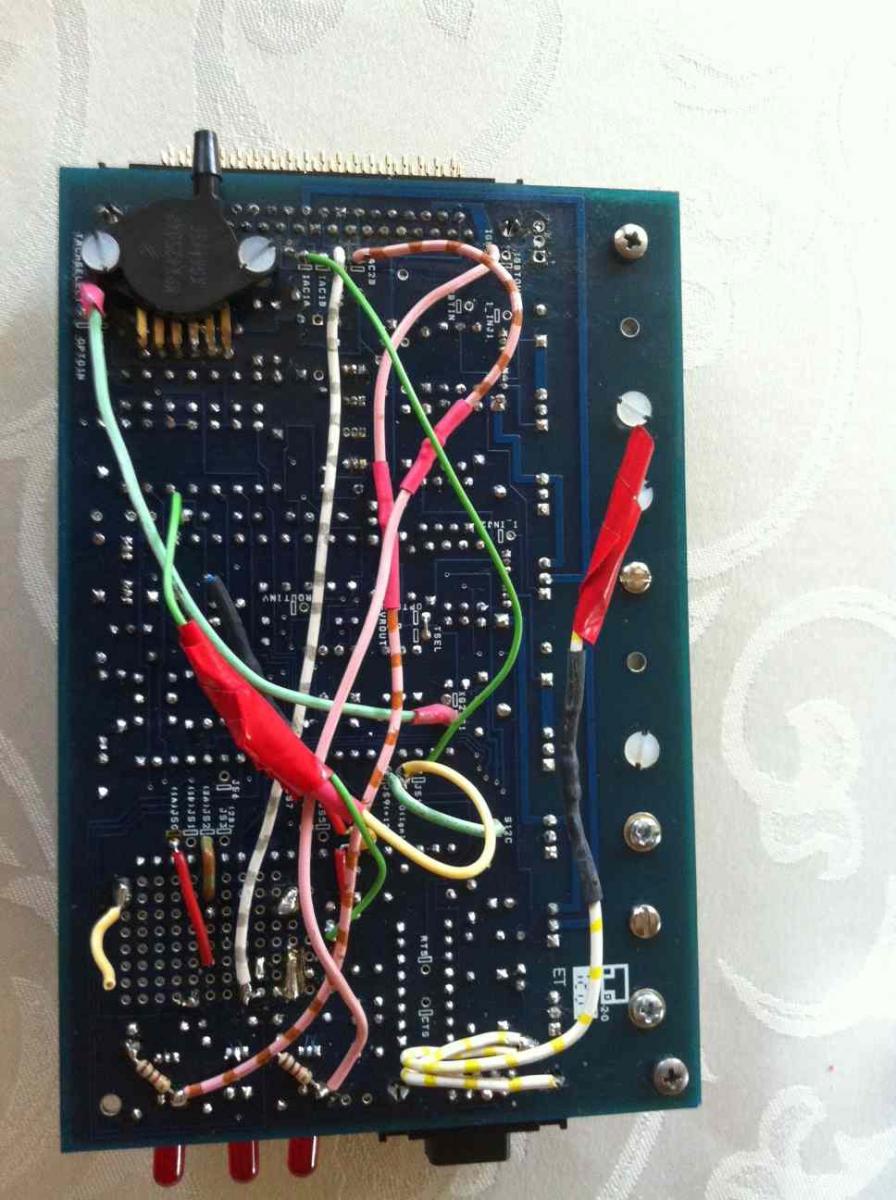

Attached Thumbnails
MS1 to MS3, no spark-ms3.jpg

Last edited by botte; 04-10-2012 at 10:17 AM. Reason: Added picture
botte is offline   Reply With Quote
Old 04-10-2012, 10:33 AM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Do you have an RPM signal when you crank it?
Matt Cramer is offline   Reply With Quote
Old 04-10-2012, 10:55 AM   #5
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

No rpm.
botte is offline   Reply With Quote
Old 04-10-2012, 11:08 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

the green wire to iac1A goes to js10 as well? looks like js11.
Braineack is offline   Reply With Quote
Old 04-10-2012, 11:15 AM   #7
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

It is JS10,
JS11 is empty, it is just a little bend cable.
botte is offline   Reply With Quote
Old 04-10-2012, 11:25 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

youre not on c30. your green wire to 5v is off a pin. it's going to r4 or r7 or whtaever; one of the resistors basically.
Braineack is offline   Reply With Quote
Old 04-10-2012, 11:31 AM   #9
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

I need to take better pictures. :-)

It is connected to C30 (next to the C32 pin)
botte is offline   Reply With Quote
Old 04-10-2012, 11:34 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

i'd look again. to be sure. that's definitely connected to one of the input resistors, not c30. that's the pullup for the crank input, so I could see why it wouldn't start.
Braineack is offline   Reply With Quote
Old 04-10-2012, 11:38 AM   #11
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

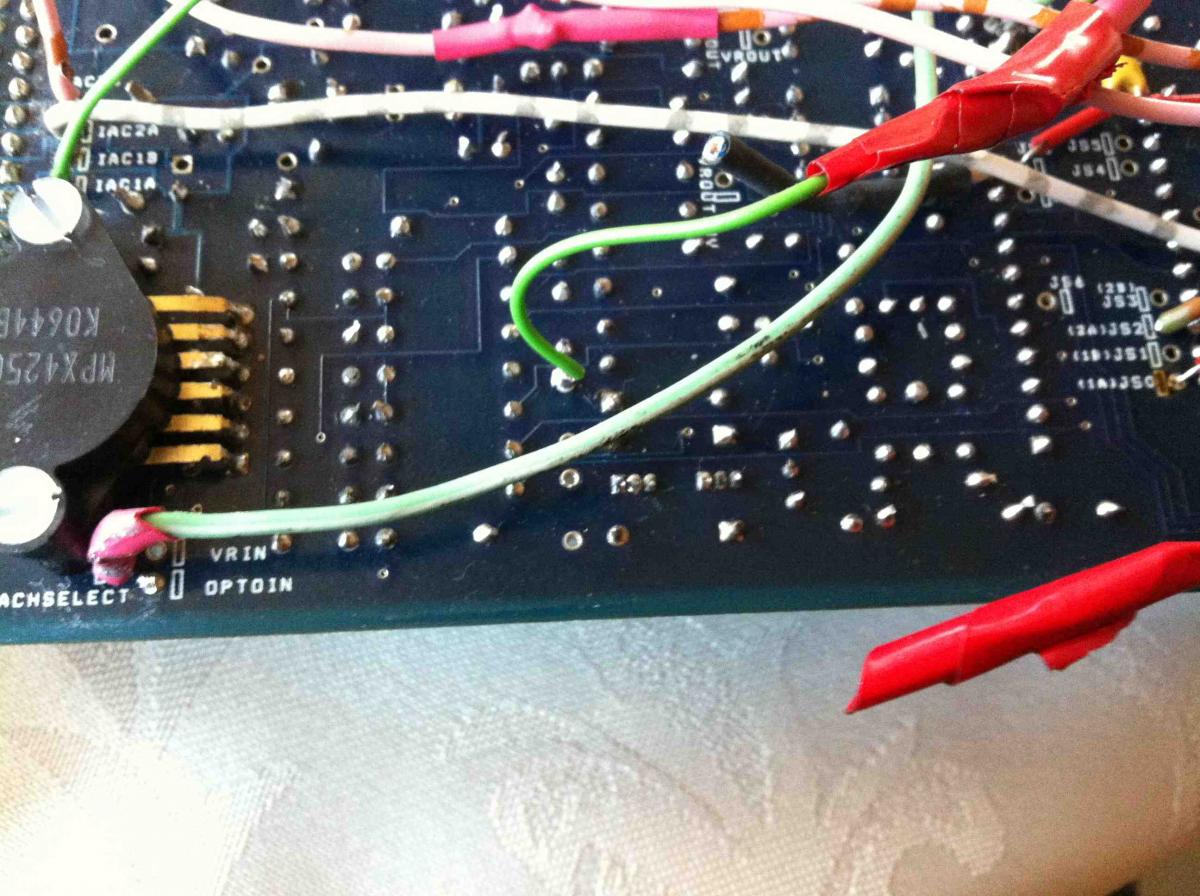

Ok, Is this the correct pin?

Attached Thumbnails
MS1 to MS3, no spark-ms3-2.jpg   MS1 to MS3, no spark-ms3-2.jpg
botte is offline   Reply With Quote
Old 04-10-2012, 11:44 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

:( yeah, it is.


can you post a screenshot of the composite log recorded during cranking for about 10-15 seconds?
Braineack is offline   Reply With Quote
Old 04-10-2012, 11:52 AM   #13
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

There is no output in the composite log window.
Its just stayz black when I started the log.

My fault, output should be set right. ( JS10 spark)
Here is is:


Last edited by botte; 04-10-2012 at 12:17 PM.
botte is offline   Reply With Quote
Old 04-11-2012, 06:33 AM   #14
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

As this did not work,
and I found another thread where someone olso had the same issue,
I wired everythink back as it was before.
(only the ign wire are still crossed, and the additional 12V to the MS3 board are there)

But I only get tons of fuel per squirt and no ignition.
RPM are there when cranking.

What settings should I use with this setting, I am getting confused now.
botte is offline   Reply With Quote
Old 04-11-2012, 09:27 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

i cant see the pic, can you attach it to your post so it gets hosted here.

might as well post the msq too.
Braineack is offline   Reply With Quote
Old 04-12-2012, 05:26 AM   #16
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

Here we go:

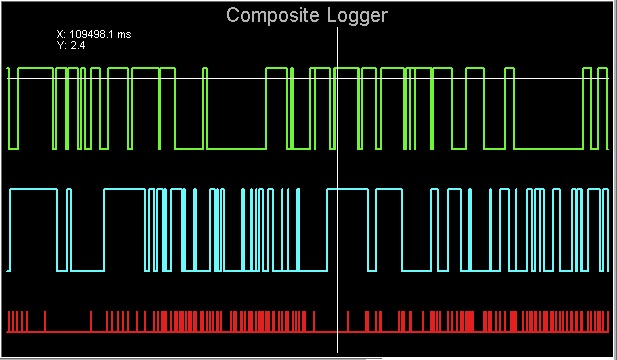

Comp logger with the modification:


Lots of sync errors.

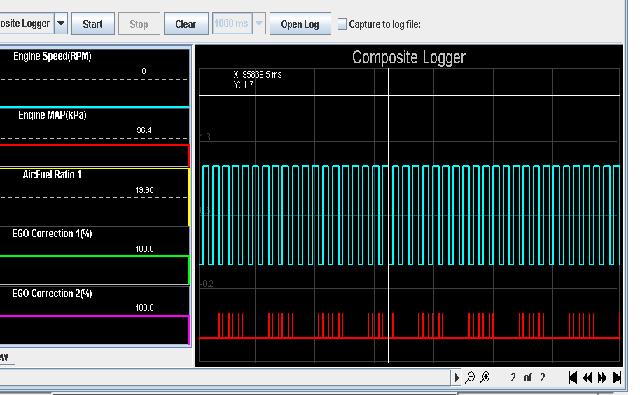

After I removed the mod again:

Comp logger:


I am missing a signal from the crankshaft right?

here is the msq:
http://dl.dropbox.com/u/12288870/STARTUP.msq
Attached Thumbnails
MS1 to MS3, no spark-complog.jpg   MS1 to MS3, no spark-ms3screen.jpg

Last edited by botte; 04-12-2012 at 06:40 AM.
botte is offline   Reply With Quote
Old 04-12-2012, 09:39 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

the top one is completely random and doesn't make sense as far as the inputs go.

the bottom one makes sense when it comes to the crank (it's how it should look), but there's no cam input.



what "mod" did you remove?
Braineack is offline   Reply With Quote
Old 04-12-2012, 09:48 AM   #18
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

botte is offline   Reply With Quote
Old 04-12-2012, 09:57 AM   #19
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by botte View Post
My fault, output should be set right. ( JS10 spark)
If you're using JS10 for spark A output, what pin are you using for your 2nd trigger (cam) input?
Ben is offline   Reply With Quote
Old 04-12-2012, 10:02 AM   #20
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

My CAS is connected to pin24(crank) and pin25(cam)

Edit:
OK, found on the upgrade note
(http://www.msextra.com/doc/ms3/upgrade.html)
that spark should be set to LEDout.
-> Spark A,B,C are available on the LEDs (not FIDLE)


EDIT 2:
Non-MS3X Cam Input
If you do not have the MS3X card, but need a cam input then a little more creativity is required.

If your cam sensor is VR type then you will have to DIY a second VR conditioner circuit - see the MS2/Extra manuals for DIY ideas on this.
If you cam sensor is hall or opto, then you may be able to use the 'spare' opto-isolator input on the V3.0/V3.57 mainboard and route it to JS10 for your cam input. This will be documented in the future.

Does this mean I cannot try the VR input + pullup method described here:
http://msextra.com/doc/ms3/ignition.html#vrv3pull
I wanted to try this out tomorrow to get the missing cam input.

Last edited by botte; 04-12-2012 at 01:25 PM.
botte is offline   Reply With Quote
