Now I installed the VR circuit,
as I have this on my board,

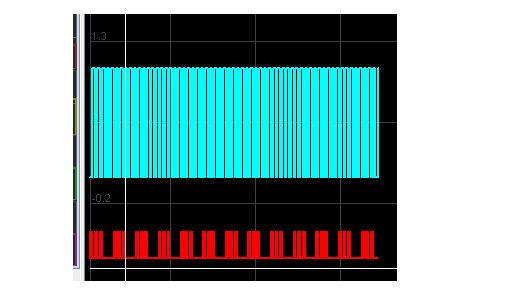

now I get this while cranking:



I sometimes get this after switching on the MS.
:


Should the CAM in settings set to off or on?

I tried this with these settings:

Ignition output capture: Rising edge
Spark output: going low
Spark hardware in use: LEDs spark
Attached Thumbnails
MS1 to MS3, no spark-crank.jpg

Last edited by Braineack; 04-13-2012 at 10:01 AM.
botte is offline   Reply With Quote
Old 04-13-2012, 10:01 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

you still have no cam input.


When using the VR circuit, you need to use the cam in on the ms3x board to match the polarity. With the cam still on js10, I don't think you can run the VR input.


regardless of this, youre still not getting a cam signal at all.
Braineack is offline   Reply With Quote
Old 04-13-2012, 10:38 AM   #23
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

OK, so I have to rewire it to your setup or get an MSX board.
botte is offline   Reply With Quote
Old 04-13-2012, 10:43 AM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

regards of VR to opto, without the Ms3x right now, the cam signal should be going into JS10 with a pull-up with a 470ohm resistor to 5v to at least get a signal.
Braineack is offline   Reply With Quote
Old 04-13-2012, 12:53 PM   #25
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

Ok, Makes sense.

So I put a cable from VRIN to JS10 and I put the 470 ohm resistor from JS10 to 5V,
Same as you did in your setup.

Then the signal should be there?
botte is offline   Reply With Quote
Old 04-13-2012, 01:02 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

no. iac1a to js10.


vrin/opto in is your crank.
Braineack is offline   Reply With Quote
Old 04-13-2012, 01:46 PM   #27
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

Thanks!

Its working,

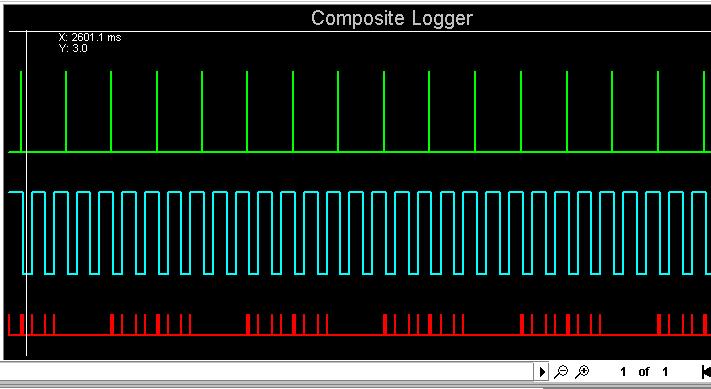

I can see the cam now on the composite logger:



But I still do not get a spark.
Attached Thumbnails
MS1 to MS3, no spark-camiput.jpg
botte is offline   Reply With Quote
Old 04-13-2012, 02:34 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

that's becuase your crank is outputting a falling edge signal and cam rising edge.

you could try switch your ign settings to the alternative one...i cant remember if that works. but those red lines represent where the MS was expecting a signal.

if that doesnt work, you need to revert back to the opto in for the crank.
Braineack is offline   Reply With Quote
Old 04-14-2012, 05:50 AM   #29
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

Ok,

I went bacvk to the optoin settings.
But I still get these sync errors:

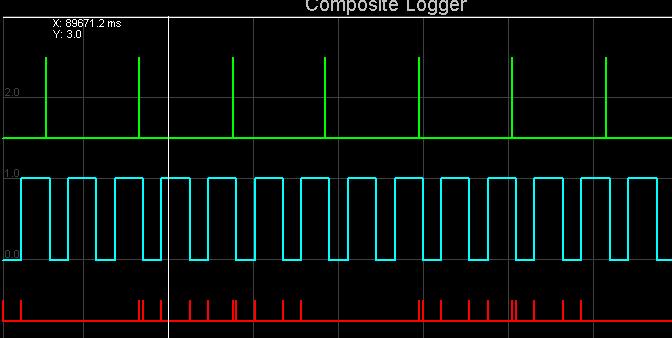

Rising edge:

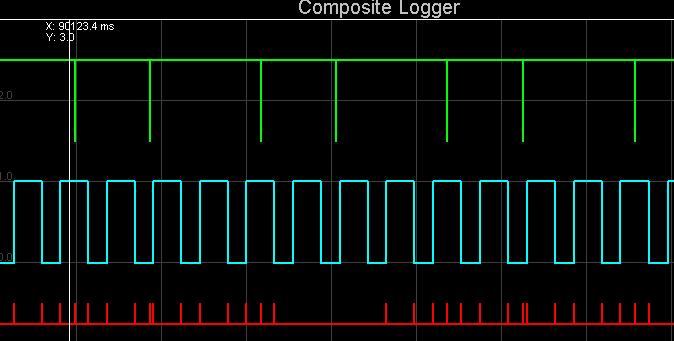

Falling Edge:
Attached Thumbnails
MS1 to MS3, no spark-rise.jpg   MS1 to MS3, no spark-fall.jpg
botte is offline   Reply With Quote
Old 04-14-2012, 10:41 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yeah you gotta put the crank back on the opto circuit.


so:
tachselect to xg1
TSEL to optoout
top of c30 to 5v
and d1 and d2 are open.
Braineack is offline   Reply With Quote
Old 04-14-2012, 11:11 AM   #31
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

OK,
I did this,

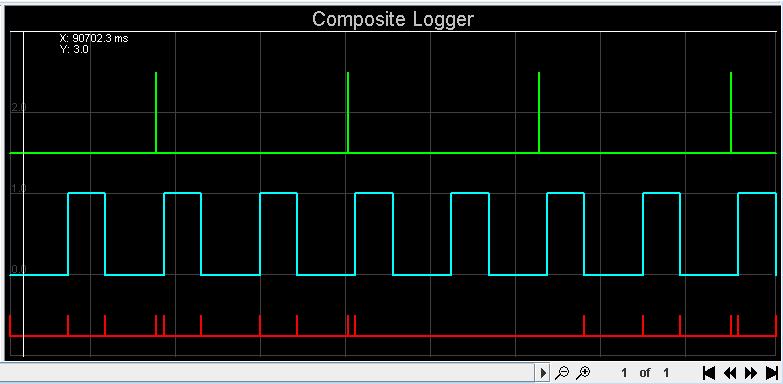

i get this now:

Attached Thumbnails
MS1 to MS3, no spark-crankonopto.jpg
botte is offline   Reply With Quote
Old 04-14-2012, 11:12 AM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

set to rising edge?
Braineack is offline   Reply With Quote
Old 04-14-2012, 11:14 AM   #33
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

Yes, rising edge
I just that i have a cable also gong from D1 to U5 (next to the seriel Connection), do I Need to remote this?

Last edited by botte; 04-14-2012 at 11:32 AM.
botte is offline   Reply With Quote
Old 04-14-2012, 11:34 AM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

try falling?
Braineack is offline   Reply With Quote
Old 04-14-2012, 11:40 AM   #35
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

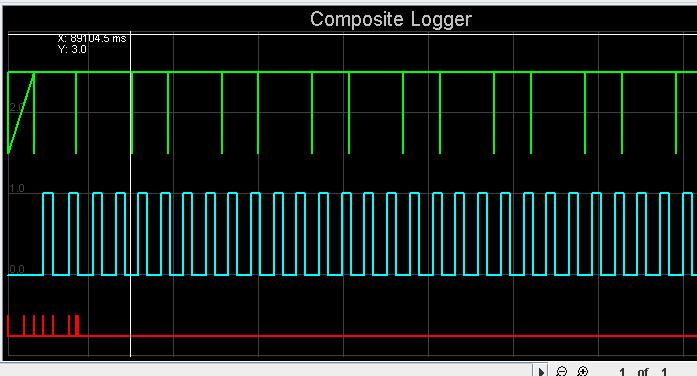

Looks much better:



Edit:

IT IS ALIVE!
Thanks Scott!! You are great!
Attached Thumbnails
MS1 to MS3, no spark-fallingedge.jpg
botte is offline   Reply With Quote
Old 04-14-2012, 12:40 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

there you go! wonder what was wrong at first.
Braineack is offline   Reply With Quote
Old 04-15-2012, 09:22 AM   #37
Newb
Thread Starter

Join Date: Sep 2009
Location: Germany
Posts: 32
Total Cats: 0
Default

I have no idea, but its running, now :-)
