Back to what this thread is about, after getting my MS working it riding around last night I think I noticed same issue. I am gonna add the cap to the ms2 cpu, hopefully that will clear stuff up.
Techsalvager is offline   Reply With Quote
Old 09-27-2011, 12:17 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

it wont -- dont cap on the ms2.

Besides, you have to do it after the 1K inline resistor before the CPU which is on the daughterboard itself.
Braineack is offline   Reply With Quote
Old 09-27-2011, 12:19 PM   #23
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Yes thats were it would go iirc.
Techsalvager is offline   Reply With Quote
Old 09-27-2011, 12:38 PM   #24
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Techsalvager is offline   Reply With Quote
Old 09-27-2011, 12:40 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

ask me how i know....




doing this made it unusable on any of the newer 94-97 CASes -- couldn't go above 2500RPM


It was completely unnessecary on my 93 and it was removed and never done again.
Attached Thumbnails

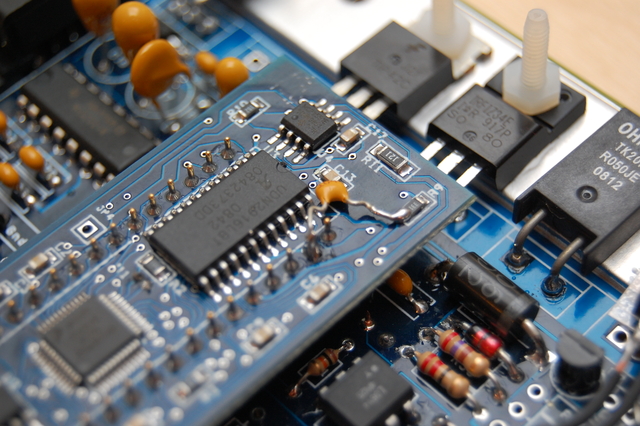

ms2 cas pull in-dsc_0002.jpg
Braineack is offline   Reply With Quote
Old 09-27-2011, 12:52 PM   #26
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

what size cap, and what do you mean completely unnessecary on your 93?
Techsalvager is offline   Reply With Quote
Old 09-27-2011, 12:56 PM   #27
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

hmmm
here is his mod


may end up trying to reimplment the 2nd optoisolator again.
Attached Thumbnails

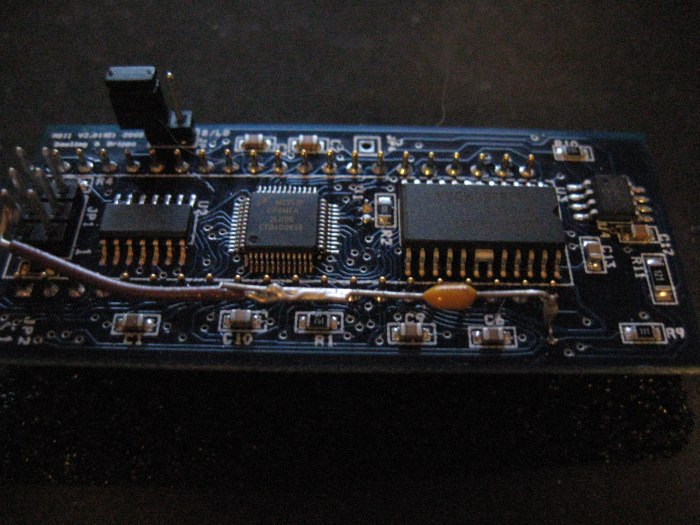

ms2 cas pull in-ms2capmod153nm9.jpg
Techsalvager is offline   Reply With Quote
Old 09-27-2011, 01:05 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

The .1uF cap on my board is on the cam in (after the 1K) and ground (pin 2).

Looks like he went to ground through that wire back to the mainboard?

It was unnessecary because it didn't do anything. I put it on because I knew no better, I was one of the first here that went to MSII, I brought that over form my MSI which I needed on the high-res code, just like everyone else.

I ultimately removed the cap after I built a MSII for a local on his 97 and we couldn't get it above 2500RPM due to that cap.
Braineack is offline   Reply With Quote
Old 09-27-2011, 01:18 PM   #29
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

says he wired it to pin 2 of the cpu, gnd pin
Techsalvager is offline   Reply With Quote
Old 09-27-2011, 01:24 PM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

that's exactly what I did. Dunno why it's going out to that wire. You can see the other end of the cap is going to the same spot mine is on (follow the via back to the resistor).
Braineack is offline   Reply With Quote
Old 09-27-2011, 01:37 PM   #31
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

Yeah well I'm having drop out issues thats annoying me, so I will try this and see what happens.
Techsalvager is offline   Reply With Quote
Old 09-27-2011, 02:00 PM   #32
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Dude, I don't understand why you don't try the optoisolator circuit, which I can almost guarantee will fix the issue.
Reverant is offline   Reply With Quote
Old 09-27-2011, 03:26 PM   #33
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I used to get an occasional loss of sync with MS2, like once every 60-90 minutes of driving. It was annoying but not nearly as bad as some people have it. I was gonna install the optoiso but wound up implementing a far more expensive solution: upgrading to MS3. Works like a champ, never a single hiccup.
ScottFW is offline   Reply With Quote
Old 09-27-2011, 04:08 PM   #34
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

I have that loss of sync on my 94 cas with MS2 built as per wiki. I was wondering what was going on... happens about once every 1-2 hours.

If I were to run a trigger wheel setup using Trackspeed trigger wheel, would that fix it? (In addition to more accurate timing)
soviet is offline   Reply With Quote
Old 09-27-2011, 04:11 PM   #35
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

No it won't, because the problem is with the cam sensor, the crank sensor already has the optoisolator circuit.
Reverant is offline   Reply With Quote
Old 09-28-2011, 09:30 AM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by Techsalvager View Post
brain can I see a pic of how your ms2 pcb v3 board mods are laid out for cas pull in and spark out?
see attached pic.
Attached Thumbnails

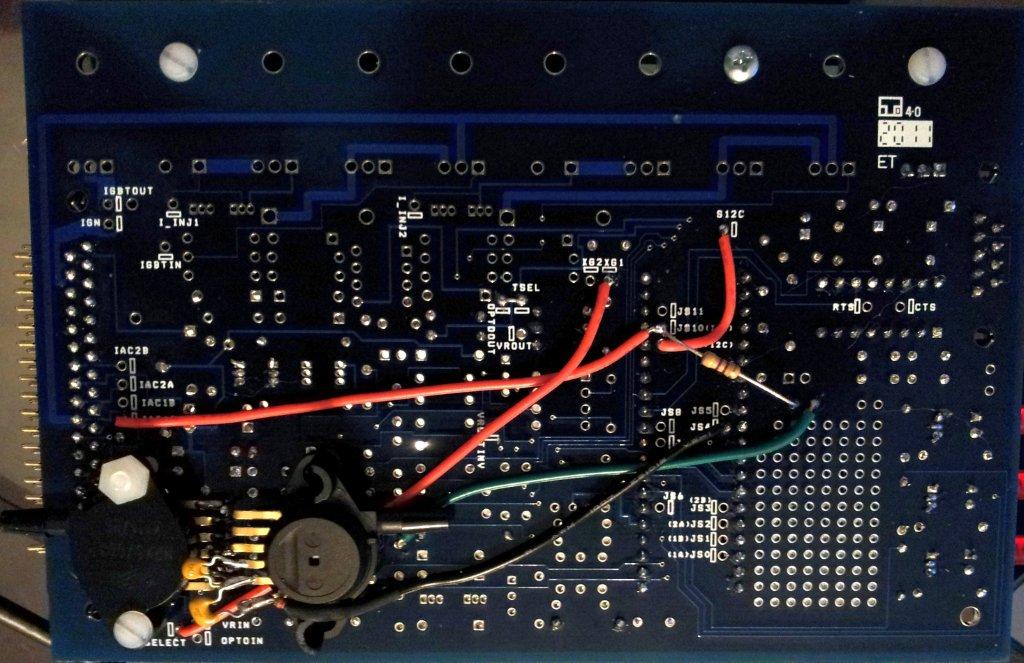

ms2 cas pull in-ms3-mainboard-back.jpg
Braineack is offline   Reply With Quote
Old 12-23-2011, 03:07 PM   #37
I'm Miserable!
Thread Starter

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

So far so good, I did the cap mod a month back and it didn't seem to fix it but after reopening the ms2 I found the wire broke. I reattached and did several back to back pulls, no break up so far. Feels good not to have it messing up.
Techsalvager is offline   Reply With Quote
