Default MS2 Closed Loop Boost Control

I'm trying to get the MS2 closed loop boost control to work but it doesn't seem to be functioning properly. No matter what settings I chose the duty cycle always remains at whatever value I enter for the closed duty cycle. The circuit and valve seems to be functioning properly since I can change how much boost is made by inputting different values for the closed duty cycle.

So far I have independently tried swapping vacuum lines, wiring, and the output polarity along with several PID values. Is there some setting that could be interfering with the algorithm? I am using js11 for the signal and these are my current settings:

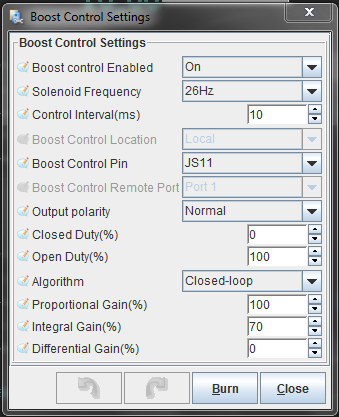

Name:  Capture.png
Views: 9
Size:  36.3 KB
cjsafski is offline   Reply With Quote
Old 12-14-2010, 01:36 AM   #2
Senior Member
iTrader: (2)

Join Date: Jun 2007
Location: Shalimar, FL
Posts: 965
Total Cats: 7
Default

Can JS11 do PWM? Have you tried all the different ports on the solenoid? Based on that screenshot, you need to set it to inverted. Your targets are all good? Also, try starting with lower P and I values. Mine got much better around P=20, I=15.
messiahx is offline   Reply With Quote
Old 12-14-2010, 01:37 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Found out what it was. Overboost protection needs to be on for the code to work.
cjsafski is offline   Reply With Quote
Old 12-14-2010, 09:30 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

that and you'll need to be inverted output.
Braineack is offline   Reply With Quote
