I was planning on using a connector on the engine harness so it's easy to swap back if necessary. A male connector on the engine harness. Female connector coming from the miata coils and a female connector from the LS2 coils.

How far down on the engine harness before the 8 wires from the coils become 5 wires?

I have the entire coil harness for the LS2 coils.
The 12v, signal ground, ground from all the coil plugs combine together to make 3 pins and the signal from each coil makes up the other 4 pins.
I have the male and female side but it looks like getting another oem 7 pin female connector will cost more than getting 2 sets of aftermarket 8 pin Deutsch connectors.
Halcyon is offline   Reply With Quote
Old 04-15-2012, 10:56 AM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

pt6 and pt7 are the seq fuel outputs. you cannot use them.

you still have the mp45? do you need to boost control, because that's the only remaining free output?
Braineack is online now   Reply With Quote
Old 04-15-2012, 02:11 PM   #23
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

Currently still have the supercharger but upgrading everything to get ready for a turbo.
Can i get a separate item for boost control or would i be better off running my coils in batch mode?
Halcyon is offline   Reply With Quote
Old 04-15-2012, 02:18 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

MBC still works
Braineack is online now   Reply With Quote
Old 04-15-2012, 05:15 PM   #25
Junior Member

Join Date: Nov 2009
Location: Dumfries, VA
Posts: 109
Total Cats: 2
Default

Text removed.
sccaax is offline   Reply With Quote
Old 04-15-2012, 05:18 PM   #26
Junior Member

Join Date: Nov 2009
Location: Dumfries, VA
Posts: 109
Total Cats: 2
Default

Oops just read Brains post. I guess that wouldn't work for me either if I had electronic boost control. I agree. Unless you have a programmed switch in the car, manual boost control is just as quick and reliable - with a decent controller. So I guess that means no electronic boost control for me either. Oh well.
sccaax is offline   Reply With Quote
Old 04-15-2012, 08:06 PM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

Would love to have my cake and eat it too.
Is there a piggyback electronic boost controller?
Switching on the fly would be nice.

So desolder PA0/boost control in, and boost out/db15
Then jump PA0 to relay 1 in and relay out to 1L.
Then all the other resistor, jumpers, etc.
Then program TS. Where should I go in TS to make the changes?
Halcyon is offline   Reply With Quote
Old 04-18-2012, 04:55 PM   #28
Junior Member

Join Date: Nov 2009
Location: Dumfries, VA
Posts: 109
Total Cats: 2
Default

You can always use a standalone EBC.
sccaax is offline   Reply With Quote
Old 04-18-2012, 04:56 PM   #29
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Or an MBC.
shuiend is online now   Reply With Quote
Old 04-19-2012, 03:36 AM   #30
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

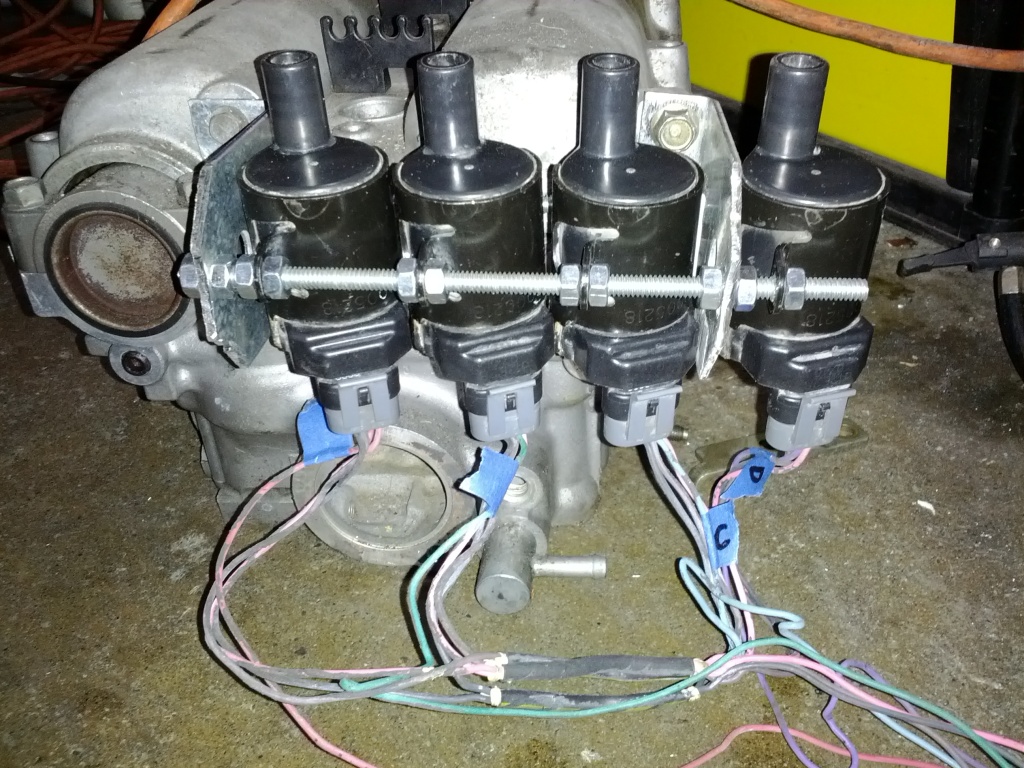

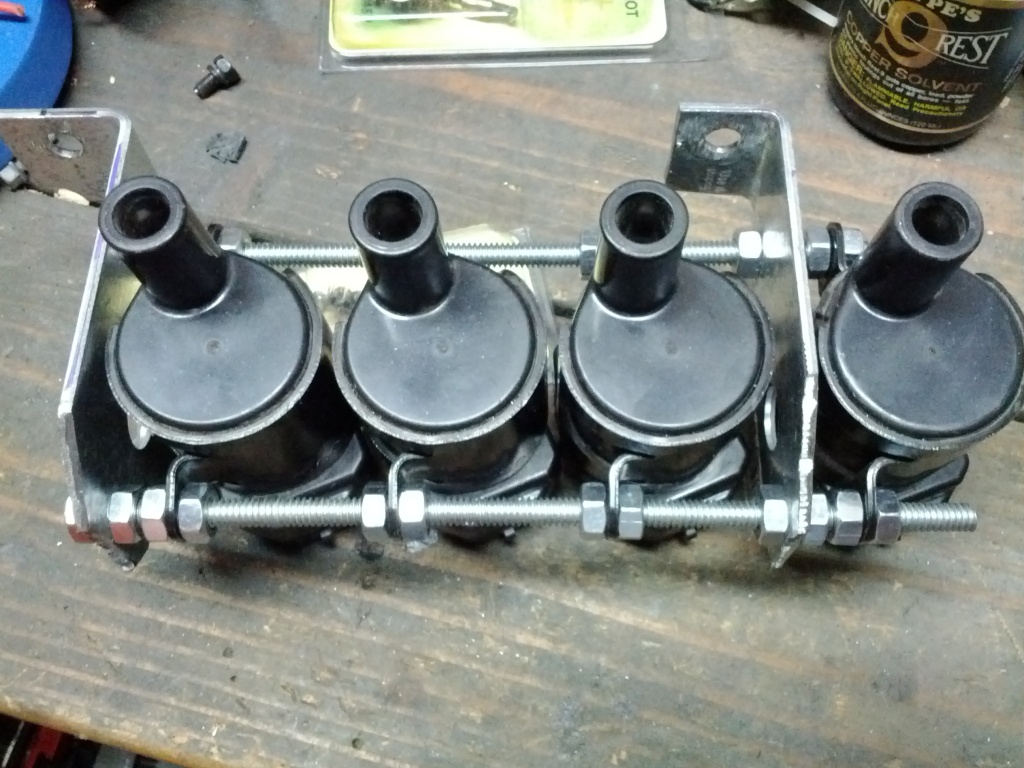

Made a couple of brackets to mount the ls2 truck coils.
It's a tight fit but all 4 coils and bracket slides right in.
This is my first attempt and it works but I think I'll retry and make the coils angle out a bit for more clearance.

Here's a couple of pics:


Attached Thumbnails
MS2 and LS2 coils-img_20120418_215659.jpg   MS2 and LS2 coils-img_20120418_214506.jpg
Halcyon is offline   Reply With Quote
Old 04-19-2012, 04:21 AM   #31
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Those coils are THE coils to have.
Bryce is offline   Reply With Quote
Old 04-19-2012, 02:08 PM   #32
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Lol @ hoppes #9 in the background. You should come visit us in the "Yet Another Gun Thread"

Mounting bracket looks good, I like that it's using the factory holes. Clearance to the firewall will be an issue, I started mocking mine up yesterday. These bastards are big. Do stock plugwires feel like they fit on yours?
EO2K is offline   Reply With Quote
Old 04-19-2012, 02:14 PM   #33
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

The stock wires work, barely. The contacts don't put pressure on the contacts inside the coils. If you were to back a wire out by any amount, there will be a small gap between the wire and coil.

That said: They work for me. I did have some misfire issues when one plug wire started working its way loose, but I changed the routing and won't be having any more problems.
Bryce is offline   Reply With Quote
Old 04-19-2012, 02:30 PM   #34
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Awesome, thanks Bryce! Can the round contact be "opened up" at all to give a little more tension? I don't even have a set of stock plugwires anymore so I don't have one to look at, sorry for the silly questions. If the stock connectors can be made to fit, I don't see why a set of the big *** Magnecore 8.5 90-00 Miata wires wouldn't fit. Goodwin has them on sale right now for $73
EO2K is offline   Reply With Quote
Old 04-19-2012, 02:34 PM   #35
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by EO2K View Post
Awesome, thanks Bryce! Can the round contact be "opened up" at all to give a little more tension? I don't even have a set of stock plugwires anymore so I don't have one to look at, sorry for the silly questions. If the stock connectors can be made to fit, I don't see why a set of the big *** Magnecore 8.5 90-00 Miata wires wouldn't fit. Goodwin has them on sale right now for $73
If you are already buying new wires call Magnecore and have them make you custom wires for $20 more that have correct fittings. It is about $90 for a custom set depending on wire length. I can say that my custom wires from FM fit much nicer then my stock wires did. I also had some sort of misfire issue when I was on stock wires.
shuiend is online now   Reply With Quote
Old 04-19-2012, 03:07 PM   #36
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

These brackets clears the firewall. Small enough where I can slide it in as one unit.
I tried a plug from a LT1 motor and they fit.
Take a look at this: http://www.summitracing.com/parts/TAY-46069/
That's if you want to cut one end off your stock wires. Making the wires is quite easy. Just make sure you spray the boot and wire liberally with silicone spray. Makes sliding the boot in easy and it doesn't leave a mess.

I'll be making another bracket that angles coils out a little bit and the 45 degrees boots will work perfect. Problem is the stock wires are not quite long enough to reach one of the coil. I would like to keep the stock boots that goes to the spark plugs to keep the water out. Custom Magnecore wires may be the way to go.
Halcyon is offline   Reply With Quote
Old 04-19-2012, 05:52 PM   #37
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by EO2K View Post
Awesome, thanks Bryce! Can the round contact be "opened up" at all to give a little more tension? I don't even have a set of stock plugwires anymore so I don't have one to look at, sorry for the silly questions. If the stock connectors can be made to fit, I don't see why a set of the big *** Magnecore 8.5 90-00 Miata wires wouldn't fit. Goodwin has them on sale right now for $73
Lars has a good point. I forgot to mention I was talking about the miata magnecore 8.5 mm wires. After taking pictures, they are definitely not ideal, but I think I can make them work well.

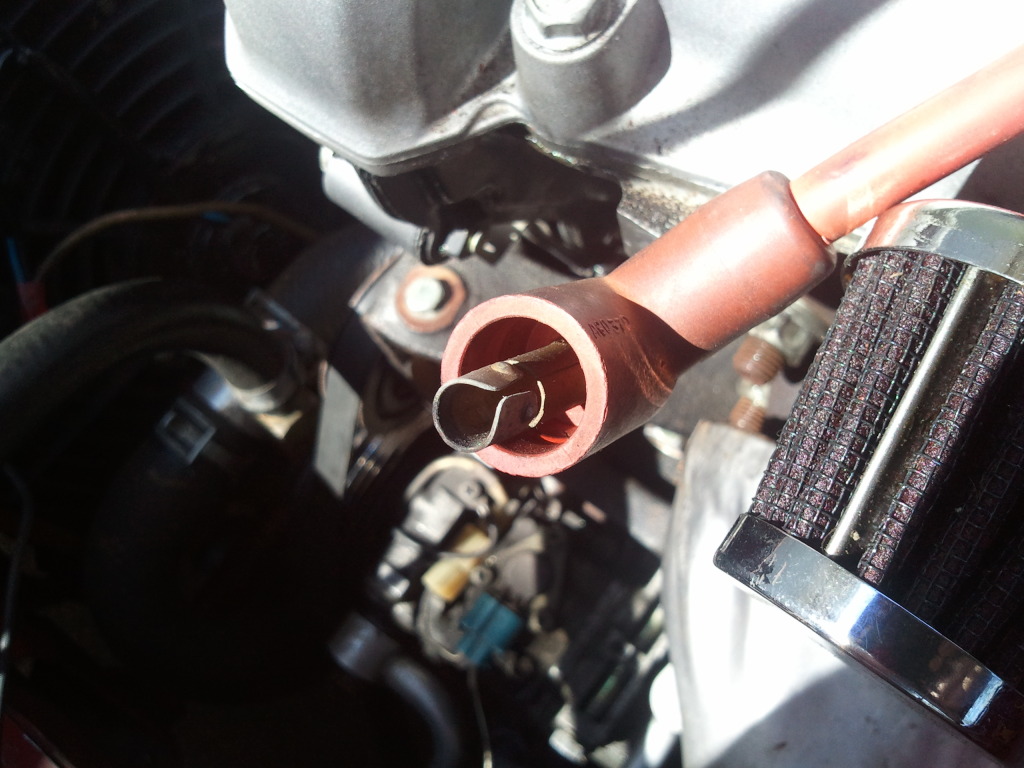

Here are the miata magnecor ends:

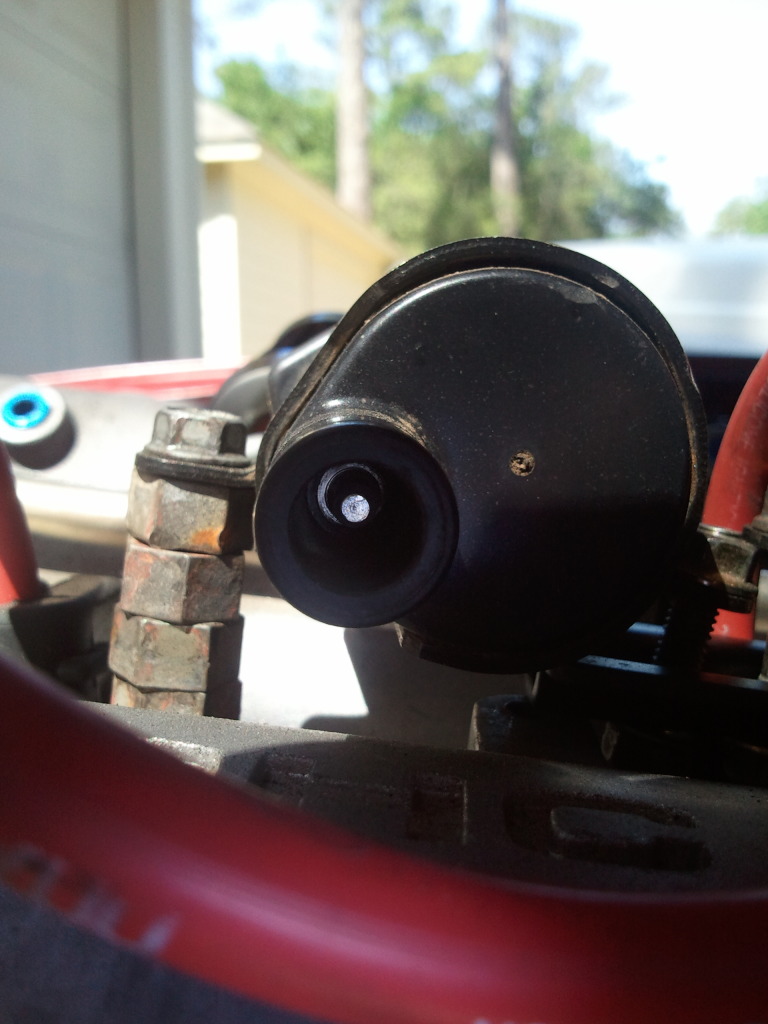

And the LS2 coil receptacles:


The metal contact on the coil is recessed by ~1 cm and is ~2 cm long. Its diameter is probably half that of the contact on the wire ends. The current is probably arcing to get to the wires.

When I have the chance, I will try cutting and bending the wire contacts to a smaller radius.
Attached Thumbnails
MS2 and LS2 coils-2012-04-19152633.jpg   MS2 and LS2 coils-2012-04-19152407.jpg
Bryce is offline   Reply With Quote
Old 04-19-2012, 07:52 PM   #38
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

Quote:
Originally Posted by shuiend View Post
If you are already buying new wires call Magnecore and have them make you custom wires for $20 more that have correct fittings. It is about $90 for a custom set depending on wire length. I can say that my custom wires from FM fit much nicer then my stock wires did. I also had some sort of misfire issue when I was on stock wires.
I looked on magnacor's website. Where did you find the $90 price?
I'm hoping they can make LS2 coil boots on one side and Miata plug boots on the other end.

Stock wire have HEI style/size contacts so it's much bigger than the LT1/LS2 style. With the proper terminal, it clicks and locks into place. You could get a set of miata wires from Magnacor and redo the coil end with new terminals from summitracing. But because of the placement of my coils I need longer wires.
Halcyon is offline   Reply With Quote
Old 04-19-2012, 10:45 PM   #39
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: San Francisco, CA
Posts: 298
Total Cats: 0
Default

Just wanted to confirm before I fry anything.
I can take the 4 signal ground and 4 other ground wire coming from the coil and ground them all 8 to one point on the the head right?
Halcyon is offline   Reply With Quote
Old 04-19-2012, 11:00 PM   #40
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

Quote:
Originally Posted by Halcyon View Post
I looked on magnacor's website. Where did you find the $90 price?
I'm hoping they can make LS2 coil boots on one side and Miata plug boots on the other end.

Stock wire have HEI style/size contacts so it's much bigger than the LT1/LS2 style. With the proper terminal, it clicks and locks into place. You could get a set of miata wires from Magnacor and redo the coil end with new terminals from summitracing. But because of the placement of my coils I need longer wires.
Call the phone number on Magnecor's website. You have to custom order the wires. The price varies based on the length of the wires. They told me it would take a day or two for them to assemble the wires and get them out to me. Since I used the FM bracket I just ordered the wires that FM already has made for $89.

Quote:
Originally Posted by Halcyon View Post
Just wanted to confirm before I fry anything.
I can take the 4 signal ground and 4 other ground wire coming from the coil and ground them all 8 to one point on the the head right?
I have the ground wires grounded to 2 different points on my head. Theoretically you should run the signal ground wires back to the signal ground pins at the MS, then ground the other ones to the block.
shuiend is online now   Reply With Quote
