Default MS2, not getting VSS signal

Reverant enhanced MS2, in a 1995, not getting any VSS to the MS.
Been trying to get things to work on MS that require VSS. Boost by gear, launch/flatshift.

Did a lot of reading. Seems it should work on a 1.8 car with cruise from the factory? Had to send some kind of speed reference to the stock ecu.

Car had factory cruise control, removed it, but added the cruise switch back to the dash to try to get it to work, so the wiring should all still be in place, just the actuator is removed. Still nothing.

Do I need to do something like this?
https://www.miataturbo.net/megasquir...6-miata-82518/
And where would I wire it to? ( circuit board noob )

I don't think it is in the tune, but attached a copy.
Attached Files
File Type: msq CurrentTune.msq (104.7 KB, 77 views)
AkaZero is offline   Reply With Quote
Old 04-27-2015, 10:58 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

You need to connect the VSS wire to pin 34 on the upper connector of the Enhanced MS2.

This only applies to versions 4.4 - 4.7 of the Enhanced MS2.
Reverant is offline   Reply With Quote
Old 04-27-2015, 11:51 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

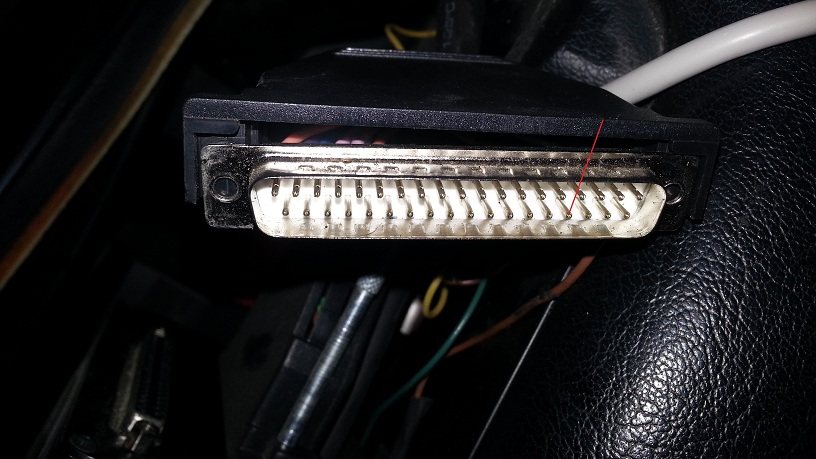

So back of the gauge cluster wired to pin 34 on the top db37.

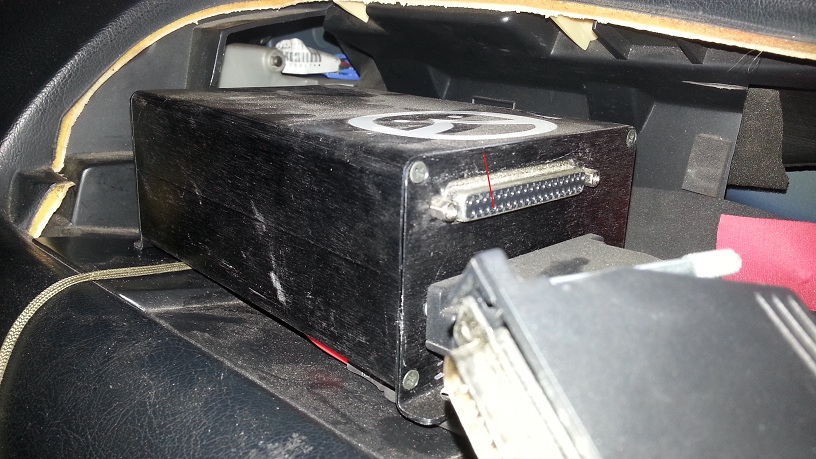

Attached a couple pics just to make sure I am correct on which connector. It appears to be open and ready to wire in.

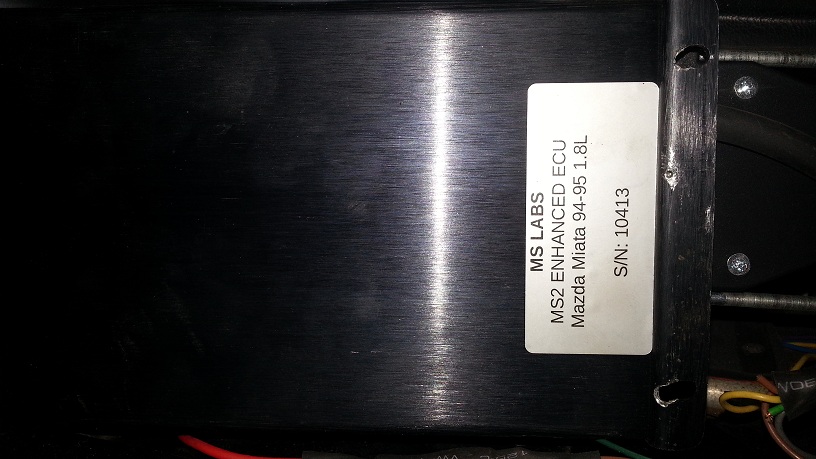

Is there a way to get a complete pinout for my unit (s/n attached too )? I have an egt probe and some oil press/temp sensors that should work with this too.
Attached Thumbnails
MS2, not getting VSS signal-img_20150427_093048.jpg   MS2, not getting VSS signal-img_20150427_093104.jpg   MS2, not getting VSS signal-img_20150427_093125.jpg
