Default MS3 Install '99 Miata

Finally got everything needed to complete my install today. I have positioned the MS unit for easy access under the dash to the right of the steering column. The DIY BOB is on the left side of the column. Pics to follow!
I am going to install my LC-2 next. Should be a snap! Any recommendations on where to tap power from? I read that they do not recommend pulling it from the ignition due to noise interference. Any pointers here appreciated. I'm going to ground it up by the TB with the other harness grounds.
BTW, if your in the Tampa area with nothing better to do today, text me if you can come by! All expertise is appreciated. And yes, I have spent countless hours reading everything MS. None the less, a second set of experienced eyes would be nice!
If your in the area, shoot me a text @ 813.528.1666

Thnx,
Pete
Radioheavy is offline   Reply With Quote
Old 04-16-2014, 03:58 PM   #2
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Don't forget to free air calibrate the lc-2. That's one of the biggest mistakes I made with mine. Also, make sure you have a serial connector on your laptop to be able to connect the lc-2 and MS. If your laptop doesn't have a serial port, pick up a serial to USB adapter
BTMiata is offline   Reply With Quote
Old 04-16-2014, 04:33 PM   #3
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,123
Total Cats: 144
Default

Quote:
Originally Posted by Radioheavy View Post
Finally got everything needed to complete my install today. I have positioned the MS unit for easy access under the dash to the right of the steering column. The DIY BOB is on the left side of the column. Pics to follow!
I am going to install my LC-2 next. Should be a snap! Any recommendations on where to tap power from? I read that they do not recommend pulling it from the ignition due to noise interference. Any pointers here appreciated. I'm going to ground it up by the TB with the other harness grounds.
BTW, if your in the Tampa area with nothing better to do today, text me if you can come by! All expertise is appreciated. And yes, I have spent countless hours reading everything MS. None the less, a second set of experienced eyes would be nice!
If your in the area, shoot me a text @ 813.528.1666

Thnx,
Pete
Why not pick up 12V switched from the MS and ground it there as well (to the sensor ground).
bahurd is online now   Reply With Quote
Old 04-16-2014, 05:01 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Tampa, Florida
Posts: 56
Total Cats: 4
Default

Quote:
Originally Posted by BTMiata View Post
Don't forget to free air calibrate the lc-2. That's one of the biggest mistakes I made with mine. Also, make sure you have a serial connector on your laptop to be able to connect the lc-2 and MS. If your laptop doesn't have a serial port, pick up a serial to USB adapter
Will do. That's the first item on my to do list after I install it.
Serial port on laptop - Check!

Thnx,
Pete
Radioheavy is offline   Reply With Quote
Old 04-16-2014, 05:03 PM   #5
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Tampa, Florida
Posts: 56
Total Cats: 4
Default

Quote:
Originally Posted by bahurd View Post
Why not pick up 12V switched from the MS and ground it there as well (to the sensor ground).
Good advice!
Thnx,
Pete
Radioheavy is offline   Reply With Quote
Old 04-16-2014, 07:57 PM   #6
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

Quote:
Originally Posted by Radioheavy View Post
Good advice!
Thnx,
Pete
It's an LC2 with a single ground. It should be grounded to the regular ground not the sensor ground.
furrycurry33 is offline   Reply With Quote
Old 04-17-2014, 02:26 PM   #7
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

As I'm not where I can give a good, solid answer, I deleted this post.
DNMakinson is offline   Reply With Quote
Old 04-17-2014, 02:58 PM   #8
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

bla bla bla something to do with noise on the sensor grounds bla bla bla.
furrycurry33 is offline   Reply With Quote
Old 04-18-2014, 03:18 AM   #9
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Tampa, Florida
Posts: 56
Total Cats: 4
Default

We went in today and finalized the install of the MS3X. Power for the LC-2 was pulled from the fuse panel. I used a "add a circuit" and plugged into the cigarette lighter fuse slot (10amp). A 14 gauge wire with a ring terminal was attached to a lower bolt of the TB where all the ground wires are also attached. Free air calibration was completed prior to installing the O2 sensor in the bung on the RB Header.
I routed the ground wire and the vacuum line thru a grommet located below the wiper motor and inside the cabin behind the dash.
The O2 sensor cable was pulled thru the shifter hole on the transmission tunnel and the shifter boot was installed over it. Tuning starts tomorrow!

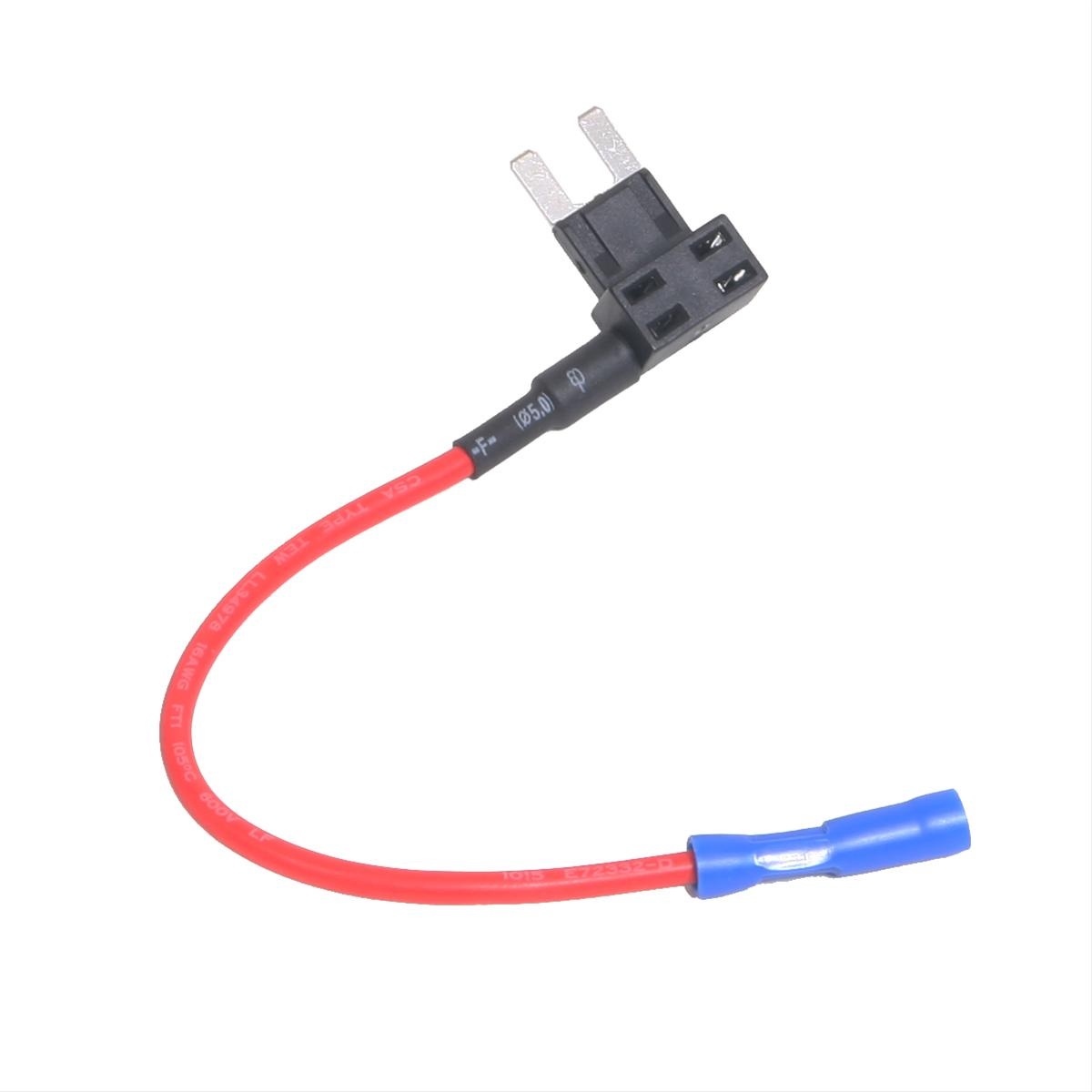

Pics to follow! Add a circuit pic:
Attached Thumbnails
MS3 Install '99 Miata-image.jpg
Radioheavy is offline   Reply With Quote
Old 04-18-2014, 08:40 PM   #10
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

So I've helping out radio getting his car running and we've hit a brick wall. Car cranks but wont start. He seems to be getting sync loss errors 31 and 32 during cranking on the logs. Here's the composite/log/tune we are working with. Any help would be much appreciated!
Attached Files
File Type: csv jumpstart.csv (20.5 KB, 49 views)
File Type: msl jumpstart.msl (643.1 KB, 49 views)
File Type: msq petestune.msq (212.5 KB, 45 views)
furrycurry33 is offline   Reply With Quote
Old 04-20-2014, 12:03 AM   #11
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Tampa, Florida
Posts: 56
Total Cats: 4
Default

Is there additional information needed? Suggestions would be highly appreciated!

Last edited by Radioheavy; 04-20-2014 at 09:12 AM.
Radioheavy is offline   Reply With Quote
Old 04-20-2014, 09:44 AM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

youre not getting the crank sensor signal.
Braineack is offline   Reply With Quote
Old 04-20-2014, 10:38 AM   #13
Junior Member
iTrader: (3)

Join Date: Apr 2013
Posts: 95
Total Cats: 3
Default

Seems to be an intermittent issue, as the crank is missing in the first part of the composite and then if you click to the "2nd" part it's back and looks like it's supposed too.. Thoughts?

Don't know if it makes a difference, but the ms3x was built per westfields guide and using his base map ( tweaked for stock injectors).
furrycurry33 is offline   Reply With Quote
Old 04-20-2014, 09:00 PM   #14
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Aside from the crank sensor issue, I see a 268% fuel correction for temperature. That's odd to me. I also see it dancing between 10 degrees and 21.7-22.0 degrees ignition timing when cranking. I haven't looked at a cranking log lately but that seems odd to me.
sixshooter is online now   Reply With Quote
Old 04-21-2014, 12:08 AM   #15
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Tampa, Florida
Posts: 56
Total Cats: 4
Default

Quote:
Originally Posted by sixshooter View Post
Aside from the crank sensor issue, I see a 268% fuel correction for temperature. That's odd to me. I also see it dancing between 10 degrees and 21.7-22.0 degrees ignition timing when cranking. I haven't looked at a cranking log lately but that seems odd to me.
After speaking with Sixshooter earlier and seeing the aforementioned comments, I believe that the appropriate course of action to take is as follows:

1. Remove DIY BOB & Megasquirt
2. Reconnect factory ECU, run car and check/document any anomalies
3. Reflash Megasquirt with 1.2.4 firmware using JimStim as power source
4. Reload original basemap.
4. Check settings for accuracy and compatibity for my application ('99 NB)
5. Make changes as needed to MS prior to re-installing in car
6. Re-install DIY-BOB /MS & validate settings
7. Start car ( troubleshoot non-start if needed)
8. The bitch better cooperate this time lol!
Radioheavy is offline   Reply With Quote
Old 04-21-2014, 08:00 PM   #16
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

I'm hoping for you.
sixshooter is online now   Reply With Quote
Old 04-27-2014, 10:00 PM   #17
Junior Member
Thread Starter

Join Date: Jul 2010
Location: Tampa, Florida
Posts: 56
Total Cats: 4
Default

Quote:
Originally Posted by sixshooter View Post
I'm hoping for you.
Well, it must have worked Sixshooter! The culprits ended up being incorrect voltage settings on the VR circuits. I had a senior fellow member from TBM come over today and he set the voltages up correctly (about 2.5 and 2.9) and she fired up! Fans are working, and the basics are now set.
At least now there's a baseline to work from with a running engine! On to the next challenge.......Tuning!

Woot!

Pete
