Default MS3+MS3x, 99-00 loosing sync at 4500rpm - SOLVED!

Hi guys,

I finally got the time to take a first ride with the newly installed MS3 and after my timing belt desaster...

The car runs pretty nice - but I am losing sync at ~4.500rpm. Composite log shows loss of the cam signal...

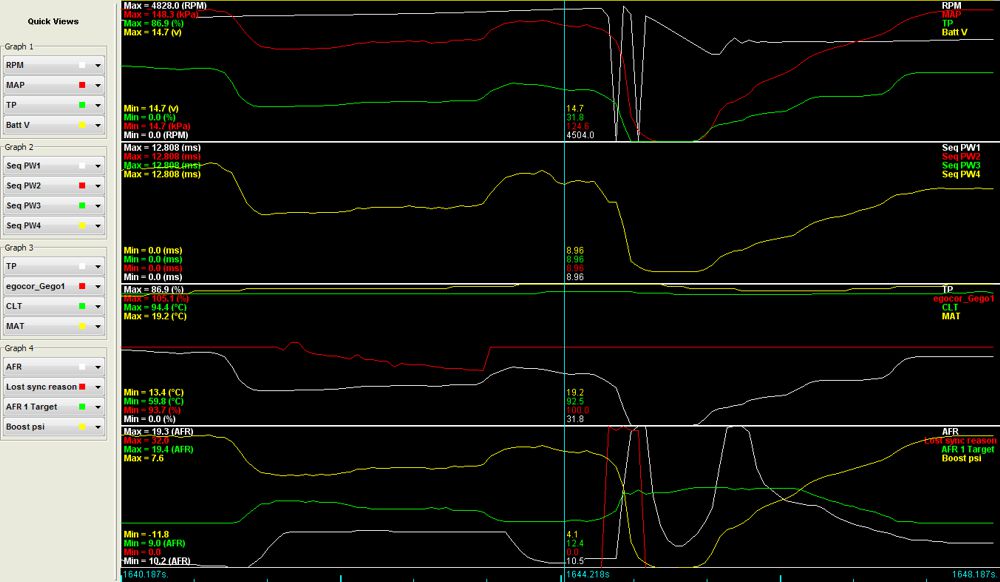

Log screen

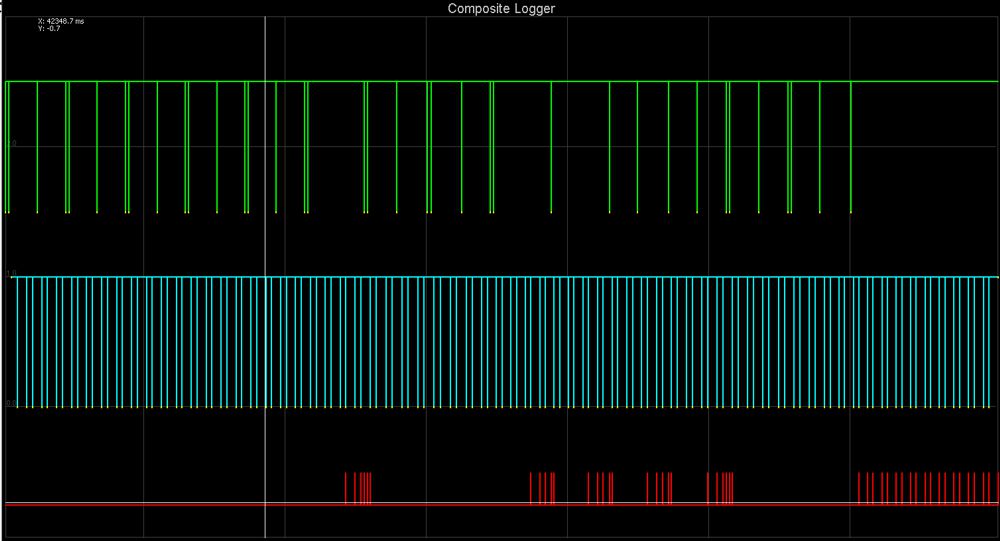

Composite log screen


Is there a way to adjust the Cam sensor? Or do I have the pots inside the MS set wrong?

Please help!
Attached Thumbnails
MS3+MS3x, 99-00 loosing sync at 4500rpm - SOLVED!-sync_loss_0512.jpg   MS3+MS3x, 99-00 loosing sync at 4500rpm - SOLVED!-sync_loss_0512_comp.jpg

Last edited by Zaphod; 05-08-2012 at 09:38 AM.
Zaphod is offline   Reply With Quote
Old 05-08-2012, 09:12 AM   #2
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 487
Total Cats: 45
Default

I'd start by spelling "LOSING" correctly.

- sorry, couldn't help myself, it's my #1 "pet peeve" on the net.
Lokiel is offline   Reply With Quote
Old 05-08-2012, 09:35 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

you're losing the cam signal. It could be the pots, are it could be that you physically need to position the sensor better.
Braineack is online now   Reply With Quote
Old 05-08-2012, 09:37 AM   #4
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by Lokiel View Post
I'd start by spelling "LOSING" correctly.

- sorry, couldn't help myself, it's my #1 "pet peeve" on the net.
O.K. lets talk in German from this point on, so I can show you your faults...

Found it - was the setting of R11 on the MS3X - readjusted it now the car pulls to redline.
Zaphod is offline   Reply With Quote
Old 05-08-2012, 10:05 PM   #5
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 487
Total Cats: 45
Default

Quote:
Originally Posted by Zaphod View Post
O.K. lets talk in German from this point on, so I can show you your faults...
:
I didn't notice that you weren't located in the US.

Native English speakers make this error way too often, just look around on this forum and you'll find plenty of offenders who DO speak English as their native language; you can even find examples in printed media which REALLY annoys me.

I wasn't having a go at you specifically and admire anyone who speaks more than one language (as an English-as-a-second-language speaker, you're probably better educated in the use of English than most native speakers and our schools seem to have given up on teaching spelling and grammar).

PS: AT least they have the "Loser" icon spelled right :P
Lokiel is offline   Reply With Quote
Old 05-09-2012, 03:05 AM   #6
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

@Lokiel - no problem...
