Default MS3-Pros hit the shelves!

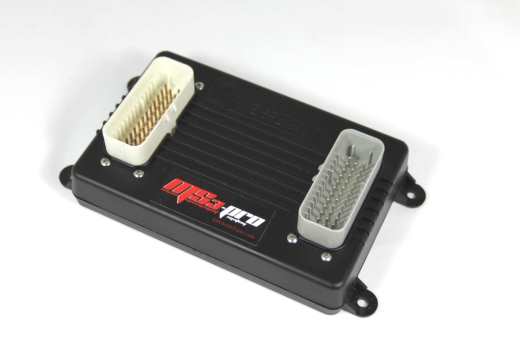

MS3-Pro with 8' wiring harness



The MS3-Pro is our newest standalone engine management system. We've had several of them being tested on Miatas already, and we're now ready to offer them for sale to the general public. Some highlights of its feature list:
  • Native support for NA, NB, NC ignitions
  • Closed loop VVT control
  • Rally style anti-lag
  • Supports speed density, alpha-N, MAF based fueling, and multiple strategies to blend between them
  • Traction control
  • Up to 12 independent injector outputs
  • And a lot more!

Price is $1199 with an 8' harness.
Attached Thumbnails
MS3-Pros hit the shelves!-ms3pro-med.jpg
Matt Cramer is offline   Reply With Quote
Old 01-02-2013, 10:35 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

"it will be released sometime in 2013"

Comes out Jan 2nd.

You guys don't mess around

Quick question: the wiring harness you talk about, is that a pnp one or generic that one would have to modify to fit their year?
18psi is offline   Reply With Quote
Old 01-02-2013, 10:36 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

I had two weeks to make a harness for mine; I'm so lazy.
Braineack is offline   Reply With Quote
Old 01-02-2013, 10:43 AM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I have the weirdest boner right now
Oscar is offline   Reply With Quote
Old 01-02-2013, 10:52 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

18psi is offline   Reply With Quote
Old 01-02-2013, 11:51 AM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by 18psi View Post
Quick question: the wiring harness you talk about, is that a pnp one or generic that one would have to modify to fit their year?
I believe the harness that comes with it is a generic harness. You could always pick up the DIYBOB and build a PNP harness with it.
shuiend is offline   Reply With Quote
Old 01-02-2013, 11:58 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

It's generic. there's 8' of wire on each of the two connectors you see on the MS3pro. One has integrated USB input, the other a serial.

You'll want to get a DIYBOB to complete the harness for most "PNP" installs. you can then put your MAP sensor inside the proto area of the BOB, which is what I plan on doing. Maybe I'll do it today and show you.
Braineack is offline   Reply With Quote
Old 01-02-2013, 12:24 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

do it

DO IT

So I can be jelly:(
18psi is offline   Reply With Quote
Old 01-02-2013, 12:28 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

challenge accepted.


Matt, am I correct in thinking that the serial cable port and/or the USB port can pull off the internal datalogs on the SD card inside?
Braineack is offline   Reply With Quote
Old 01-02-2013, 01:09 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Yes it can, albeit it will take ages to pull significant amounts of data off the SD card through the serial/USB (about 72 seconds for each MB of datalog).
Reverant is offline   Reply With Quote
Old 01-02-2013, 02:01 PM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by 18psi View Post
"it will be released sometime in 2013"

Comes out Jan 2nd.

You guys don't mess around
Actually it was released on Dec 31, 2012. We just didn't post on web forums until Jan 2.
Ben is offline   Reply With Quote
Old 01-02-2013, 02:02 PM   #12
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

If it didn't happen on the forums, it DIDN'T HAPPEN
18psi is offline   Reply With Quote
Old 01-03-2013, 06:18 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

Quote:
Originally Posted by 18psi View Post
do it

DO IT

So I can be jelly:(

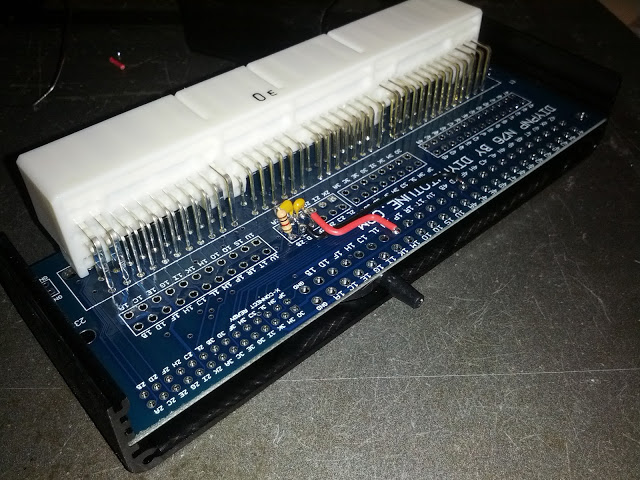

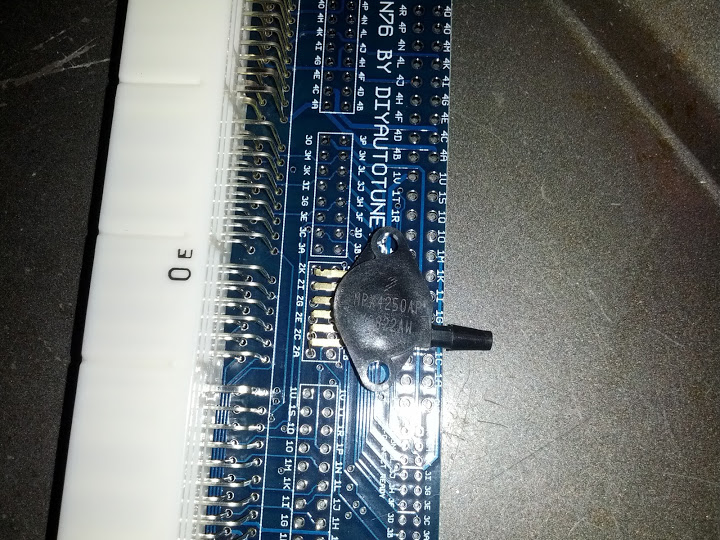

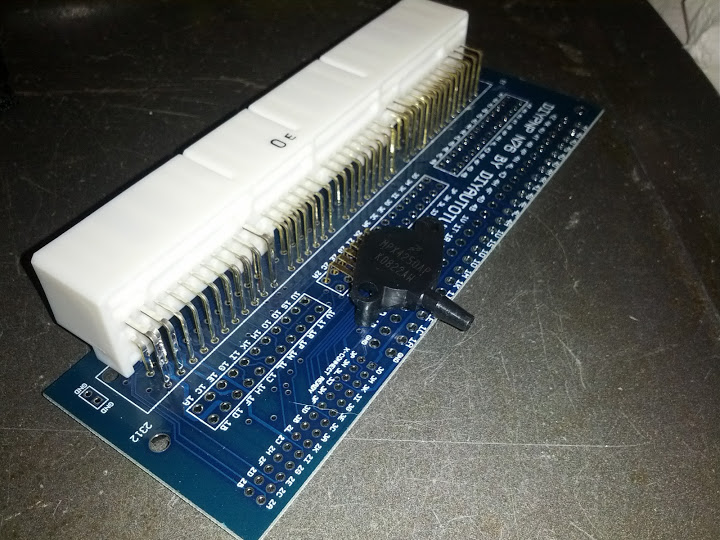

I think this is how I'm going to do the MAP sensor. I can put the resistor and caps I need in there easily. This version of the connectorboard on the BOB doesn't have the proto area the last I had in my possession had so I'm just going to use the 12 pin connector pins, since I wont need it; I already have the spare 16 pin to populate with spares i/o's.







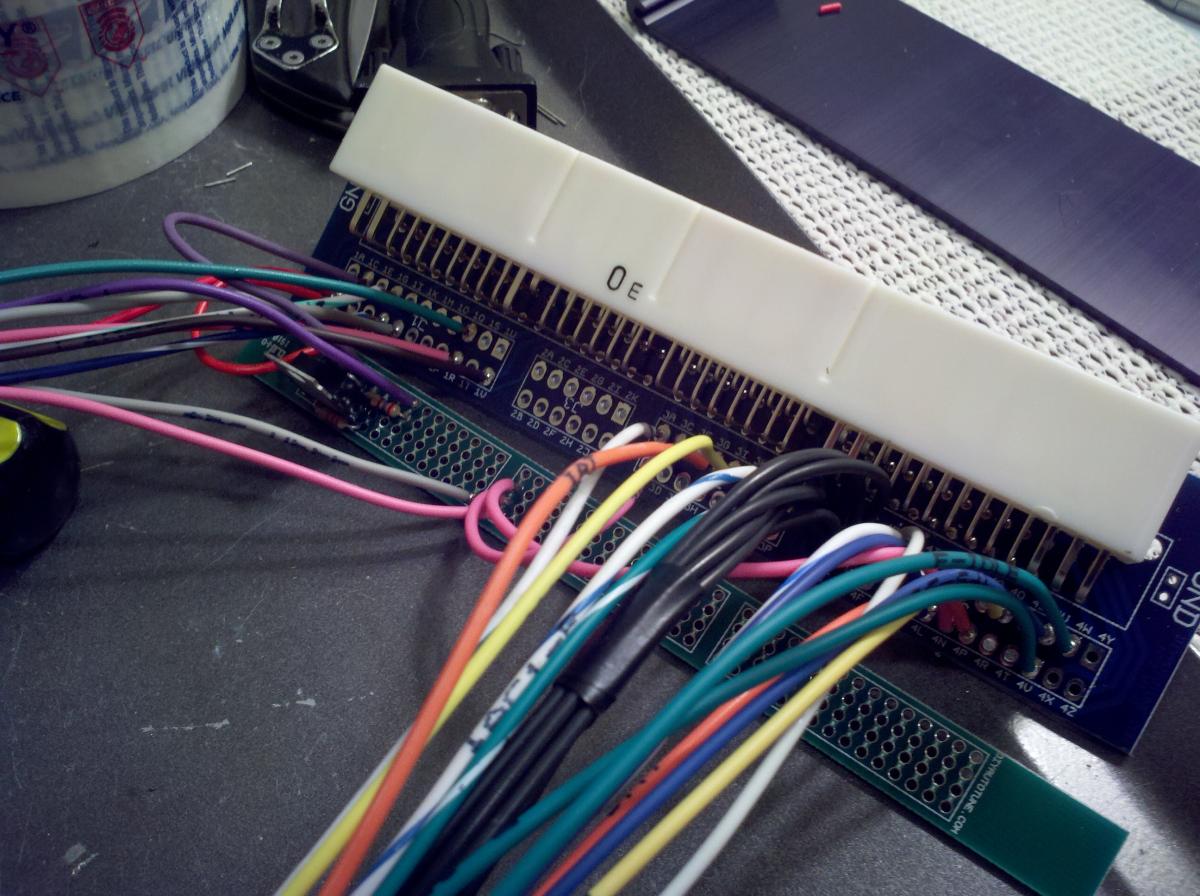

Here's the last one I had:

Attached Thumbnails
MS3-Pros hit the shelves!-img_20130103_171224.jpg   MS3-Pros hit the shelves!-img_20130103_171229.jpg
Braineack is offline   Reply With Quote
Old 01-03-2013, 06:48 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

okay, EZPZ.

Attached Thumbnails
MS3-Pros hit the shelves!-img_20130103_174740.jpg
Braineack is offline   Reply With Quote
Old 01-03-2013, 08:20 PM   #15
Junior Member

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Is that what that extra circuit board is for? Ive spent the last year and a half second guessing myself for leaving it out. lmfao
Darthteddy is offline   Reply With Quote
Old 01-03-2013, 10:01 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

it's for anything. the above i put a high side driver circuit in it.
Braineack is offline   Reply With Quote
Old 01-04-2013, 11:06 PM   #17
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
it's for anything. the above i put a high side driver circuit in it.
Can ya share photos or implementation details of this?

G
gslender is offline   Reply With Quote
Old 01-04-2013, 11:23 PM   #18
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

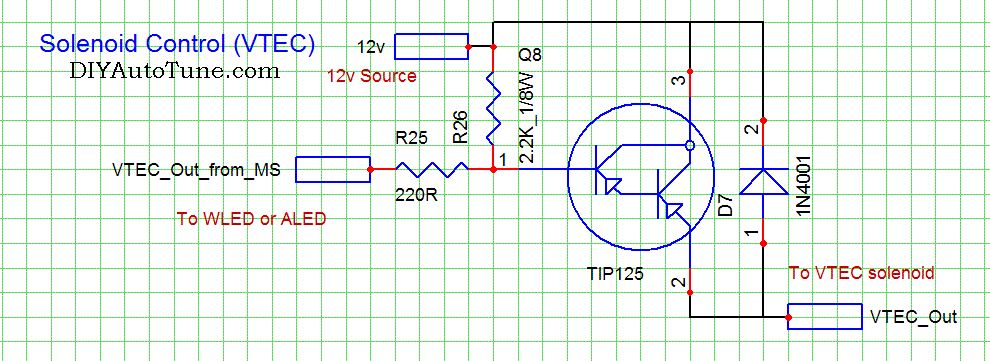

High side driver circuit:



For use in 1.6 Miata, the fuel pump out pin goes to "VTEC Out from MS" and "VTEC Out" is your +12V to backfeed the fuel pump circuit.
Attached Thumbnails
MS3-Pros hit the shelves!-vtec_alt_lg.gif
Ben is offline   Reply With Quote
Old 01-05-2013, 01:15 AM   #19
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Was kinda wondering how this was put into a DIYBOB board? I'm using a solid state relay instead... But this might be cheaper?! Not much though.

G
gslender is offline   Reply With Quote
Old 01-05-2013, 02:53 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

I do something different now: I just send the fuel pump out to 2O, then jump the corresponding pin on the AFM connector to the fuel pump relay.

Harness is 98% complete. I dont have written down my 16-pin connector pinout, so I need to go pull my harness and match up the wires.

I have my: 2 extra fuel outputs, two spark outputs, o2 IN, boost OUT, a spare 12v, ground, VVS IN, and knock IN.

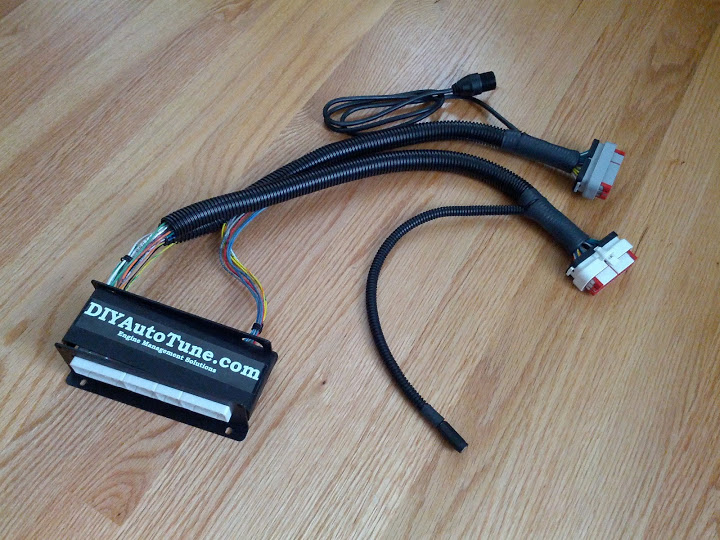

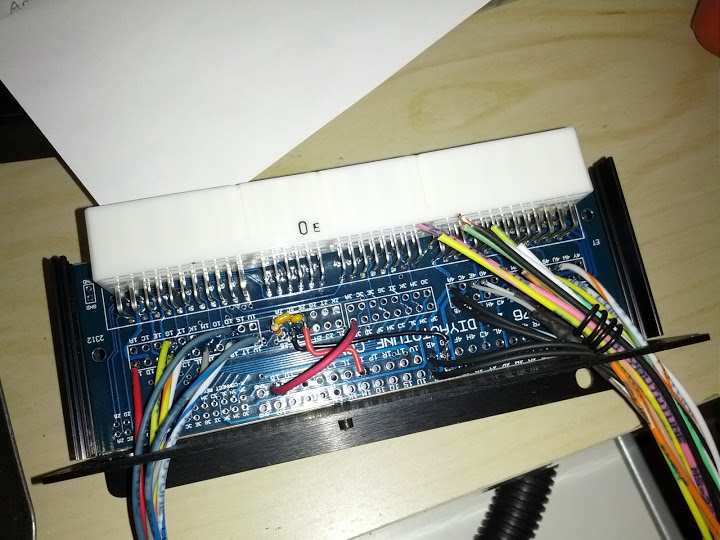

Rough idea what the harness looks like:



I would have finished this a while ago, but I was slowed by the new connectors and the labeled wires which don't necessarily match the function of the ms3pro; yet?
Attached Thumbnails
MS3-Pros hit the shelves!-img_20130105_133521.jpg   MS3-Pros hit the shelves!-img_20130105_134933.jpg
Braineack is offline   Reply With Quote
