Old 01-05-2013, 06:34 PM   #21
Junior Member
iTrader: (1)

Join Date: Jun 2011
Location: Australia
Posts: 178
Total Cats: 3
Default

Sounds cool. My ms3pro is also going to be rewired for a BOB so would be good to closely follow your lead so share any more details as you can!

G
gslender is offline   Reply With Quote
Old 01-05-2013, 07:02 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

not much else to it. but now i just realized i didn't run the wire for there map sensor.
Braineack is offline   Reply With Quote
Old 01-06-2013, 11:21 AM   #23
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post
I would have finished this a while ago, but I was slowed by the new connectors and the labeled wires which don't necessarily match the function of the ms3pro; yet?
You got a beta harness which was made with what we had on-hand. We didn't have the real deal MS3-Pro wiring in yet. All production release MS3-Pro wiring harnesses have correct, MS3-Pro specific wiring.
Ben is offline   Reply With Quote
Old 01-06-2013, 11:35 AM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

Quote:
Originally Posted by Ben View Post
You got a beta harness which was made with what we had on-hand. We didn't have the real deal MS3-Pro wiring in yet. All production release MS3-Pro wiring harnesses have correct, MS3-Pro specific wiring.

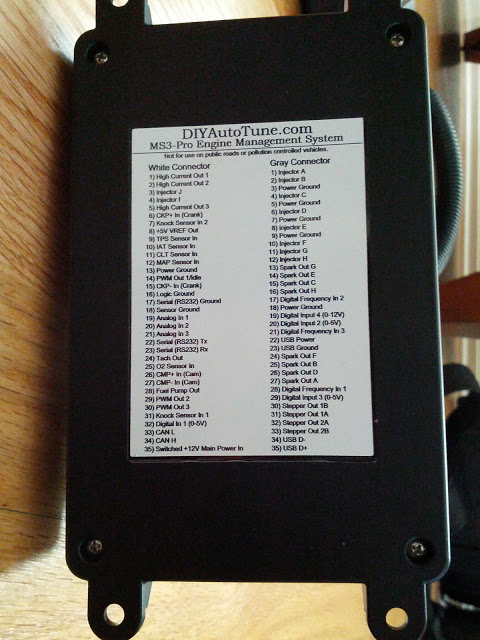

I figured as much, and why i said yet. No issue, I just went by the handy dandy pinout cheat sheet on the underside of the unit.

I also referred to the stellar installation manual to figure out what to put my inputs and outputs on for launch/ac/boost/etc. Kudos to that documentation.

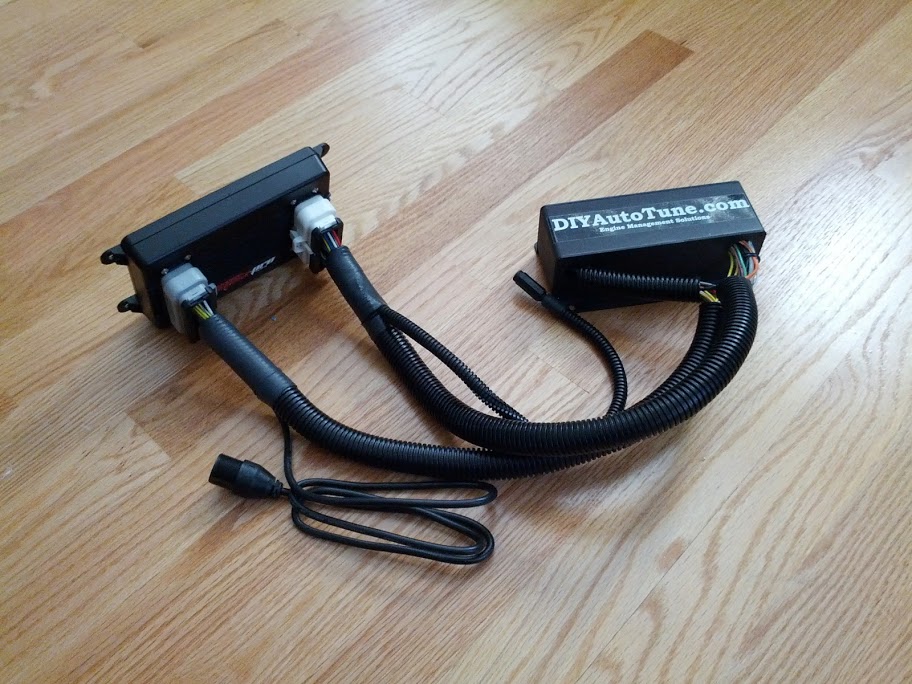

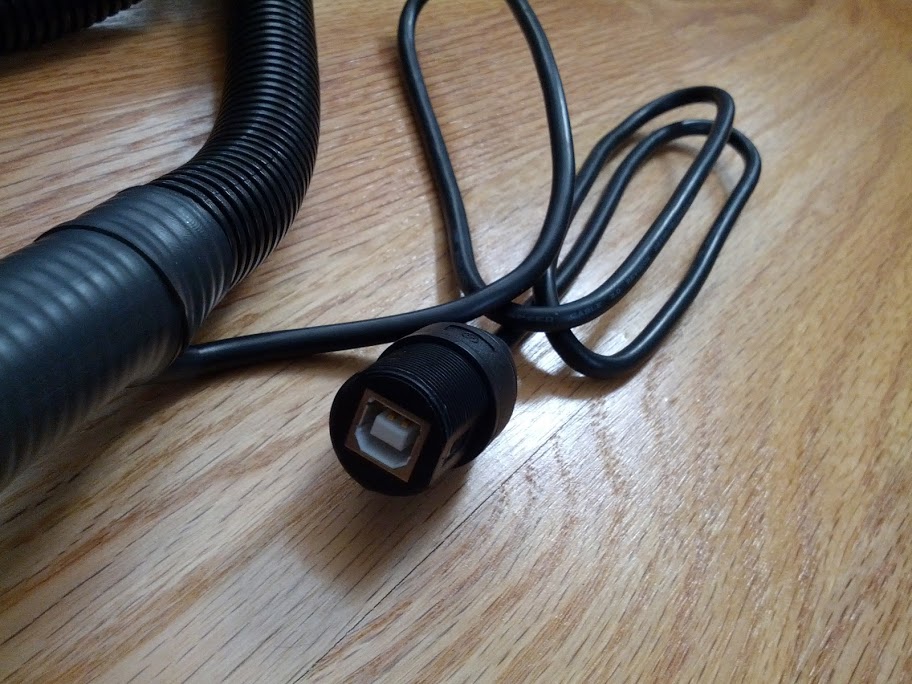

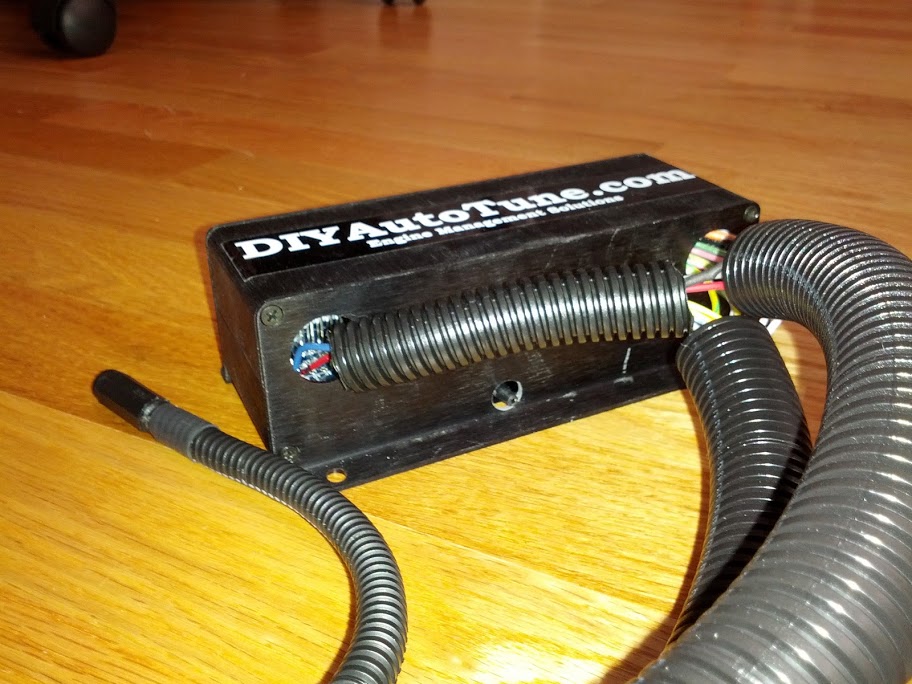

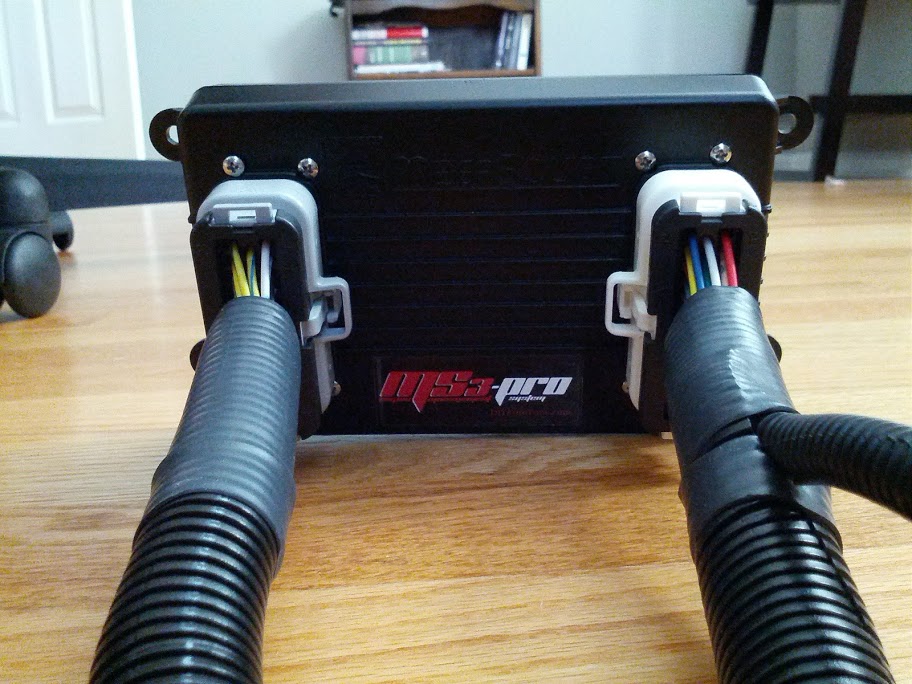

My harness is ready to install:














Pookie also helped:

Attached Thumbnails
MS3-Pros hit the shelves!-img_20130106_102515.jpg   MS3-Pros hit the shelves!-img_20130106_102542.jpg   MS3-Pros hit the shelves!-img_20130106_102555.jpg   MS3-Pros hit the shelves!-img_20130106_102600.jpg   MS3-Pros hit the shelves!-img_20130106_102614.jpg

MS3-Pros hit the shelves!-img_20130106_102640.jpg
Braineack is offline   Reply With Quote
Old 01-07-2013, 11:22 AM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

One thing I forgot to mention, I really like how you decided to go with "digital input 1-2-3" as oppossed to "launch in, datalog in, table switch in"

If those inputs only had one function and one only, sure it makes sense, but it gets confusing after a while to say, "I have VVT on nitrous 1, and a/c in on tableswitch, and tableswitching on datalog in..."

Right now I have A/C on digital in 1, clutch on digital in 2, VSS on digital in 3, knock on knock 1. So much easier. I still put my a/c out on a spare injector channel, just cause I'm used to it, but maybe if I were to do it again, I'd just use a spare high current out.

Last edited by Braineack; 01-07-2013 at 01:02 PM.
Braineack is offline   Reply With Quote
Old 01-07-2013, 12:54 PM   #26
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

You're welcome.

We're also working with Phil to allow the user to "tag" I/O with custom names. So in TunerStudio you could label Digital In 1 "AC Input", so anywhere TunerStudio references the pin, it would be called "Digital 1 In AC Input" and so on.
Ben is offline   Reply With Quote
Old 01-07-2013, 01:01 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

oh i like that idea.
Braineack is offline   Reply With Quote
Old 01-07-2013, 06:12 PM   #28
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Ben View Post
You're welcome.

We're also working with Phil to allow the user to "tag" I/O with custom names. So in TunerStudio you could label Digital In 1 "AC Input", so anywhere TunerStudio references the pin, it would be called "Digital 1 In AC Input" and so on.
Where's the bowdown smiley.

My one bugbear with MS is the freaking naming of pins and outputs etc. Thankfully I note that the devs are also standardising all that too!
richyvrlimited is offline   Reply With Quote
Old 01-07-2013, 06:52 PM   #29
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,106
Total Cats: 518
Default

Didn't realize how small this was. Bob needs to go on a diet. What's the head phones Scott, knock?
curly is online now   Reply With Quote
Old 01-07-2013, 07:23 PM   #30
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

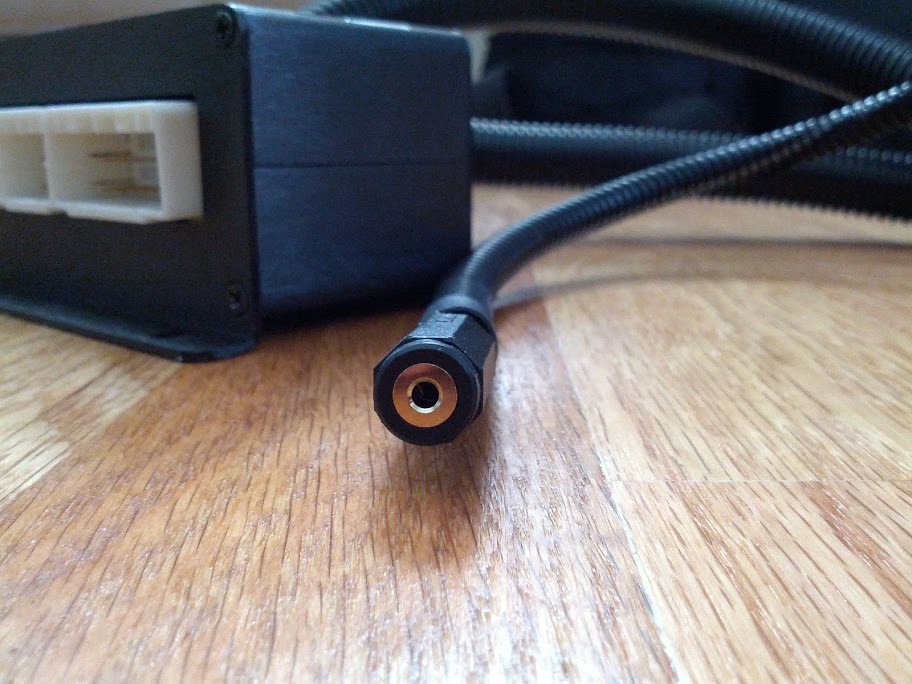

The 2.5mm jack is the serial port connector on the beta harnesses. Regular production harnesses use a 9 pin plug that can be removed and then replaced with a waterproof cap.
Ben is offline   Reply With Quote
