Default MS3 V1->V3 Upgrade - No RPM Sync

Hi,

I had a working MS3 V1 in a piggyback configuration which I decided to bring up to date by buying the V3 daughterboard kit and expansion card. I was originally using a crank angle sensor retrofitted into my 2001 for tach input, but have since switched to the VR input circuit so that I can tap into the factory crank/cam sensors.

Since a lot of things changed from V1 to V3, it was a bit of an exploration of removing components, and uninstalling some mods (boost/launch control, cmp/ckp) which used to be required to make this work. I primarily used Frank's guide as a step in the right direction, but since I've already installed a lot of components, I didn't want to strip out things needlessly. I feel that I've either forgotten to remove or add something properly as I can't seem to get the RPMs synced up.

I uploaded pictures of the MS (sans expander & cpu) to imgur since I didn't want to have to make them small resolution to abide by the image guidelines of the forum:

Front
Back

I've uploaded my MSQ that I'm using as well. I attempted to take a composite log, but the file had no data.

Thanks for any clues in the right direction. Let me know if I can provide any more information.
Attached Files
File Type: msq CurrentTune.msq (176.9 KB, 33 views)

Last edited by compy; 07-31-2014 at 09:55 PM. Reason: more detail
compy is offline   Reply With Quote
Old 07-31-2014, 07:48 PM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

As in, it won't start? Did you adjust the pots as was described on Frank's site?
Schuyler is offline   Reply With Quote
Old 07-31-2014, 08:20 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by Schuyler View Post
As in, it won't start? Did you adjust the pots as was described on Frank's site?
Correct. No RPM so I figure the Megasquirt doesn't even know it should be doing anything.

Pots were adjusted as per the instructions, then fine tuned. I dialed in R56 until the upper leg of R54 read 2.75v, and the lower leg of R17 maxed out around 2.28v.

Edit: I also have R52 installed, which isn't in Frank's instructions (he says to use a 100k resistor in pin 1 and 3), and it's turned counterclockwise until it clicked.

Last edited by compy; 07-31-2014 at 09:12 PM. Reason: R52 edit
compy is offline   Reply With Quote
Old 07-31-2014, 09:41 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

expanderboard as well?
Braineack is online now   Reply With Quote
Old 07-31-2014, 09:54 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
expanderboard as well?
Yup. Not shown since it looks the same as any. The Crank/CAM wires are tapped into the boomslang as per Frank's instructions.

Just in case I read it wrong, I should mention I don't have pin 26 on the MS3X wired in since I understand it is just an output.
compy is offline   Reply With Quote
Old 07-31-2014, 09:55 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

did you turn r52 back about 7 turns clockwise?

did you take a composite log to see what the input signals look like?
Braineack is online now   Reply With Quote
Old 07-31-2014, 09:59 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
did you turn r52 back about 7 turns clockwise?

did you take a composite log to see what the input signals look like?
I turned R52 counterclockwise until it clicked.

I did try to take a composite log while cranking for a few seconds but no rows of actual data were generated (just the headers) in the CSV which it saved to.
compy is offline   Reply With Quote
Old 08-01-2014, 08:58 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

you have to turn it back 7-8 turns clockwise now.

crank for at least 15-20 seconds when you composite log.
Braineack is online now   Reply With Quote
Old 08-01-2014, 09:24 AM   #9
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
you have to turn it back 7-8 turns clockwise now.

crank for at least 15-20 seconds when you composite log.
Sorry, I misread what you asked ("back clockwise", derp). I'll turn R52 7-8 turns clockwise and get a composite log with a longer crank.

Is there a point where I can measure voltage as I adjust R52 to make sure it's dialed in correctly?
compy is offline   Reply With Quote
Old 08-01-2014, 09:29 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

and can probe between ground and VROUT/TSEL. IIRC it should be 2.5v. 7 turns should be all you need.
Braineack is online now   Reply With Quote
Old 08-01-2014, 08:59 PM   #11
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
and can probe between ground and VROUT/TSEL. IIRC it should be 2.5v. 7 turns should be all you need.
Spinning R52 doesn't appear to change the voltage at VROUT/TSEL.

Just as another test, I saw Matt Cramer suggest:

Quote:
With the Megasquirt powered up, apply 12 volts to pin 24 or TachSelect, and check the voltage on the TSEL jumper with a voltmeter. You should read zero volts. Next, ground pin 24 so it has no volts on the input circuit, and check TSEL's voltage again. You should see 5 volts there.
I did the above and measured VROUT/TSEL and got 0.15v with 12v applied to pin 24, and 4.21v with pin 24 grounded.

I'll spin R52 as you directed and try getting a composite.

Last edited by compy; 08-02-2014 at 02:50 PM. Reason: clarity
compy is offline   Reply With Quote
Old 08-01-2014, 09:16 PM   #12
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

No go on the composite log. I did two logs, one cranking for 20 seconds, and one for 15. Both files were empty.

I also checked for continuity from the DB37 to the crimp-on connectors which tap the boomslang. Checked out for both Crank (MAIN-24) and CAM (MS3X-32).
compy is offline   Reply With Quote
Old 08-20-2014, 10:13 PM   #13
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Fixed. Cam input in the MSQ was still JS10 instead of MS3X Cam In.
compy is offline   Reply With Quote
Old 08-21-2014, 08:37 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

thatll do it
Braineack is online now   Reply With Quote
Old 08-23-2014, 04:58 PM   #15
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

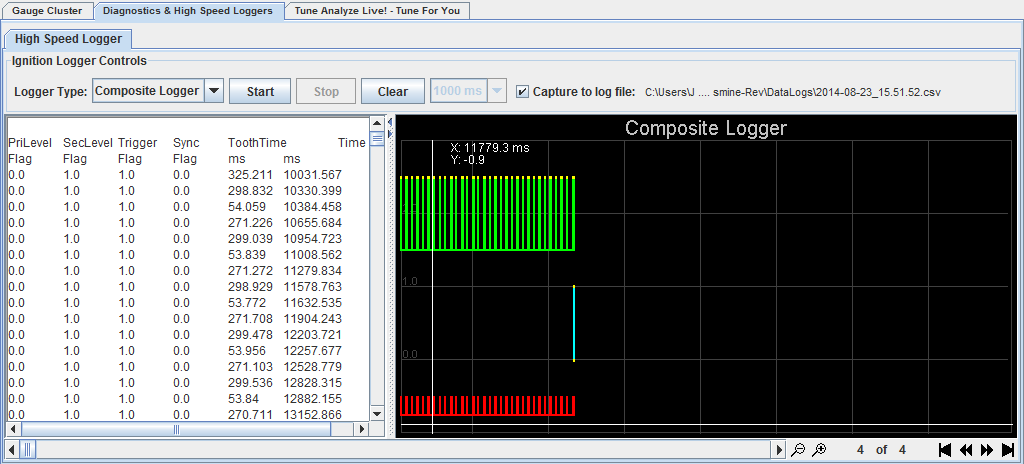

Well, it got me closer anyway. I'm able to generate data with the composite logger, but still no start. Does the output look odd? Not sure what an '01 is supposed to look like.
Attached Thumbnails
MS3 V1->V3 Upgrade - No RPM Sync-composite.png
Attached Files
File Type: csv 2014-08-23_15.51.52.csv (29.8 KB, 37 views)
compy is offline   Reply With Quote
Old 08-23-2014, 09:30 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

no crank signal.

did you change the input to the VR circuit and change the jumpers and tune the pots?
Braineack is online now   Reply With Quote
Old 08-23-2014, 10:24 PM   #17
Junior Member
Thread Starter

Join Date: Oct 2007
Location: AC, NJ
Posts: 346
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
no crank signal.

did you change the input to the VR circuit and change the jumpers and tune the pots?
Which input are you referring to?

Jumpers - Tach Select is set to VRIN, and TSEL is set to VROUT..

I dialed in R56 until the upper leg of R54 read 2.75v, and the lower leg of R17 maxed out around 2.28v. I turned R52 counterclockwise until it clicked, then turned it back 7-8 turns clockwise.

Gonna start going over this.
compy is offline   Reply With Quote
Old 08-24-2014, 11:27 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

correct. did you do that?
Braineack is online now   Reply With Quote
