Default ms3x ebc kind of working

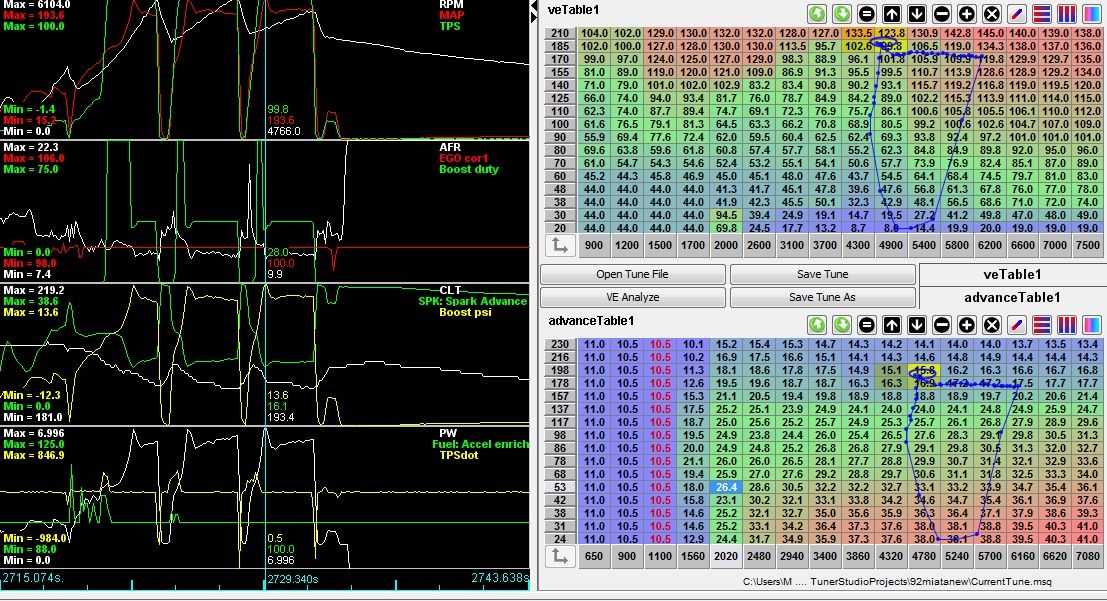

I started upping the psi today. Before this, I had it set at 180 kpa, and it overshot a little then held stable. I upped it to 195 kpa, it gets close, 193.6, but then drops to 177 ish. I'm in basic mode using the slider, have it set at 450. Do I need to up it some more? When I had it set at 250 it would oscillate. Maybe somewhere in between?

Or should I just set it to advanced and adjust the pid?


Attached Thumbnails
ms3x ebc kind of working-80-boosthigh_60f587c4789efcd743c949743063b3814692427c.jpg
Attached Files
File Type: msq main.msq (231.3 KB, 56 views)
whinin is offline   Reply With Quote
Old 03-11-2016, 02:52 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

use advanced/PID to fine tune it
18psi is offline   Reply With Quote
Old 03-11-2016, 03:06 PM   #3
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

If I do that, do I have to start all over? Or will it take the current basic slider settings and use that to start? Like if I set it to advanced, it will act the same as it does now, then just adjust pid?
whinin is offline   Reply With Quote
Old 03-11-2016, 03:11 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

What firmware are you on. If you are not on 1.4.0 then you need to upgrade before you start messing with EBC.

Before messing with the slider you need to put it in "Setup Mode" and get the Bias Duty table set up to get you close. It is like tuning open loop ebc. Then switch to "Basic mode" and start playing with the slider.
shuiend is offline   Reply With Quote
Old 03-11-2016, 04:37 PM   #5
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Yup, I did all that for 180kpa. Do I need to do it again for 195 and up? I just increased the duty cycle a bit. It spools quick to my target, but drops down after it hits it. I want it to maintain the target.
whinin is offline   Reply With Quote
Old 03-11-2016, 04:38 PM   #6
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Now, my bias duty table ends at 180kpa, I should probably increase that, lol. I just looked at it. And looking again, I have the boost control target set at 200kpa at 100% throttle.
whinin is offline   Reply With Quote
Old 03-11-2016, 04:49 PM   #7
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Increased duty cycle to 210 kpa, scaled everything else up. Looked over logs, saw duty cycle at 32 at 177kpa, so increased the cells in that range to be close. Adjusted everything else to make sense, going for a drive brb.
whinin is offline   Reply With Quote
Old 03-18-2016, 02:23 PM   #8
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

Had a coolant leak when I went back out, so didn't get anything till today. Had to up the boost duty to 43 at 200 kpa, but it stays pretty steady. It did spike to 206 kpa on the 2nd the 3rd shift, but stabilized at 190 kpa throughout 3rd. Then in 5th I hit it around 3800 rpm, and it stayed around 199 kpa till I let off. So I need to take it out of basic mode and mess with advanced, but I have it close enough I think it will be quick to adjust.
whinin is offline   Reply With Quote
Old 03-18-2016, 02:35 PM   #9
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Keep us updated on the progress. I've tried a couple times to get EBC working right and never got it working consistently. It's nice to see the process documented and how you got it working. I feel like the few threads I've read have been, "plug it in, tune it, then it works perfect" but apparently I'm going to need someone to dumb it down a little bit for me.
pdexta is offline   Reply With Quote
Old 03-19-2016, 11:12 PM   #10
Junior Member
Thread Starter

Join Date: Apr 2013
Location: Elgin, SC
Posts: 359
Total Cats: -4
Default

updated tune file, changed a few things as said above. Also figured out why I had a hard 'cough' transitioning from decel to accel. I had overrun fuel cutoff set too high. I think it was set to something like 2.5% throttle. I set it to .3 and it drives like my 96 now, no stumble.
Attached Files
File Type: msq main.msq (231.3 KB, 46 views)
