Default MS3X harness check. (Flyback Diodes)

I've built the board components and pretty much finished the harness to Franks 90-97 spec. However I am very uncertain about the flyback diode location recommendations.. it just does not seem right.

I've done my research, and found that westfield recommends (numerous threads) to place the diodes outside the pcb and near the TYCO plug.

My question is have I wires them right?

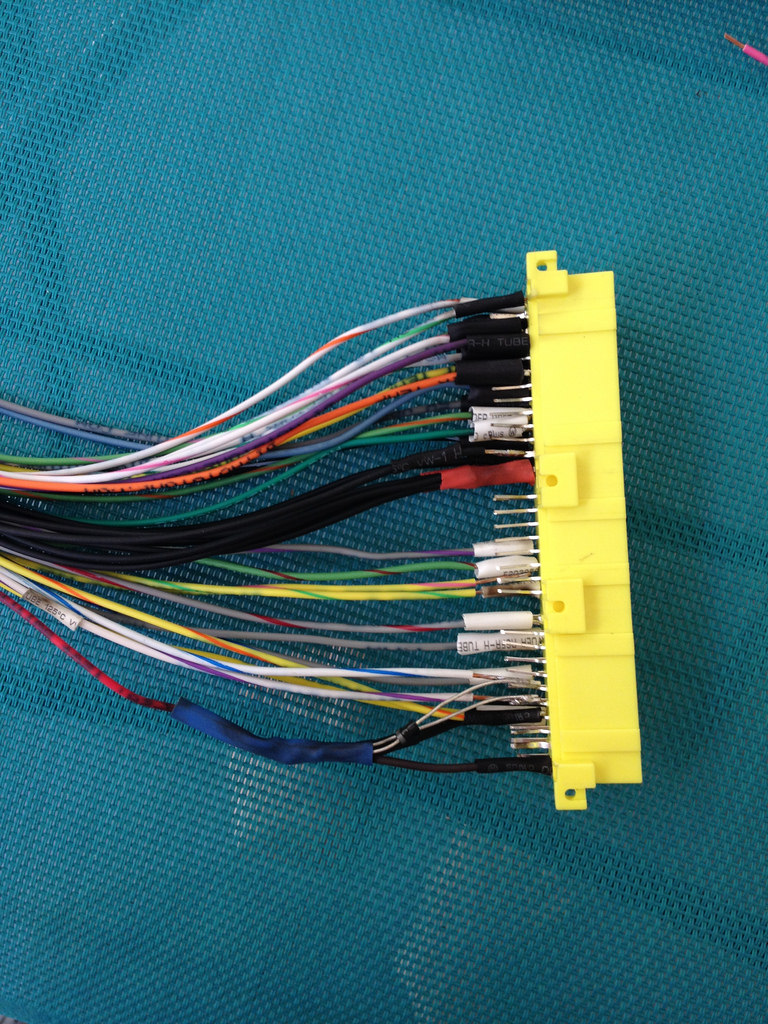

I've just bridged the diodes from the 12v (banded on 12v) and the other ends of the diodes to ms3x pin 9, 1 and A/C fan out put ms3x pin 20.

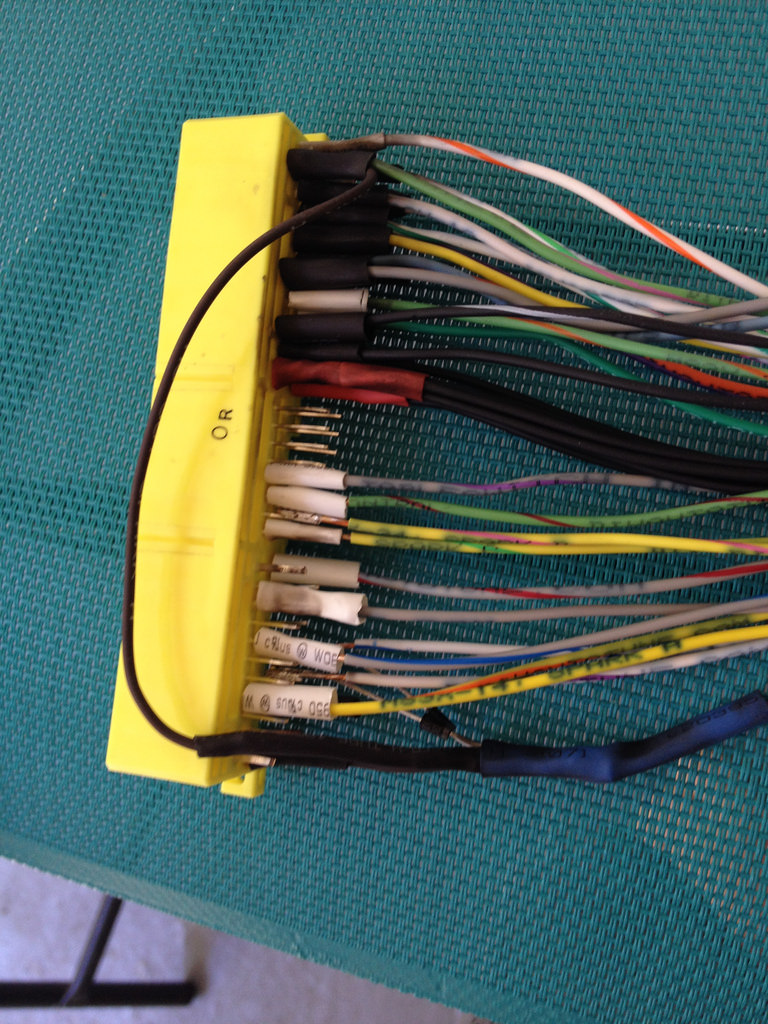

This is the back, I had to wire in an extension to reach the Idle wire (diode is under heat shrink)




Picture of cat to show I mean business




I almost got over the whole build with out asking any questions... combo breaker.

Any help would be greatly appropriated!


Edit: yes im going to fix all the shrink.
Attached Thumbnails
MS3X harness check. (Flyback Diodes)-13130364395_05dc66db43_b.jpg   MS3X harness check. (Flyback Diodes)-13130369815_42a2c2f929_b.jpg   MS3X harness check. (Flyback Diodes)-13130358005_8d7795e71e_c.jpg

Last edited by Joker; 03-13-2014 at 03:00 PM. Reason: A/.
Joker is offline   Reply With Quote
Old 03-13-2014, 03:07 PM   #2
Junior Member
Thread Starter
iTrader: (1)

Join Date: Aug 2010
Posts: 86
Total Cats: 15
Default

I'm going to shrink the - sides of the diodes..
Joker is offline   Reply With Quote
Old 03-13-2014, 03:12 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Personally, I think the best location for flyback diodes is near the coil causing the flyback. Pretty easy to wire at that location too. You can even buy relays that have flyback diodes built-in.

I've also had relays that would cause issues even with flyback diodes. In those cases a Solid-State relay cleaned things up.

Good luck.
hornetball is offline   Reply With Quote
Old 03-13-2014, 03:21 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I do them inside the case in the proto area. but yeah, that works, just insulate them.
Braineack is online now   Reply With Quote
