Old 04-26-2012, 03:44 PM   #1
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default MS3X users - go to 1.1.1

I'm pretty happy with prebeta21 right now. It should be available after this weekend.

The new accel-pump is amazing.

I'm currently struggling with an odd grounding issue where my enrichments had to be completely retuned and my tpsDOT was very noisy and required a high threshold. Coming from alpha11, the filtering improvements coupled with the accel-pump have results in the best throttle response and smoothness to date. (consider that I've been on MsI starting in 2006, then MS2, and now MS3).

It's a hell of a lot easier to tune, and you can actually use decel-enrichments for once, since you tune on a curve. Which means I'm not going to 12-11:1 when i lift anymore, and it's still smooth and transparent. Where if I had anything less than 95% decel in the accel-wizard, the car would hesitate with throttle lifts.

The idle improvements (intial duty table, timing and voltage correction) have improved the idle quality significantly, better than the stock ECU was ever able to.

Here's the results of my idle after just maybe 10-20 minutes of fooling around, going straight off my alpha 11 map with guessed values.

Braineack is offline   Reply With Quote
Old 04-26-2012, 04:07 PM   #2
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

What type of values are you seeing for your accel pump enrichments? I just started using it and it seems to work very well. A decel table will be awesome.

I hate you for getting prereleases!

My idle is amazing. I think the initial duty table was one of the biggest/best improvements for my idle.

I'm using beta20
miatauser884 is offline   Reply With Quote
Old 04-26-2012, 04:10 PM   #3
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

ill have to look again, but like:

-400 -15%
-200 -10%
-50 0%
0 0%
15 7%
30 15%
100 23%

that's off the top of my head. Ken said to turn off the threshold completely (set to 0) and just use the curve itself as your threshold.


IIRC in beta20, the decel part of the code doesn't work.
Braineack is offline   Reply With Quote
Old 04-26-2012, 04:19 PM   #4
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

My 100 and up value is 21% iirc, so it's nice to see a similar situation. Yes, the decel portion is broken in beta 20.

I bet it makes for nice smooth shifts.
miatauser884 is offline   Reply With Quote
Old 04-26-2012, 04:22 PM   #5
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

he said the goal was for throttle response mainly. he said the wizard was on very old grippo code and caused issues; it wasn't able to ever react fast enough. the pump is all brand new code, and like i said, designed with throttle response in mind.
Braineack is offline   Reply With Quote
Old 04-26-2012, 04:27 PM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I am on beta11, I am mad tyte hipster.
shuiend is offline   Reply With Quote
Old 04-26-2012, 04:29 PM   #7
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

Ken hates you.
Braineack is offline   Reply With Quote
Old 04-26-2012, 04:29 PM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
Ken hates you.
I am pretty sure that is why him and James are not coming it to the Mitty this year.

I am planning on upgrading to 21 this weekend at the Mitty.
shuiend is offline   Reply With Quote
Old 04-26-2012, 04:38 PM   #9
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Is the code still using EAE for small throttle movements?
miatauser884 is offline   Reply With Quote
Old 04-26-2012, 06:23 PM   #10
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

yes.
Braineack is offline   Reply With Quote
Old 04-26-2012, 08:39 PM   #11
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Braineack View Post
yes.
One day I will fly you out here to build, install and tune my MS3X
Oscar is offline   Reply With Quote
Old 06-08-2012, 10:08 AM   #12
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Hi Brain,

I just got done assembling my MS3 + MS3X. Will try to bench-test with the Stim tonight.

[rant]
Bench testing is all I can do, since my cylinder head is STILL in the machine shop. They supposedly do awesome work, and considering that after weeks they haven't even looked at it yet it better be f-ing perfect!
[/rant]

Anyway: I can't find Beta21. I assume you are referring to firmware for the MS3 - correct?
The only link I can find is here:
http://www.megasquirt-info.net/megas...re_updates.php

And the latest FW for the MS3 here is "MS3 pre-1.1 alpha 15" from November 2011.

In all probability I'm being daft again, but I can't find it...
A link would be appreciated!

ST
stefanst is offline   Reply With Quote
Old 06-08-2012, 10:21 AM   #13
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

Well you should be going to beta 24 now:

http://www.msextra.com/forums/viewto...?f=125&t=45420

b22 and b23 firmwares have small updates that have no bearing on our installs, this b24 firmware includes the ability to use the Idle VE or Idle Advance activation to PID idle activation...much better than the parameters needed prior.


LMK if you have any other MS3x questions.
Braineack is offline   Reply With Quote
Old 06-08-2012, 10:48 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

---- this thread an your idle success.
hustler is offline   Reply With Quote
Old 06-08-2012, 11:04 AM   #15
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

Come at me bro:

Attached Thumbnails

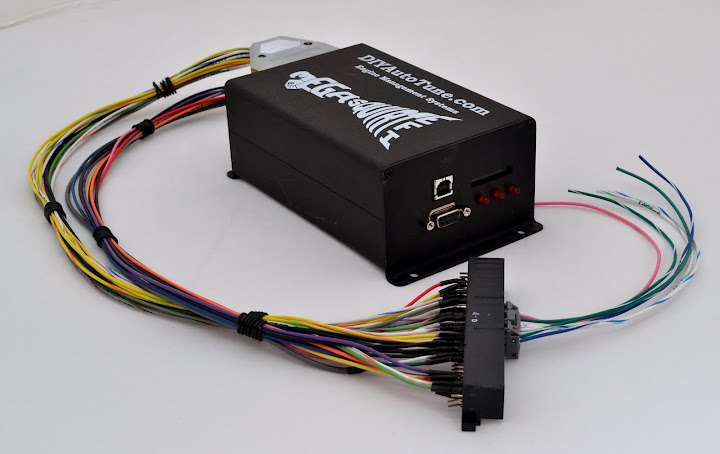

MS3X users - go to 1.1.1-dsc_4407.jpg
Braineack is offline   Reply With Quote
Old 06-09-2012, 01:08 AM   #16
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Got the FW and got the MS running - on the bench at least.
Thanks!
stefanst is offline   Reply With Quote
Old 07-12-2012, 12:38 PM   #17
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Final version 1.1.0 has been released:
Megasquirt MSEXTRA / MS3EFI • MS3 1.1.0 released (View topic)

It is apparently already updated to 1.1.1 (bugfix release)

Congrats to the MS team!
stefanst is offline   Reply With Quote
Old 07-12-2012, 01:55 PM   #18
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 257
Default

I upgraded to 1.1.1 and I now last longer and bed.
It's really good.
soviet is offline   Reply With Quote
Old 07-12-2012, 01:58 PM   #19
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

ill upgrade next time there's a feature/fix that benefits me.
Braineack is offline   Reply With Quote
Old 07-12-2012, 02:21 PM   #20
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

So lasting longer in bed won't benefit you?
stefanst is offline   Reply With Quote
