Default MSII DIY - Bench Testing Issues. Pics inside!

I purchased a DIY MS2 kit not too long ago. Finished the build and I am currently doing bench testing with a MegaSTIM, however I have the following issues.

- No RPM Signal
- No O2
- No IAT
- Injectors LED don't fire since no RPM

I followed the Megamanual Assembly guide and Braineack's thread to help me install most of the parts.

I assume what screwed me up is that I used this link for the Joe P input/output mods:

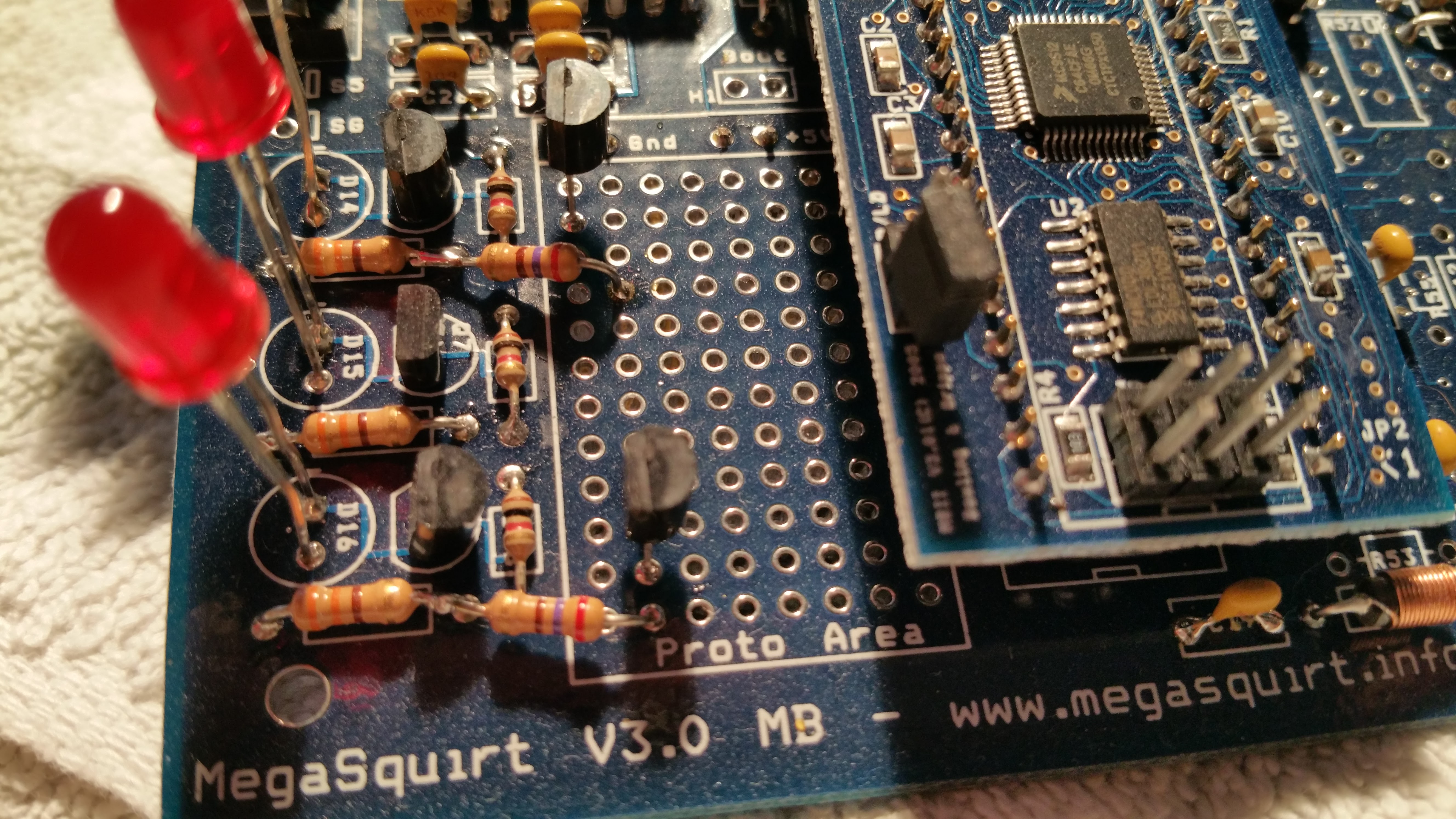

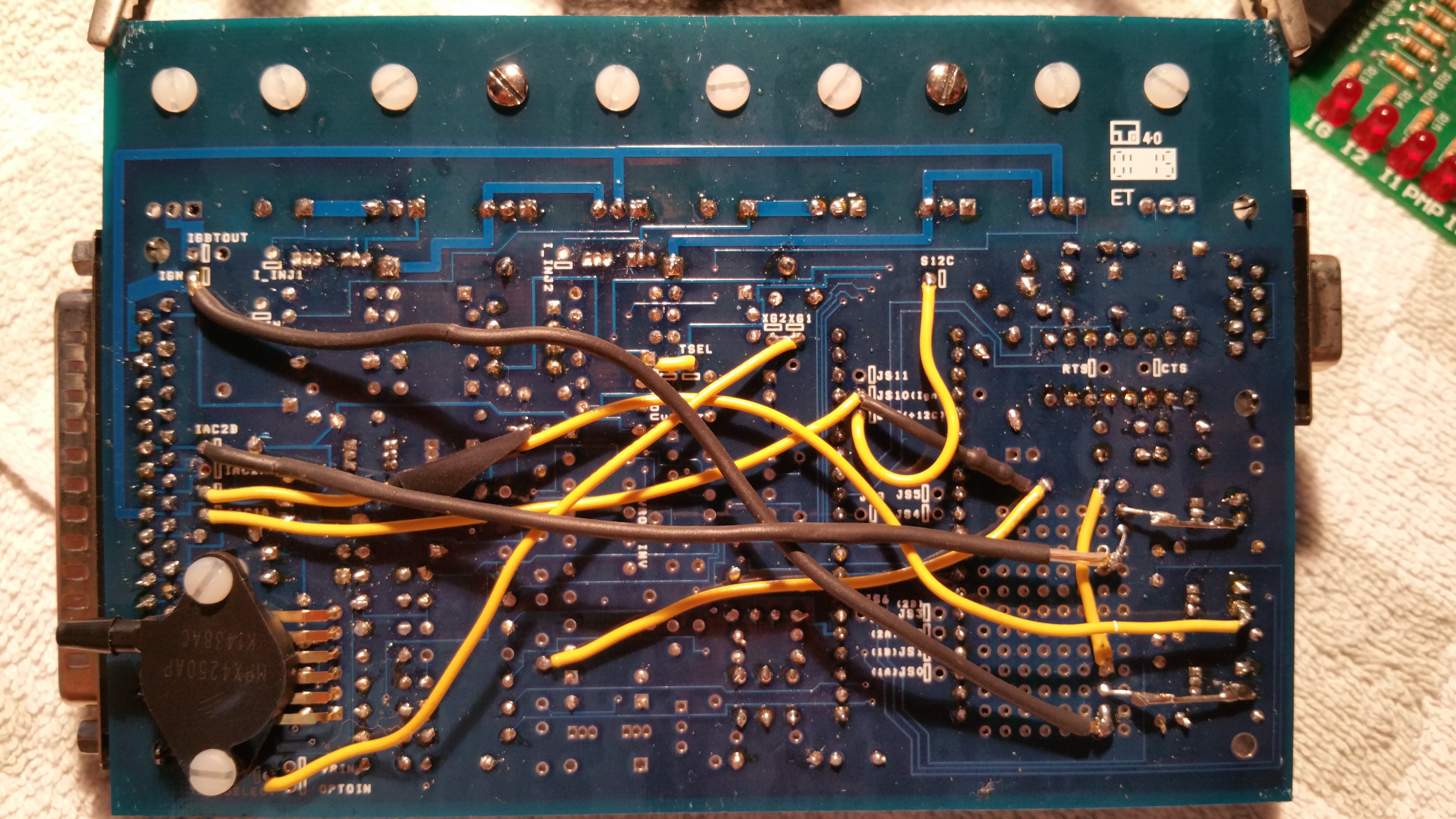

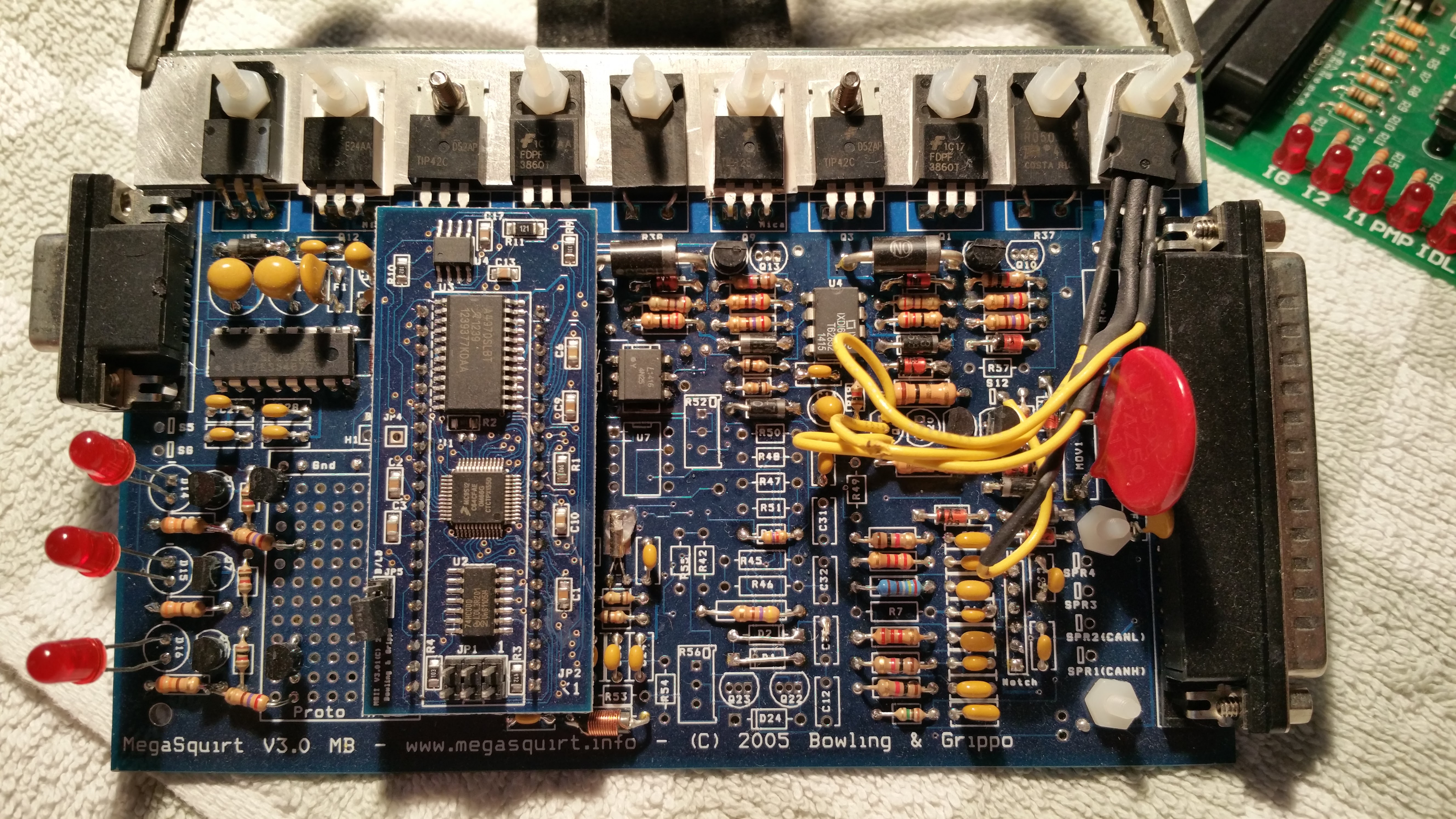

How does my board look?
Does the Joe P Mods look okay?
Should I ditch the Joe P mods?
Any guidance is greatly appreciated.



Attached Thumbnails
MSII DIY - Bench Testing Issues.  Pics inside!-1.jpg   MSII DIY - Bench Testing Issues.  Pics inside!-2.jpg   MSII DIY - Bench Testing Issues.  Pics inside!-3.jpg   MSII DIY - Bench Testing Issues.  Pics inside!-80-1_3024e5169db223bb1d966ae2ac69ee02df4f8f4b.jpg   MSII DIY - Bench Testing Issues.  Pics inside!-80-2_573fcb97a073da7323419972e5d512ce2e661e67.jpg


Last edited by ennjay; 08-20-2015 at 04:30 PM.
ennjay is offline   Reply With Quote
Old 08-20-2015, 05:35 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

itll never work with that stim in 4g63 mode...
Braineack is offline   Reply With Quote
Old 08-20-2015, 06:24 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2013
Posts: 79
Total Cats: -8
Default

Quote:
Originally Posted by Braineack View Post
itll never work with that stim in 4g63 mode...
Thanks Braineak. After your post, I read up more and realized I picked up the wrong Stimulator. Guess my next step is to get a hold of a JimStim. Sigh.

Thanks Again.
ennjay is offline   Reply With Quote
Old 08-20-2015, 06:27 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2013
Posts: 79
Total Cats: -8
Default

Quote:
Originally Posted by Braineack View Post
itll never work with that stim in 4g63 mode...
