Old 10-18-2012, 08:14 PM   #41
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

You know I do...
Mikelly is offline   Reply With Quote
Old 10-20-2012, 07:31 AM   #42
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

So it's interesting. The Uego was looking for volts and VE wouldn't launch the auto tune function because the WB was essentially "off". Once Scott corrected that, we were able to take a base map and drive, change, drive, change. My driving, him making changes. Was very cool. The car is now 110% drivable.

We did have an issue where the car overheated. There was apparently an airpocket and our sitting behind other cars idling for a long period after several long pulls brought it to the surface. We were able to get back to Scott's place and let it cool off, then top it off. Funny thing is, I sat in nearly 2 hours of stop and go traffic, mixed with some open flowing spirts and never had an issue going home.

BRAINEACK DA MAN.

Def. want to wire in the VTPS. Def. thinking about bigger injectors and rising rate regulator. Def. don't want to impact my ful economy of drivability... So I'll probably do the first, not so sure about the other two.

Mike
Mikelly is offline   Reply With Quote
Old 10-20-2012, 09:54 AM   #43
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Yeah the Uego input is odd. there's a fix, I'll find it for you and send. That way the MS and gauge can match 100%.

Tps will make the throttle inputs much smoother, where you can totally get rid of the slight lean spike/delay.

IF you go bigger injectors, you dont need the rising rate.
Braineack is offline   Reply With Quote
Old 10-20-2012, 02:01 PM   #44
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I have that same issue with my UEGO. Perhaps can get that in one of the stickies somewhere?

So glad the car is running well! I was worried there for a while.

You also better update that other thread with details on that Z car...
EO2K is offline   Reply With Quote
Old 10-20-2012, 08:20 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I think it IS in the stickies.
Braineack is offline   Reply With Quote
Old 10-20-2012, 11:12 PM   #46
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

UEGO info is here: https://www.miataturbo.net/megasquir...t-table-28005/

Based on reading that thread, I would recommend a different wideband. Not worth the added headache, in my opinion.

You can find all the info on the Datsun on hybridz.org in the members projects category. I use the same user name there. About 36 pages or build and pics. It's been a 10 year build.


Quote:
Originally Posted by EO2K View Post
I have that same issue with my UEGO. Perhaps can get that in one of the stickies somewhere?

So glad the car is running well! I was worried there for a while.

You also better update that other thread with details on that Z car...

Last edited by Mikelly; 10-20-2012 at 11:34 PM.
Mikelly is offline   Reply With Quote
Old 10-22-2012, 05:24 PM   #47
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

By the way, I went in and made the adjustments as desrcibed in the sticky I linked and it worked. Only issue is I wish I'd duplicated the project before hand so I could compare our tuning session figures to the file after the change. Like a dumby I "accepted" the file on the laptop instead of the file on the ECU.

Anyway, the UEGO is reading properly now and allows the autotune function to work now, reading AFR instead of volts!
Mike
Mikelly is offline   Reply With Quote
Old 10-22-2012, 08:56 PM   #48
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I've seen that particular sticky. The above fix is for an MSPNP but I haz a DIYPNP, plus its not the same issue. The voltage output thing is pretty well documented. Regardless, I have an LC-1 and a VEI gauge I need to install, I just haven't gotten around to it yet.

Back on the farm... I AM glad you guys got the car running! Any plans to change the injectors? A set of RX8 yellows would probably work well, and let you run quite a bit more boost
EO2K is offline   Reply With Quote
Old 10-22-2012, 10:17 PM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by EO2K View Post
The above fix is for an MSPNP but I haz a DIYPNP, plus its not the same issue.
then what's your issue? you can calibrate your AFR input to anything you want on-the-fly.
Braineack is offline   Reply With Quote
Old 10-23-2012, 12:55 AM   #50
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

The offset issue, gauge and TS don't match. There are a couple threads about it but unless I want to rewrite a custom wideband profile, there does not seem to be much I can do to solve it.

I've never understood why TunerStudio does not have a profile for the 30-4100 UEGO. I'm using the "AEM Linear AEM-30-42xx" profile as was recommended for my 4100, but its not "correct" and the "AEM Linear AEM-30-2310" is WAY different.

Edit: Poking around on the web, I can't find any 30-42xx series widebands anyware to compare the table to. I'll keep looking though

Last edited by EO2K; 10-23-2012 at 01:29 AM.
EO2K is offline   Reply With Quote
Old 10-23-2012, 09:17 AM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I even have the offset on my LC1, what's your point?

I have to use .23v = 7.35:1 and 5v = 22.39:1 instead of 0-5v. it took me about 45 seconds to come up with that number and match the gauge.


all you need to do it put in 0.0-4.25v = 10-18.50 AFR.

if the gauge doesn't match, bring up the lower voltage number until it does. it shouldn't take you more than 2 minutes.


I dont actually even think there's a 30-42xx Uego. im pretty sure it's setup for the scale above.
Braineack is offline   Reply With Quote
Old 10-24-2012, 08:12 AM   #52
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

Wouldn't you know, my alternator died yesterday? Few days back the lights were looking really weak (About two days before we tuned it) so I knew that the electrical system was not in the best of health... Oh well.. Battery holds 12.5 volts with no issues not running, but drains down to 10.2 and lower running. Sounds like the regulator is dead. Got one on order.

Mike
Mikelly is offline   Reply With Quote
Old 10-24-2012, 09:17 AM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

need a spare? im pretty sure I have one in a box somewhere in my basement that I got from TurboTim. When my reg. failed it was allowing voltage spikes that my electronics didnt enjoy.
Braineack is offline   Reply With Quote
Old 10-24-2012, 09:28 AM   #54
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

Crap. I just ordered one yesterday thru autozone, and the wife is picking it up on the way home. I shoulda posted this yesterday when I found it dying.

Thanks for the offer man!
Mikelly is offline   Reply With Quote
Old 10-24-2012, 09:42 AM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

its alright.
Braineack is offline   Reply With Quote
Old 10-24-2012, 10:21 AM   #56
Junior Member

Join Date: Apr 2010
Posts: 107
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
need a spare? im pretty sure I have one in a box somewhere in my basement that I got from TurboTim. When my reg. failed it was allowing voltage spikes that my electronics didnt enjoy.
Was that the cause of the electrical gremlin you were chasing for a while?
bearda is offline   Reply With Quote
Old 10-24-2012, 10:26 AM   #57
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

still am.
Braineack is offline   Reply With Quote
Old 10-24-2012, 08:45 PM   #58
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

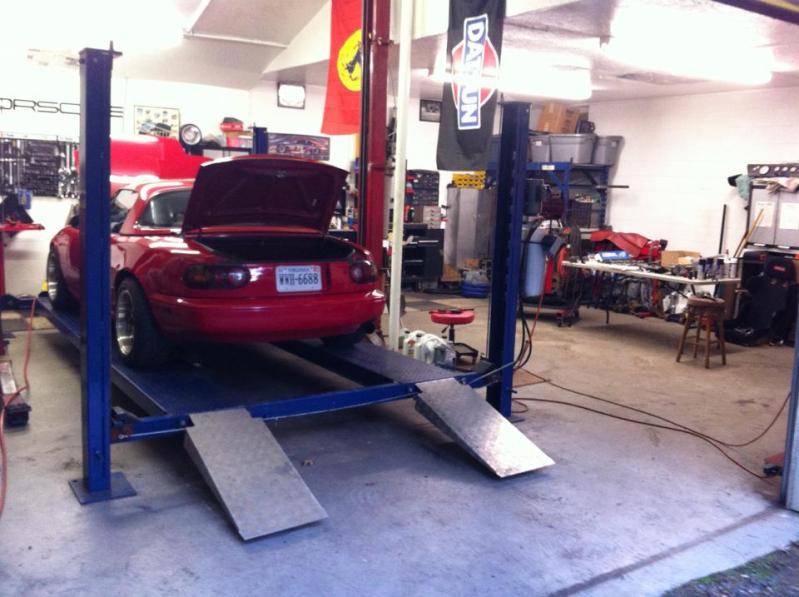

Ran out of time this evening. Managed to get the old one off, the new one on and bolted in. Manged to get the electric fan back in place, but need to finish bolting it up and then install the plumbing, top off the radiator, and check everything out.

Mike
Attached Thumbnails
MSPNP1 virgin chiming in...-miataintheshop.jpg
Mikelly is offline   Reply With Quote
Old 10-26-2012, 04:33 PM   #59
Junior Member
Thread Starter

Join Date: Apr 2010
Location: Spotsylvania Va.
Posts: 97
Total Cats: -5
Default

Big thanks again to Scott for sending me the tune after I dorked the settings up. I managed to get it dialed in today and the car is running great. Only issue I have now is cold morning surging on startup. Once it warms up, she's fine. I'll data log that and resolve it over time.

So the game plan for the next few months is to just drive the car and get the Datsun Track car's motor transplant done. We're swapping from an old school chevy V8 to an LS1 platform and that'll eat up much of my fun money in the coming months. Maybe by spring I'll have become sufficiently bored enough with the setup in the miata that I'll upgrade injectors and FPR. We'll see...

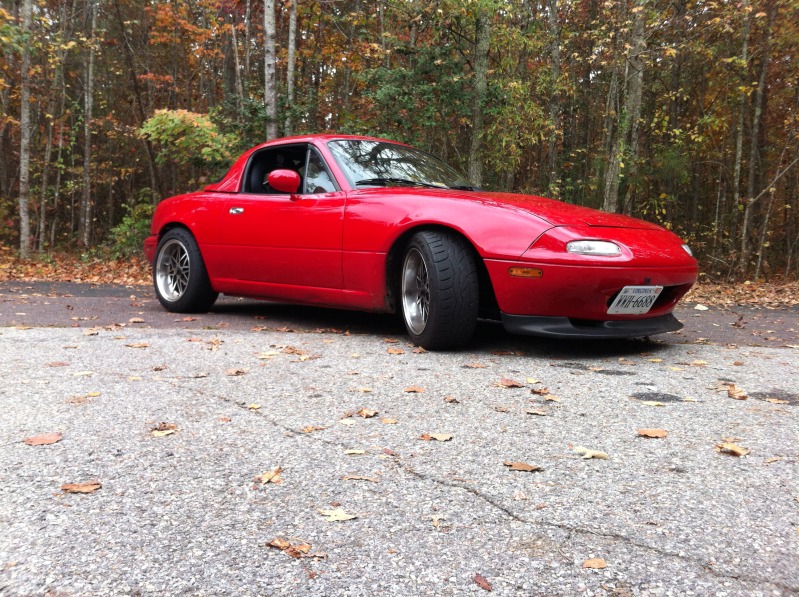

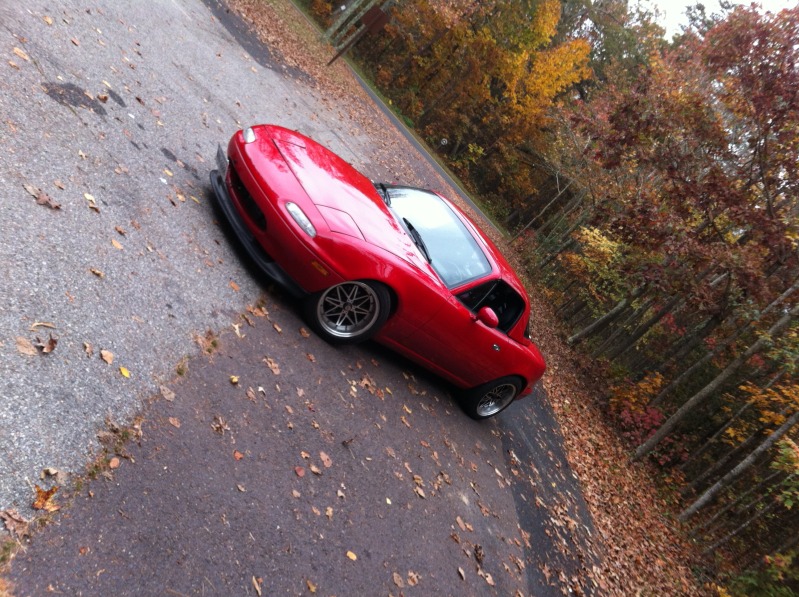

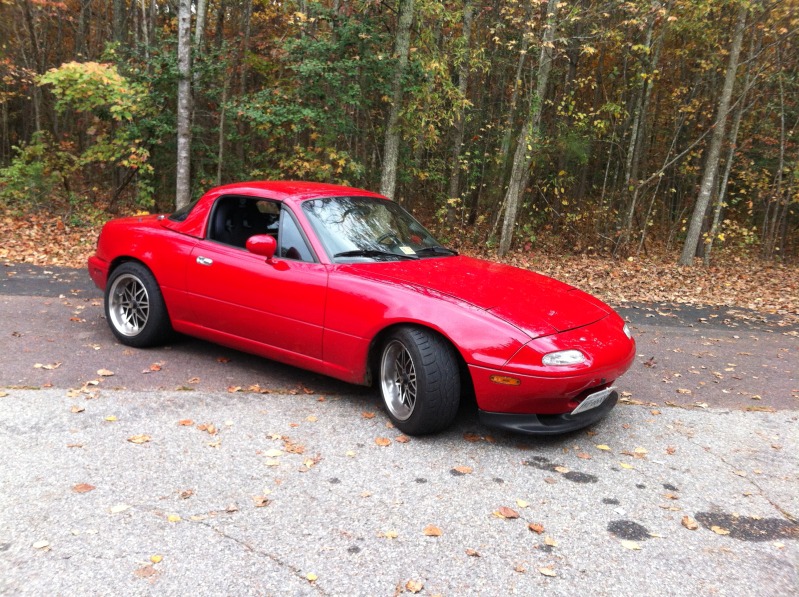

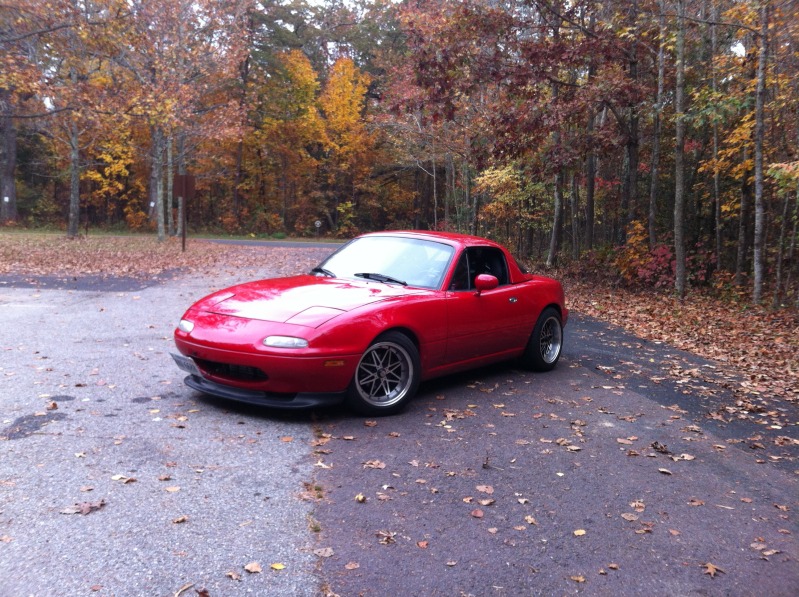

Few pics I took today of the Miata when I was out dialing it in:





Mike
Attached Thumbnails
MSPNP1 virgin chiming in...-img_5364.jpg   MSPNP1 virgin chiming in...-img_5360.jpg   MSPNP1 virgin chiming in...-img_5365.jpg   MSPNP1 virgin chiming in...-img_5361.jpg
Mikelly is offline   Reply With Quote
Old 10-26-2012, 04:43 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

elaborate on surging
Braineack is offline   Reply With Quote
