Default MSPNP2 1.6 - Making a harness for BMW VTPS

My car is a 1.6 and does not come with a VTP. I'm using the 6 pin connector found on older automatic bmw cars. For those of you who are using the same tps what did you use to make a harness with pin connectors? (Not how to wire it, but what to use for the pin connection) I do not have the pig tails from the factory connector, just the sensor itself.
Attached Thumbnails

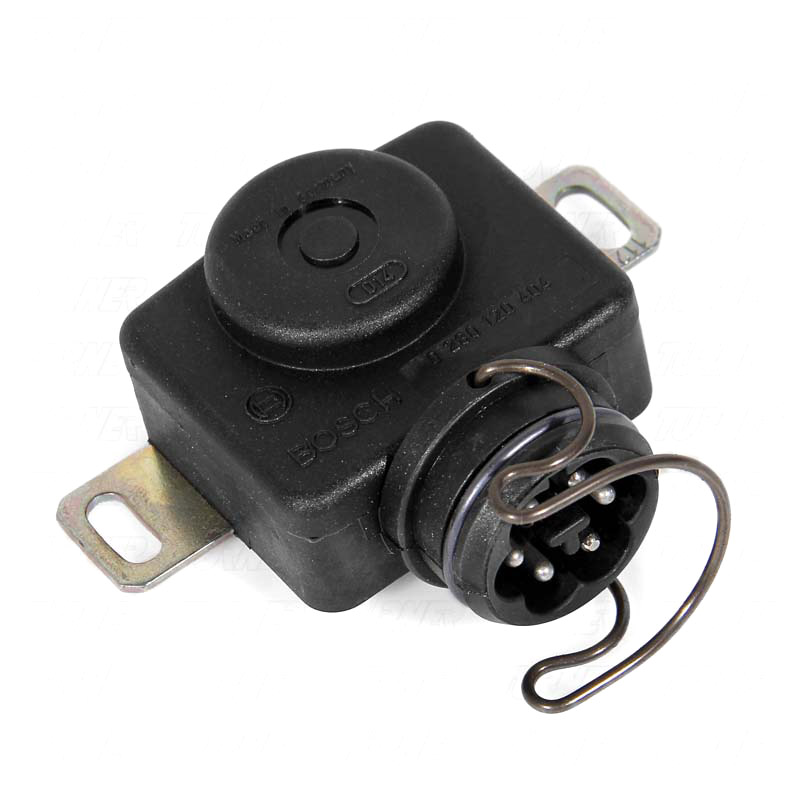

MSPNP2 1.6 - Making a harness for BMW VTPS-e34-m5-tps-13541710560-1.jpg
Iamwill is offline   Reply With Quote
Old 04-23-2015, 09:24 PM   #2
Newb
Thread Starter

Join Date: Mar 2015
Posts: 8
Total Cats: 0
Default

Help : (
Iamwill is offline   Reply With Quote
Old 04-23-2015, 11:27 PM   #3
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

cut back as much as you can of the connector guide (where the o-ring is) to expose the metal contact. Solder on your new wires. Be sure to pre-tin both the wire and the sensor pins. Pull test to make sure you have a good connection. Use heat shrink to insulate your wires from each other. Pot the connector area with an epoxy or similar to strain relief the connector and help waterproof it some.
cyotani is offline   Reply With Quote
Old 04-24-2015, 08:37 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I prefer to use a TPS that doesn't require hacking the oe harness.
Braineack is offline   Reply With Quote
Old 04-24-2015, 11:18 AM   #5
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by Braineack View Post
I prefer to use a TPS that doesn't require hacking the oe harness.
Two options to solve this.

1. Splice in new leads and retain your original TPS connector to go back to stock easily (still hacked harness tho)

2. Remove the connector and leads from the stock 1.6 tps and solder those to the appropriate leads of the new vtps and retain a stock harness (adapter connector method)


I'm sure you already knew this Braineack, just letting the OP know.
cyotani is offline   Reply With Quote
Old 04-24-2015, 11:32 AM   #6
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Boy, that took a whole 2 seconds of googling to find. With that kind of time involved in a project, I can see why you didn't do the searching yourself! It's only 7:30am and I'm already wiped out from all the googling. My fingers are bleeding. My vision is blurry. Not sure I'll even make it to noon before dying. Death by googling.

Step by step adding a BMW Bosch TPS to my 93 - MX-5 Miata Forum
curly is offline   Reply With Quote
Old 04-24-2015, 11:34 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you could also make a really easy little adapter harness for it.

three wires wach with a flat spade on one end and a bullet on the other.

press the spade into the OEM connector and fit the bullet over the BMW pin.
Braineack is offline   Reply With Quote
Old 04-24-2015, 07:18 PM   #8
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Quote:
Originally Posted by Braineack View Post
you could also make a really easy little adapter harness for it.

three wires wach with a flat spade on one end and a bullet on the other.

press the spade into the OEM connector and fit the bullet over the BMW pin.
^This
Or solder on the tps and flat spades on the other end. So many possibilities, It's up to you to choose how you want it.
