Default My car is RUNNING but I need more HELP!!

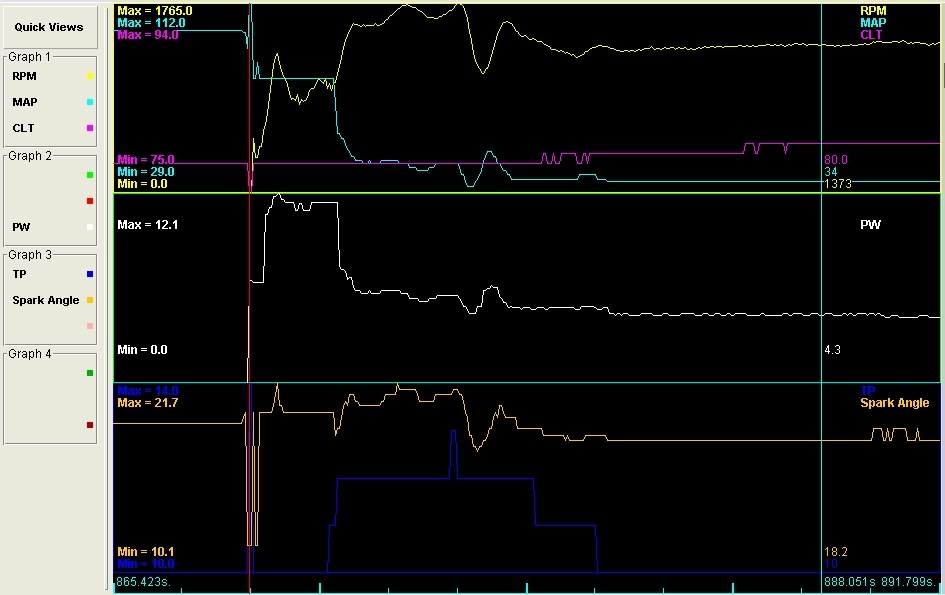

I replaced the coils on my car tonight and got it running, but not very well. I have not set the timing again but the car seems to have got hot really fast. My manifold was smoking in like 20 seconds. check out this startup log and let me know if anything is out of the ordinary please.

Name:  startup3log.jpg
Views: 2
Size:  60.6 KB
kylelind is offline   Reply With Quote
Old 09-25-2007, 12:32 AM   #2
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

I also have no filter on the little idle inlet tube....I assumed that was ok where the air is clean in my garage??
kylelind is offline   Reply With Quote
Old 09-25-2007, 12:49 AM   #3
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

your coolant temp only reaches 94 degrees in that log, that's not very hot. the exhaust mani should get hot enough to burn off oil and grease within a few seconds of it starting
paul is offline   Reply With Quote
Old 09-25-2007, 12:52 AM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

here's a question for you though. how is your MAP at 112 kpa at idle?
paul is offline   Reply With Quote
Old 09-25-2007, 12:55 AM   #5
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

his clt is probly in celsius.
neogenesis2004 is offline   Reply With Quote
Old 09-25-2007, 01:09 AM   #6
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

The map was at 34 at idle....where the search bar is.....and what is clt, what should it be (C or F) and where do I change it?
kylelind is offline   Reply With Quote
Old 09-25-2007, 01:10 AM   #7
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

adjust your timing and go from there
Mach929 is offline   Reply With Quote
Old 09-25-2007, 01:12 AM   #8
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

clt I assume is coolant temp....yep, I will adjust the timing right now..
kylelind is offline   Reply With Quote
Old 09-25-2007, 01:14 AM   #9
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

How do I change the wideband O2 sensor voltage range in megatune. I know how to do it in the LC-1 but not for the computer. I want 0v=10:1 5v=20:1...
kylelind is offline   Reply With Quote
Old 09-25-2007, 01:31 AM   #10
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by neogenesis2004 View Post
his clt is probly in celsius.
so his coolant temp was 167 F at first start?

and rose to 201 F?

Quote:
Originally Posted by kylelind View Post
The map was at 34 at idle....where the search bar is.....and what is clt, what should it be (C or F) and where do I change it?
so this is part of a log you did while driving?
paul is offline   Reply With Quote
Old 09-25-2007, 02:58 AM   #11
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

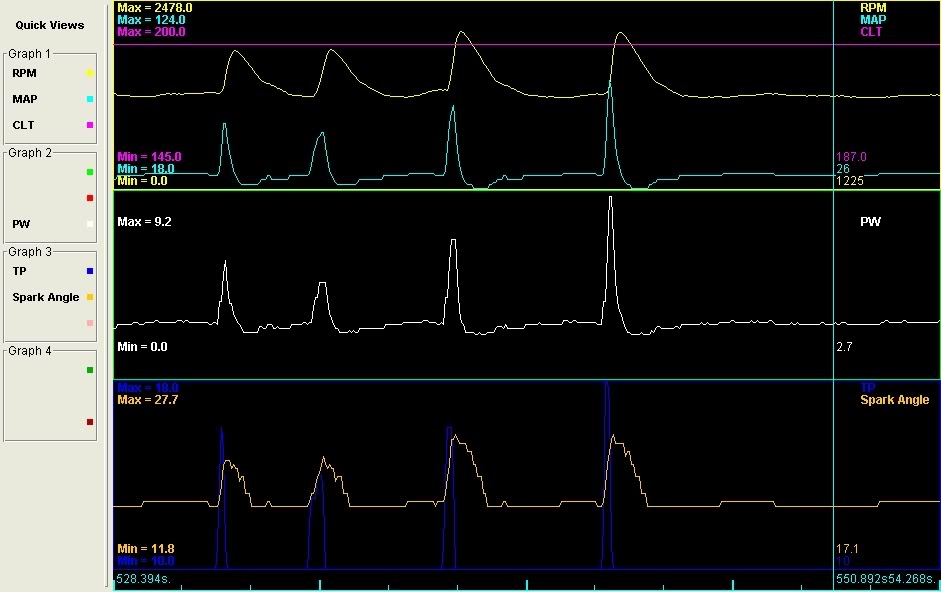

here is another log of it running with the timing corrected and warmed up. I was blipping the throttle. Everything look ok to ya'll?? Thanks for the help.


Name:  runninglog.jpg
Views: 2
Size:  62.1 KB

Last edited by Braineack; 09-25-2007 at 09:19 AM.
kylelind is offline   Reply With Quote
Old 09-25-2007, 03:00 AM   #12
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

no the car has not been driven yet.....and why would my clt be displayed here as deg C but as deg F on megatune dispay...I think?
kylelind is offline   Reply With Quote
Old 09-25-2007, 10:33 AM   #13
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

So your motor coolant started at 140 degrees on the last one? You need to reference the AIT to the CLT on the initial power up you have something causing irregular readings hell my **** is more consistant than that
magnamx-5 is offline   Reply With Quote
Old 09-25-2007, 10:42 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

how long was it idling? it should be at 200-210 once fully warm. change the temp the fans come on at to 180 and see what that does to your readings
Braineack is offline   Reply With Quote
Old 09-25-2007, 11:34 AM   #15
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

It had been idling for about 5-6 minutes.......and there are no fans on yet, they go on today. I turned the car off when it was running at 187 deg, and that must be F not C. All of my temps seem good at startup?? I will pay closer attention.

How can I make it log the IAT sensor??
kylelind is offline   Reply With Quote
Old 09-25-2007, 11:39 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

click the empyt spaces on the side with the rest and add the option. its all logged, you just arent displaying it.
Braineack is offline   Reply With Quote
Old 09-25-2007, 11:40 AM   #17
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Thanks.
kylelind is offline   Reply With Quote
Old 09-25-2007, 11:44 AM   #18
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Are there any other tips or tricks besides the MSPNP manual that I should know about before diving in?? I am going to install the 440 low imp. injectors tonight and try to tune it for about 200-210whp. Any input would be great because I am worried to mess it up after frying my coils on saturday.
kylelind is offline   Reply With Quote
Old 09-25-2007, 05:07 PM   #19
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

My car smoked like a chimney on the first startup. It's just the oils from your hands and all the manufacturing stuff burning off. Nothing to worry about, and it should go away completely after a mile or so.

Kyle, send me an email and I will shoot you a copy of my spark map. It should get you into the ballpark for your setup.
Savington is offline   Reply With Quote
Old 09-25-2007, 06:42 PM   #20
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

nice, thanks Sav...
