Old 12-25-2007, 07:22 PM   #21
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: orlando, FL
Posts: 558
Total Cats: 0
Default

if you run straight stock ECU, a MAF is needed or ur car will start up and die
XxGoKoUxX is offline   Reply With Quote
Old 12-26-2007, 12:48 PM   #22
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Ok, I think I finally found the culprits!

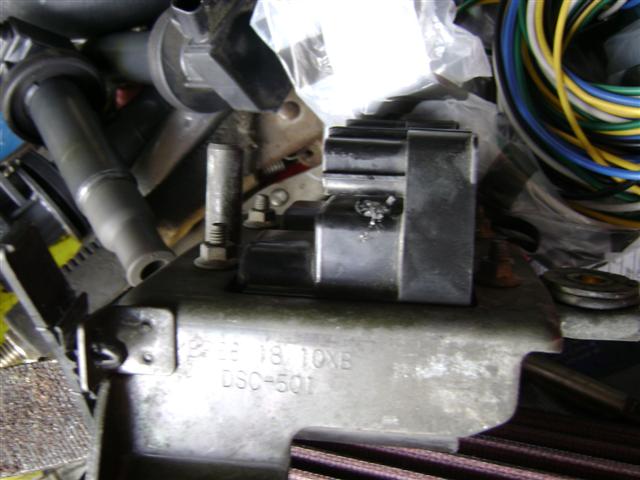

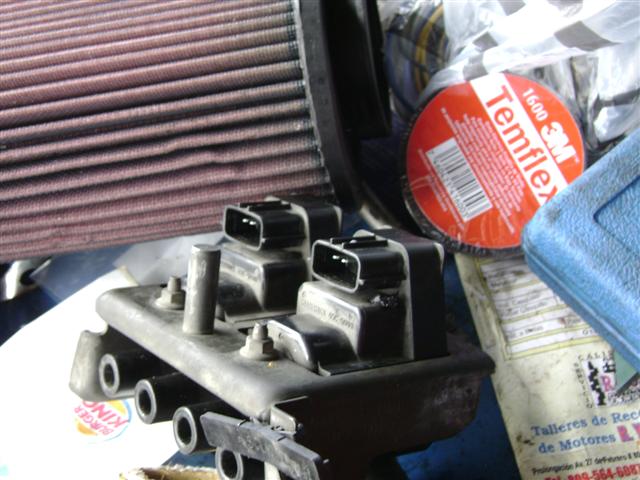

Thanks guys. Braineack, on to installing the cops. My car's coils only have 3 pins. Is this correct? I'll upload a pic
Attached Thumbnails
Is my car's ECU fried?-dsc00248-small-.jpg   Is my car's ECU fried?-dsc00261-small-.jpg

Last edited by Rafa; 12-26-2007 at 12:59 PM.
Rafa is offline   Reply With Quote
Old 12-26-2007, 12:56 PM   #23
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

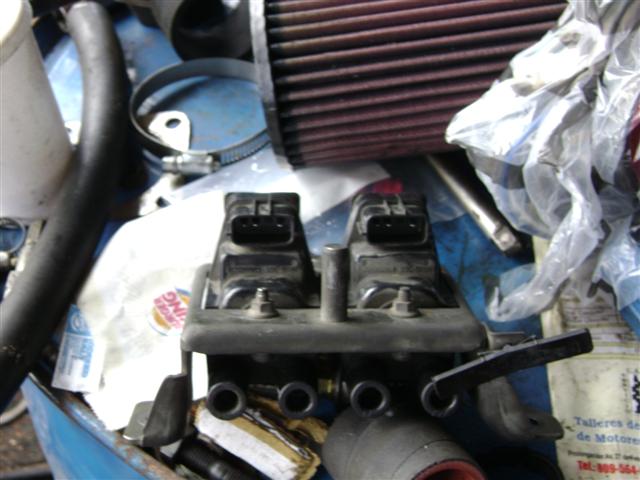

My coil plugs have 3 pins only. I think that is correct but I want to be sure. Pics
Attached Thumbnails
Is my car's ECU fried?-dsc00247-small-.jpg
Rafa is offline   Reply With Quote
Old 12-26-2007, 12:59 PM   #24
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

yeah, your ecu doesn't get the tach signal from the coils.

if you look at the connectors, 4 should be the same color. black and black/white. ground and 12v.

then you'll have one yellow/brown and one brown, the triggers.
Braineack is offline   Reply With Quote
Old 12-26-2007, 01:05 PM   #25
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
yeah, your ecu doesn't get the tach signal from the coils.

if you look at the connectors, 4 should be the same color. black and black/white. ground and 12v.

then you'll have one yellow/brown and one brown, the triggers.
Thanks man. One final question: when I checked your diagram in the Archives section I found 5 wires for my version of the 1.8L (96). The blue one goes to? (it shows 12v). Sorry, I don't want to blow this part. I bought 12 feet of each and I'm going to start with the harness right now.
Rafa is offline   Reply With Quote
Old 12-26-2007, 01:08 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

replace black/white with Blue.

you have two black and two blue, a brown and y/b

correct? 3 + 3 = 6
Braineack is offline   Reply With Quote
Old 12-26-2007, 01:09 PM   #27
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
replace black/white with Blue.

you have two black and two blue, a brown and y/b

correct?
Yes.
Rafa is offline   Reply With Quote
Old 12-26-2007, 01:12 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

i looked back at the diagrams. I'll have to redo Lazzer's a bit. the 94-95 is different, with the 5 inputs. (the 5th is the tach). the 96+ only has the 4 inputs (grnd, pwr, spark 1, spark 2) however the colors are different for the power (blue, and white/black)
Braineack is offline   Reply With Quote
Old 12-26-2007, 01:36 PM   #29
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
i looked back at the diagrams. I'll have to redo Lazzer's a bit. the 94-95 is different, with the 5 inputs. (the 5th is the tach). the 96+ only has the 4 inputs (grnd, pwr, spark 1, spark 2) however the colors are different for the power (blue, and white/black)

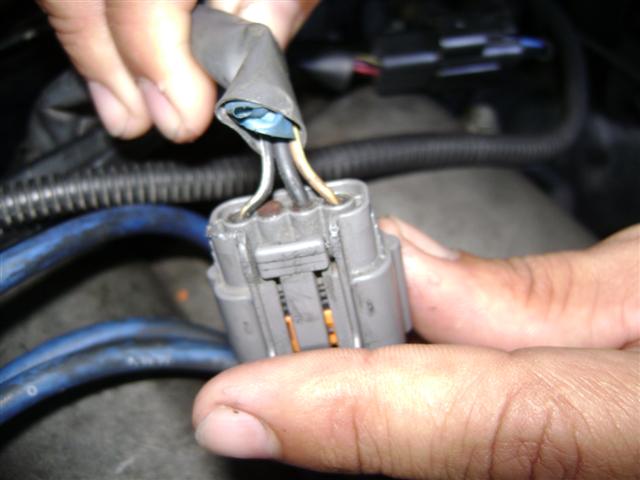

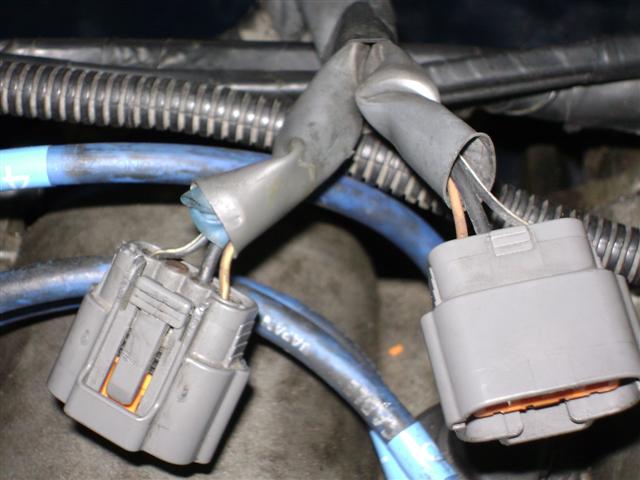

Now we're talking. Here are 2 pics.

Thanks,

Rafa
Attached Thumbnails
Is my car's ECU fried?-dsc00266-small-.jpg   Is my car's ECU fried?-dsc00262-small-.jpg
Rafa is offline   Reply With Quote
Old 12-26-2007, 01:37 PM   #30
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

I'm going to the shop. I'll connect from there.

Thanks,

Rafa
Rafa is offline   Reply With Quote
Old 12-26-2007, 01:44 PM   #31
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Scott, I'm taking a copy of Madraki's wiring diagram for 96 with me just in case.

Thanks man
Rafa is offline   Reply With Quote
Old 12-26-2007, 01:46 PM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

its easy enough.

black is ground. all four cops share that. easy.

black/white is power. all four cops share that. easy

brown is a trigger. 1 and 4 share. easy.

yellow/brn is another trigger. 2 and 3 share. easy.


i'm pretty sure you can handle it without any diagrams what-so-ever.
Braineack is offline   Reply With Quote
Old 12-26-2007, 03:04 PM   #33
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
its easy enough.

black is ground. all four cops share that. easy.

black/white is power. all four cops share that. easy

brown is a trigger. 1 and 4 share. easy.

yellow/brn is another trigger. 2 and 3 share. easy.


i'm pretty sure you can handle it without any diagrams what-so-ever.
Got it. Now it makes sense.
Rafa is offline   Reply With Quote
Old 12-26-2007, 06:21 PM   #34
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

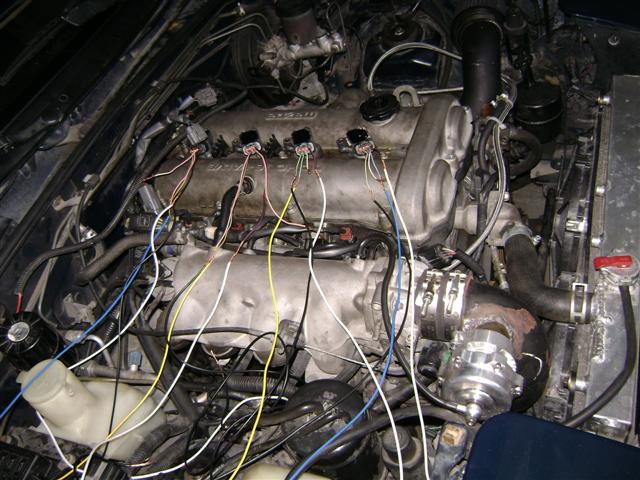

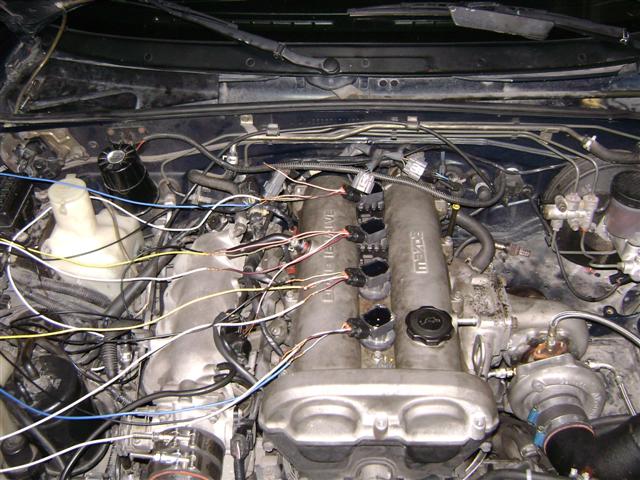

Halfway there.
Attached Thumbnails
Is my car's ECU fried?-dsc00274-small-.jpg   Is my car's ECU fried?-dsc00276-small-.jpg
Rafa is offline   Reply With Quote
Old 12-26-2007, 06:45 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

halfway to mexico!
Braineack is offline   Reply With Quote
Old 12-26-2007, 06:56 PM   #36
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
halfway to mexico!
I guess I'm dense. I hope you don't mean that I blew it.

As per your instructions:

1.- Black - Ground to all coils
2.- White - power to all coils
3.- Blue - Trigger to 1 & 4
4.- Yellow - Trigger to 2 & 3

Tomorrow morning; extensive use of black electrical tape to make my harness (we don't have that fancy black wraparound cover you guys have:gay. Cut original coil plugs and tie:

Black with black
Black/white with White
Blue with brown and yellow with brown/yellow.

About the color of the wires; that's is what we get locally.

If I'm wrong I better get that info tonight.

p.s. I forgot; we're going to solder them also.
Rafa is offline   Reply With Quote
Old 12-26-2007, 08:32 PM   #37
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks good to me. Just get 'r dun.
cjernigan is offline   Reply With Quote
Old 12-26-2007, 08:44 PM   #38
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Looks good to me. Just get 'r dun.
Hey Chad, everything going well? you think I don't want to? That wiring was my first wiring job ever! I've already contacted a close friend with an electronics background and he's coming tomorrow morning to tidy up this thing, solder and cover the wires. Braineack just scared the hell out of me with his Mexico remark.

BTW, I got the db9 to usb cable with the adapter so I'll try to fire the car up from my own laptop tomorrow (crossing fingers).

Thanks,

Rafa
Rafa is offline   Reply With Quote
Old 12-26-2007, 08:47 PM   #39
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Sounds like a plan. Should work out great for you. Just make sure to use that folder i sent you. I strongly suggest removing your other megatune files and just using the one i made available for you. That way everything is setup right and you won't have any conflicting issues.
cjernigan is offline   Reply With Quote
Old 12-26-2007, 08:58 PM   #40
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Sounds like a plan. Should work out great for you. Just make sure to use that folder i sent you. I strongly suggest removing your other megatune files and just using the one i made available for you. That way everything is setup right and you won't have any conflicting issues.
I'm leaving all that up to Manny

I don't want any more issues.
Rafa is offline   Reply With Quote
