Default NA CAS Issues

All of a sudden I am getting problems with reading the correct signal from my CAS. My car started Sunday and now it will not.

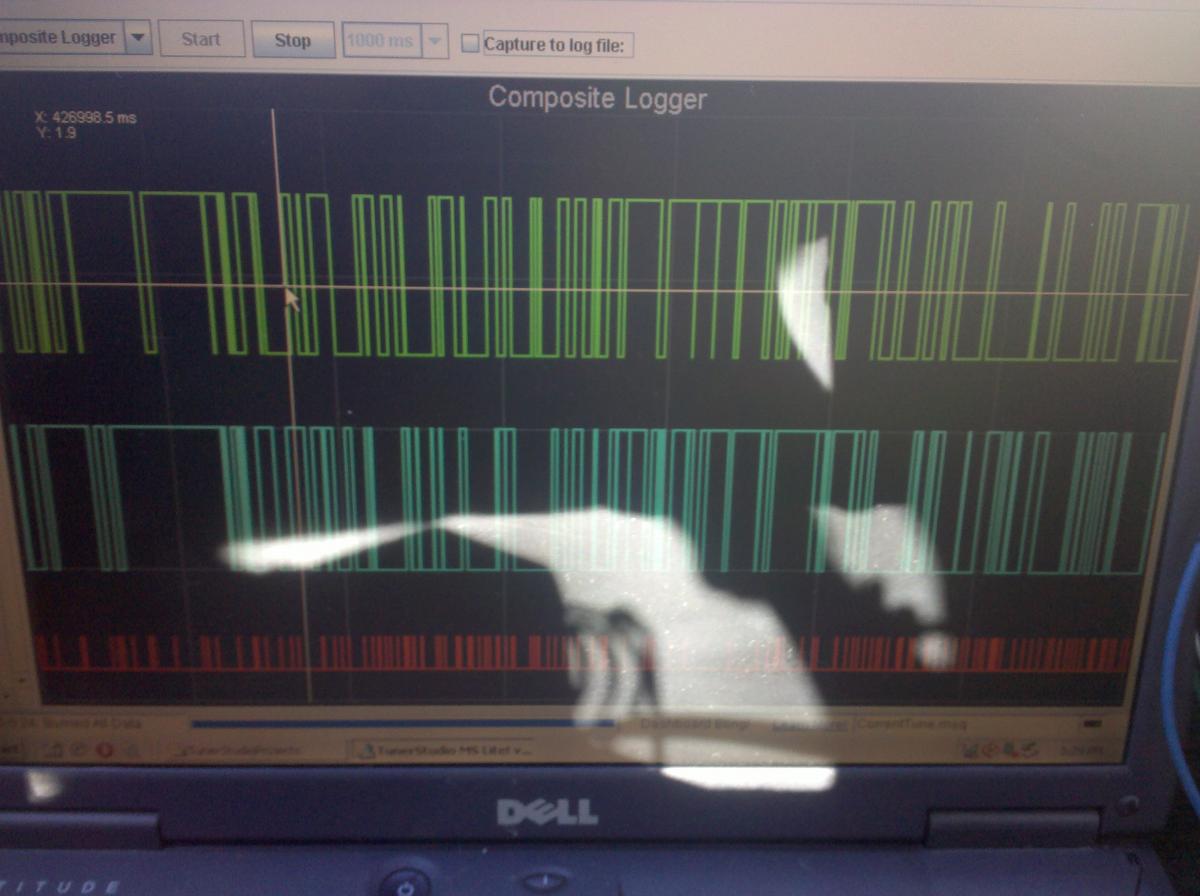

That is a picture of what the composite logger was picking up while trying to crank. So far I have check that I get continuity on my 2 CAS wires going from my DB37 to the Molex connector that plugs into my stock harness. I will check and make sure there is continuity between the CAS plug and the other end of my harness tomorrow. I am more interested in what I should be looking at on my actual MS board circuit wise and testing to see if I fucked something up on there.
shuiend is offline   Reply With Quote
Old 11-10-2010, 02:23 AM   #2
Senior Member
iTrader: (14)
Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,403
Total Cats: 261

Check the wires next to the connector. In the past, I had issues with a sensor with an intermittent signal. The wire broke in the plastic cover.
99mx5 is offline   Reply With Quote
