jdm-binnzie

hi guys.

first of the spec of the car.

1991 Eunos
1.6
Stock injectors
AFM still in place.
DIYPNP ECU
stock lambda

so built the ECU followed the guide on DIYAUTOtune

I downloaded the latest firmware of the DIYAutotune website and a baseman from the link they have on there.

however all that happens is it cranks but won't start.

I can smell the fuel and hear the clicking of the plugs but it just won't fire.. occasionally will splutter.

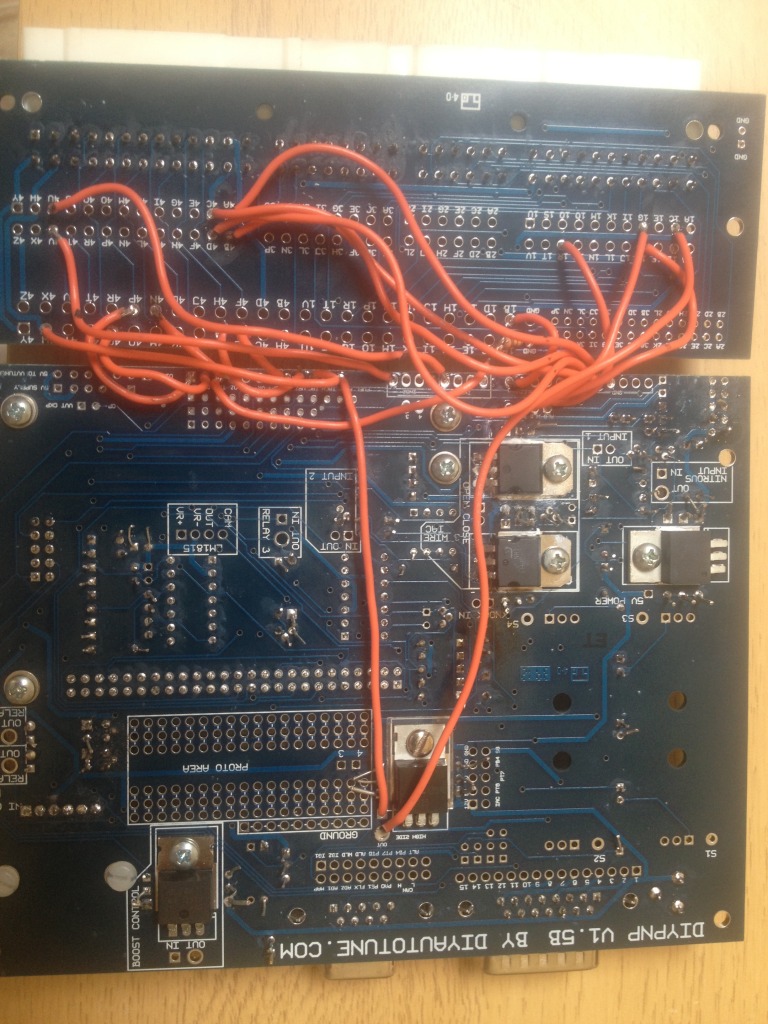

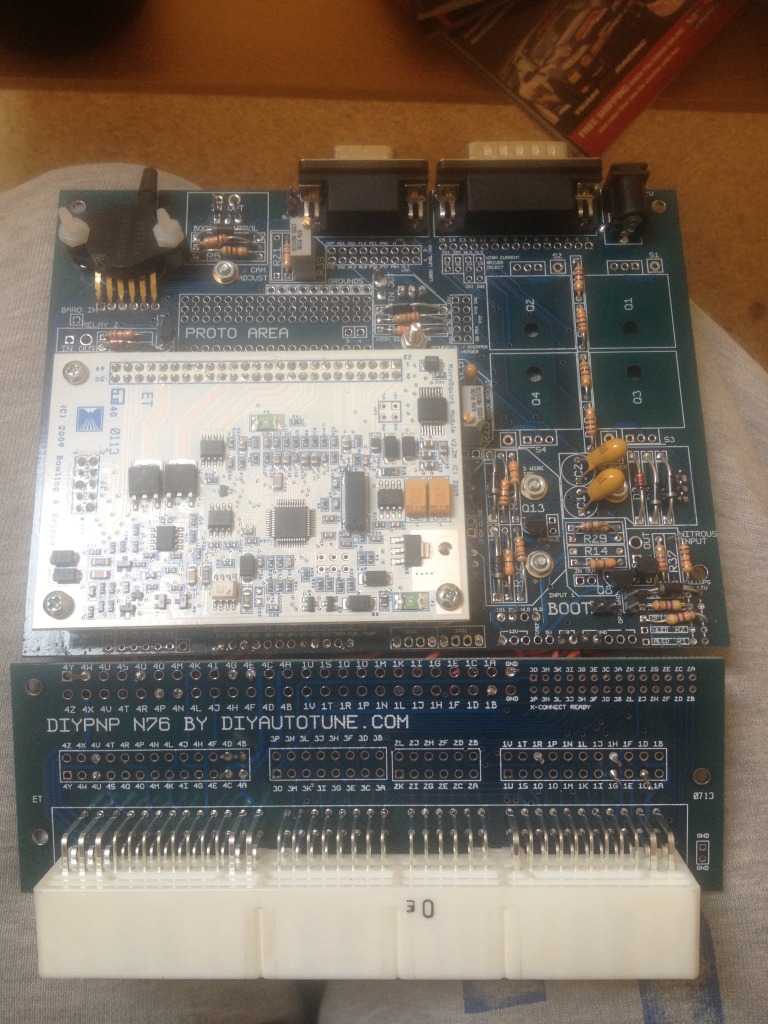

below are pictures of my ECU, wonder if anyone can spot something incorrect.

I have set the timing to 10 degrees on the pulley too

jdm-binnzie

ok so just checked the plugs and getting no spark but still fuelling.

jdm-binnzie

Ok found the issues... The diodes were the wrong way round.

Engine now starts but runs really rough.

Sounds like its misfiring and it's over fueling massively.

817D2C60-CBD6-411C-B513-E571464955A8-4827-000003FF052F71CF_zpsfd5b5207.mp4

Zaphod

You did re-attach the map-hose, did you?

Post a log.

jdm-binnzie

Yeh put the map hose on.

Ill get a log this evening when I get home

ScottyP3821

iTrader: (2)

When you updated the firmware did you unplug the coil? If not it can fry your coil and that may be your problem.

southernmx5

iTrader: (1)

The diy base map has cranking rpm set too low which can cause the MS to enter ASE while cranking. Try increasing the value from 200 rpm to 300-350 rpm.
