Default need starting log

Trying to get my car starting faster, but haven't much luck. Anyone with a good starting car that has a log I can look at? Mine goes vey rich just after starting but no matter what I do with cranking makes it start worse. Lowered ASE but when I take out too much it starts running rough after driving away.
Notice how long it takes before it starts injecting fuel after hitting the key btw, 1.1 second.


Last edited by WestfieldMX5; 04-13-2011 at 09:36 AM.
WestfieldMX5 is offline   Reply With Quote
Old 04-13-2011, 08:54 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

My dad's stock ECU powered MX5 doesn't start any quicker than 1 second.

Note that from your log a good 1/4 of that second is the engine actually syncing, (see the battery voltages drop yet no RPM reading.
richyvrlimited is offline   Reply With Quote
Old 04-13-2011, 09:38 AM   #3
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

It syncs after 0.5s and starts injecting fuel after 1.1s, it didn't start yet at that point.
The richness after starting makes me think I have too much cranking fuel, and I'd like to get rid of it. Or is that normal behavior?
WestfieldMX5 is offline   Reply With Quote
Old 04-13-2011, 12:21 PM   #4
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The first few injector pulses have a huge effect on ease of starting.
JasonC SBB is offline   Reply With Quote
Old 04-13-2011, 02:45 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

I just logged mine at lunch.

I logged .808 sec. That was from the moment the MAP dropped from 100Kpa to the moment the motor caught.

The second time I logged 1.09 sec. using my manual marks as reference points, so factor in my delay.

I wouldn't see any way to improve that.
Braineack is online now   Reply With Quote
Old 04-13-2011, 02:54 PM   #6
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

but does it go rich like that, just after starting, that's what i'm wondering about if it's normal or not.
WestfieldMX5 is offline   Reply With Quote
Old 04-13-2011, 03:09 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

My voltage drops too low when cranking so my LC-1 never logs.
Braineack is online now   Reply With Quote
Old 04-14-2011, 03:04 AM   #8
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Starting seems to be way better this year with the new 3.1.1 code...

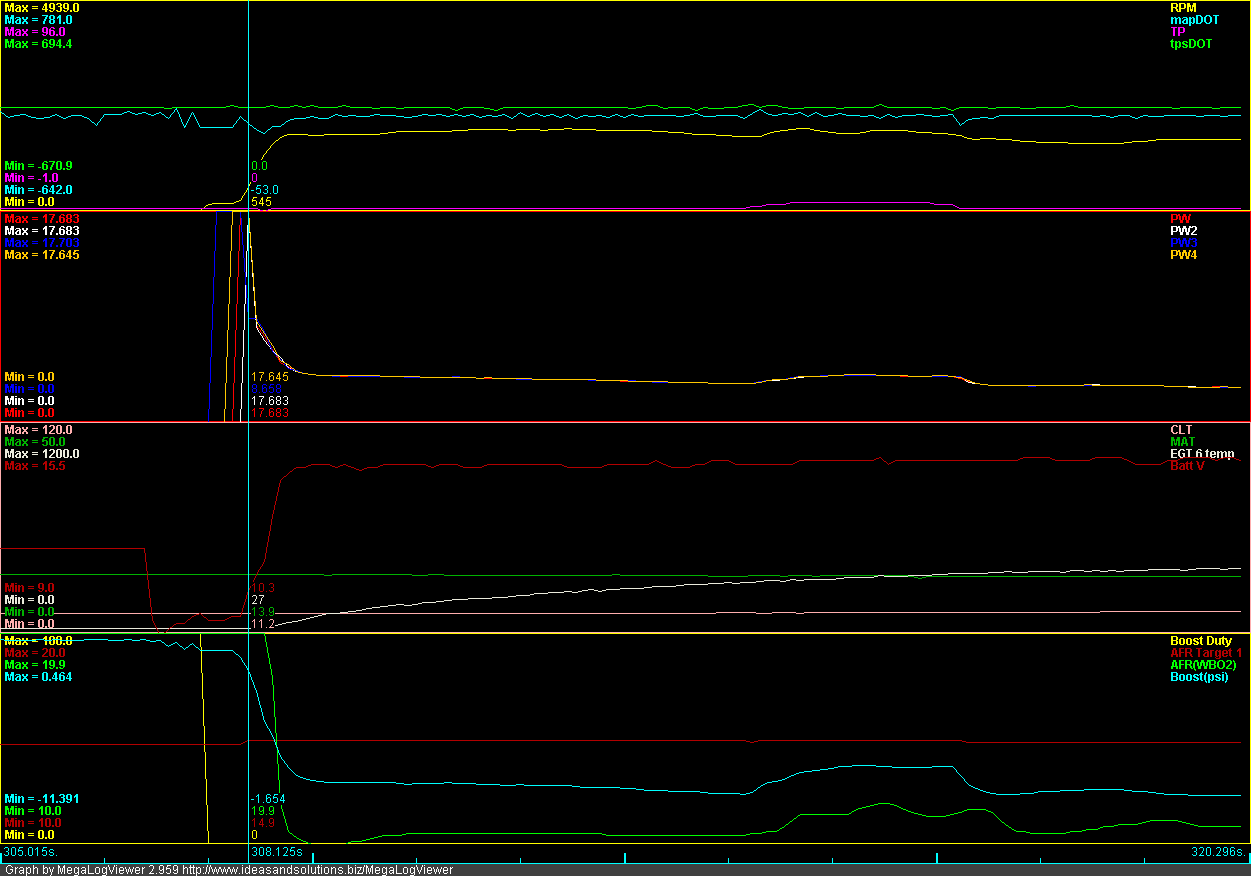

I have a quite nice log:



As you can see, the AFR drops very low after the start (~10), but that doesn't seem to be so wrong, as the outside temps were ~11C (51.8F) so the warmup enrichment and the ASE together could make it run so rich...

I took the time in MLV from "crank" lighting up to go out and the time was .579 s.

I think I had more problems and it to longer to start with the old code...

Greets
Zaphod is offline   Reply With Quote
Old 04-14-2011, 05:13 AM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

I do hate how long it take the MS to sync when starting. That's a big part of the slightly longer than OEM startup times, shame that you can't have 'batch injection' for startup, without needing to wait for the cam signal would speedup sync a lot I'd have thought?

Suppose it helps build oil pressure though?
richyvrlimited is offline   Reply With Quote
Old 04-14-2011, 11:53 AM   #10
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by richyvrlimited View Post
I do hate how long it take the MS to sync when starting. That's a big part of the slightly longer than OEM startup times, shame that you can't have 'batch injection' for startup, without needing to wait for the cam signal would speedup sync a lot I'd have thought?

Suppose it helps build oil pressure though?
Huh? It normally does do batch injection on startup, but can't fire the plugs until the cam signal comes in on a Miata.
Matt Cramer is offline   Reply With Quote
Old 04-14-2011, 02:08 PM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by Matt Cramer View Post
Huh? It normally does do batch injection on startup, but can't fire the plugs until the cam signal comes in on a Miata.
No, it doesn't if you run sequential.
Reverant is offline   Reply With Quote
Old 04-14-2011, 05:28 PM   #12
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

thx Sven, looks similar to mine. Voltage drop to about 9V and briefly rich after startup. Guess that's normal. It does seem to sync / start quicker as Crank Y to N takes 1.000 second on mine.
Can I have a look at your starting settings? crank, prime etc
I'm on 3.1.0, did anything change to make it start quicker?

PS, your Vbatt seems a bit high (15.5V) unless it's not calibrated in MT.
WestfieldMX5 is offline   Reply With Quote
Old 04-15-2011, 03:33 AM   #13
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Hi Frank, I send you my MSQ via Mail...

My battery voltage is not calibrated... (How would I do this - where to measure and what values to use?)
Zaphod is offline   Reply With Quote
Old 04-15-2011, 04:34 AM   #14
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Matt Cramer View Post
Huh? It normally does do batch injection on startup, but can't fire the plugs until the cam signal comes in on a Miata.
The log above from Zaphod begs to differ (look at the individual PW traces).
richyvrlimited is offline   Reply With Quote
Old 04-15-2011, 05:15 AM   #15
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I have verified this time and time again on the stim - the cranking pulses are sequential if you have setup the ECU for full sequential with additional drivers. There was a thread about it on msextra, IIRC Jean said it was difficult to switch to sequential after batch.
Reverant is offline   Reply With Quote
Old 04-15-2011, 09:12 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

This was how I understood it too, only a few triggers wheel can do batch on cranking.
Braineack is online now   Reply With Quote
Old 04-15-2011, 10:09 AM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

The OEM ECU manages it....
richyvrlimited is offline   Reply With Quote
Old 04-15-2011, 11:33 AM   #18
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

it's not really slow starting in sequential. I checked a recent log and the "crank" indicator was lit for about .6 seconds before it fired up.

Log
http://y8spec.com/megasquirt/vvt_tes...8_18.35.37.msl
map
http://y8spec.com/megasquirt/vvt_tes...8_09.32.59.msq
y8s is offline   Reply With Quote
Old 04-15-2011, 12:23 PM   #19
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Sorry, I was thinking of the way the injector staging worked in batch fire (it would change the number of squirts from cranking to running).
Matt Cramer is offline   Reply With Quote
Old 04-27-2011, 12:56 PM   #20
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Sven, you can adjust batt voltage through Tools - Calibrate battery voltage.
What is your cranking rpm in that log?
Didn't get the msq, could you try again?
WestfieldMX5 is offline   Reply With Quote
