Default No AC after fw 3.3.1a (?)

Hey,

I noticed that my AC does not work, I went to the AC shop today and they said it is an electric problem (no DC to the compressor).
Before I let them dig in, could it be the new fw I use 3.3.1a is responsible ?

Thank you
Elior
elior77 is offline   Reply With Quote
Old 01-07-2014, 05:12 AM   #2
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 199
Default

Which firmware were you on before that?
Reverant is online now   Reply With Quote
Old 01-07-2014, 07:28 AM   #3
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

pre3.3 beta 13
elior77 is offline   Reply With Quote
Old 01-08-2014, 09:25 AM   #4
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

?
elior77 is offline   Reply With Quote
Old 01-08-2014, 10:22 AM   #5
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

How is your A/C control wired up?
Matt Cramer is offline   Reply With Quote
Old 01-08-2014, 10:29 AM   #6
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Input 1 OUT to PE1
ALED to 1B, 1G

Worked great on 3.3 beta13
elior77 is offline   Reply With Quote
Old 01-09-2014, 10:17 AM   #7
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Do you have PE1 set up for your A/C input in the software? Can you post an MSQ?
Matt Cramer is offline   Reply With Quote
Old 01-09-2014, 10:22 AM   #8
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Attached Thumbnails

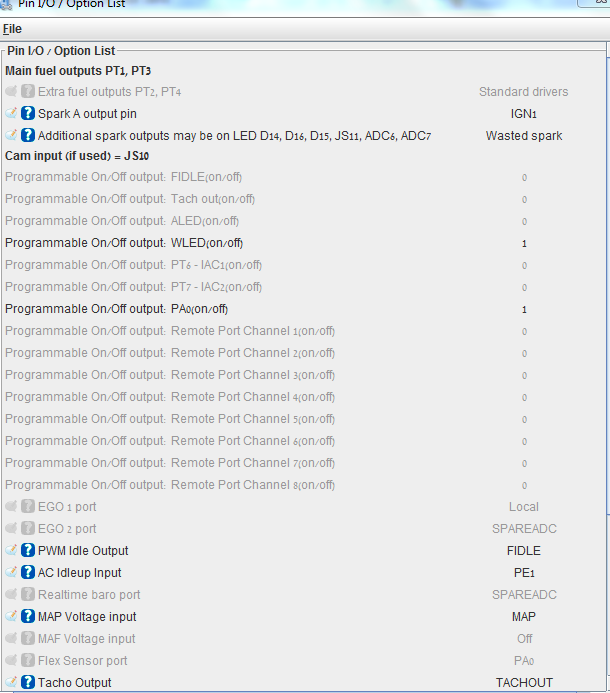

No AC after fw 3.3.1a (?)-v35h.png
Attached Files
File Type: msq CurrentTune.msq (108.5 KB, 54 views)
elior77 is offline   Reply With Quote
Old 01-12-2014, 08:32 AM   #9
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

What do you think ?
elior77 is offline   Reply With Quote
Old 01-15-2014, 10:29 AM   #10
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

What is commanding ALED to turn on?
Matt Cramer is offline   Reply With Quote
Old 01-15-2014, 10:36 AM   #11
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

It used to work on all previous fw I used

Attached Thumbnails
No AC after fw 3.3.1a (?)-capture.png
elior77 is offline   Reply With Quote
Old 01-15-2014, 11:07 AM   #12
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

You need to check your Outport Settings. Im pretty sure you dont have ALED set up correctly.
ScottyP3821 is offline   Reply With Quote
Old 01-15-2014, 11:28 AM   #13
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

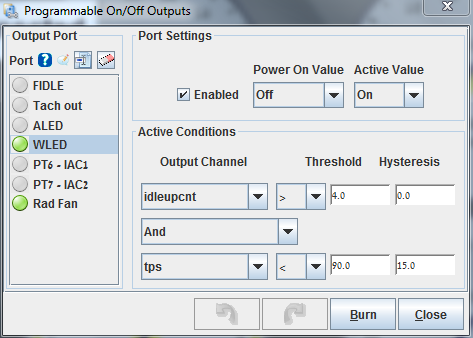

it is WLED not ALED

Attached Thumbnails
No AC after fw 3.3.1a (?)-capture.png
elior77 is offline   Reply With Quote
Old 01-15-2014, 11:29 AM   #14
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by elior77 View Post
Input 1 OUT to PE1
ALED to 1B, 1G

Worked great on 3.3 beta13
So you meant WLED here just to be clear?
ScottyP3821 is offline   Reply With Quote
Old 01-15-2014, 11:29 AM   #15
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

yes, sorry.
elior77 is offline   Reply With Quote
Old 01-15-2014, 11:40 AM   #16
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

What is being used for PA0? You may want to try switching to something like this

1Q> Input1 IN
Input 1 OUT> PE1
PA0>Relay 1 IN
Relay 1 Out> 1j&4s
ScottyP3821 is offline   Reply With Quote
Old 01-15-2014, 12:18 PM   #17
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

Relay 1 Mainboard PA0 ConnectorBoard 1A Radiator Fan

I think I will put stock ecu in just to check if the ac problem is from the new fw or not...
elior77 is offline   Reply With Quote
Old 01-16-2014, 12:46 PM   #18
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 54
Total Cats: 0
Default

Interesting, in my thread just a few down I am having the same issue on my 00' on 3.3.1. If you figure it out first make sure and post up; likewise, I will let you know what I find.
aeathb is offline   Reply With Quote
Old 01-16-2014, 01:56 PM   #19
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 54
Total Cats: 0
Default

Not thread jacking, but since we have similar issues (exactly the same but opposite, my AC gets stuck on) I figure we can see what similarities we find. For me, I just found that my AC will not turn on, but once the car hits operating temperature, it is then stuck on. Disabling the PA0 circuit for me turns off the AC compressor; however, once I enable it, the compressor stays on regardless of which way the button is pressed on the dash. Likewise, once the compressor turns on (when PA0 is enabled), going back and disabling PA0 does nothing; the compressor remains on. I also found if I play with the thermoresistor values to lower the perceived CLT temp, I can turn my AC on or off. Because of this, I think it's safe to say we are having an ECU issue.

*edit* I found a solution that seems to work well for me. See the following: https://www.miataturbo.net/megasquir...2/#post1092765

Last edited by aeathb; 01-16-2014 at 09:13 PM.
aeathb is offline   Reply With Quote
Old 01-18-2014, 04:15 PM   #20
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

1K > Input1 IN > Input1 OUT > PE1

WLED > 1B&1G

This is how my ac is wired, I did this in order to use the ac idleup in beta13.
Worked great, now on 3.3.1a the ac does not turn on (with stock ecu it does)
elior77 is offline   Reply With Quote
