Default Noob spark table question

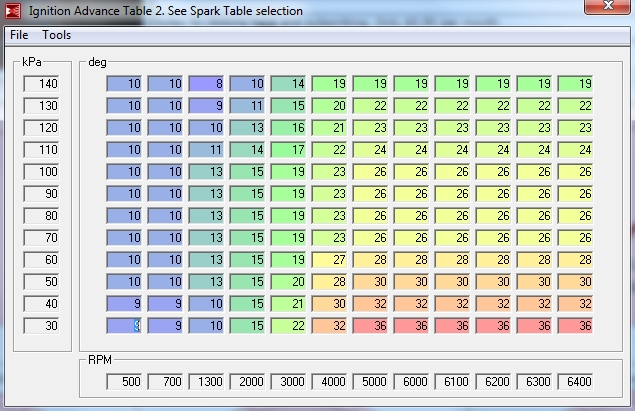

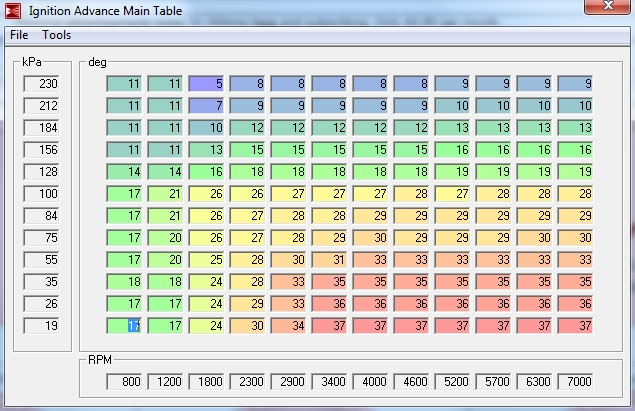

I found the first on Miata .net, while the second image is the first spark table in the default MSPNP map (w/AFM) and the third image, the second spark table. To me, the second spark table looks far more like a stock Miata table might look.

What am I missing?
Attached Thumbnails
Noob spark table question-spark3.jpg   Noob spark table question-spark1.jpg   Noob spark table question-spark2.jpg
jonljacobi is offline   Reply With Quote
Old 11-28-2010, 07:56 PM   #2
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 89
Total Cats: 0
Default

93' 1.6 that is.
jonljacobi is offline   Reply With Quote
Old 11-28-2010, 08:03 PM   #3
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by jonljacobi View Post
the second spark table. To me, the second spark table looks far more like a stock Miata table might look.

What am I missing?
it's scaled for boost, while the third table is scale for what looks like a mid to high altitude car
90R is offline   Reply With Quote
Old 11-28-2010, 09:22 PM   #4
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

Keep in mind that a naturally aspirated engine can only go up to 101.3kPa @ sea level, or whatever the atmospheric pressure is at your elevation, and from 0-100kPa the last two maps are relatively similar, with the middle one a little more aggressive and scaled for boost.

Idk why the last spark table only goes to 6400 rpm and has funky rpm intervals though.. where did you get it? It looks like it's for a supercharged v8.

Last edited by Cococarbine3; 11-28-2010 at 09:39 PM.
Cococarbine3 is offline   Reply With Quote
Old 11-28-2010, 11:33 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 89
Total Cats: 0
Default

It was the spark table 2 from the stock MSPNP map with the AFM. I guess it's not used, but I was wondering. Now why would they put a map in accounting for boost if they say it's for a stock Miata?
jonljacobi is offline   Reply With Quote
Old 11-28-2010, 11:52 PM   #6
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by jonljacobi View Post
It was the spark table 2 from the stock MSPNP map with the AFM. I guess it's not used, but I was wondering. Now why would they put a map in accounting for boost if they say it's for a stock Miata?
the explanation I was given is. If a turbo owner tries to run an NA map they risk engine failure. If an NA owner runs a turbo map they risk using a lower resolution table.
90R is offline   Reply With Quote
Old 11-29-2010, 12:52 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 89
Total Cats: 0
Default

I don't suppose they gave you a why on that? ;-)
jonljacobi is offline   Reply With Quote
Old 11-29-2010, 12:56 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

my map is very close to the attached OEM 1.6L WOT map.



The maps you posted are retarded to keep **** safe as a base.
Braineack is online now   Reply With Quote
Old 11-29-2010, 01:03 PM   #9
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
my map is very close to the attached OEM 1.6L WOT map.



The maps you posted are retarded to keep **** safe as a base.
my map looks like yours, just tops out at 105 kpa
90R is offline   Reply With Quote
Old 11-29-2010, 01:09 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

And if you look at the 100kPa row, it's very similar to the oem map, a little advance in lower RPMs and less advanced in upper rpms...but not by much.

I know DIYautotune found that, N/A, they make best power on the map they provide without risking too much advance. So around the lower 30s should suffice for most people...going more advance probably nets no extra power. They have the dyno, I don't.
Braineack is online now   Reply With Quote
Old 11-29-2010, 01:12 PM   #11
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 89
Total Cats: 0
Default

Quote:
Originally Posted by 90R View Post
the explanation I was given is. If a turbo owner tries to run an NA map they risk engine failure. If an NA owner runs a turbo map they risk using a lower resolution table.
Actually, are you talking about a a boosted car using a stock table? As in my Greddy? I was using a Bipes to pull timing, and if I were to use the second table, I'd pull timing as well once it hit boost along the lines of what the Bipes was doing.

However, since the second table actually goes up to about 5psi (if I'm not deluded) then it would work as well.

What I'm wondering is why the stock table goes all the way up to 230 kpa which is way, way more boost than I'm capable of. I guess I'm going to do my own which tops out with my own measly 5 psi.

A lot to learn, though it's beginning to make sense. One of these first days, there'll be one of these things that tunes itself without even having to attach laptop.

Need to go logging and maybe smooth out some of the rough spots. I'm pretty sure they didn't do this map in cold weather! ;-)
jonljacobi is offline   Reply With Quote
Old 11-29-2010, 01:18 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

You'll have to rework the entire map if you ever run more than 5psi. Just leave it scaled to 230kPa and tune within your window. There's no real loss of resolution since there isn't much change happening between rows/columns.
Braineack is online now   Reply With Quote
Old 11-29-2010, 02:42 PM   #13
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 89
Total Cats: 0
Default

Sounds like a better idea. Less work.
jonljacobi is offline   Reply With Quote
Old 11-29-2010, 04:44 PM   #14
Junior Member
Thread Starter

Join Date: Oct 2009
Posts: 89
Total Cats: 0
Default

One thing I still don't get. Why does the table from Miata.net say 10 BTDC at 800 rpm, and the MSPNP 17 BTDC. Is there some sort of offset that I'm not getting, or is there more info I'm lacking?
jonljacobi is offline   Reply With Quote
Old 11-29-2010, 04:50 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

When's the last time you saw your timing map hit 800RPM at 100kPa?
Braineack is online now   Reply With Quote
Old 11-29-2010, 04:57 PM   #16
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by jonljacobi View Post
One thing I still don't get. Why does the table from Miata.net say 10 BTDC at 800 rpm, and the MSPNP 17 BTDC. Is there some sort of offset that I'm not getting, or is there more info I'm lacking?
I believe the MS is counting the 10* base timing in the table. Is this right Brain?
90R is offline   Reply With Quote
Old 11-29-2010, 05:04 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

no. the basemap from diy idles at 17*. the stock miata doesn't always idle at 10*.

i idle at 12* without a/c and 17* with. whatever works.
Braineack is online now   Reply With Quote
Old 11-29-2010, 05:13 PM   #18
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
no. the basemap from diy idles at 17*. the stock miata doesn't always idle at 10*.

i idle at 12* without a/c and 17* with. whatever works.
would that be the same if you set the CAS to 0* instead of the 10* DIY says?
90R is offline   Reply With Quote
Old 11-29-2010, 05:16 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,887
Total Cats: 1,792
Default

no. you intially lock your timing at 10 when you install your MS to simply sync the CAS signal to the MS. it's an arbitrary number. You could set it to 0 or 20 and do the same.

on their map, they like to idle at 17, and thus is why that area is all 17. They also like to idle at 13.0:1.
Braineack is online now   Reply With Quote
Old 11-29-2010, 05:19 PM   #20
90R
Junior Member
iTrader: (4)

Join Date: Jul 2010
Posts: 278
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
no. you intially lock your timing at 10 when you install your MS to simply sync the CAS signal to the MS. it's an arbitrary number. You could set it to 0 or 20 and do the same.
the mud is clearing
