Default Opinions on these maps for my car

Was looking for opinions on these fuel and timing maps that I am running on my car. 96 Miata with stock 99 engine, S13 T25, MSPNP1, FM piping, 3" exhaust, and intercooler. Stock injectors for now, but will be getting larger ones prior to boosting.

Thanks,

Jason
Attached Thumbnails

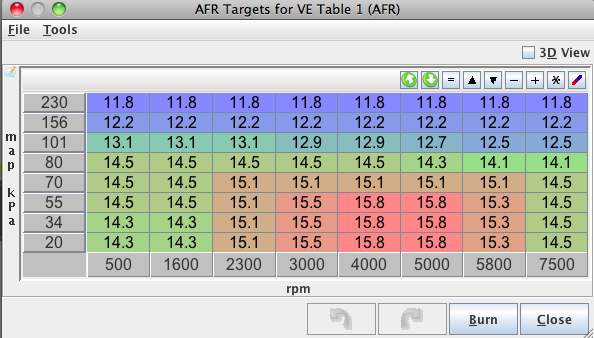

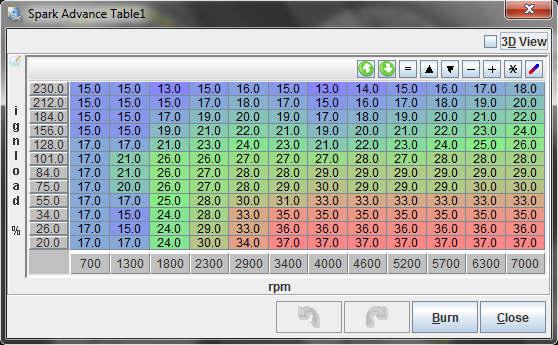

Opinions on these maps for my car-afr-targets.jpg   Opinions on these maps for my car-ign-map.png
jrmotorsports55 is offline   Reply With Quote
Old 08-13-2012, 07:43 AM   #2
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Anyone? Not looking to hear that these are the holy grail of maps, just that they look decent enough to run for a while before the car is ready for a dyno tune. Would also appreciate any reccomendations if you see any possible areas of improvement.

Thanks,

Jason
jrmotorsports55 is offline   Reply With Quote
Old 08-13-2012, 08:29 AM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Richen up above 100kPa. Timing looks almost ok, maybe back 1-2* above 100kPa until you have the fuel sorted out.
Reverant is offline   Reply With Quote
Old 08-13-2012, 09:46 PM   #4
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Made a few tweaks, thanks.

Jason
Attached Files
File Type: table fuel map.table (1.4 KB, 70 views)
File Type: table ign map.table (3.0 KB, 86 views)
jrmotorsports55 is offline   Reply With Quote
Old 08-13-2012, 11:16 PM   #5
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

It looks a lot like one of my old timing maps. I dialed it back a little at the 180kpa row and above because my OP gauge would start to flicker. I dialed back the timing and the gauge stopped flickering. Take it for what it's worth.

Remember.....Most on here make one huge assumption when tuning their car. The assumption is that they set their base timing correctly. 1-2 degrees off can be a world of difference.
miatauser884 is offline   Reply With Quote
Old 08-14-2012, 12:12 AM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

More spark advance for cruise, less spark angle everywhere else.
hustler is offline   Reply With Quote
Old 08-14-2012, 12:19 AM   #7
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Quote:
Originally Posted by hustler View Post
More spark advance for cruise, less spark angle everywhere else.
How much less would you run in the 55 to 100 kpa cells?
miatauser884 is offline   Reply With Quote
Old 08-15-2012, 08:52 PM   #8
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Quote:
Originally Posted by hustler View Post
More spark advance for cruise, less spark angle everywhere else.
Which spark map are you talking about, the one in the first post, or the one a few posts down? Just want to make sure.

Thanks,

Jason
jrmotorsports55 is offline   Reply With Quote
Old 09-02-2012, 03:24 PM   #9
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Made a few changes, please let me know what you think.

Thanks,

Jason
Attached Files
File Type: table afr.table (1.3 KB, 70 views)
File Type: table spark.table (2.9 KB, 69 views)
jrmotorsports55 is offline   Reply With Quote
Old 09-04-2012, 03:34 PM   #10
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Any opinions on the latest maps?
jrmotorsports55 is offline   Reply With Quote
