Default please check my ms2 harness

so ive just finished my ms2 harness following http://www.boostedmiata.com/gallery2...ne_harness.jpg i'm lefted with the purple wire which is suppose to go to the fuel pump?? anyone got pictures of where i can find the wire?
plus i havent got a wire for 1c [v] which is +12v for fuel pump relay do i need this wire?
also my miata is a 1990 aus delivered,but ive put a 1.8l (94) into it if i wire in the gray 5ref and blue tps, can i plug in the 1.8 throttle body??
since ive removed ac i ignored jumping 1q to 1j is this ok?
ive also ignored jumping 2y to 2u and 2z to 2v is this also ok?
this is my finished harness to seperate wire is the purple one
http://imageshack.us/photo/my-images/9/img0113bv.jpg/
thank you for your help!!
taocle is offline   Reply With Quote
Old 10-08-2012, 10:05 AM   #2
Newb
Thread Starter

Join Date: Jun 2012
Posts: 34
Total Cats: 0
Default

Sorry guys I've fallen victim of spoon feeding
https://www.miataturbo.net/megasquir...harness-66276/
For those after me
taocle is offline   Reply With Quote
Old 10-08-2012, 10:23 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,813
Total Cats: 1,780
Default

put the purple wire on 2O and jump it in the AFM connector to the Fuel Pump Relay.

You should also load gslender firmware and do a/c controls too, not just the jumper in the harness:

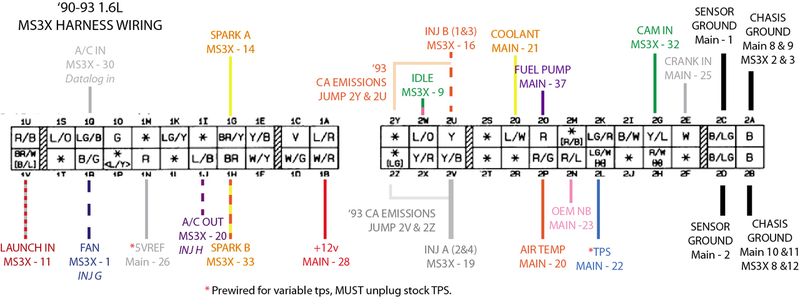

Attached Thumbnails
