Default PnP 01-05 MS3 + MS3X

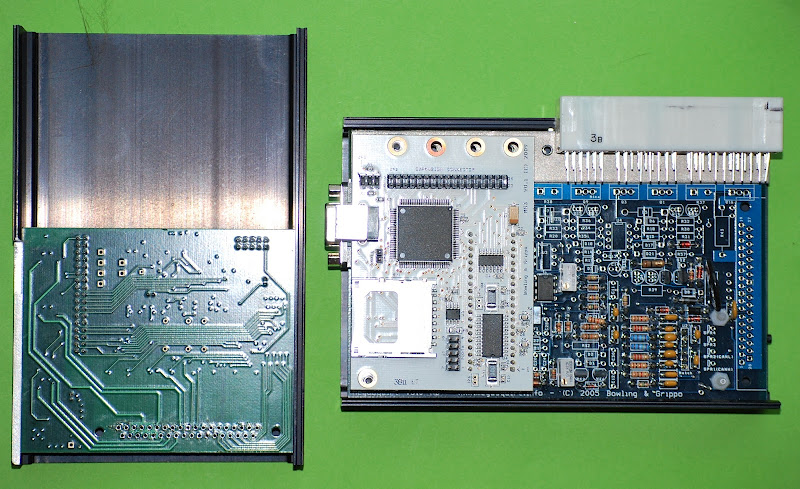

In a similar way as I did the MS2 99-00 and the MS3 99-00 PnP build, I'm in the process of building a MS3 01-05 PnP. Instructions here.

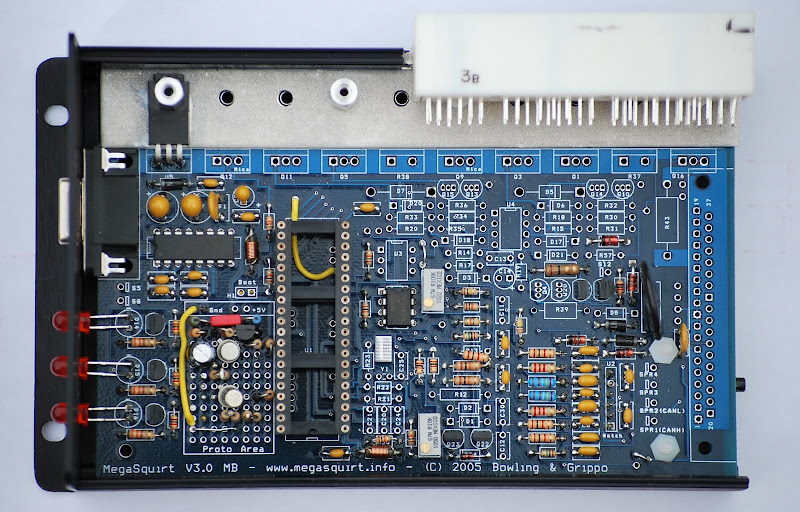

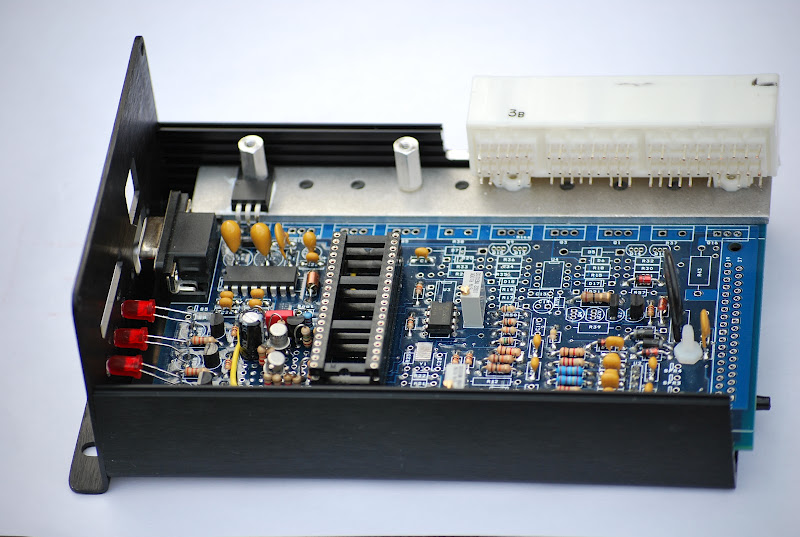

Not quite finished yet, but as you can see, there's no need to cut the MS3 card with the 01-05 connector .

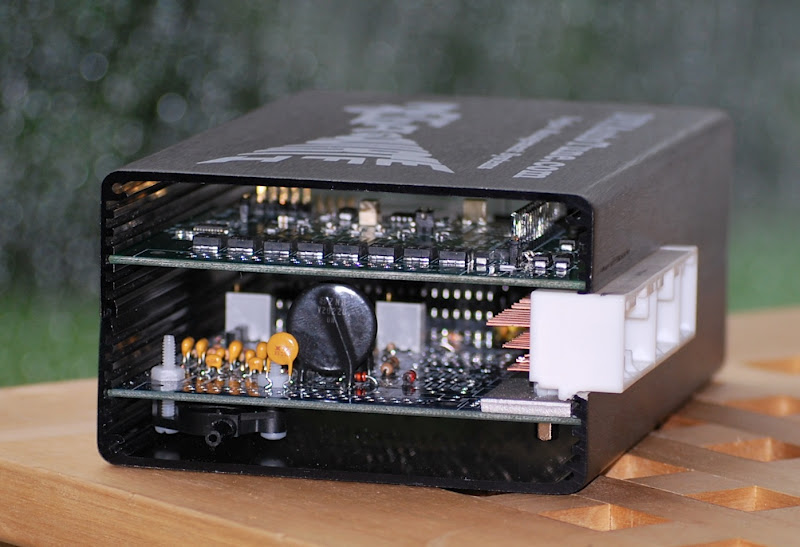

It might not look like it from the pictures, but the white connector sits flush with the side of the case and the endplate fits just fine.
Yes, there's a 22nF capacitor missing in the proto area.
Remarks or additions welcome.







Attached Thumbnails
PnP 01-05 MS3 + MS3X-2012-07-09%25252019.13.10.jpg   PnP 01-05 MS3 + MS3X-2012-07-09%25252019.14.25.jpg   PnP 01-05 MS3 + MS3X-2012-07-08%25252009.58.45.jpg   PnP 01-05 MS3 + MS3X-2012-07-08%25252010.08.58.jpg
WestfieldMX5 is offline   Reply With Quote
Old 07-10-2012, 09:42 AM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Looks good.
Ben is offline   Reply With Quote
Old 07-10-2012, 10:01 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

needs more this:

Braineack is offline   Reply With Quote
Old 07-10-2012, 11:01 AM   #4
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

@Frank - wow, nice work!

@theBrain - wow, nice work!

Zaphod is offline   Reply With Quote
Old 07-10-2012, 02:15 PM   #5
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

If you had made it to slide into the case, I would be all over it. Saboteur (Tim), did a similar design a couple of months ago. I suggested making it to the size of the case and laying the capacitor down. A trimmer instead of the 48K7 resistor would be nice as well. Unfortunately he went nowhere with the design.
Maybe you could in a next batch?
Btw, what's Q1 for?
WestfieldMX5 is offline   Reply With Quote
Old 07-10-2012, 02:19 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

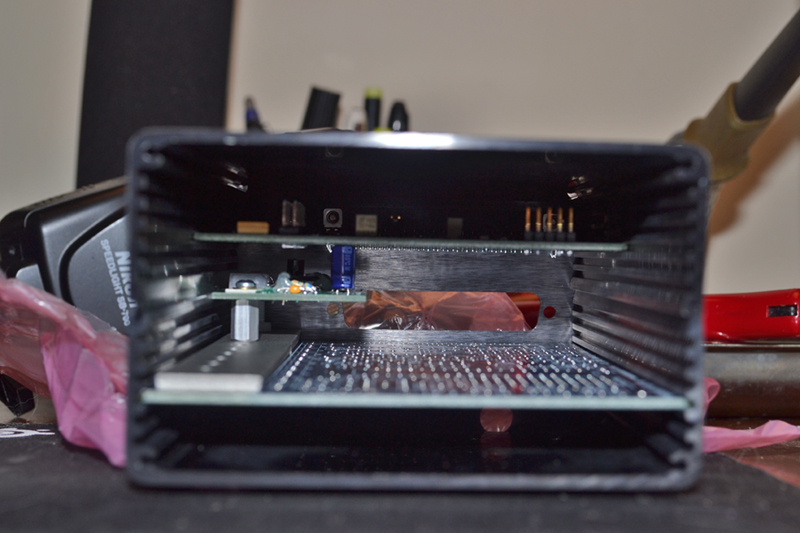

you can mount it to the heat sink (when not occupying the spare with a connector) or above the MAP sensor. That's what the two little holes labeled heatsink and diypnp are for, you'd drill out the one you need, I was afraid that the design would get rejected if the drill holes overlapped. But I screwed up the measurements anyways...but all you need is to mount it with one post on the heatsink through the tip125 hole. I have pics, just not uploaded.

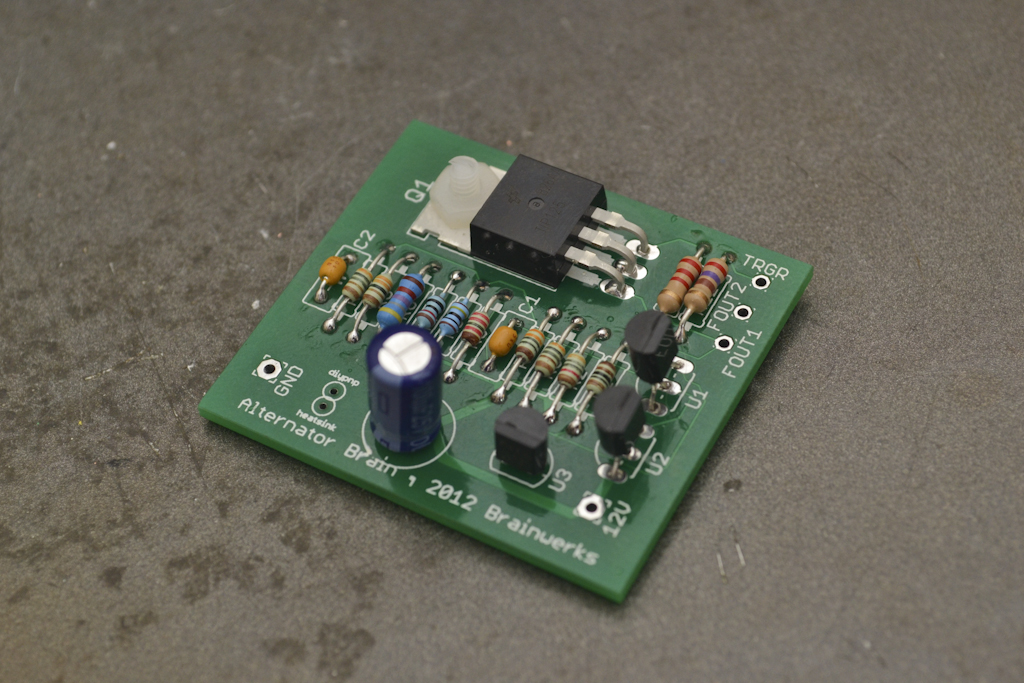

Q1 is a tip125, so that if you use a spare output on TRGR, you can set the RPM point in the which the field out is activated (fout2). A lot of people say they have belt squeal on startup without it as the alternator is charging as you start the car. The stock ECU doesn't start charging until 300RPM. otherwise, you can just use fout1 like normal.
Attached Thumbnails
PnP 01-05 MS3 + MS3X-alt_cntrl_mounted.jpg

Last edited by Braineack; 07-10-2012 at 03:21 PM.
Braineack is offline   Reply With Quote
Old 07-10-2012, 02:48 PM   #7
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Brain: i told you the 01 conn was narrower. i think.
y8s is offline   Reply With Quote
Old 07-10-2012, 02:52 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yes, you did. as well as the 48 pin connector for the 90-95.
Braineack is offline   Reply With Quote
Old 07-10-2012, 03:07 PM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

It looks neat now that there are no cables inside.
Reverant is offline   Reply With Quote
Old 07-10-2012, 03:24 PM   #10
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

All of you who build these things for sale amaze me. You sell them for less than I would if I made one for someone. If the finished product was for a BMW/Porsche it wouldn't be any harder to build and the price would be 8x as much, but the price you sell them for makes them available- which drives the growing knowledge base.


So, thanks.
3rdCarMX5 is offline   Reply With Quote
Old 02-04-2014, 07:31 PM   #11
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

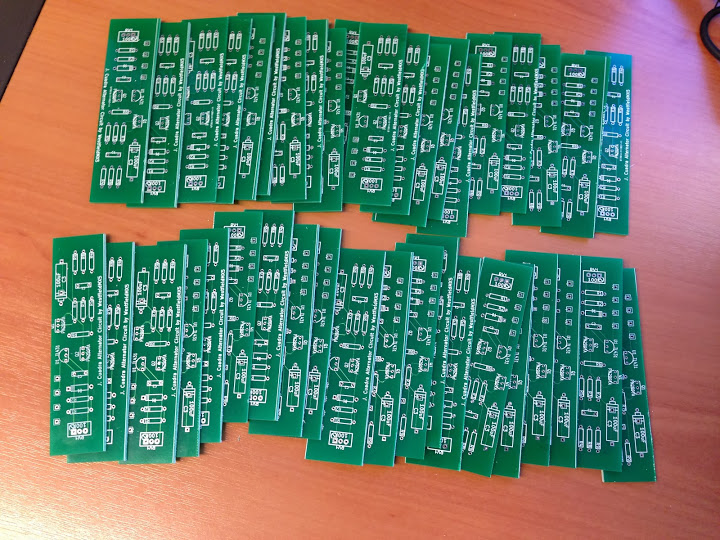

Well, it took me over a year to get started on it, but I did redesign the alternator board so it slides into the case

Attached Thumbnails
PnP 01-05 MS3 + MS3X-2014-01-31%25252009.21.02.jpg
WestfieldMX5 is offline   Reply With Quote
