I know there are many proven methods for the CLT for megasquirt, but I thought this might work...

http://trailtech.net/vapor_vector_te...e_sensors.html

One of my (many) projects is converting my 1978 Kawasaki KZ650 into a mild streetfighter, and I'm thinking about using this "vapor" system to replace the gauge cluster....they have a bunch of different sensors/adapters for bikes and ATVs...maybe some of it might work w/ the miatas


just a thought...
Miata-MS is offline   Reply With Quote
Old 10-28-2007, 12:29 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

perfect for the heater core lines.
Braineack is offline   Reply With Quote
Old 10-29-2007, 11:28 AM   #3
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Where was this a month ago, damn
richard_ha is offline   Reply With Quote
Old 03-19-2008, 08:30 PM   #4
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

sorry to revive this thread it seems like the best place to ask these questions.

1) Does anyone know what threads are on the water port on the side of the block (next to the oil port)? I think they are m10x1.5 like the oil port.

2) Is there any reason nobody has put a coolant sensor in that location?

It seems like it would be pretty easy to make any adapter to plug their M6 probe into the side of the block for my MS CLT. I still haven't had any luck getting good readings from the stock sensor on the MS and it's gotten to the point where I have to come up with a more permanent solution than the ghetto one I have.
Arkmage is offline   Reply With Quote
Old 03-19-2008, 09:20 PM   #5
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

What kinda problem are you having dude? Does your temp still peg out at 215? Getting a very large differential between AIT and CLT?
Saml01 is offline   Reply With Quote
Old 03-19-2008, 11:05 PM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by Braineack View Post
perfect for the heater core lines.
No joke. Much better than the relatively huge blob of brass I built from standard fittings that I could not fit it at the heater core hoses. This is much more compact. I'm thinking about this one. I would have to figure out though if the sending element will work with my existing dash mount coolant gauge.
ZX-Tex is offline   Reply With Quote
Old 03-19-2008, 11:14 PM   #7
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

yup... it reads damn near perfect at lower temps, but once it get's over 50*F the differential get's bigger and bigger. when the gauge reads 180* (autometer) the MS has been pegged at 215* for a while.
Arkmage is offline   Reply With Quote
Old 03-20-2008, 12:18 AM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Made from a piece of scrap aluminum, a saw, and a drill press. (this was before I had the lathe)





Joe Perez is offline   Reply With Quote
Old 03-20-2008, 11:09 AM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Arkmage View Post
yup... it reads damn near perfect at lower temps, but once it get's over 50*F the differential get's bigger and bigger. when the gauge reads 180* (autometer) the MS has been pegged at 215* for a while.
Thats really weird dude.

I don't know what "actual" temp mine pegs at. I just know the car runs fine. But now you got me curious as well.

Heres a question, at what temperature does the stock temp gauge start to rise?

If I had some way of using my GM CLT, I would use that instead of the factory sender.

Btw, which of the two senders on the back of the head is the MS using, the one with two wires in it at the neck or 1 wire in it just below it?
Saml01 is offline   Reply With Quote
Old 03-20-2008, 12:47 PM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The single wire sensor should be for the gauge i think, the other is for the ECU. I don't know though, seems right. Most gauges use single wire sensors.
cjernigan is offline   Reply With Quote
Old 03-20-2008, 02:48 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by cjernigan View Post
The single wire sensor should be for the gauge i think, the other is for the ECU. I don't know though, seems right.
That's correct.

On a 1.6, The blue/white wire is the signal line (from the ECU) and the black/green wire is a dedicated ground which goes to ground point JC-02, which is under the dash on the passenger's side. Seems like a hell of an odd thing to do...

On a 1.8 NA, the ground is a black/blue wire, which returns to the ECU as opposed to an external ground point. The NB's use red/blue for the signal wire, and black/red for the ground, which goes back to the ECU.
Joe Perez is offline   Reply With Quote
Old 03-20-2008, 03:51 PM   #12
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Thats really weird dude.

I don't know what "actual" temp mine pegs at. I just know the car runs fine. But now you got me curious as well.

Heres a question, at what temperature does the stock temp gauge start to rise?

If I had some way of using my GM CLT, I would use that instead of the factory sender.

Btw, which of the two senders on the back of the head is the MS using, the one with two wires in it at the neck or 1 wire in it just below it?
stock gauge doesn't do ****... I disconnected it because I was tired of having a dummy light.

The autometer starts moving at around 150 and sits pretty a hair over 180 (thermostat temp).

I need to figure out this issue though because I need to plumb the fans to the MS soon before summer to take advantage of the lower TS.
Arkmage is offline   Reply With Quote
Old 03-20-2008, 04:03 PM   #13
Junior Member

Join Date: Oct 2004
Location: Leicestershire, UK
Posts: 57
Total Cats: 0
Default

Quote:
Originally Posted by Arkmage View Post
sorry to revive this thread it seems like the best place to ask these questions.

1) Does anyone know what threads are on the water port on the side of the block (next to the oil port)? I think they are m10x1.5 like the oil port.

2) Is there any reason nobody has put a coolant sensor in that location?

It seems like it would be pretty easy to make any adapter to plug their M6 probe into the side of the block for my MS CLT. I still haven't had any luck getting good readings from the stock sensor on the MS and it's gotten to the point where I have to come up with a more permanent solution than the ghetto one I have.
Certainly interesting idea.

I'll have a look on my spare engine to see if there's enough room to put a CLT sensor in without fouling on anything down there
lwindridge is offline   Reply With Quote
Old 03-20-2008, 05:00 PM   #14
Junior Member

Join Date: Oct 2004
Location: Leicestershire, UK
Posts: 57
Total Cats: 0
Default

Just been out and checked and it's an M12x1.25 thread and the holes about an inch deep.

If you can get something to fit it then it's a definite possibility to put a CLT in there I think - just needs to be shielded from the turbo manifold a bit but other than that should be ok I'd think
lwindridge is offline   Reply With Quote
Old 03-20-2008, 06:05 PM   #15
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

thanks for checking that... my spare block is from a '97 so it doesn't have the port on it to check.

I think I'll order their M6 sensor and once it shows up I'll measure it to determine the height of the M12 to M6 adapter.
Arkmage is offline   Reply With Quote
Old 04-14-2008, 09:35 PM   #16
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

So, A brief update... I ordered one of those sensors like I said. They supplied me with a temp/resistance table, and dimensions upon request. They did request that I not share the table on any forums as it is proprietary. Once I've got it up and running I will ask their permission to post 3 values best suited for easytherm instead of the whole table.

I'll edit this in a few minutes to include a model of the adapter I'll have made this week.

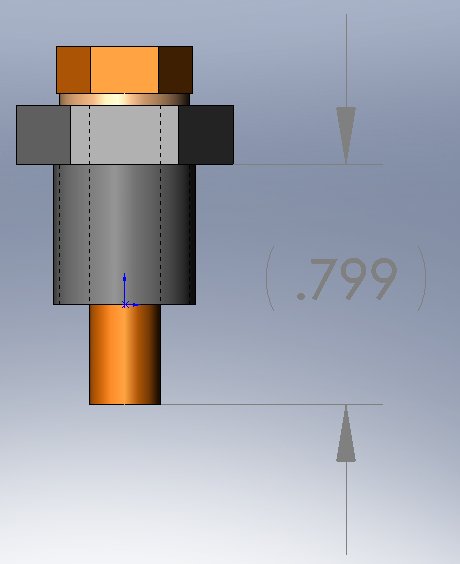

*edit* added image, once I test this out I might be able to offer these at a fair price for those interested.
